Three Phase LED Multifunctional Meter

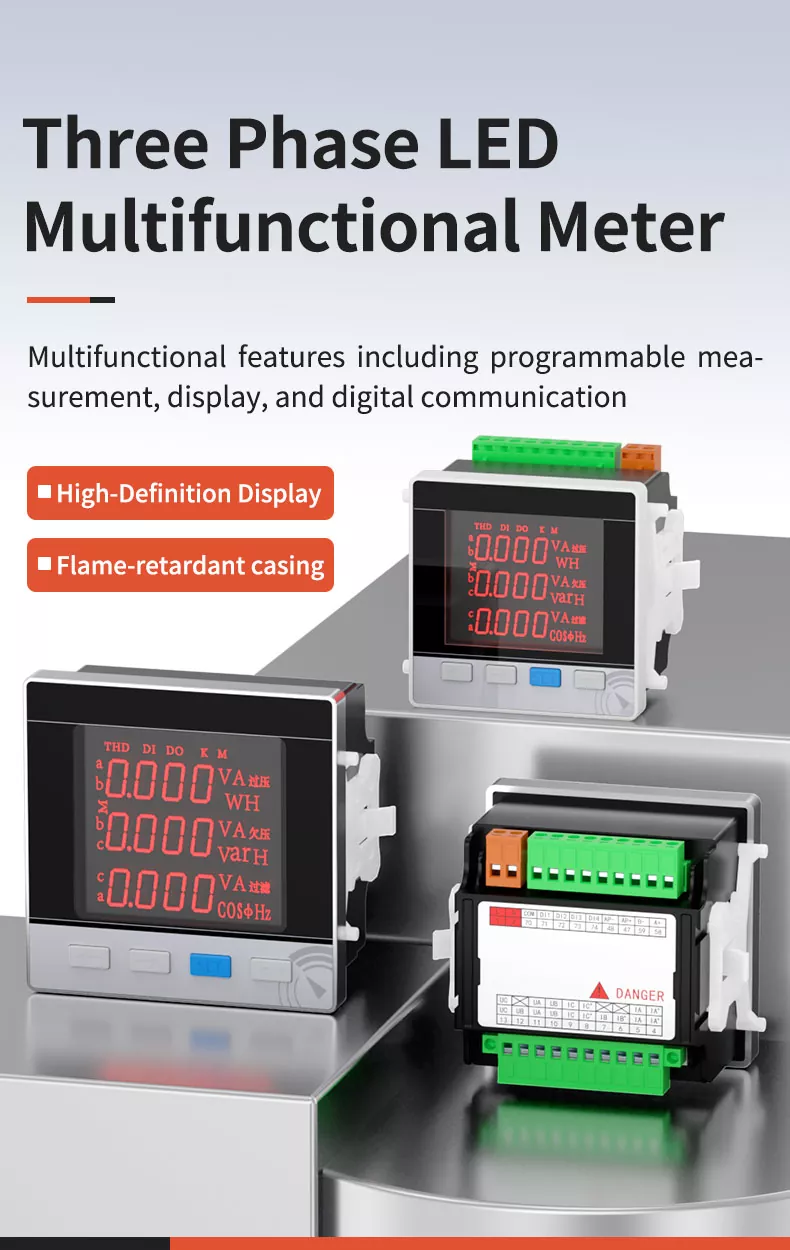

Our Three Phase LED Multifunctional Meter is a high-performance intelligent monitoring solution from Eton, designed for modern three-phase power systems. As a reliable industrial power meter and electrical measuring device, it integrates programmable measurement, real-time LED display, and digital communication functions, enabling full monitoring of voltage, current, power, energy, frequency, and power factor.

Built with imported high-quality chips and advanced integrated welding technology, the Eton three-phase multifunctional meter delivers 0.5-level high accuracy and stable long-term operation. Its flame-retardant ABS housing is durable, shock-resistant, and corrosion-resistant, making it ideal for demanding industrial environments.

Widely used in industrial automation, power distribution cabinets, and energy management systems, this three-phase LED meter is a preferred choice for wholesale buyers, distributors, and project procurement, providing reliable and precise power parameter monitoring for various electrical applications.

COMPANY INTRODUCTION

We are committed to delivering comprehensive solutions for industrial automation control, meeting the full demands of power systems with precise, reliable, energy-efficient, and eco-friendly intelligent power distribution products. From R&D to production, we implement strict quality control to ensure all products comply with international standards, aiming to become a trusted global partner in the electrical measurement equipment industry.

NEW QUALITY UPGRADE & MORE DURABLE

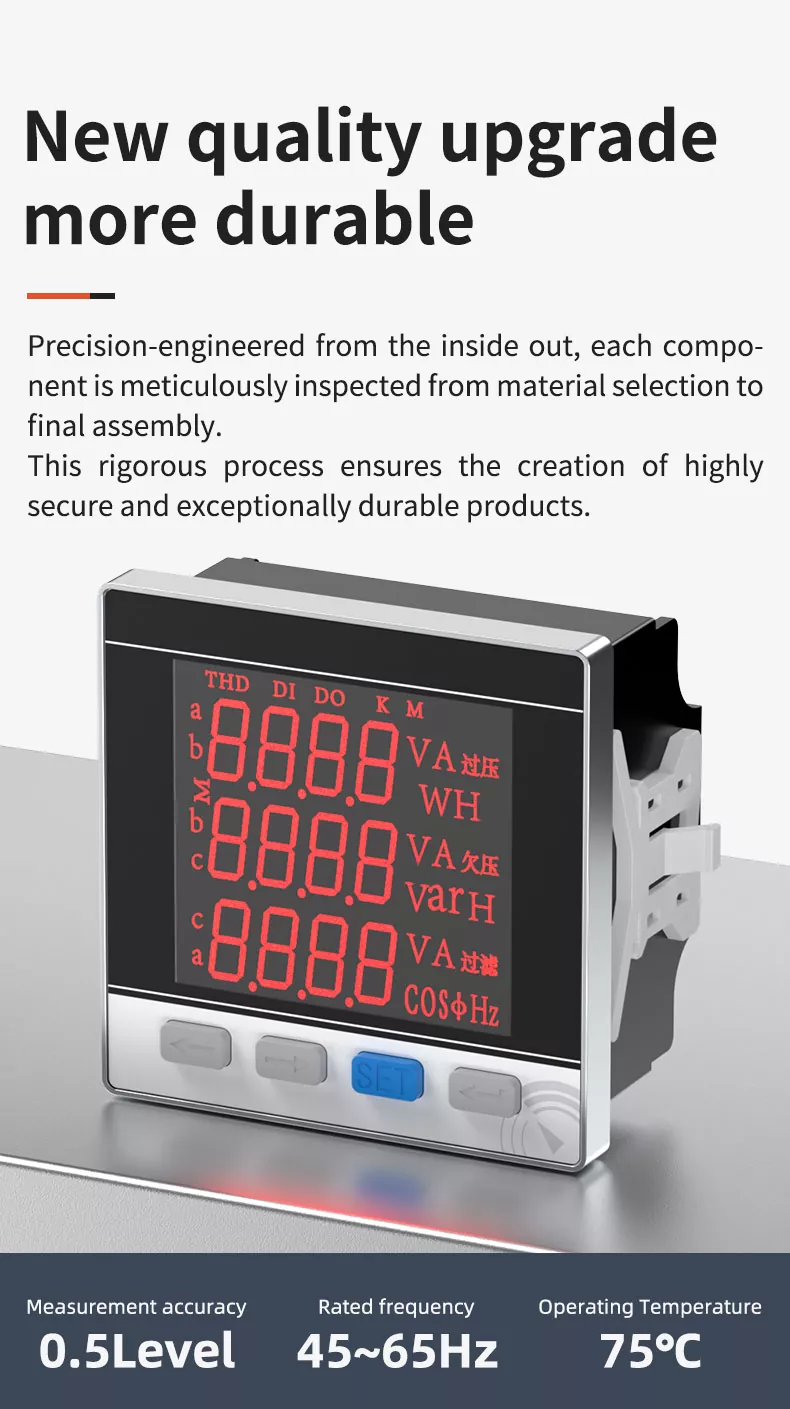

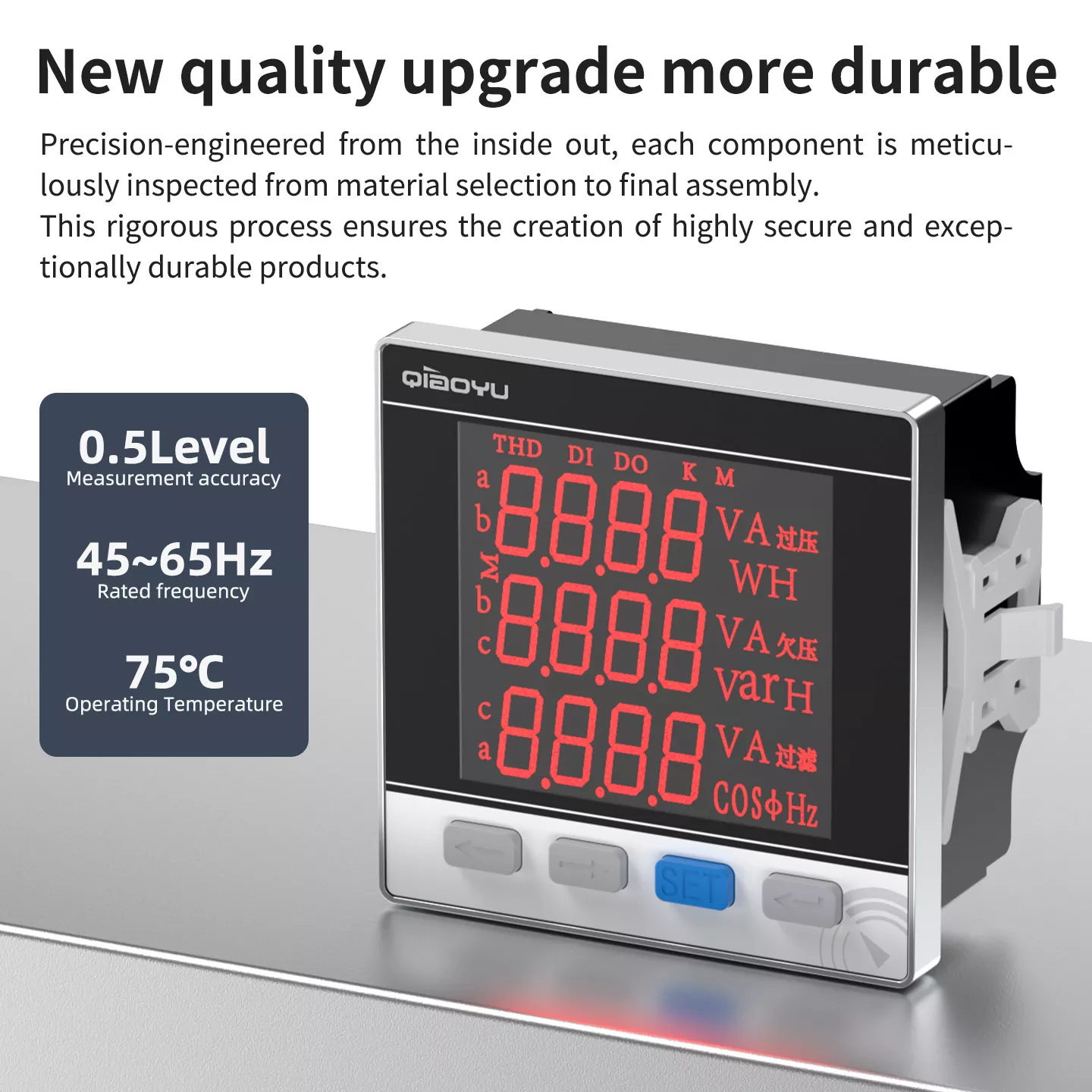

Our three-phase LED multifunctional meter has undergone a full quality upgrade. Precision-engineered from the inside out, each component is meticulously inspected from material selection to final assembly. We utilize imported high-quality chips and integrated welding technology to ensure accurate metering and stable performance. The shell is made of high-strength flame-retardant ABS material, which is anti-aging, corrosion-resistant, shockproof, and flame-retardant. Each product undergoes strict aging test, accuracy calibration and withstand voltage test before leaving the factory. It can operate stably for a long time in harsh industrial environments, with stronger safety performance and longer service life.

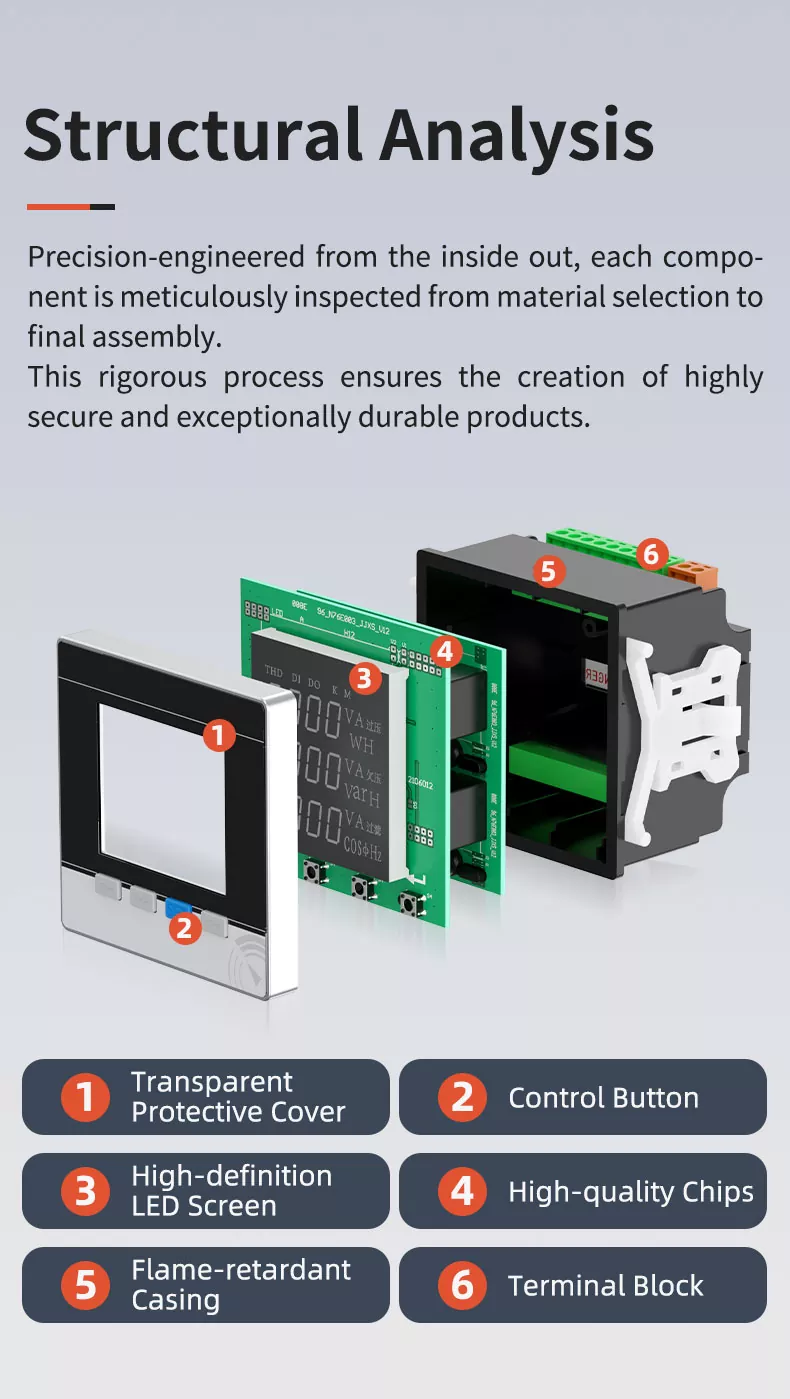

STRUCTURAL ANALYSIS

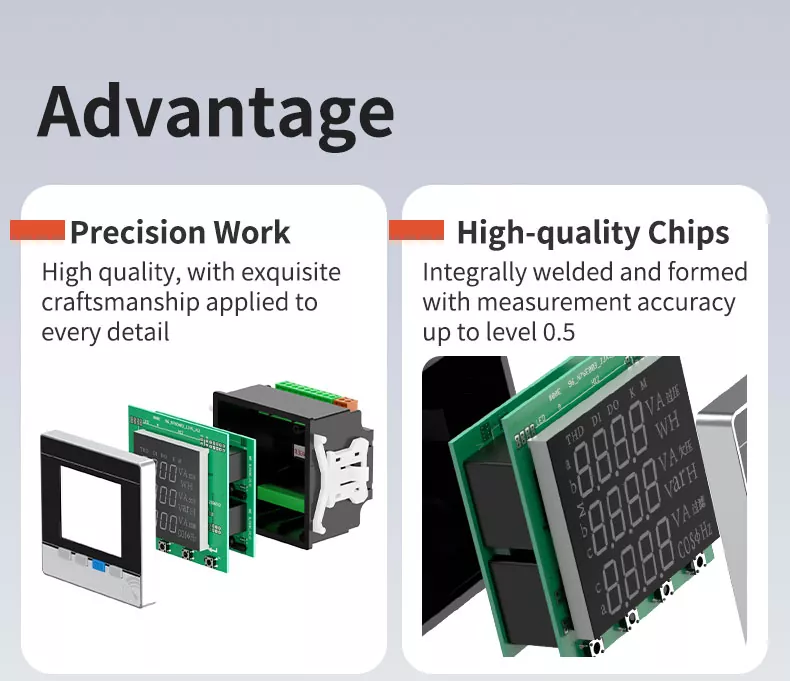

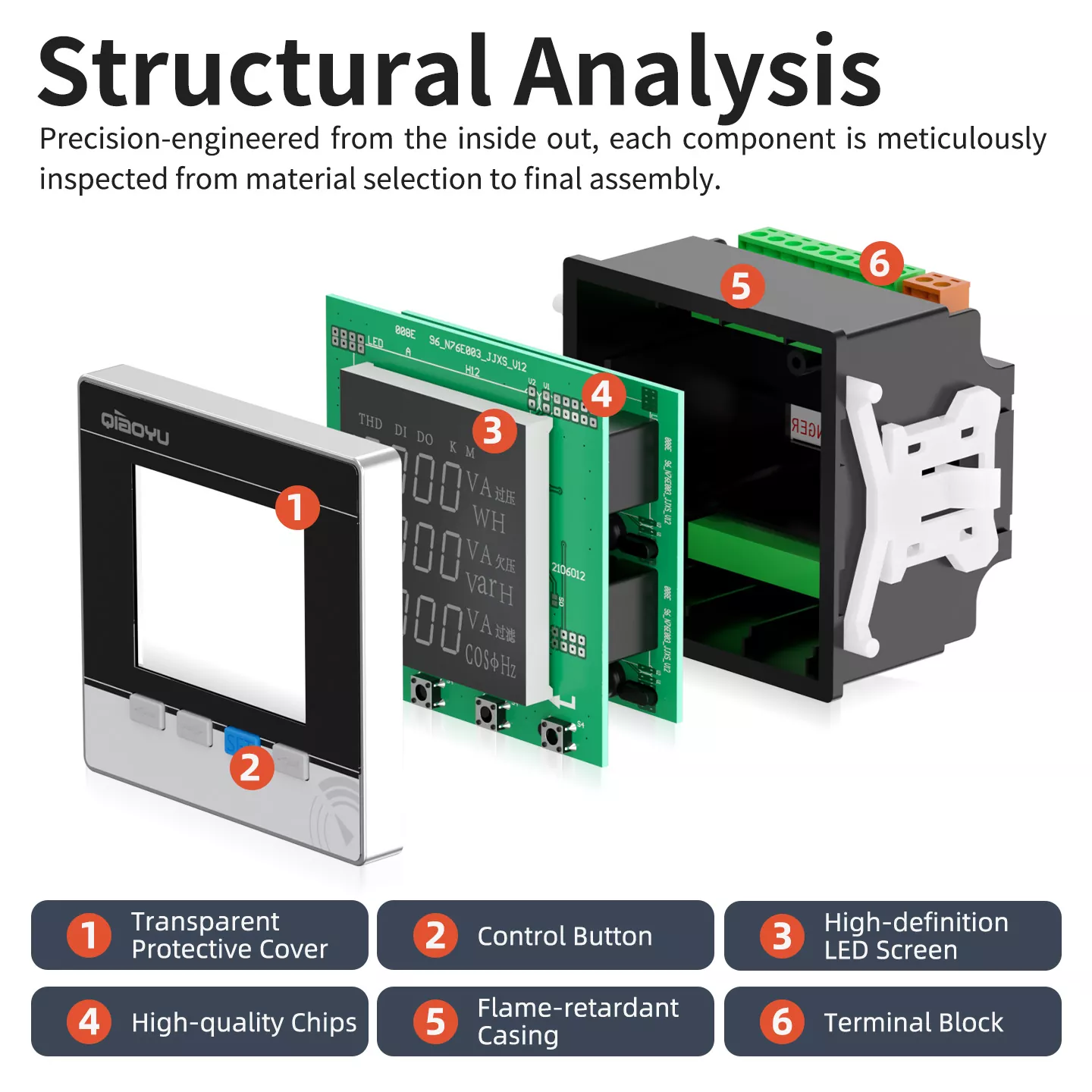

The meter adopts a compact and scientific structure, including 6 core components:

1. TRANSPARENT PROTECTIVE COVER: Shields the display from dust and physical damage, ensuring long-term clarity.

2. CONTROL BUTTON: Sensitive and responsive, supporting parameter setting, data query, and menu navigation.

3. HIGH-DEFINITION LED SCREEN: Large red character display, clear data visualization, strong anti-interference capability.

4. HIGH-QUALITY CHIPS: Imported chips with integrated welding, ensuring 0.5-level measurement accuracy and stable performance.

5. FLAME-RETARDANT CASING: High-strength engineering plastic, anti-aging, corrosion-resistant, providing reliable safety protection.

6. TERMINAL BLOCK: High-conductivity material, firm installation, simple wiring, with strong overload resistance and wear resistance.

HIGH-DEFINITION LED DISPLAY

Our meter is equipped with a high-definition LED screen with large red character display. The data is clear at a glance, enabling easy reading in various installation angles. The instrument has strong anti-interference capability and high-precision stable measurement, ensuring accurate and reliable power parameter monitoring even in complex industrial environments.

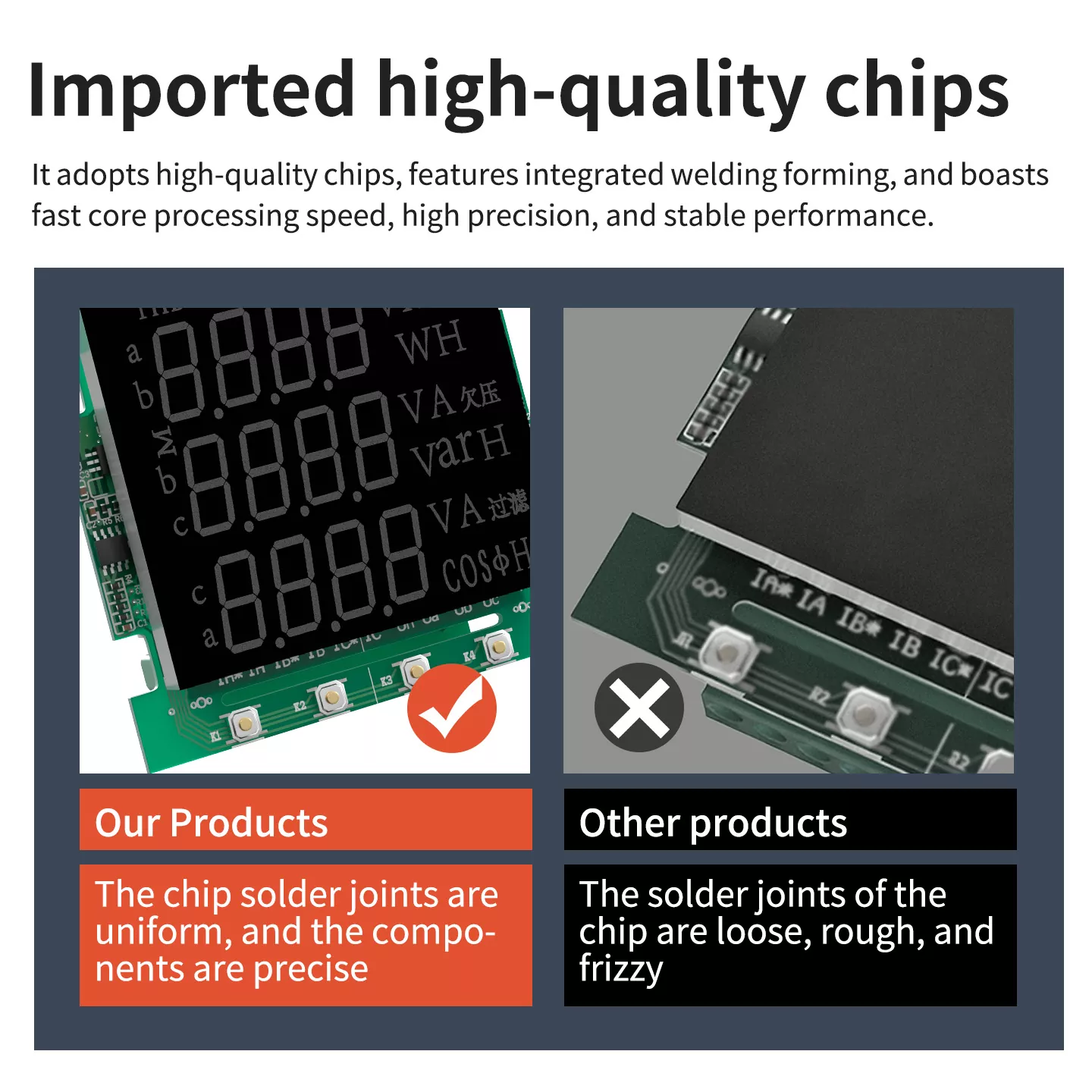

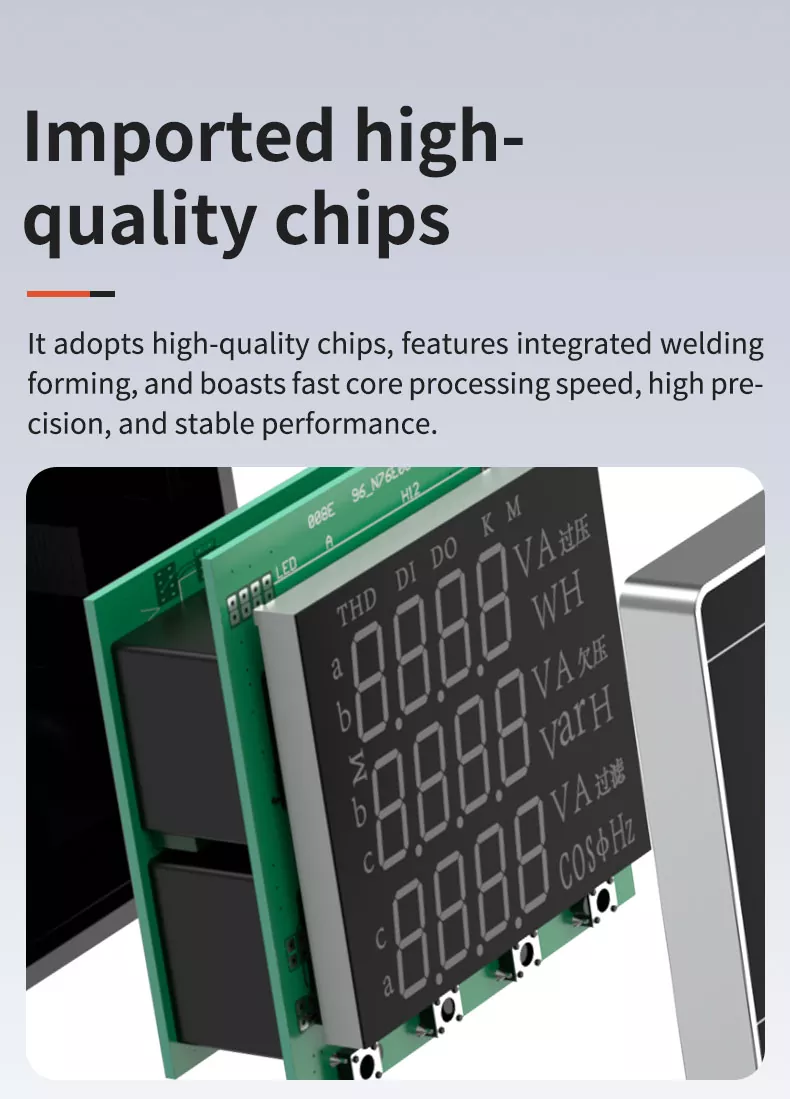

IMPORTED HIGH-QUALITY CHIPS

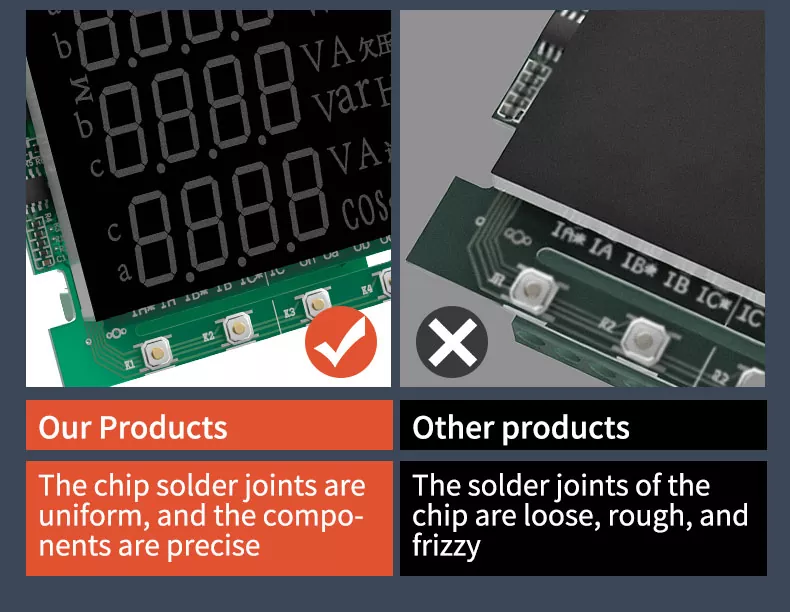

Using imported high-quality chips and integrated welding technology, it ensures fast core processing speed, high precision, and stable performance. The measurement accuracy reaches 0.5 level, meeting international industrial measurement standards. Compared with other products, our chip solder joints are uniform and precise, avoiding loose, rough, and frizzy connections, ensuring long-term stable operation of the meter.

OUR PRODUCTS VS. OTHER PRODUCTS

CORE ADVANTAGE

HIGH PRECISION: 0.5-level measurement accuracy, ensuring accurate monitoring of comprehensive power parameters.

FLAME-RETARDANT CASING: High-strength ABS material, effectively preventing fires caused by short circuits and overloads.

EASY INSTALLATION: Snap-on mounting, multiple panel size options, simple wiring, quick deployment.

STABLE PERFORMANCE: Imported high-quality chips, integrated welding, strong anti-interference capability, suitable for harsh environments.

FOUR CORE SELLING POINTS

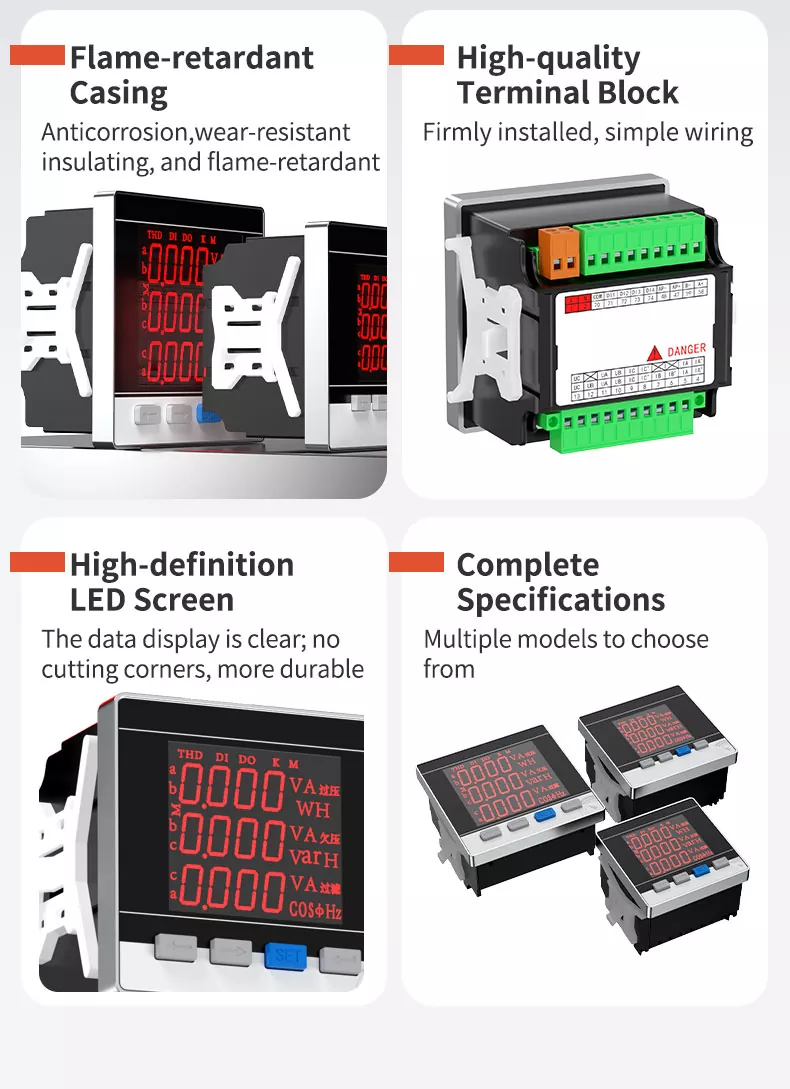

• FLAME-RETARDANT CASING: Anticorrosion, wear-resistant, insulating, and flame-retardant, ensuring long-term safe use.

• HIGH-QUALITY TERMINAL BLOCK: Firmly installed, simple wiring, good conductivity, high wear resistance, ensuring safe current transmission.

• HIGH-DEFINITION LED SCREEN: Clear data display, large characters, no cutting corners, more durable, easy to read.

• COMPLETE SPECIFICATIONS: Multiple panel size options (72×72mm / 80×80mm / 96×96mm), meeting the needs of different working conditions.

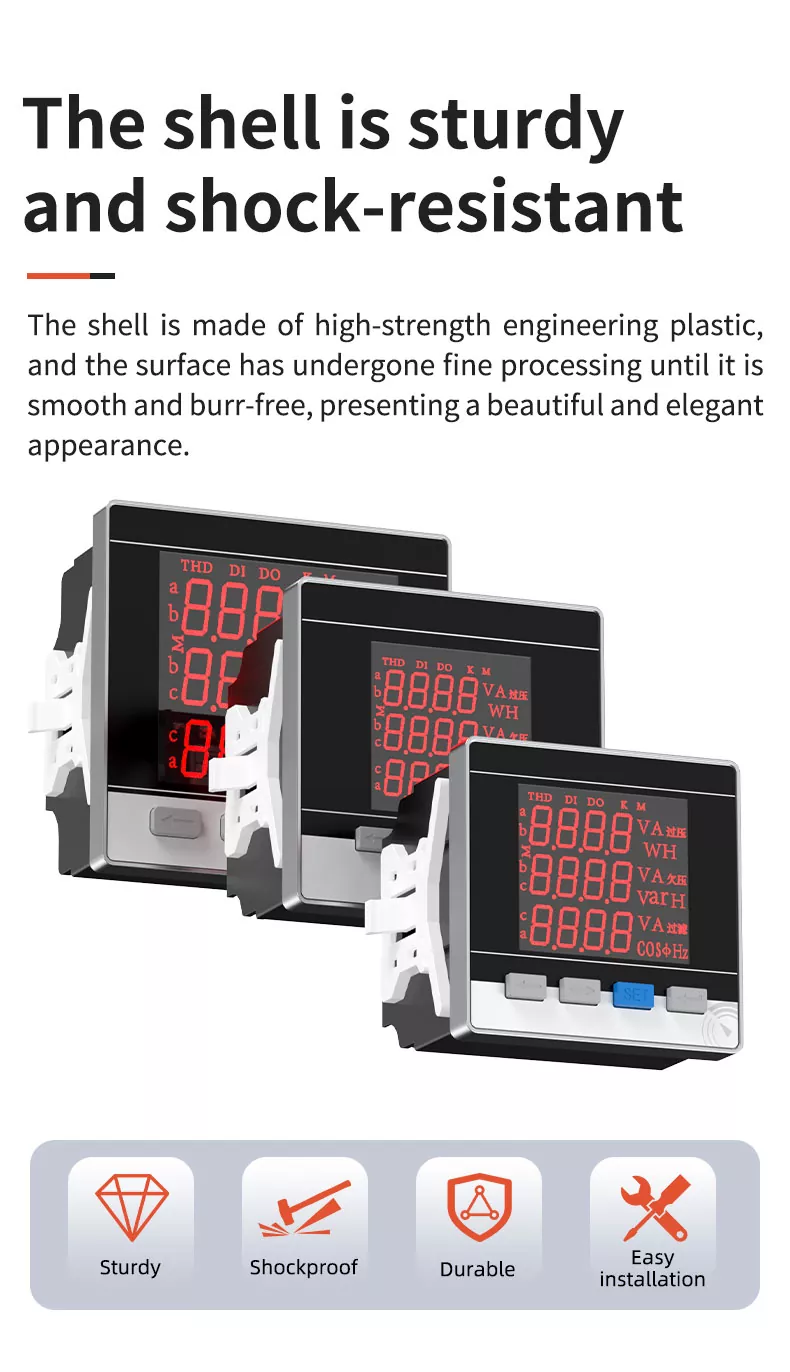

THE SHELL IS STURDY AND SHOCK-RESISTANT

The shell is made of high-strength engineering plastic, and the surface has undergone fine processing until it is smooth and burr-free, presenting a beautiful and elegant appearance. It has excellent shock resistance and compression resistance, can resist daily collision and mechanical vibration, and will not deform or damage. The material is anti-corrosion and anti-aging, suitable for long-term stable use in various complex industrial environments, with an operating temperature range of -20~70°C.

FLAME RETARDANT ABS MATERIAL

The shell adopts high-performance flame-retardant ABS engineering plastic with excellent flame-retardant and insulation properties. It can effectively inhibit combustion and prevent fires caused by high temperatures generated by instruments due to faults such as short circuits and overloads, thus better ensuring the overall safety of the power system. The material is also anti-corrosion and anti-aging, with a long service life.

HIGH-QUALITY TERMINAL BLOCK

Using high-quality terminal blocks, it not only ensures strong conductivity but also reduces losses. The wiring is simple, allowing for easy and quick installation. The terminal blocks are firmly installed, not easy to loose under long-term vibration, with good wear resistance and overload resistance, ensuring safe and reliable operation of the meter.

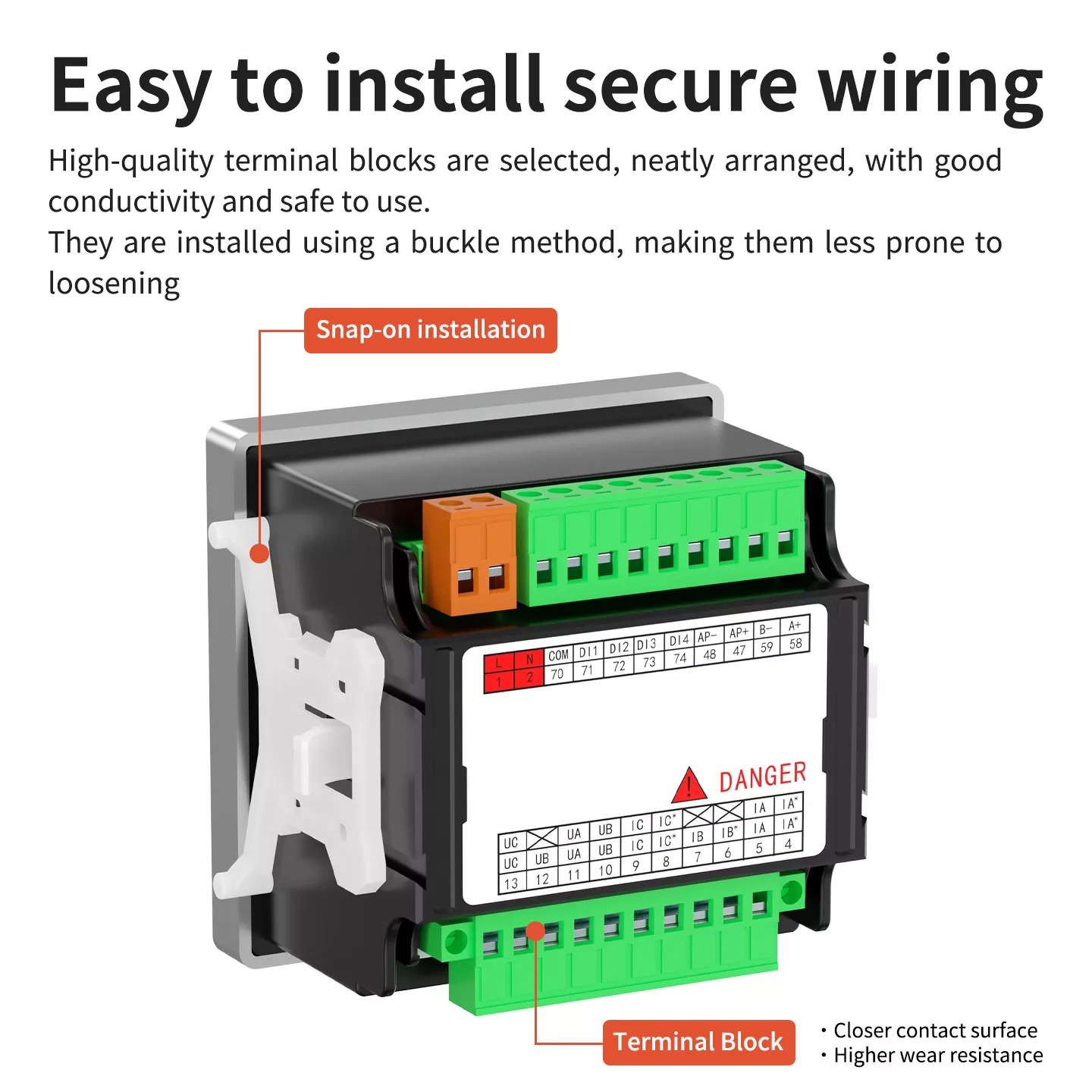

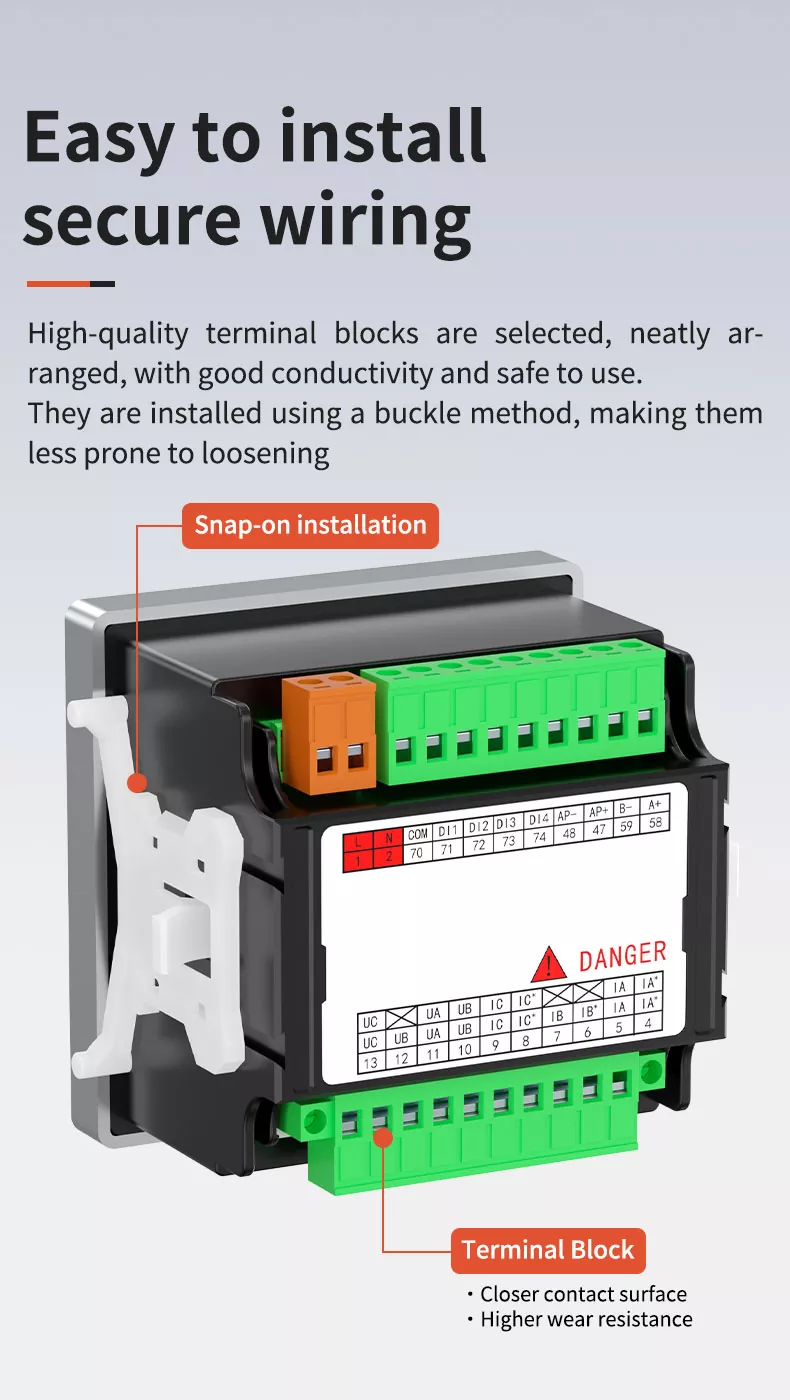

EASY TO INSTALL & SECURE WIRING

The meter adopts snap-on installation, which is simple and quick, no need for complicated tools. The high-quality terminal blocks are neatly arranged, with good conductivity and safe to use. The terminal layout is clear, with standardized marking, effectively avoiding wrong wiring. It is compatible with various distribution cabinets and electrical equipment, suitable for quick deployment in different scenarios.

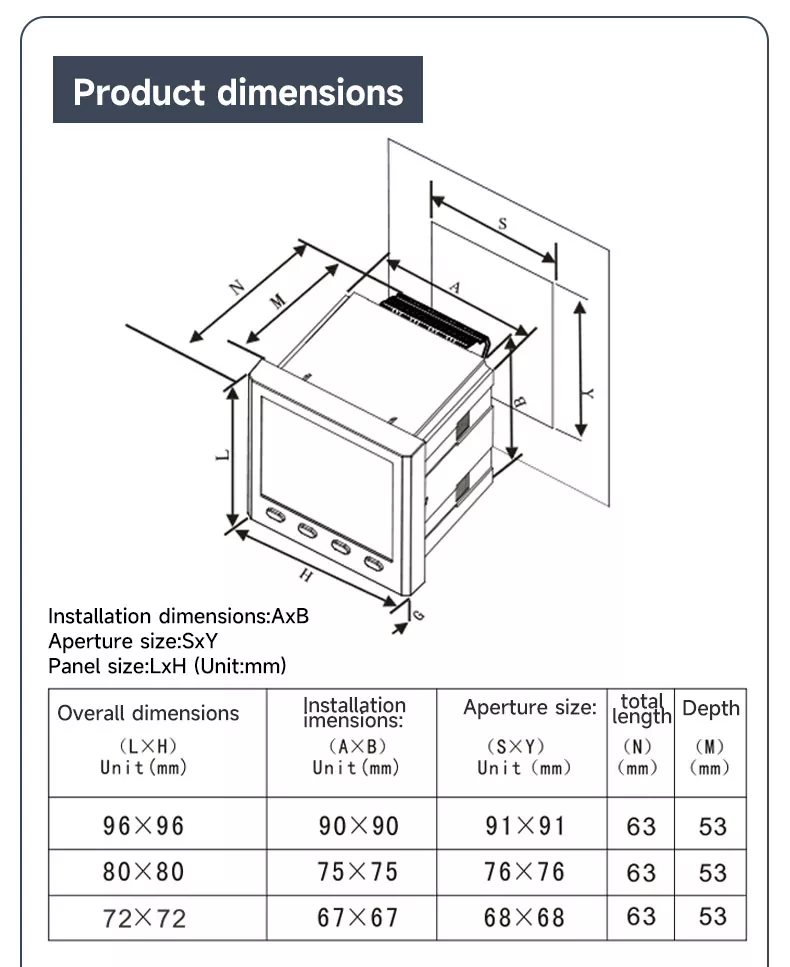

PRODUCT DIMENSIONS

IMAGE: 详情页图18 – PRODUCT DIMENSIONS TABLE

• 96×96mm panel, 91×91mm installation aperture

• 80×80mm panel, 76×76mm installation aperture

• 72×72mm panel, 68×68mm installation aperture

• Depth: 53mm

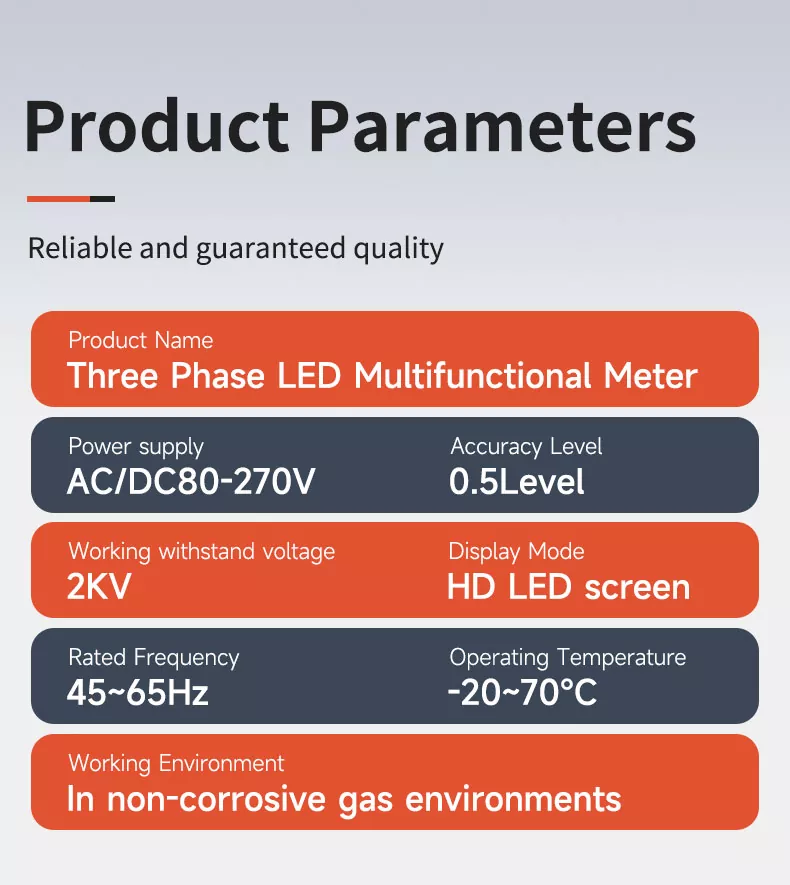

PRODUCT PARAMETERS

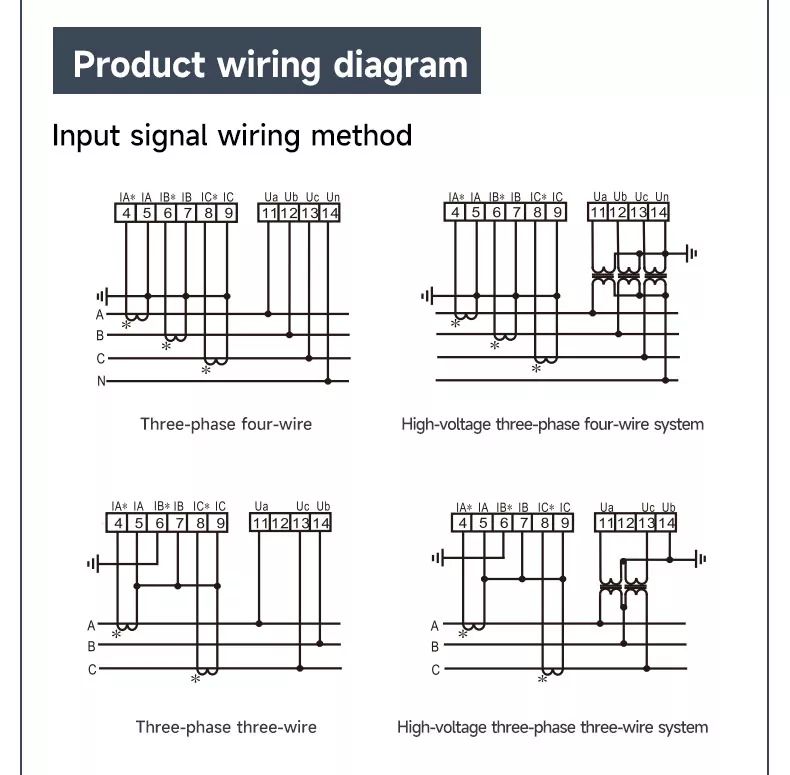

WIRING DIAGRAM & INSTRUCTIONS

Voltage input: Do not exceed rated voltage, use PT if necessary.

Current input: Standard 5A input, use external CT for higher current.

Phase sequence: Keep voltage and current phase consistent.

Support three-phase three-wire and three-phase four-wire system.

AUTHORITATIVE CERTIFICATION

Our three-phase LED multifunctional meter has passed professional laboratory testing and certification, in line with national and international industry standards. The whole production process implements strict quality control, including accuracy calibration, withstand voltage test, aging test and other links, ensuring the accuracy, safety and stability of each product.

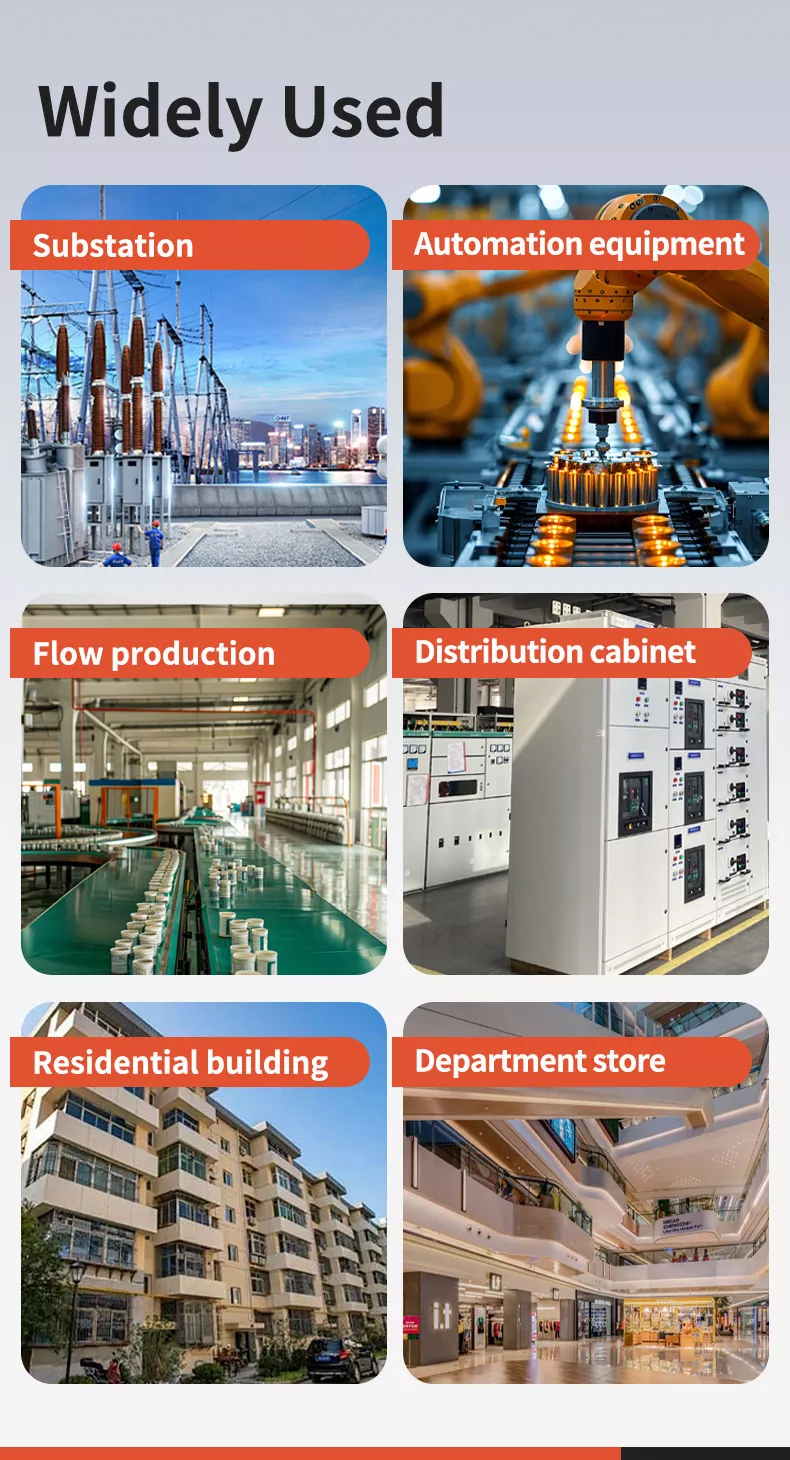

WIDELY USED

Our three-phase LED multifunctional meter is widely used in:

• SUBSTATION

• AUTOMATION EQUIPMENT

• FLOW PRODUCTION

• DISTRIBUTION CABINET

• RESIDENTIAL BUILDING

• DEPARTMENT STORE

FAQ

1.WHAT IS THE MAIN FUNCTION OF THIS PRODUCT?

It is mainly used for comprehensive monitoring of three-phase power parameters, including voltage, current, power, energy, frequency, and power factor.

2.WHAT IS THE MEASUREMENT ACCURACY?

It adopts 0.5-level high accuracy, which meets international industrial measurement standards.

3.WHAT PANEL SIZES ARE AVAILABLE?

72×72mm, 80×80mm, 96×96mm.

4.WHAT IS THE INSTALLATION METHOD?

Snap-on panel mounting, simple and fast.

5.DOES IT SUPPORT REMOTE COMMUNICATION?

Yes, it supports RS485 Modbus RTU.

6.WHAT IS THE OPERATING TEMPERATURE RANGE?

-20~70°C.
