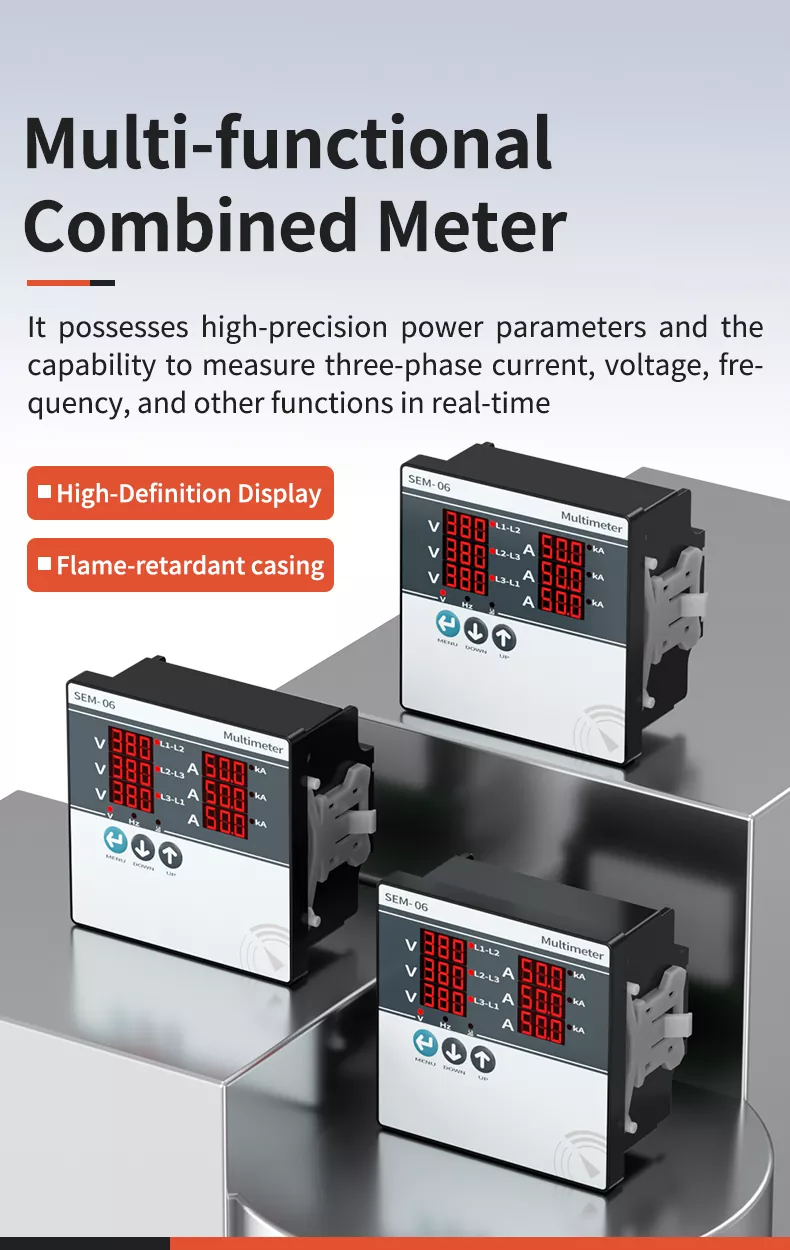

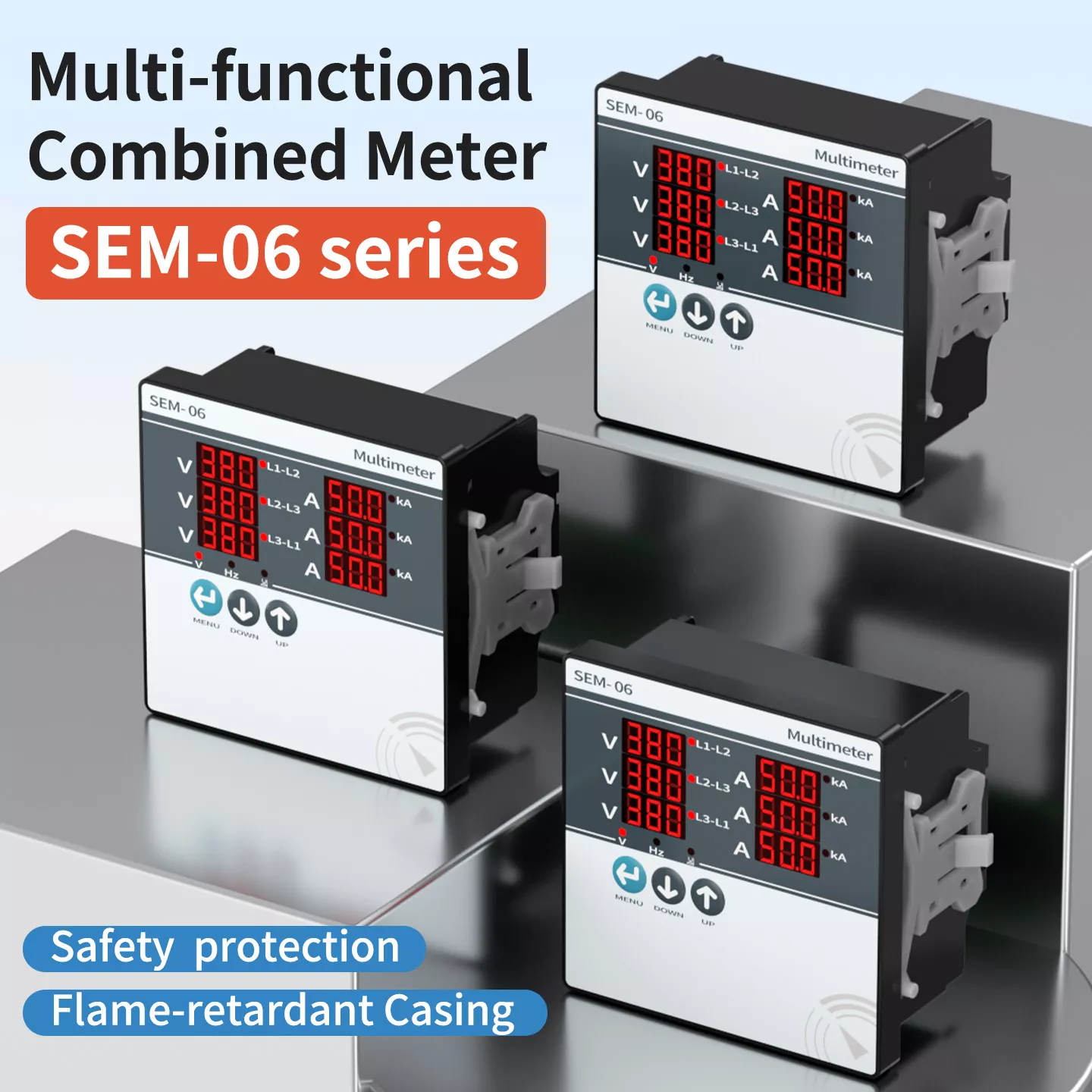

The SEM 06 Multifunctional Combined Meter by Eton is a professional-grade three-phase power monitoring instrument designed for real-time measurement and control in complex electrical systems. Integrating advanced SMT (Surface Mount Technology) chip technology and integrated circuits, it achieves 0.5-level high accuracy for real-time monitoring of three-phase voltage, three-phase current, and frequency values. With a high-definition LED large-screen display, intuitive control buttons, and a sturdy flame-retardant casing, it combines precision performance with operational simplicity. Its snap-on installation design and standardized dimensions make it a perfect fit for industrial automation, distribution cabinets, and power grid substation projects, providing stable and reliable data support for power system management.

Company Introduction

Committed to providing comprehensive services for industrial automation control. Satisfy the needs of all aspects of the power system with precise, reliable, energy-saving, and environmentally friendly intelligent power distribution products. We adhere to strict quality control from R&D to production, ensuring each product meets international standards, and strive to be a trusted partner for global customers in the power equipment industry.

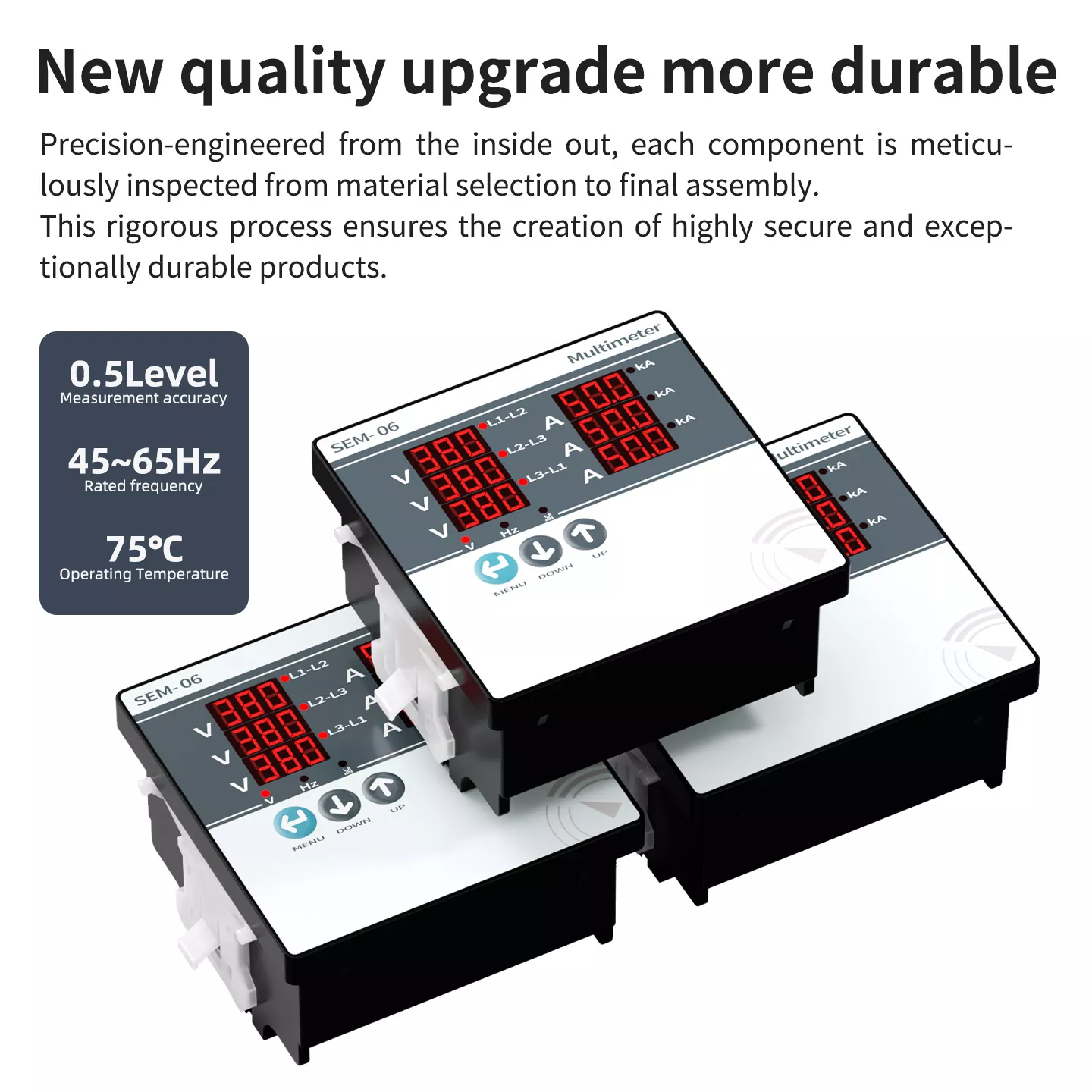

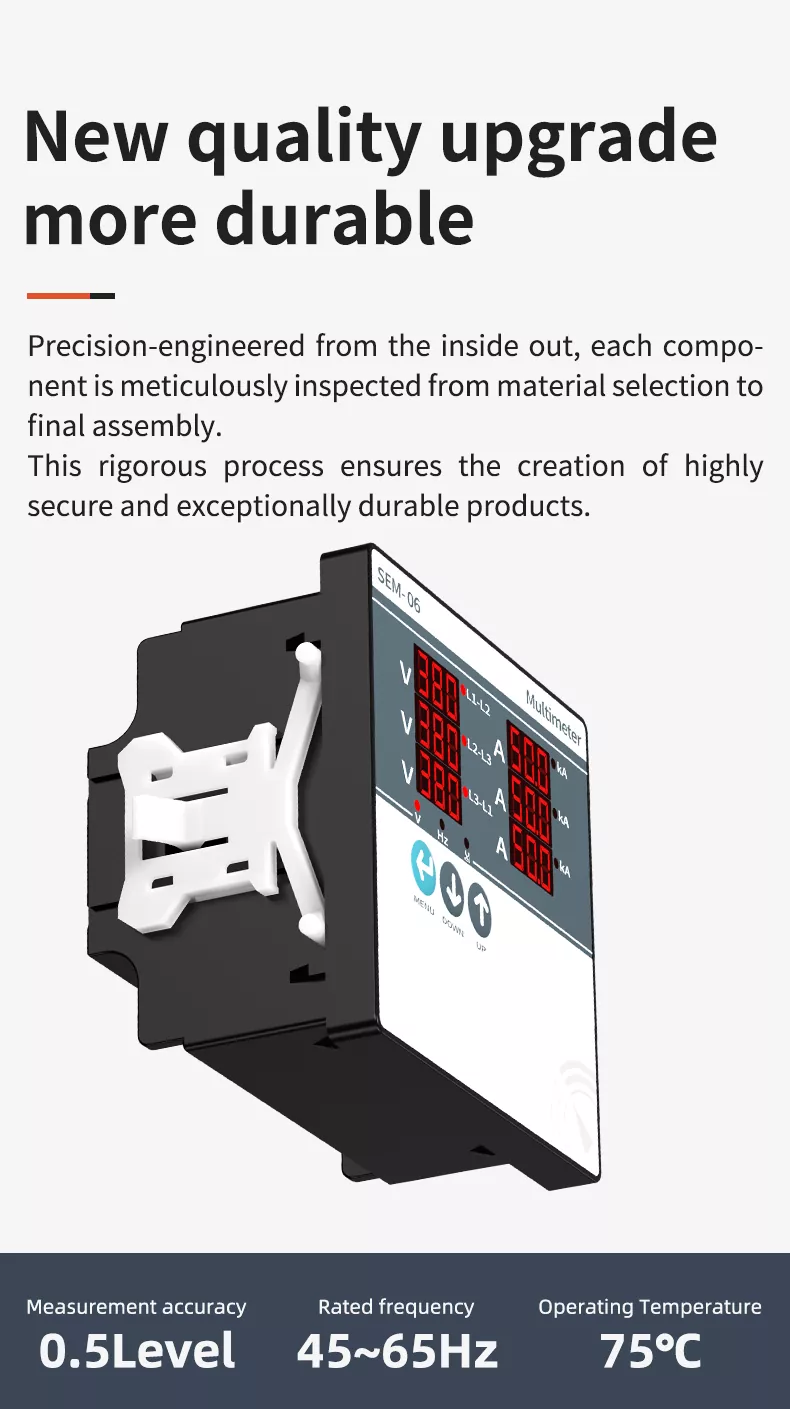

New Quality Upgrade & More Durable

Precision-engineered from the inside out, each component of the SEM 06 Multifunctional Combined Meter is meticulously inspected—from raw material selection and component processing to final assembly and aging testing. This rigorous production process eliminates potential quality risks, ensuring the product is highly secure, corrosion-resistant, and exceptionally durable. It can withstand long-term operation in harsh industrial environments, with a short-term operating temperature tolerance up to 75°C, fully meeting the durability requirements of bulk orders and long-term project applications.

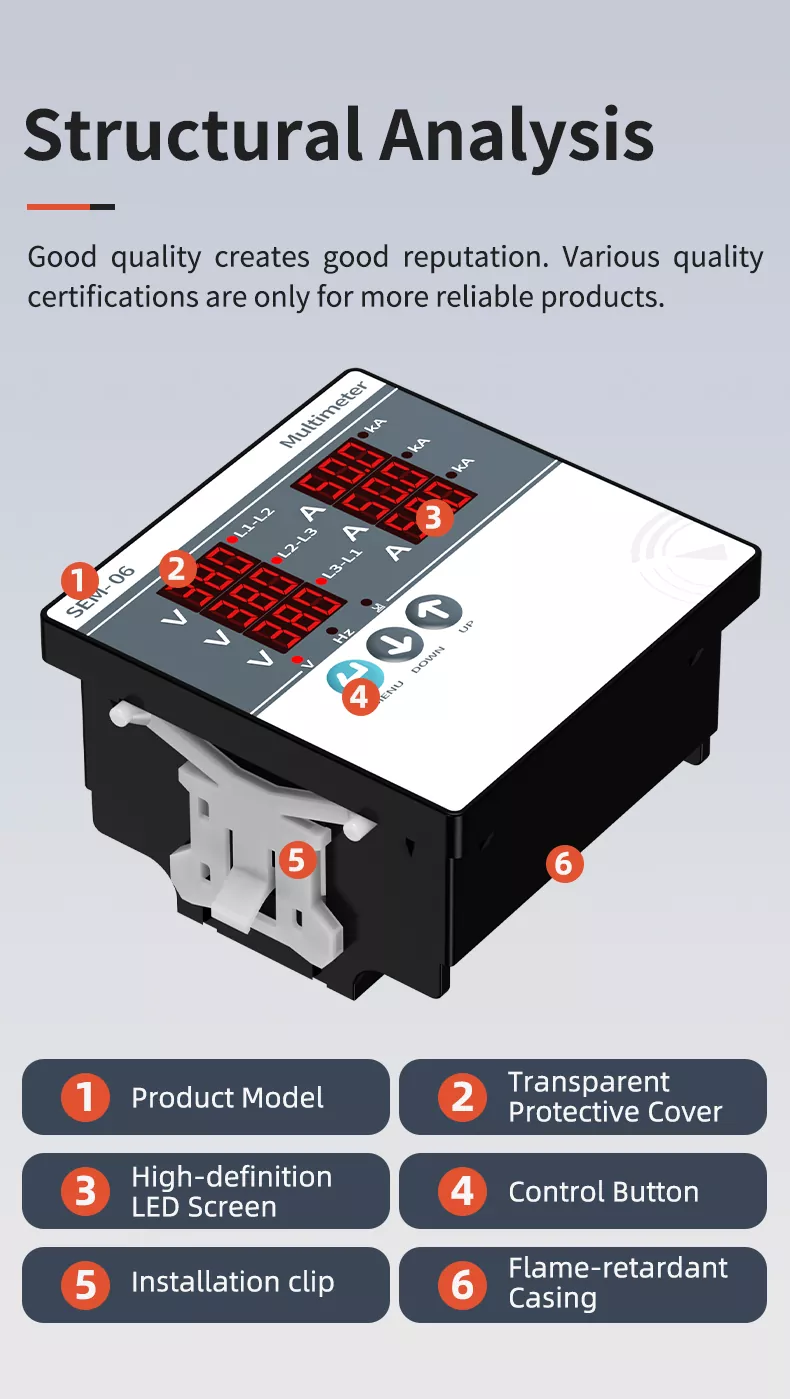

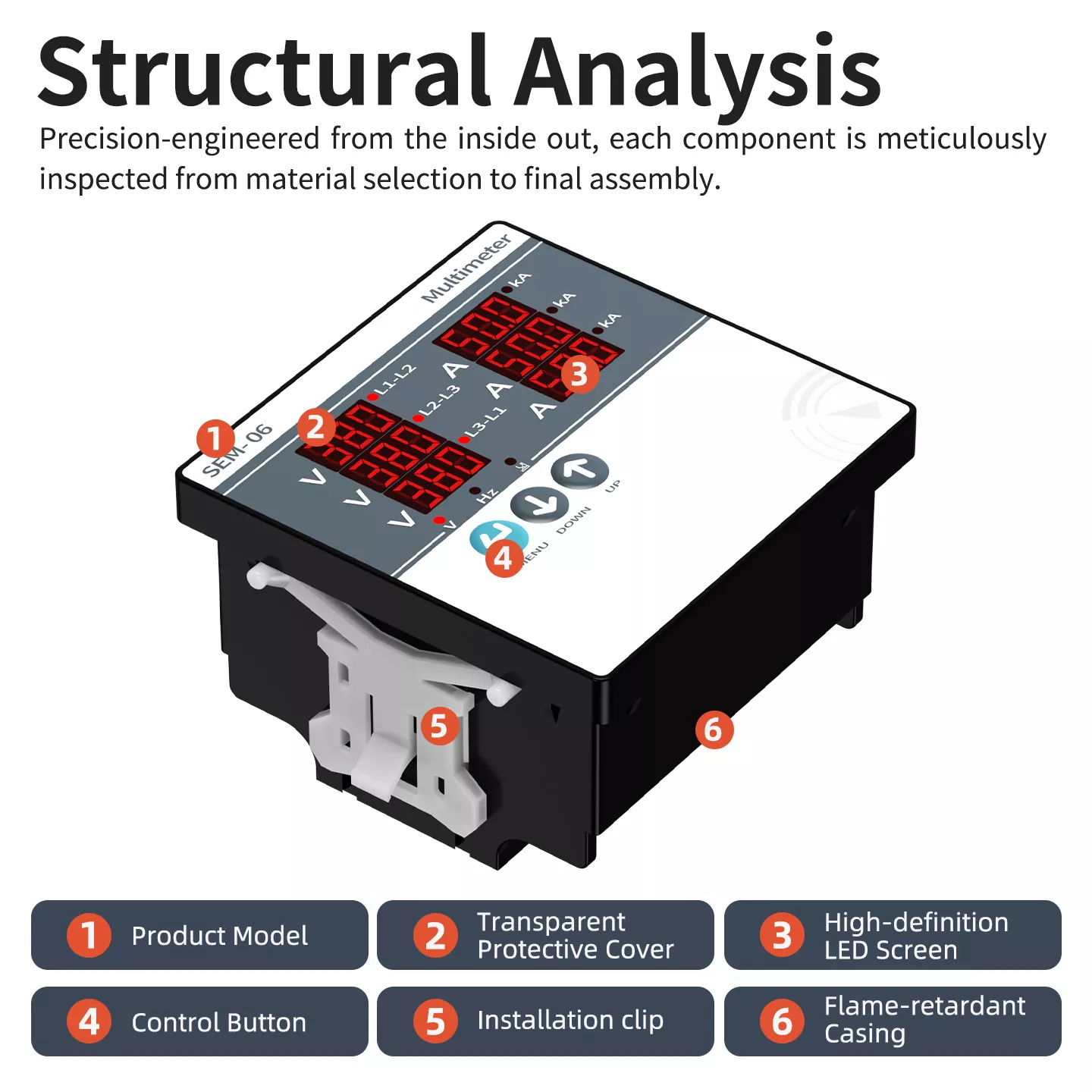

Structural Analysis

The SEM 06 Multifunctional Combined Meter features a scientific and robust structural design, with each part optimized for performance and usability:

1.  Product Model Mark : Clear SEM 06 labeling for quick model identification and after-sales support.

2.  Transparent Protective Cover : Guards the LED screen against dust, oil, and physical damage while ensuring unobstructed data viewing.

3.  High-definition LED Screen : Core display component for clear presentation of three-phase voltage, current, and frequency data.

4.  Control Buttons (MENU/DOWN/UP) : Intuitive operation for parameter setting, data switching, and function adjustment.

5.  Installation Clip : Snap-on design for firm panel fixation, enabling quick disassembly and maintenance.

6.  Flame-retardant Casing : Main body structure made of high-strength flame-retardant ABS, ensuring overall equipment safety.

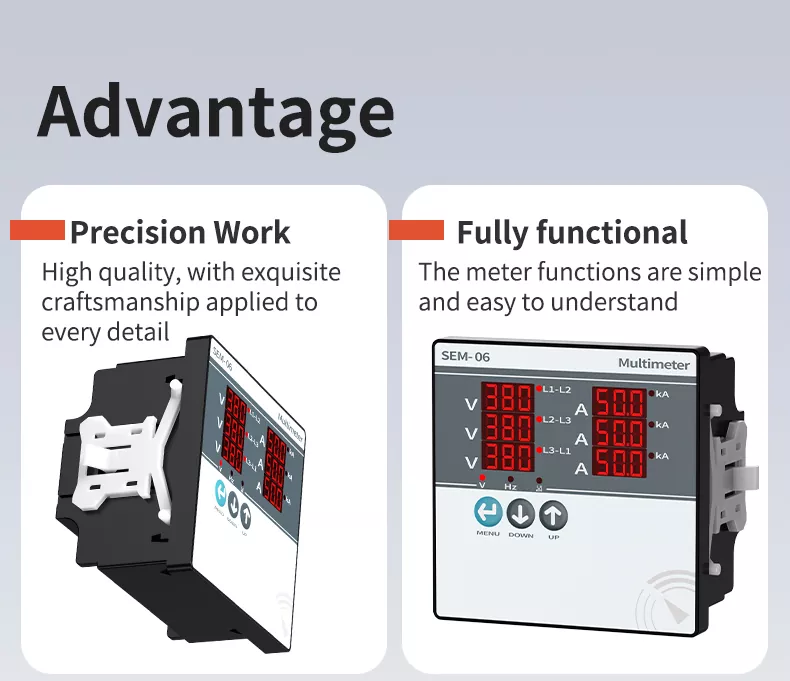

Core Advantage

1.  Precision Work : Exquisite craftsmanship is applied to every detail—from the smooth, burr-free casing surface to the uniform solder joints of internal components. The high-precision manufacturing process guarantees stable performance and consistent quality.

2.  Fully Functional & User-Friendly : The meter integrates core functions of three-phase voltage, current, and frequency measurement. Its simple button operation and clear data classification make it easy to master, even for non-professional operators, realizing efficient power parameter management.

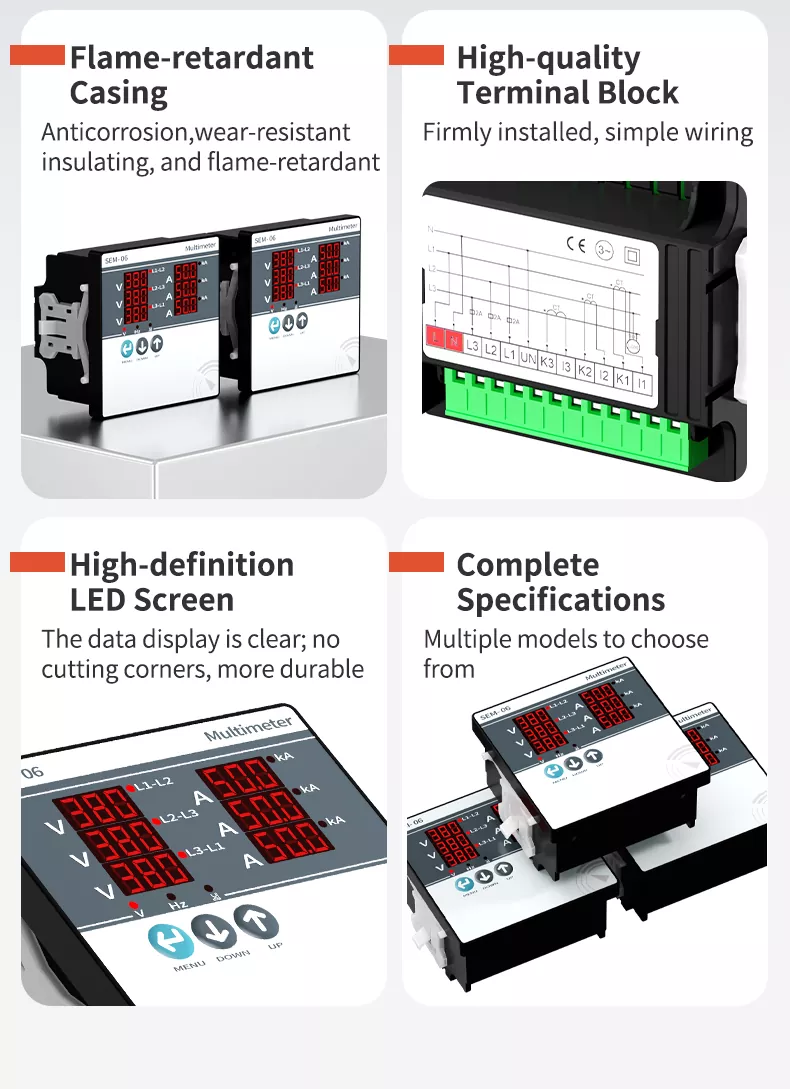

Four Core Selling Points

•  Flame-retardant Casing : Made of high-quality ABS material, it is anticorrosive, wear-resistant, insulating, and flame-retardant, effectively preventing fire hazards caused by short circuits or overloads.

•  High-quality Terminal Block : Neatly arranged copper terminal blocks with good conductivity, low power loss, and buckle-type installation for firm fixation, avoiding loosening caused by vibration.

•  High-definition LED Screen : Large-character digital display with 360° no blind spots, strong anti-interference capability, and clear data presentation even in strong light or complex electromagnetic environments.

•  Complete Specifications : Available in two standard sizes (72×72mm, 96×96mm) to match different panel installation requirements, with complete models to meet diverse project needs.

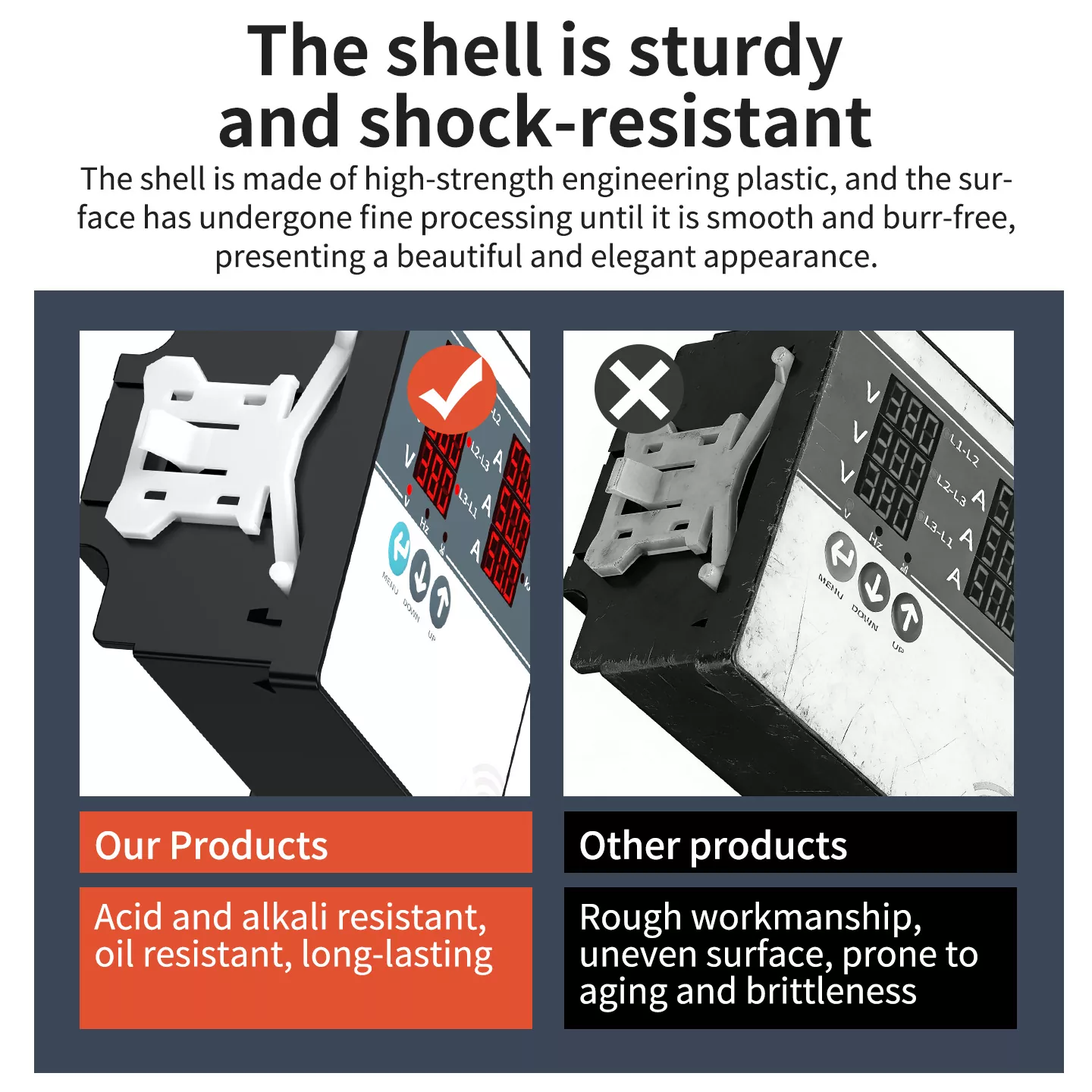

The Shell is Sturdy and Shock-resistant

The casing of the SEM 06 Multifunctional Combined Meter is crafted from high-strength engineering plastic, undergoing fine surface processing to achieve a smooth, burr-free finish with a sleek and professional appearance. It boasts excellent shockproof and compression-resistant performance, able to withstand mechanical vibrations and slight impacts common in industrial sites without structural damage or performance degradation. Additionally, the material is acid and alkali resistant and oil resistant, effectively extending the product’s service life in harsh working environments.

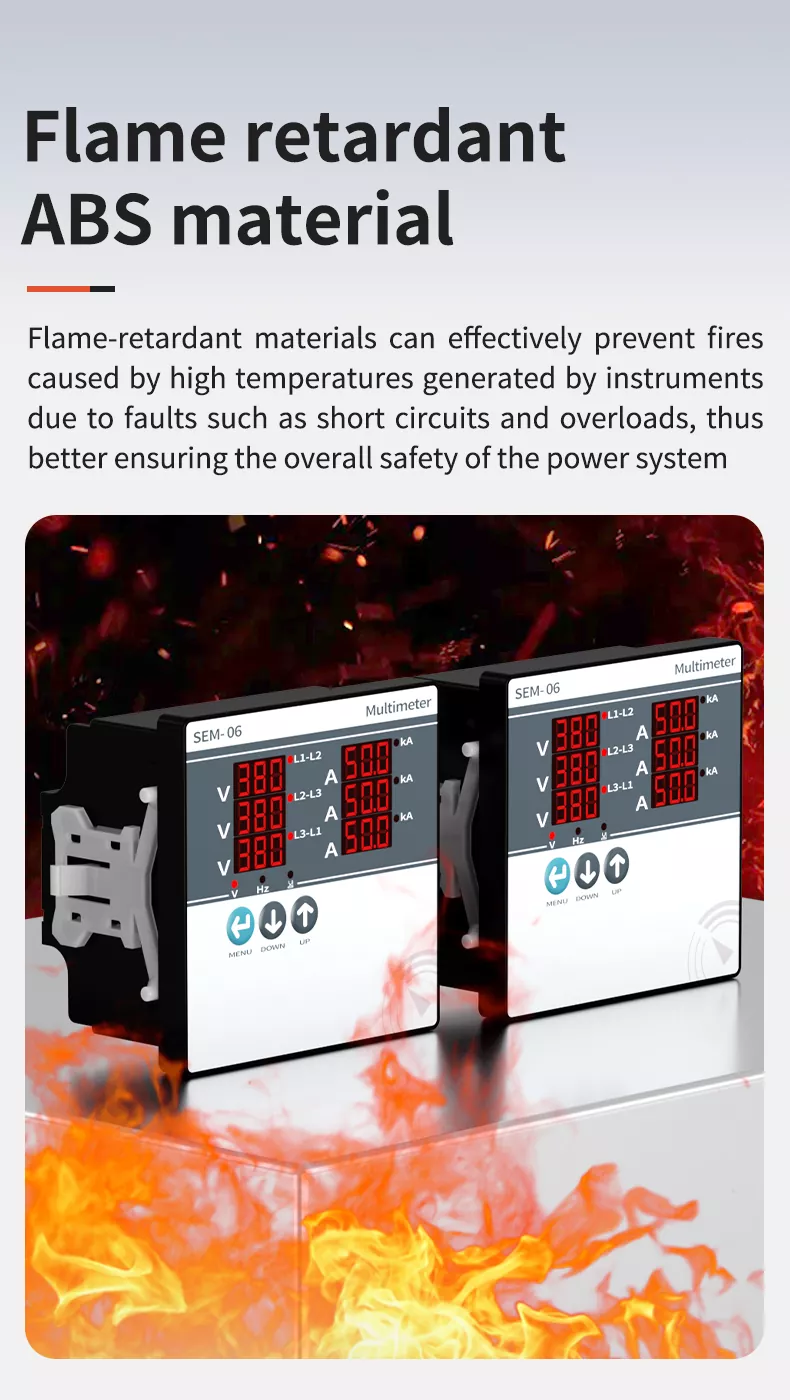

Flame Retardant ABS Material

Adopting high-grade flame-retardant ABS engineering plastic, the SEM 06 meter’s casing meets strict safety standards. Flame-retardant materials can effectively inhibit combustion and prevent the spread of fire caused by high temperatures generated by instrument faults such as short circuits and overloads. This design fundamentally eliminates fire safety hazards, providing a reliable safety guarantee for the entire power system and making it suitable for use in fire-prone industrial and commercial places.

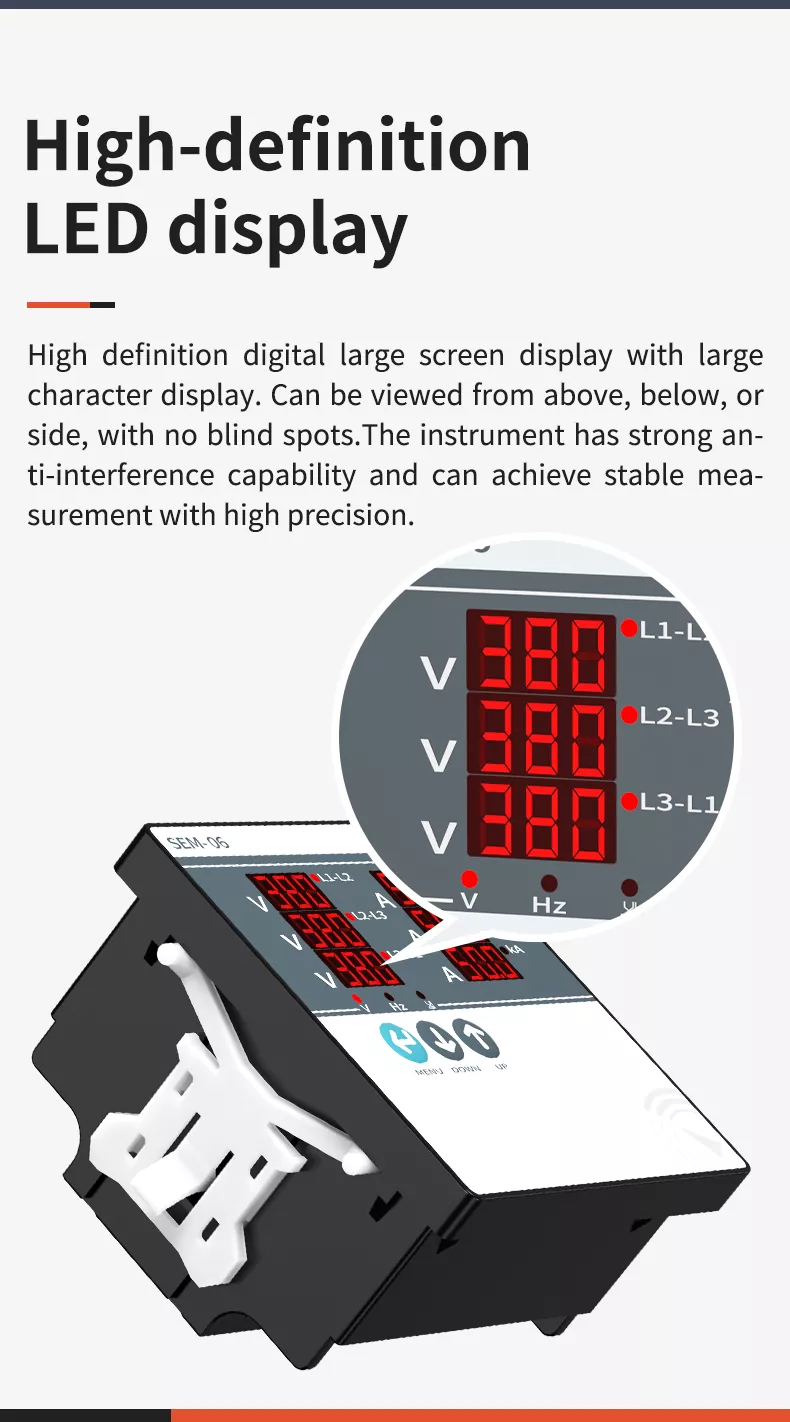

High-definition LED Display

Equipped with a high-definition digital large-screen LED display, the SEM 06 meter features large, bright red characters for clear data visualization. The screen supports 178° full-view viewing—no blind spots from top, bottom, or side angles—ensuring operators can read data quickly and accurately from any position. The instrument has strong anti-interference capability, with a stable circuit design that resists electromagnetic interference from surrounding equipment, achieving high-precision and stable measurement even in complex industrial environments.

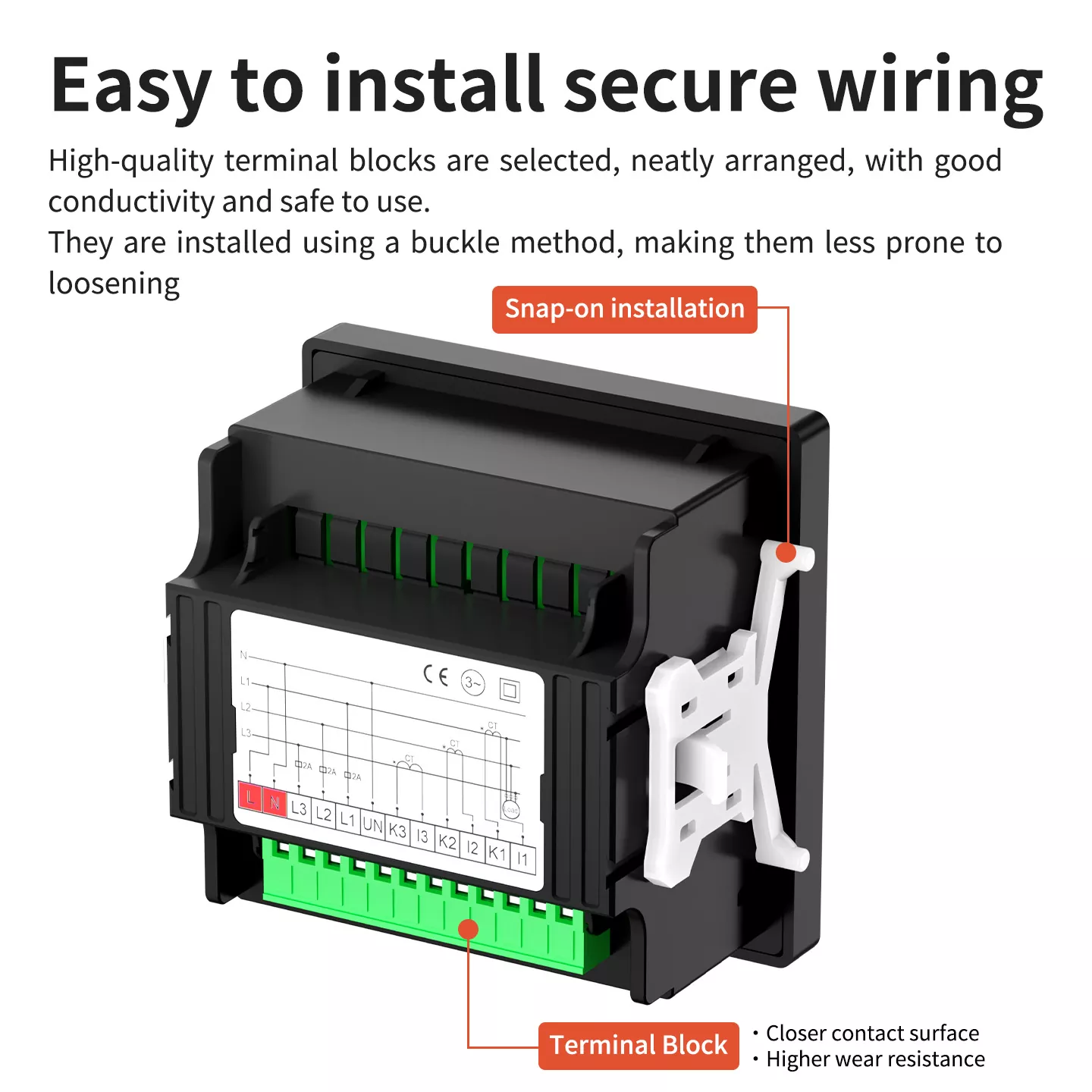

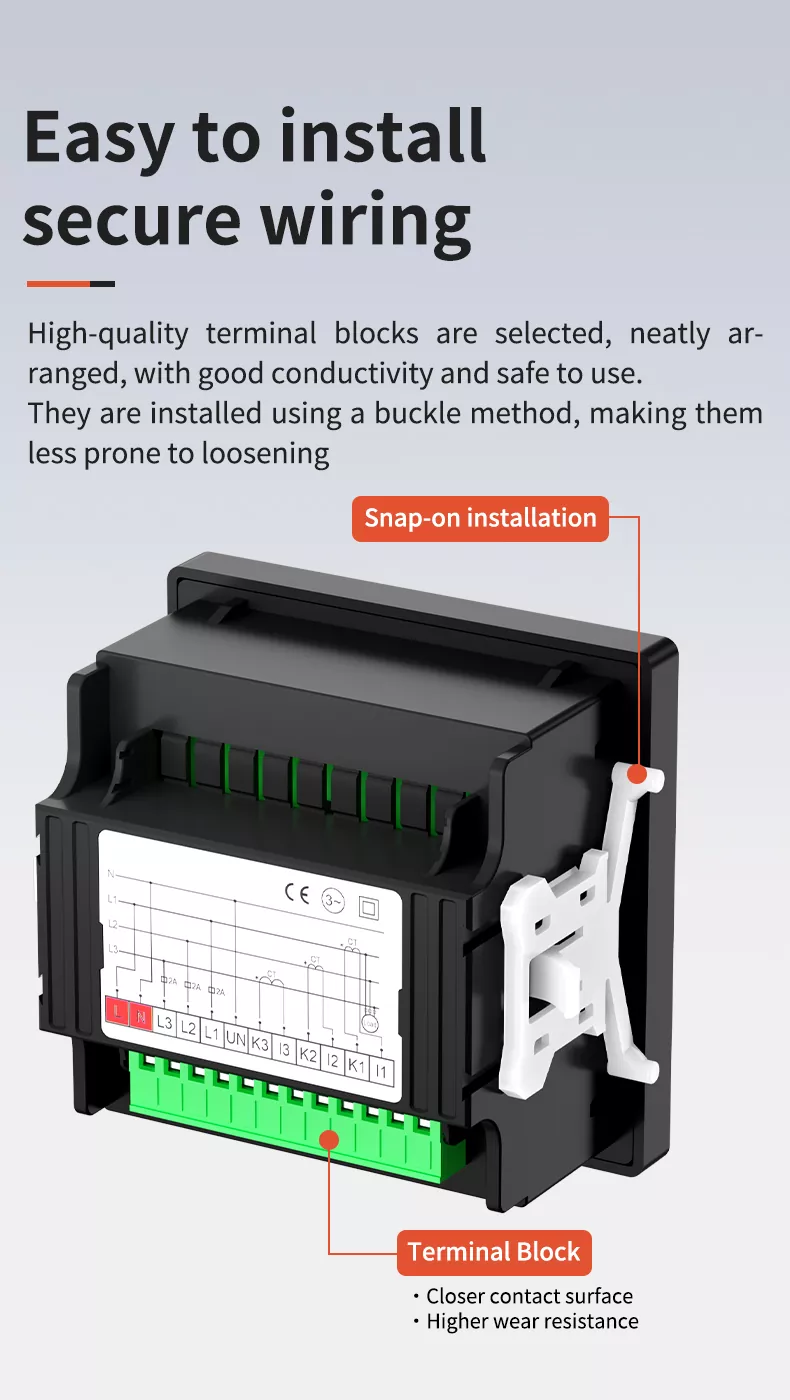

Easy to Install & Secure Wiring

The SEM 06 Multifunctional Combined Meter adopts a snap-on installation method, which is efficient and convenient: simply insert the meter from the front of the panel and fix it with the built-in installation clip, no complicated tools required. The rear terminal block is made of high-quality copper, neatly arranged with clear wiring markings, ensuring good conductivity and low contact resistance. The buckle-type fixed terminal design prevents loosening due to long-term operation or vibration, avoiding wiring faults such as poor contact and short circuits, and ensuring safe and stable equipment operation.

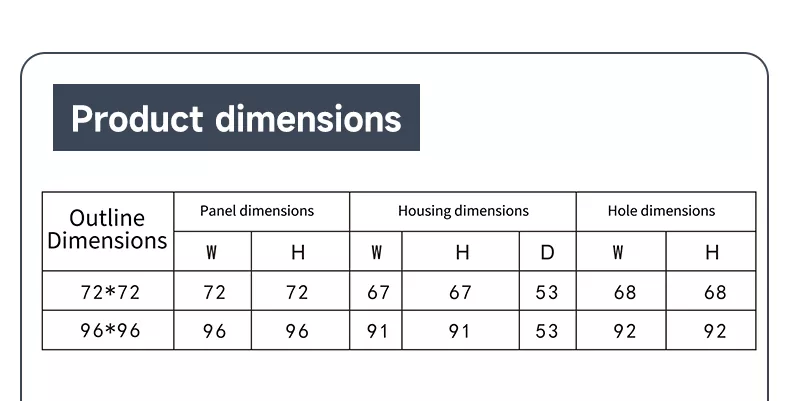

Product Dimensions

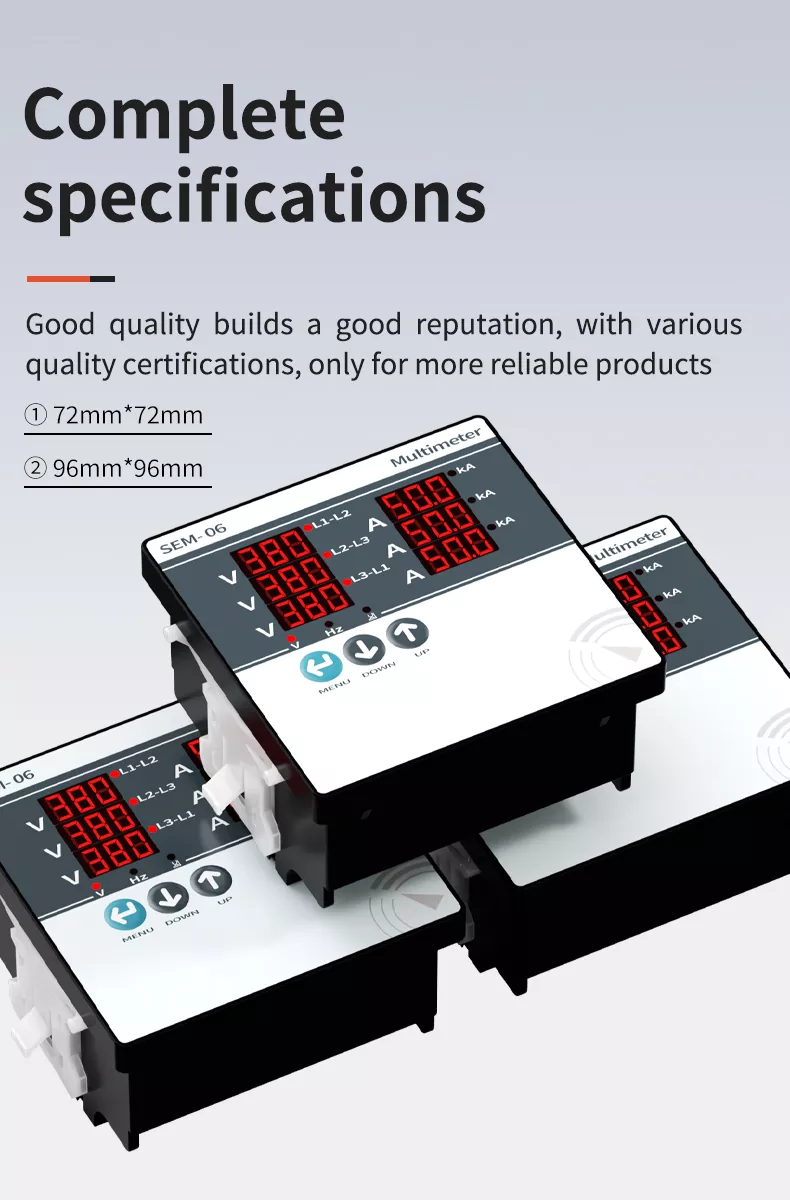

Complete Specifications

Good quality builds a good reputation. The SEM 06 Multifunctional Combined Meter has passed multi-party professional inspections and obtained authoritative quality certifications. It is available in two core standard sizes—72×72mm and 96×96mm—compatible with the most common panel installation specifications in the industry. Whether for small and medium-sized distribution cabinets or large industrial automation equipment, there is a suitable model to match, fully meeting the diverse needs of different projects and customers.

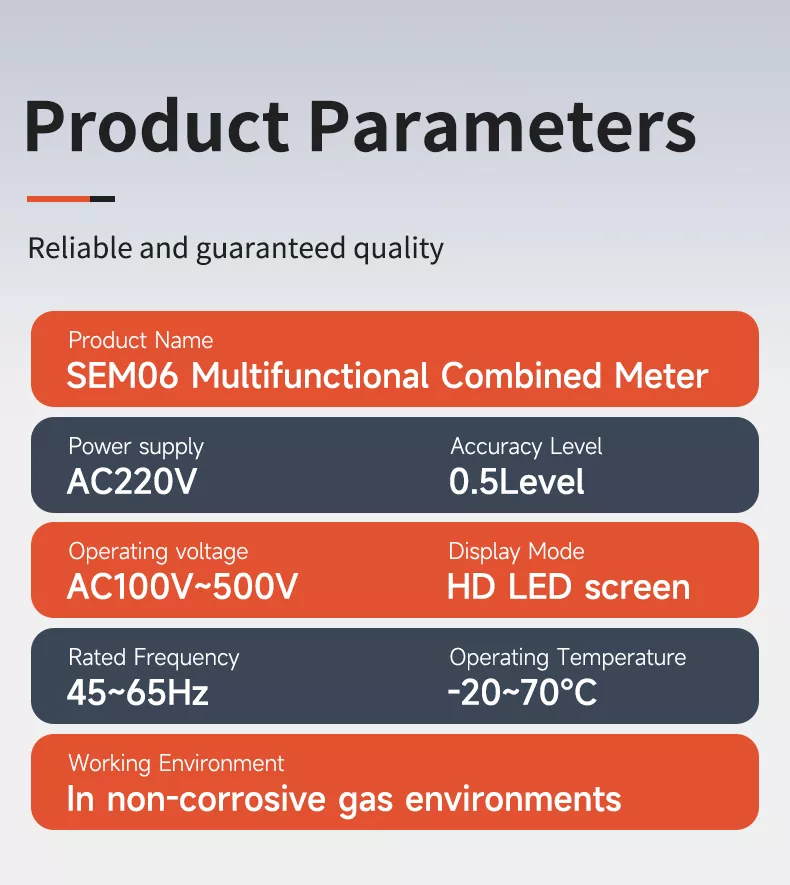

Product Parameters

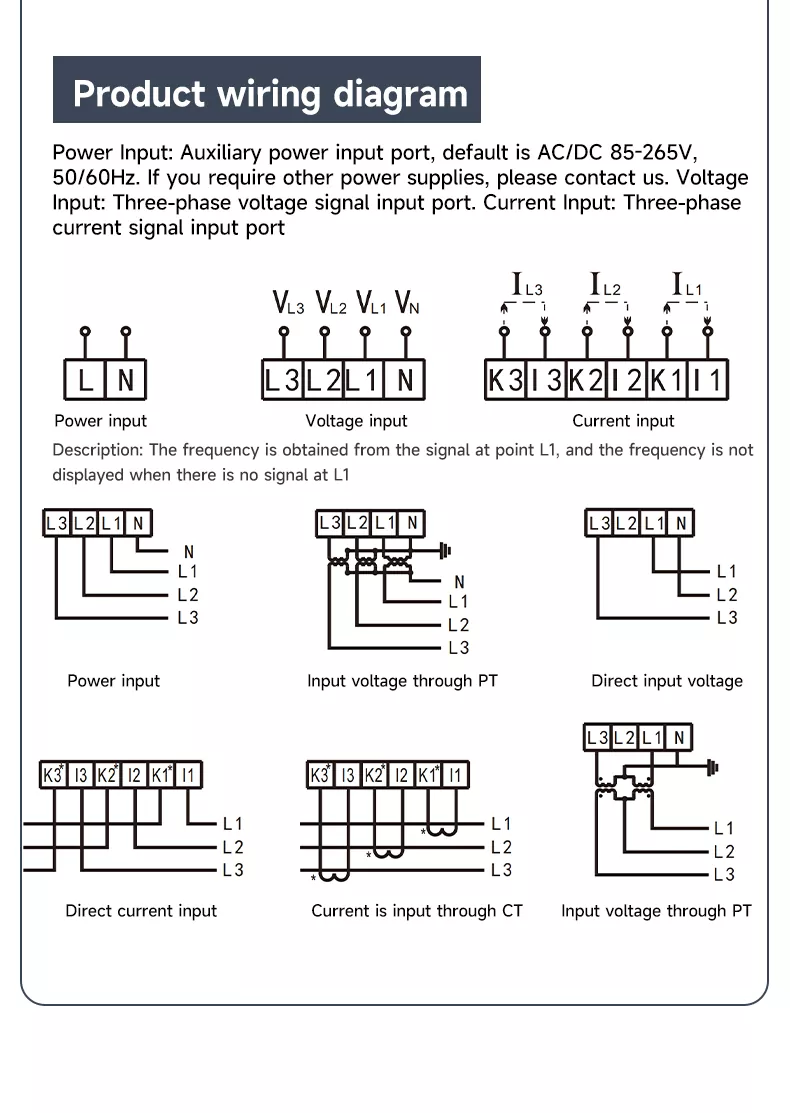

Product Wiring Diagram

•  Power Input : Auxiliary power input port (default AC/DC 85-265V, 50/60Hz); frequency signal is obtained from the L1 port (frequency will not display if L1 has no signal).

•  Voltage Input : Three-phase voltage signal input port, supporting direct voltage input or input through PT (Potential Transformer).

•  Current Input : Three-phase current signal input port, supporting direct current input or input through CT (Current Transformer).

Clear wiring markings and multiple wiring modes make the meter adaptable to various power system configurations, with simple and error-proof wiring for quick on-site installation.

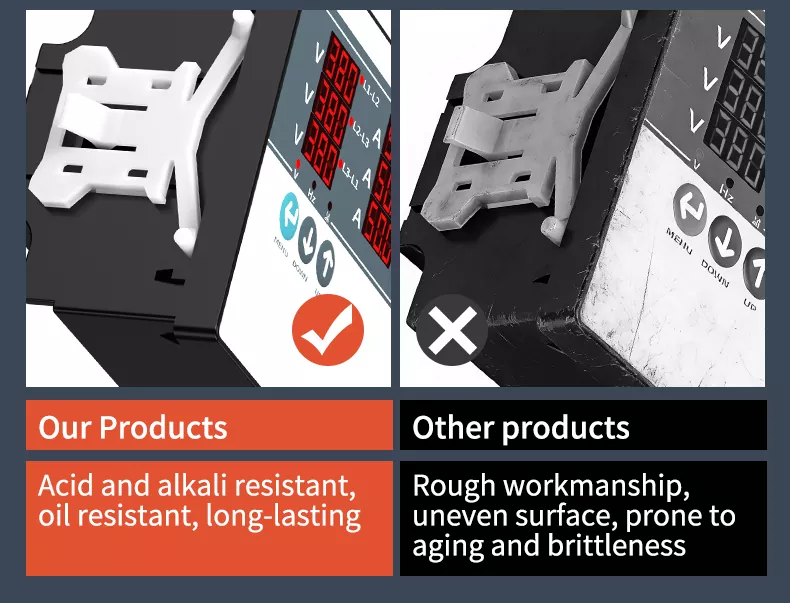

Our Products vs. Other Products

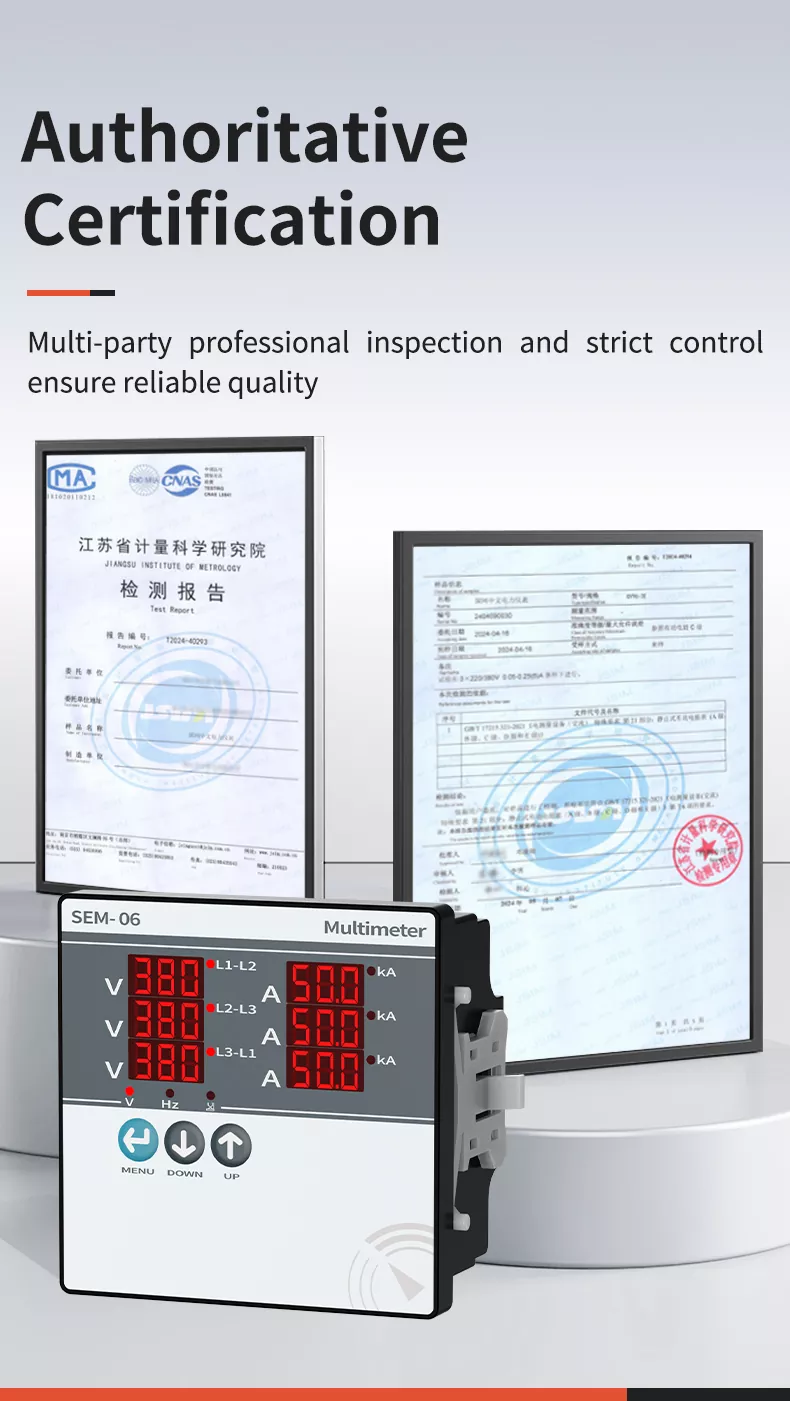

Authoritative Certification

The SEM 06 Multifunctional Combined Meter has passed multi-party professional inspections, including testing by the Jiangsu Institute of Metrology, and obtained authoritative certifications such as MA and CNAS. Strict quality control is implemented throughout the production process—from raw material procurement to finished product delivery—to ensure each meter meets national and international quality and safety standards. This reliable quality certification system provides a solid guarantee for bulk procurement and long-term cooperation with global customers.

Widely Used

The SEM 06 Multifunctional Combined Meter is widely applied in various fields requiring three-phase power parameter monitoring:

•  Substation : Real-time monitoring of power grid parameters to ensure stable power transmission and distribution.

•  Automation Equipment : Monitoring the power status of industrial robots, CNC machines, and other automated equipment to prevent faults.

•  Flow Production : Tracking the power consumption and operating status of production lines to optimize production efficiency.

•  Distribution Cabinet : Core monitoring component for low-voltage distribution systems in factories and buildings.

•  Residential Building : Monitoring the three-phase power supply of residential communities to ensure stable power use for residents.

•  Department Store : Safeguarding the power system of shopping malls, ensuring the normal operation of elevators, lighting, and electrical equipment.

FAQ

1.  What parameters can the SEM 06 Multifunctional Combined Meter measure?

It can real-timely measure three-phase voltage, three-phase current, and power frequency  with 0.5-level high accuracy, meeting the monitoring needs of three-phase power systems.

2.  What power supply modes does the meter support?

The standard power supply is AC 220V, and it also supports optional auxiliary power input of AC/DC 85-265V, adapting to different on-site power supply conditions.

3.  What installation sizes are available for the SEM 06?

It is available in two standard sizes: 72×72mm and 96×96mm , which are compatible with most industrial panel installation specifications.

4.  Is the meter suitable for harsh industrial environments?

Yes. Its casing is made of flame-retardant ABS material with acid and alkali resistance, oil resistance, and shock resistance, and it can operate stably in environments with temperatures ranging from -20°C to 70°C (short-term up to 75°C).

5.  How to operate the SEM 06 to switch measurement parameters?

You can use the three control buttons (MENU, DOWN, UP) on the front panel to switch between voltage, current, and frequency measurement interfaces, with simple and intuitive operation.

6.  Does the meter support PT/CT access for high-voltage or high-current measurement?

Yes. The wiring diagram supports voltage input through PT and current input through CT, making it suitable for high-voltage and high-current power system monitoring scenarios.
