Em-06 Multifunctional Combined Meter

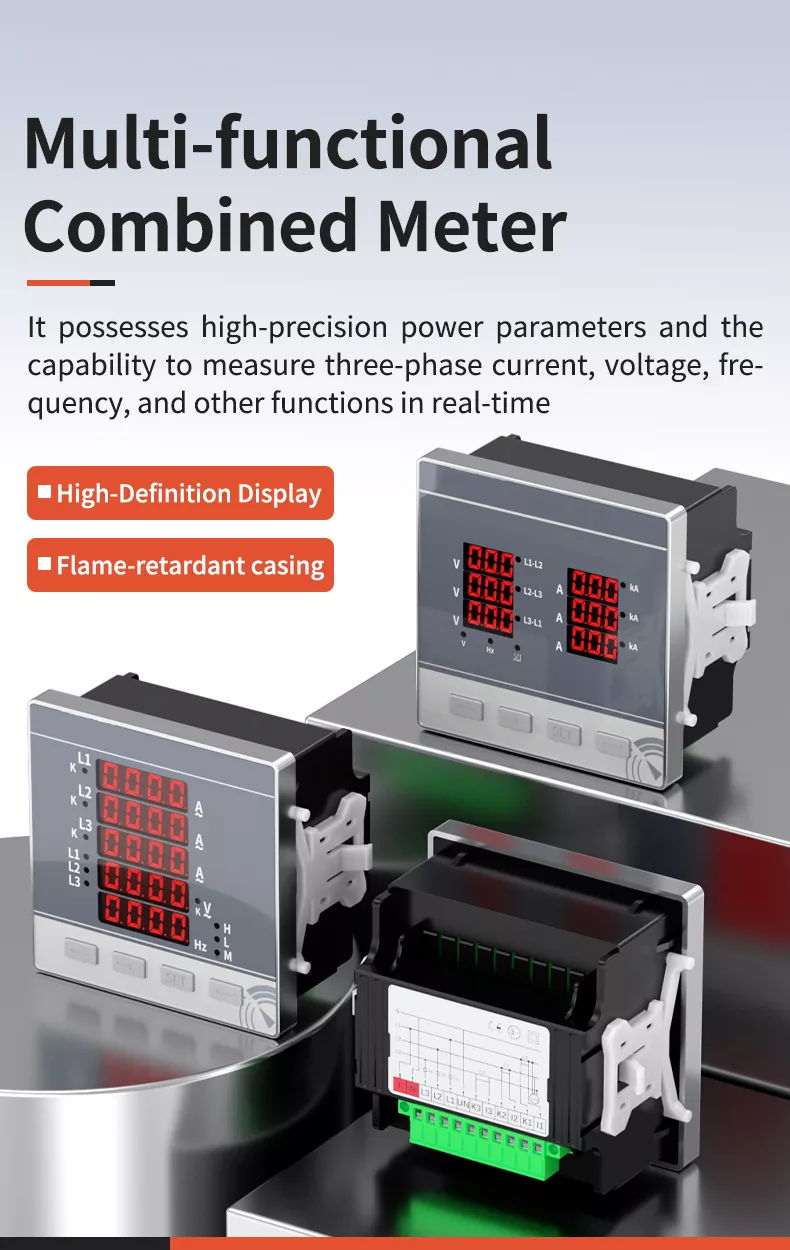

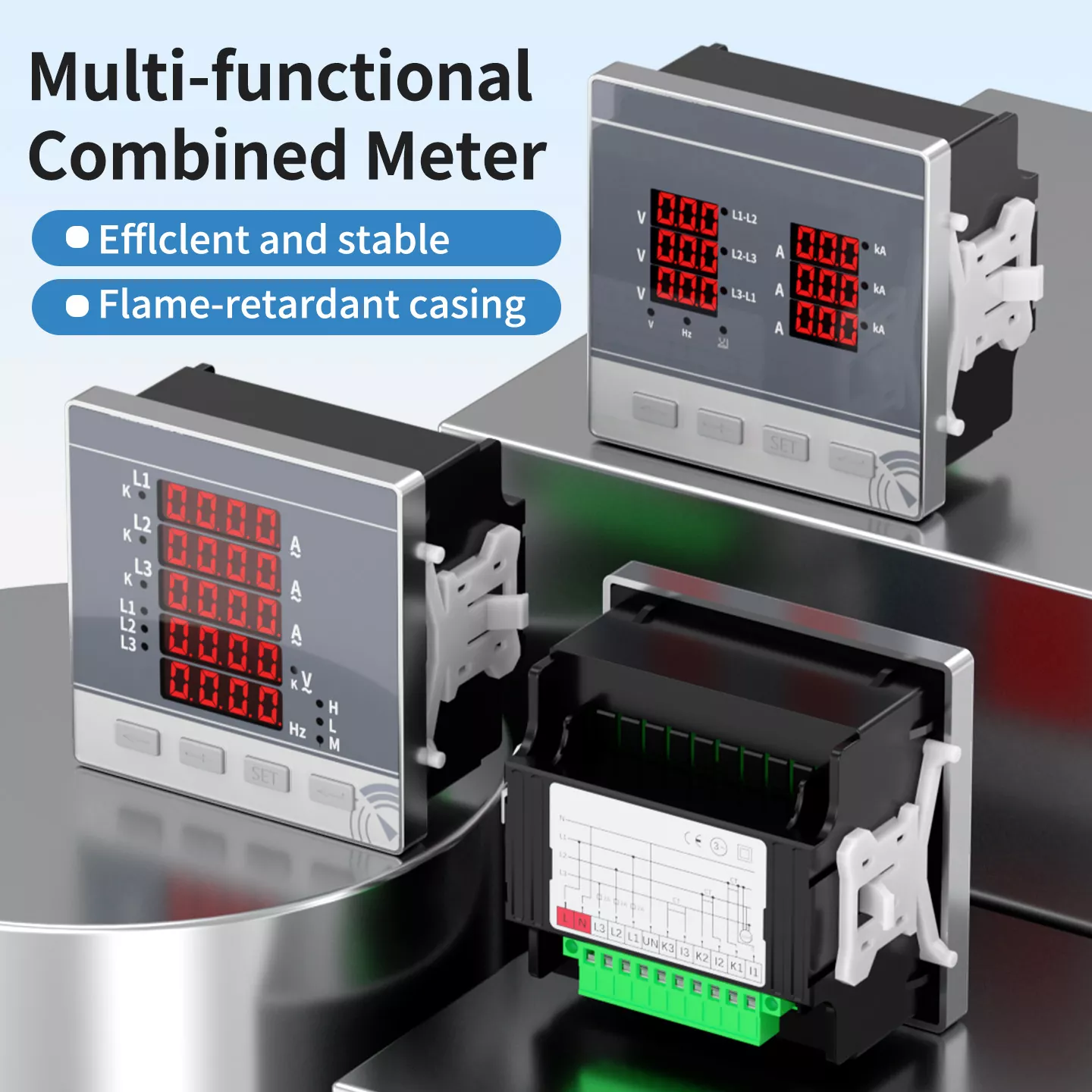

This Eton Em-06 Multifunctional Combined Meter is a panel-mounted power monitoring device built for modern three-phase electrical systems. It integrates high-precision metering chips and high-quality terminal blocks, enabling real-time monitoring of three-phase current, voltage, frequency and other key parameters with 0.5-level accuracy. With snap-on panel installation and clear wiring diagrams, it simplifies setup for bulk procurement users, while the flame-retardant casing and durable construction ensure long-term safe operation in industrial and commercial environments.

PRODUCT PARAMETER (SPECIFICATION)

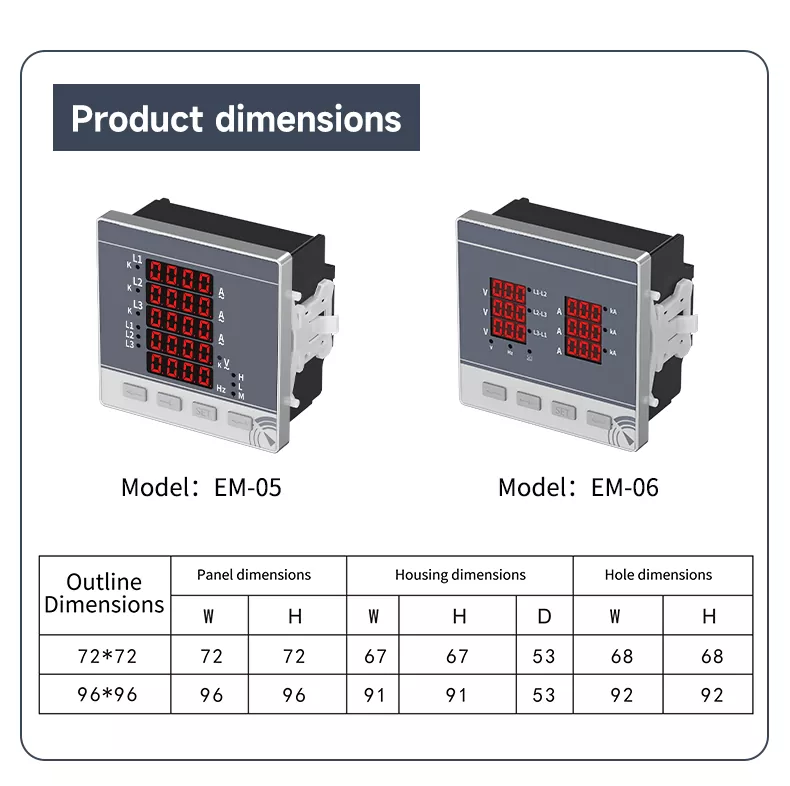

Product Dimensions

Core Parameters

PRODUCT FEATURE AND APPLICATION

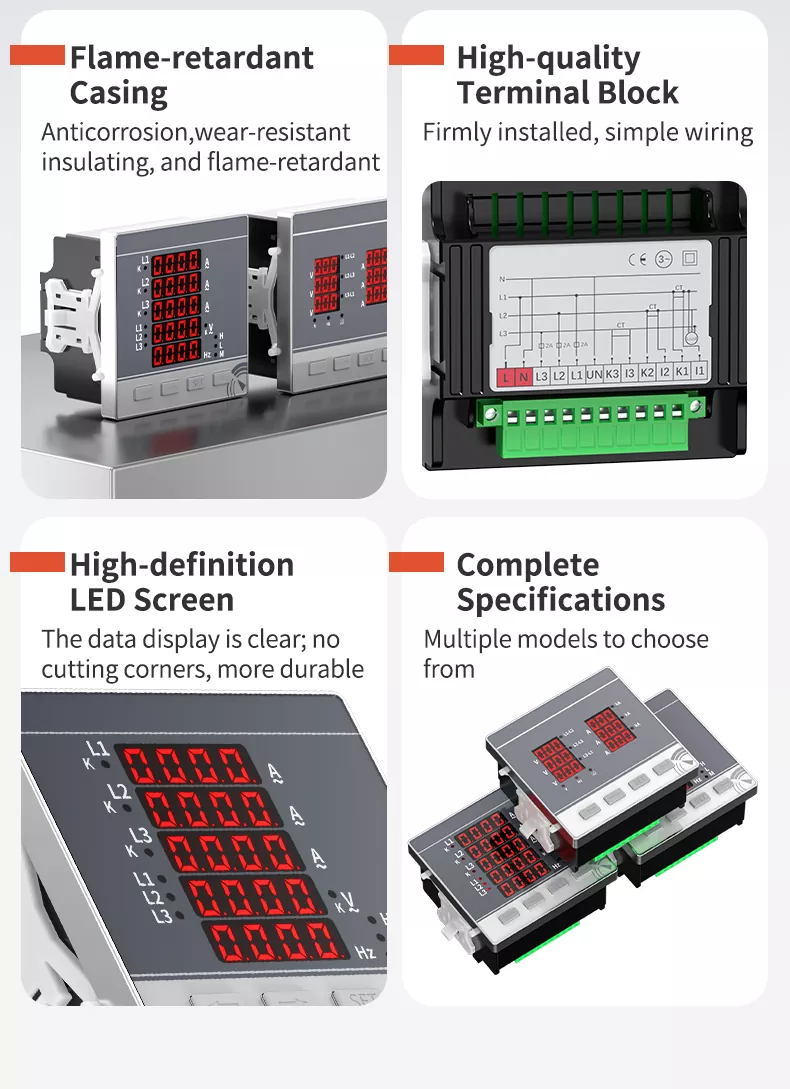

Core Features

•  0.5-level high accuracy: Delivers stable and precise three-phase power parameter monitoring, meeting industrial measurement standards.

•  HD LED display: Large character red LED screen with wide viewing angle, no blind spots, clear data reading from all directions.

•  Flame-retardant safety: Acid and alkali resistant PC casing prevents fire risks from short circuits and overloads, ensuring long-term safe use.

•  Sturdy & shock-resistant: High-strength engineering plastic shell, smooth and burr-free, with excellent shock resistance and durability.

•  Easy installation: Snap-on panel mounting with secure terminal blocks, neat wiring and less prone to loosening.

•  Complete specifications: Two models (EM-05 / EM-06) and two panel sizes (72×72 / 96×96) to choose from, matching different cabinet requirements.

Application Scenarios

The Multi-functional Combined Meter is widely applied in:

•  Substations & power grids: Real-time monitoring of three-phase power parameters to ensure stable transmission.

•  Industrial automation equipment: Protects robotic arms and production lines from voltage/current fluctuations.

•  Flow production lines: Tracks energy consumption for efficient production management.

•  Distribution cabinets & switchgear: Safeguards household and commercial power supply systems.

•  Residential buildings: Monitors electricity usage for homes and apartments, supporting energy-saving management.

•  Department stores & public facilities: Ensures safe and stable power supply for elevators, lighting and shopping mall equipment.

PRODUCTION DETAILS

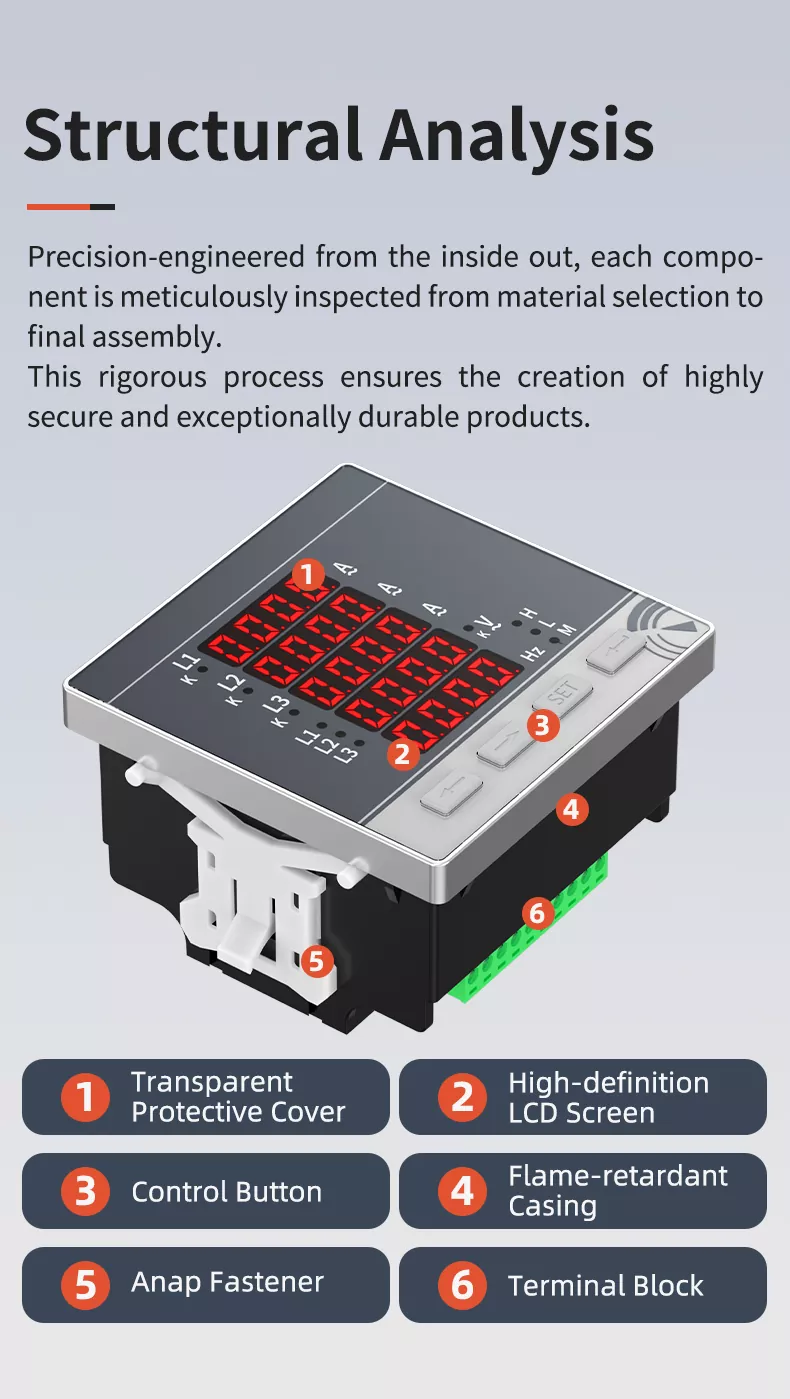

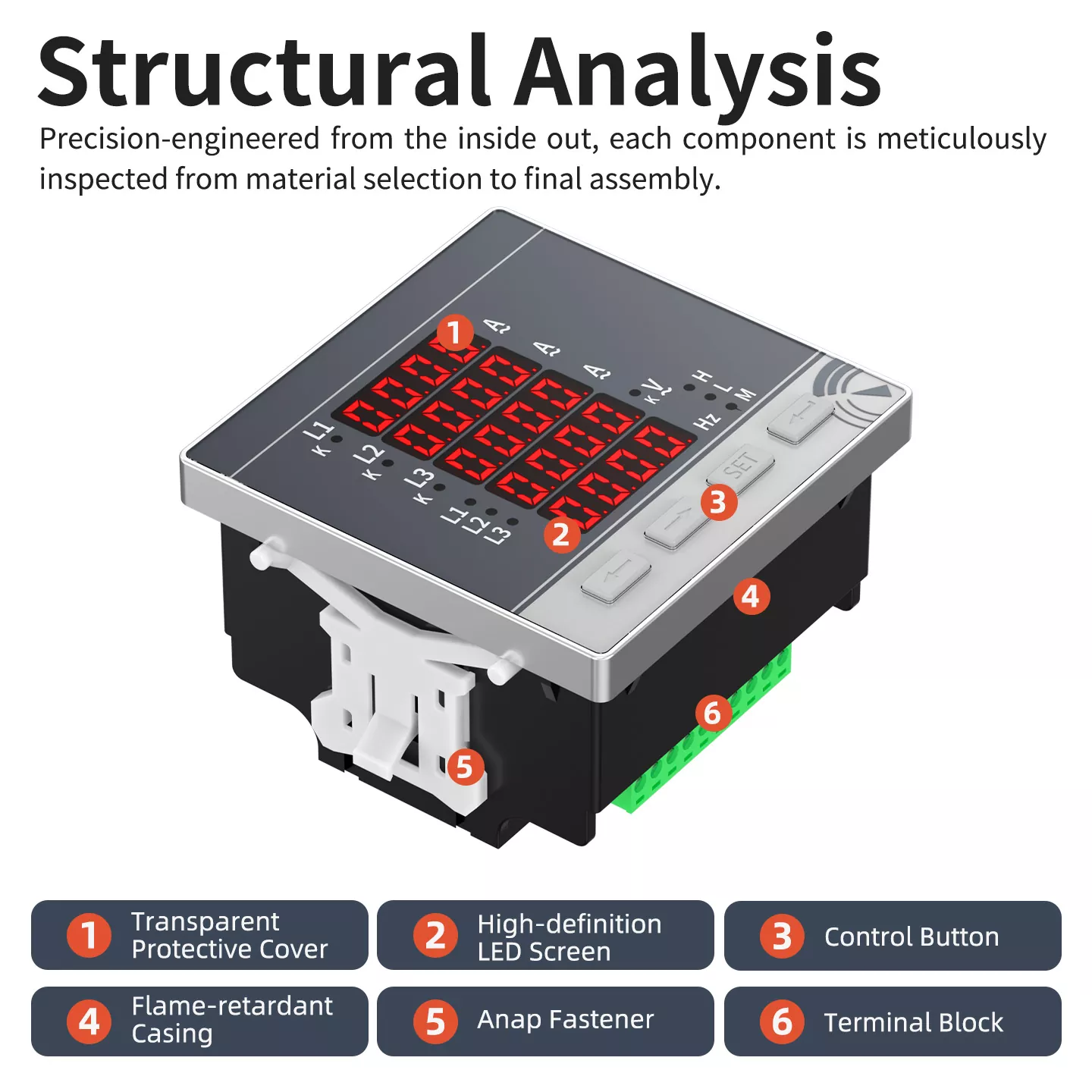

Structural Analysis

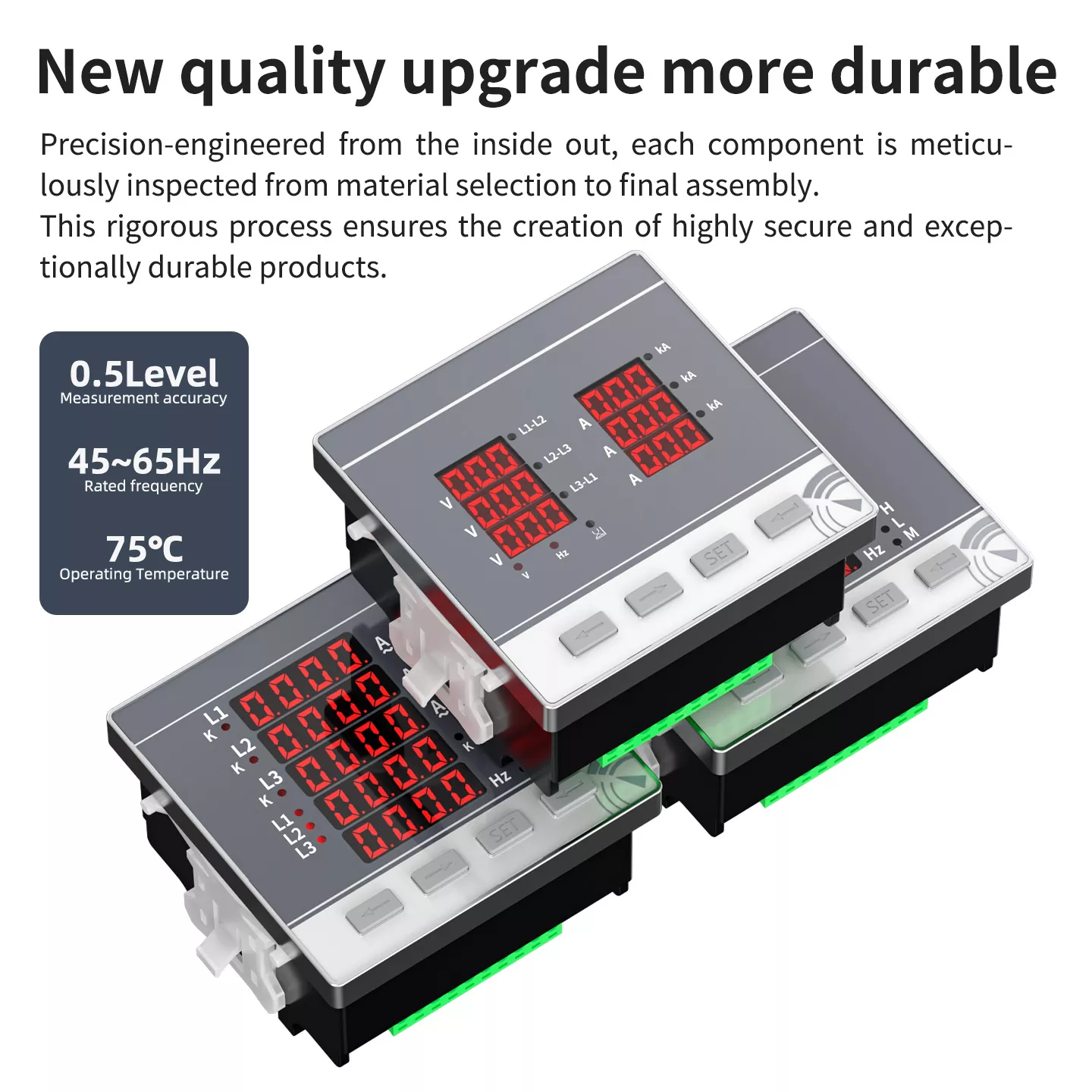

Our Multi-functional Combined Meter is precision-engineered from the inside out, with each component meticulously inspected from material selection to final assembly. This rigorous process ensures the meter is highly secure and exceptionally durable, meeting the demands of bulk orders and long-term supply. The structure includes:

1.  Transparent Protective Cover : Protects the display screen from dust and damage.

2.  High-definition LED Screen : Clear data display with strong anti-interference capability.

3.  Control Button : Easy parameter setting and mode switching.

4.  Flame-retardant Casing : High-strength PC material, anti-corrosion and fire-resistant.

5.  Anap Fastener : Snap-on installation, firm and reliable.

6.  Terminal Block : High-quality, good conductivity, secure wiring.

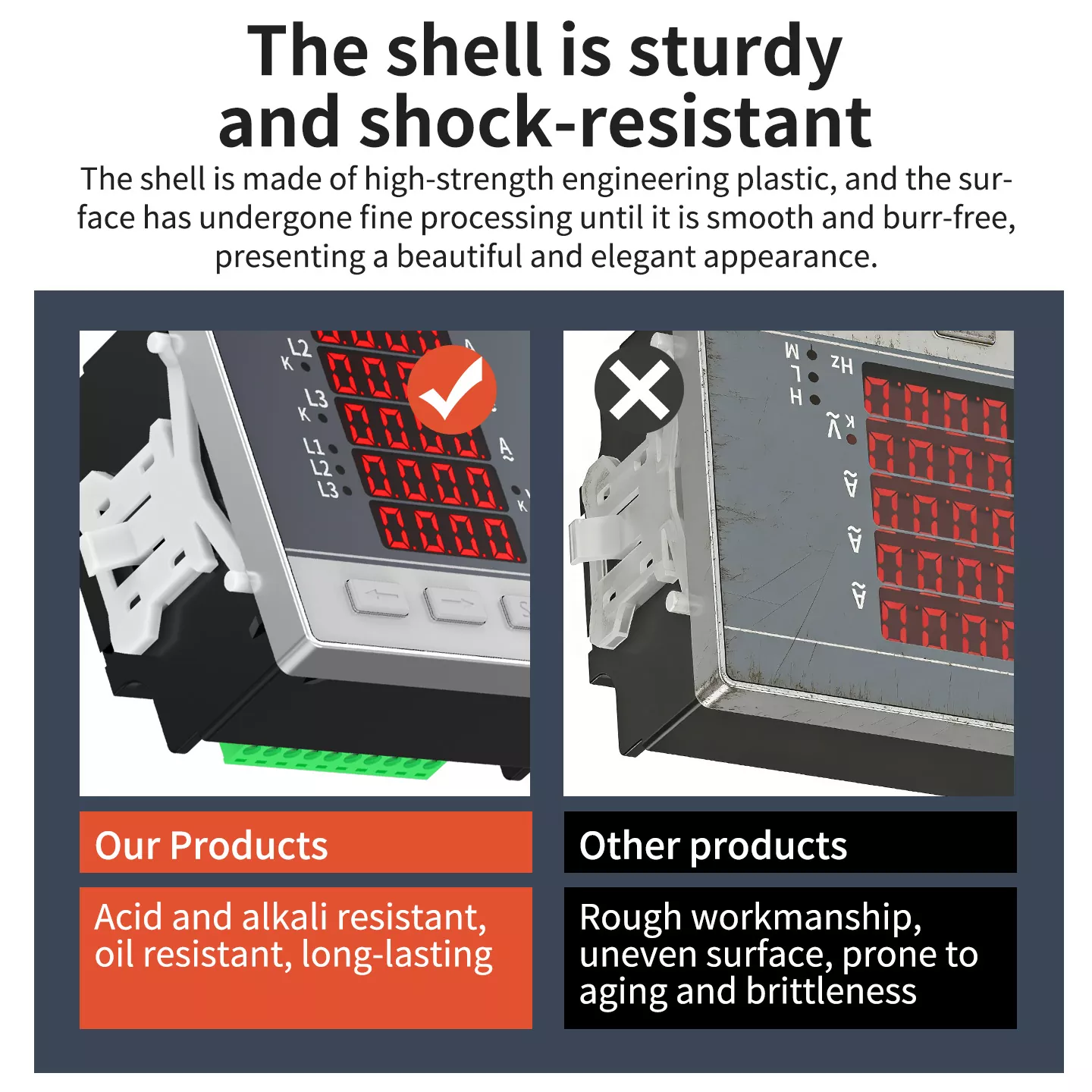

Our Products vs Other Products

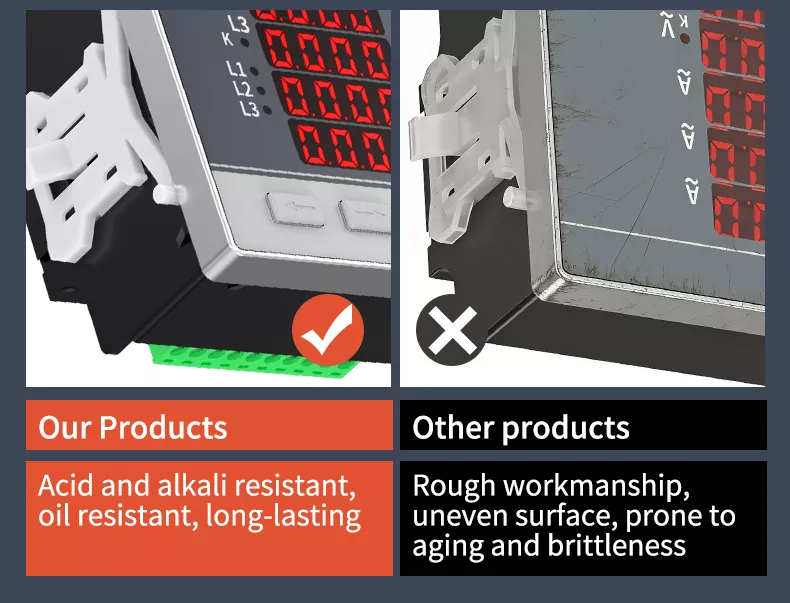

Compared with competing products, our Multi-functional Combined Meter features acid and alkali resistant, oil-proof and long-lasting casing, avoiding rough workmanship, uneven surfaces and aging/brittleness issues common in cheaper alternatives.

High-quality Terminal Block

The high-quality terminal block of the Multi-functional Combined Meter has a closer contact surface and higher wear resistance, firmly guarding the safety of electric current, with neat wiring to prevent misconnection and short circuits for end users.

Authoritative Certification

Passed multi-party professional inspection and obtained authoritative certification (MA/CNAS), ensuring the Multi-functional Combined Meter meets global quality and safety standards for wholesale and bulk procurement.

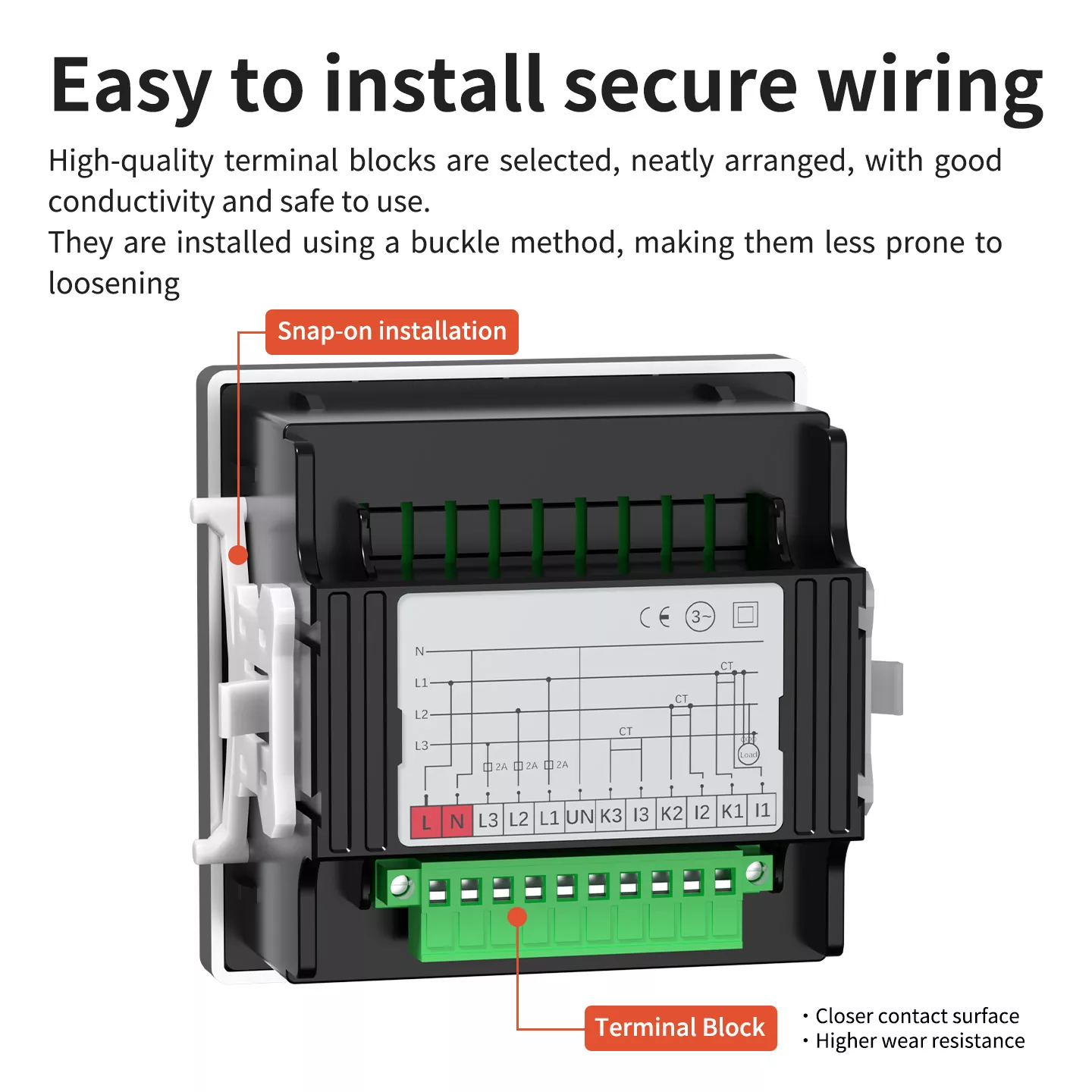

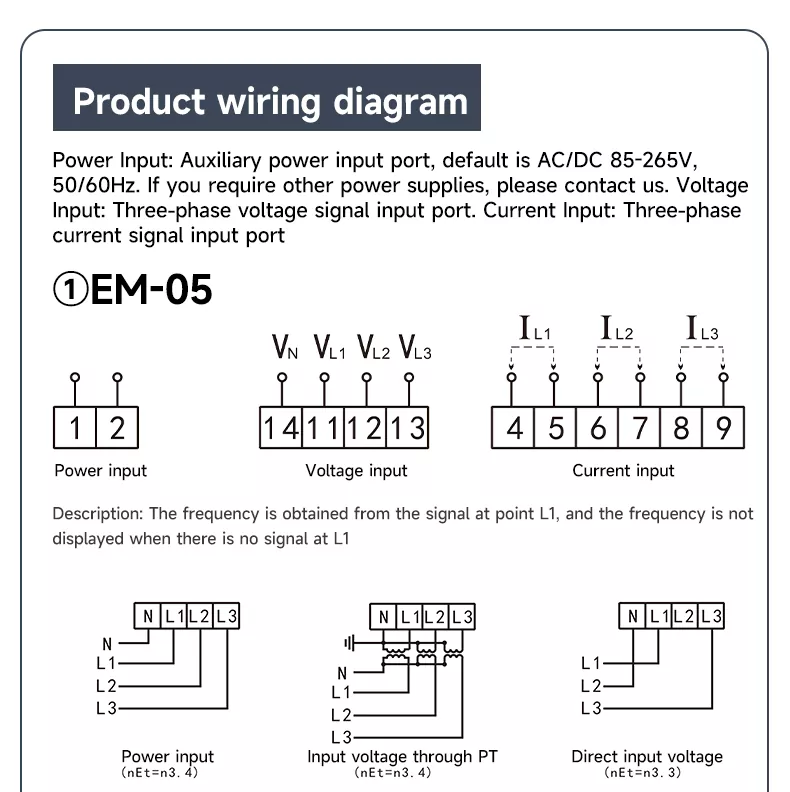

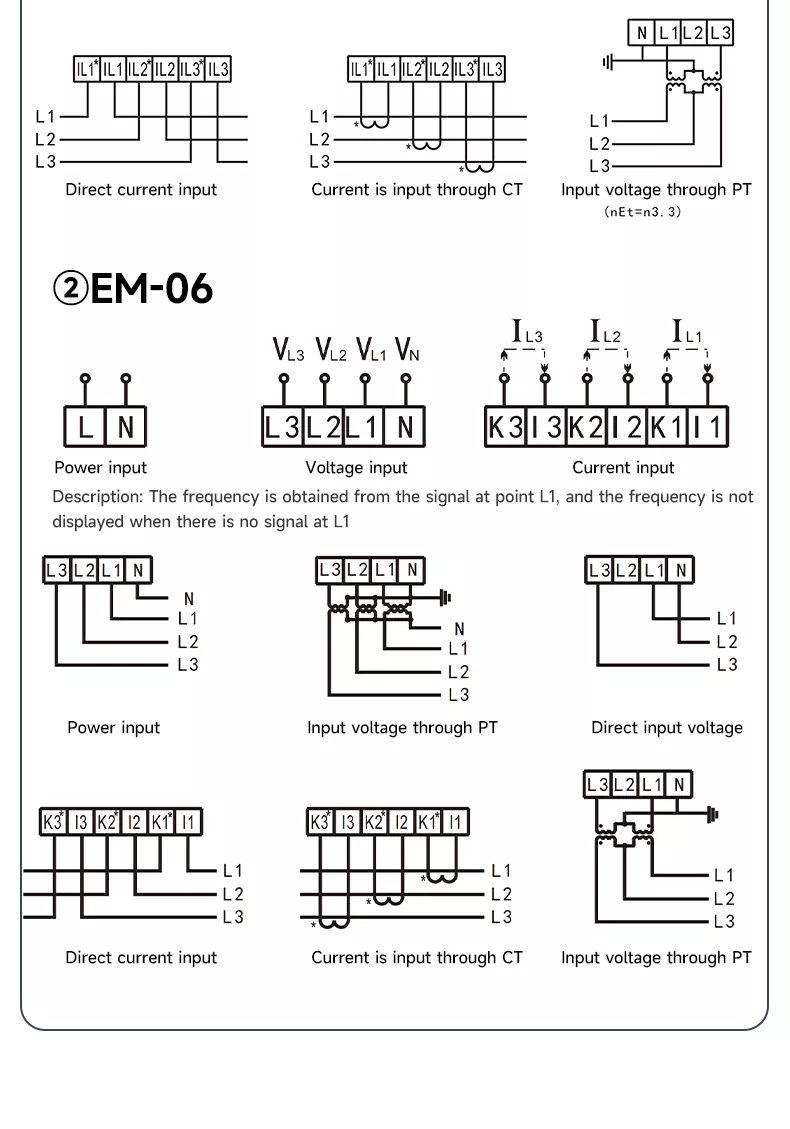

Wiring Diagram

Clear wiring instructions support easy installation for both EM-05 and EM-06 models:

•  Power input : Connect to L/N terminals (AC/DC 85-265V).

•  Voltage input : Connect three-phase voltage signals to corresponding terminals (L1/L2/L3 + N).

•  Current input : Connect current transformer (CT) signals to corresponding terminals.

• No complex setup required, ideal for quick deployment in distribution cabinets and industrial panels.

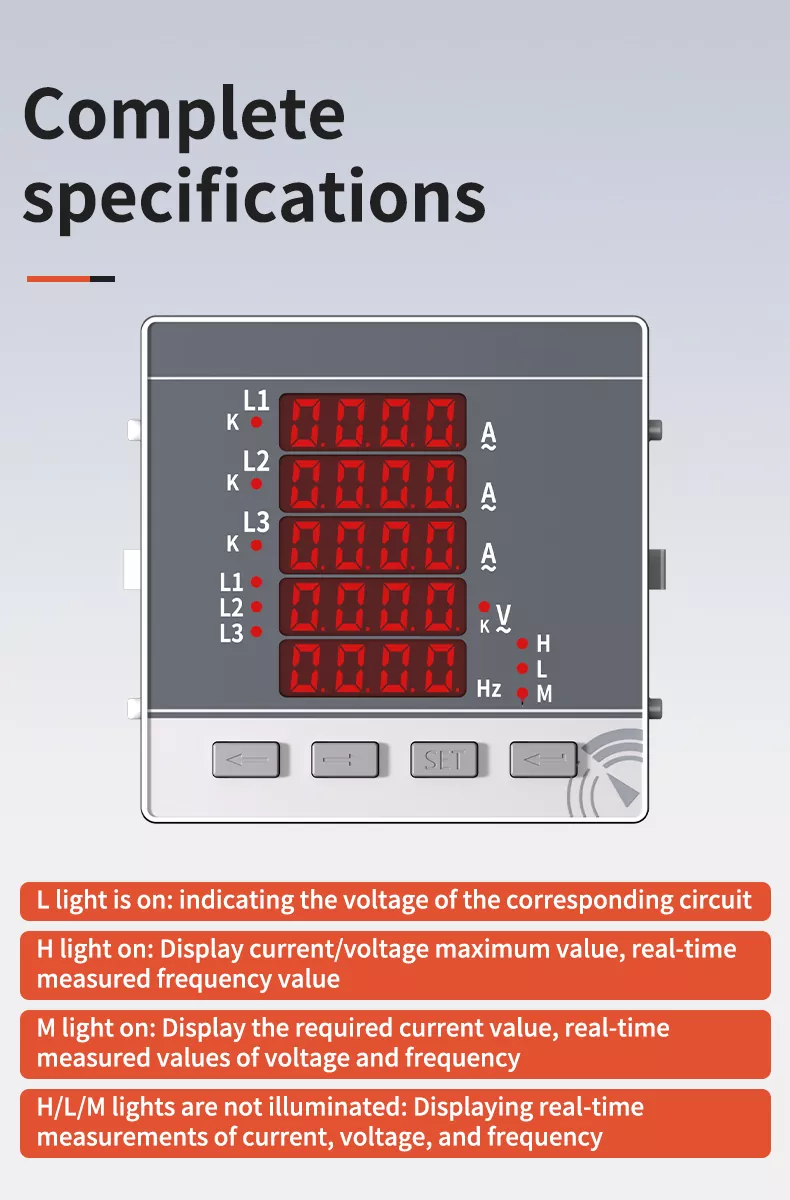

Display Mode Explanation

•  L light on : Indicates the voltage of the corresponding circuit.

•  H light on : Displays current/voltage maximum value, real-time measured frequency value.

•  M light on : Displays the required current value, real-time measured values of voltage and frequency.

•  H/L/M lights off : Displaying real-time measurements of current, voltage, and frequency.

FAQ

1.What is the measurement accuracy of the Multi-functional Combined Meter?

It reaches 0.5-level high accuracy, providing stable and reliable three-phase power parameter monitoring for various electrical systems.

2.How to install the Multi-functional Combined Meter?

It adopts snap-on panel mounting, which is fast, firm and suitable for distribution cabinets, industrial automation and other scenarios.

3.What parameters can the Multi-functional Combined Meter monitor?

It comprehensively monitors three-phase current, voltage, frequency and other key power parameters, with a high-definition LED screen for clear display.

4.Is the casing of the Multi-functional Combined Meter flame-retardant?

Yes, it uses flame-retardant PC material, which is acid and alkali resistant, effectively preventing fire risks from short circuits and overloads.

5.What models and sizes are available?

We offer two models (EM-05 / EM-06) and two panel sizes (72×72 mm / 96×96 mm) to meet different installation and application requirements.

6.What is the operating temperature range of the meter?

It can operate stably at -20~70℃, with short-term tolerance up to 75℃, suitable for various industrial and commercial environments.
