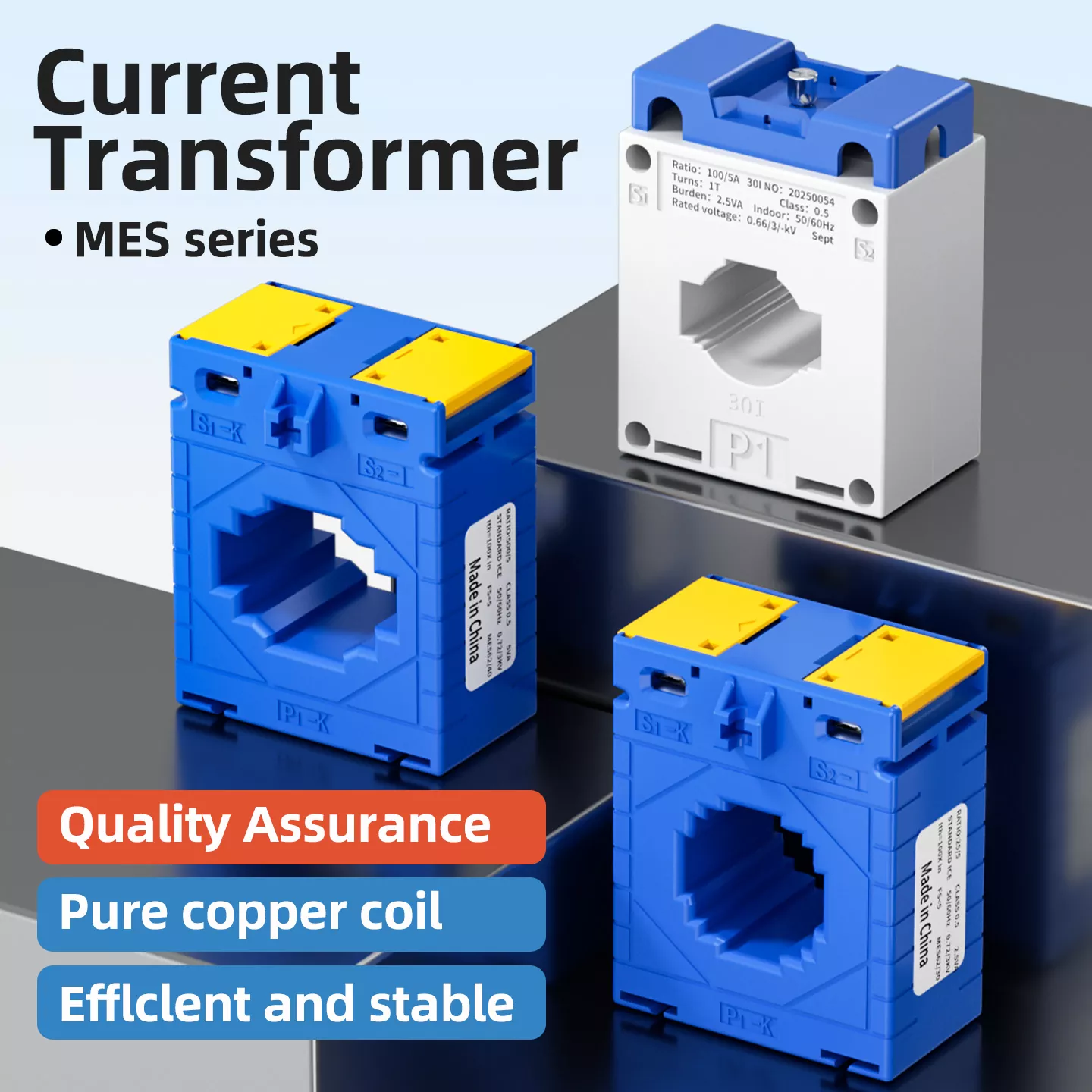

Mes Current Transformer

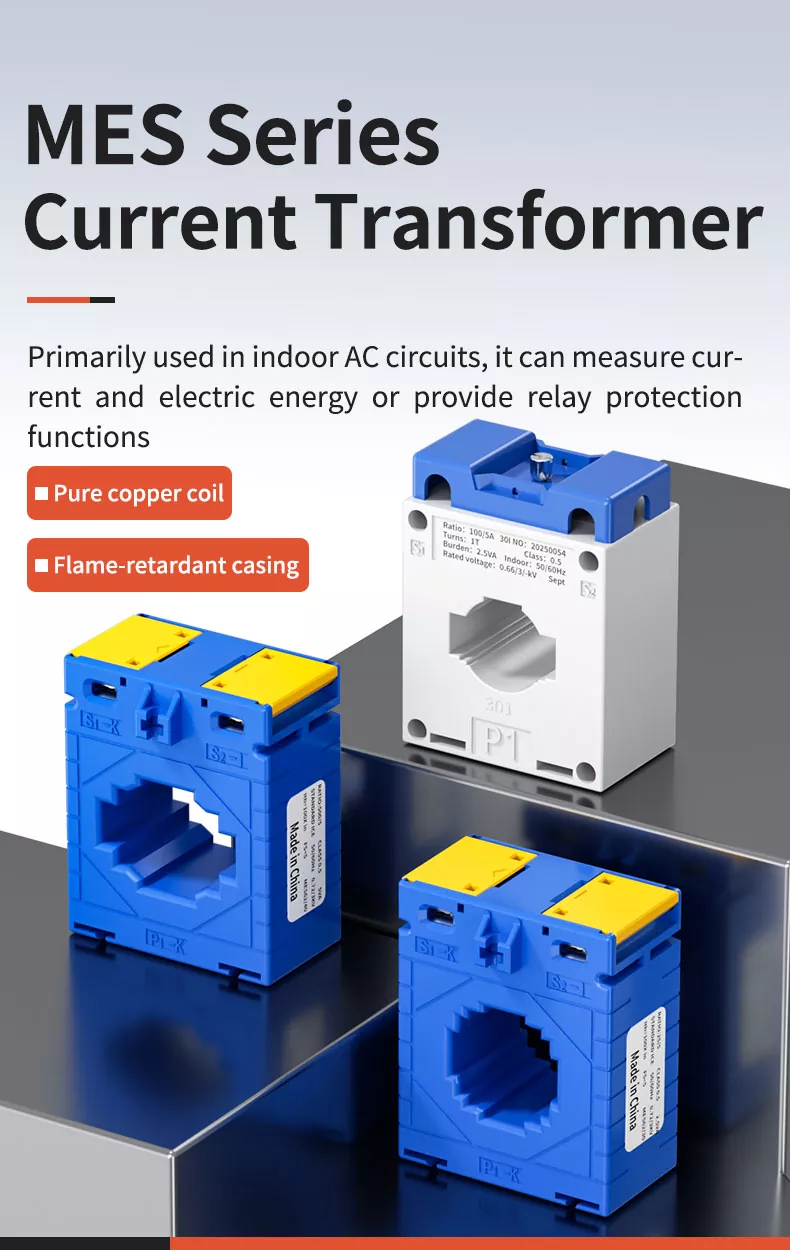

Our MES Current Transformers are core components for AC power systems, primarily used in indoor circuits to measure current, calculate electric energy, and provide relay protection. Adopting high-purity copper coils and precision-engineered iron cores, they deliver stable performance and 0.5-level measurement accuracy. The flame-retardant ABS casing ensures safety against short circuits and overloads, while the compact design supports flexible installation. Available in various ratios and sizes, our transformers meet the diverse needs of power distribution, industrial automation, and energy management scenarios.

COMPANY INTRODUCTION

Committed to providing comprehensive services for industrial automation control. Satisfy the needs of all aspects of the power system with precise, reliable, energy-saving, and environmentally friendly intelligent power distribution products. We adhere to strict quality control from R&D to production, ensuring each product meets international standards, and strive to be a trusted partner for global customers in the electrical measurement equipment industry.

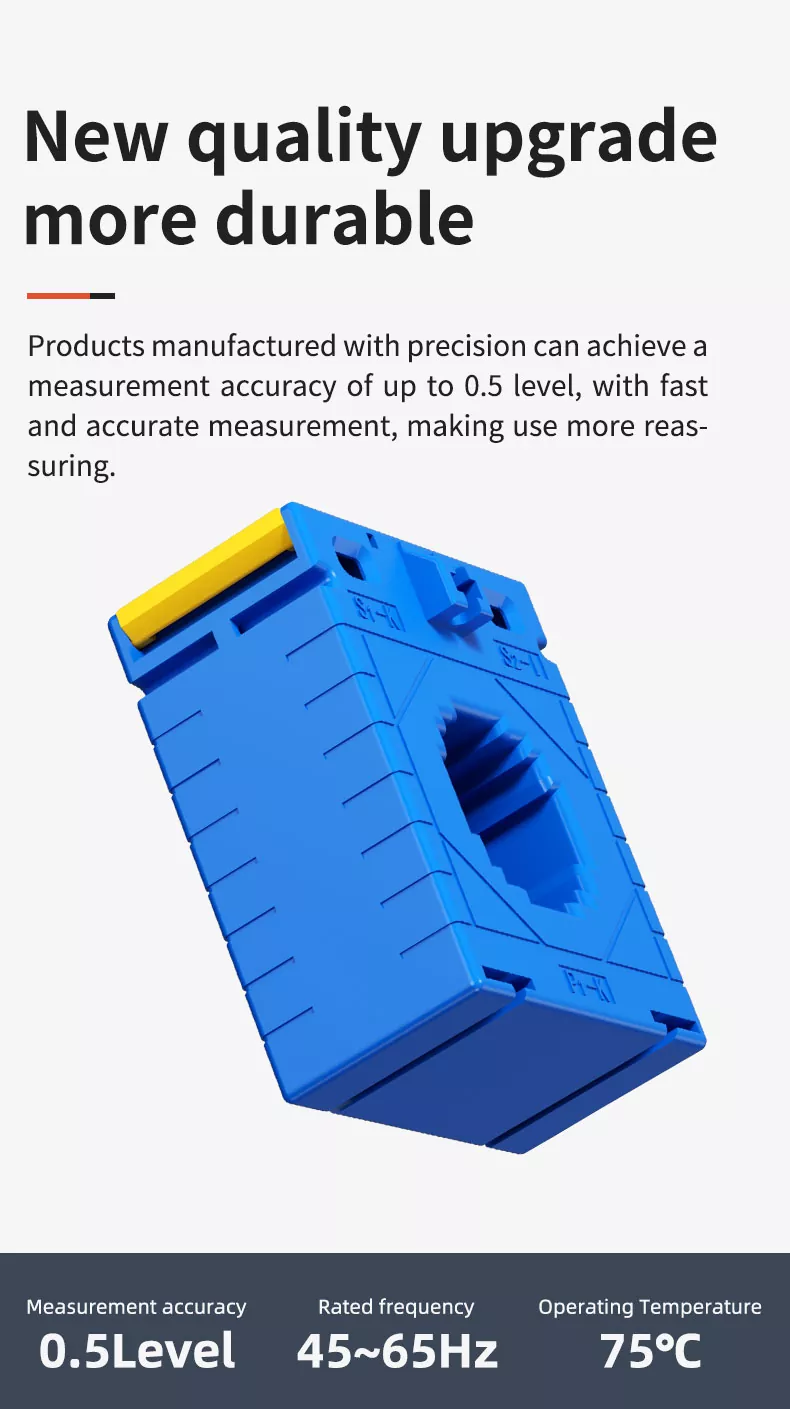

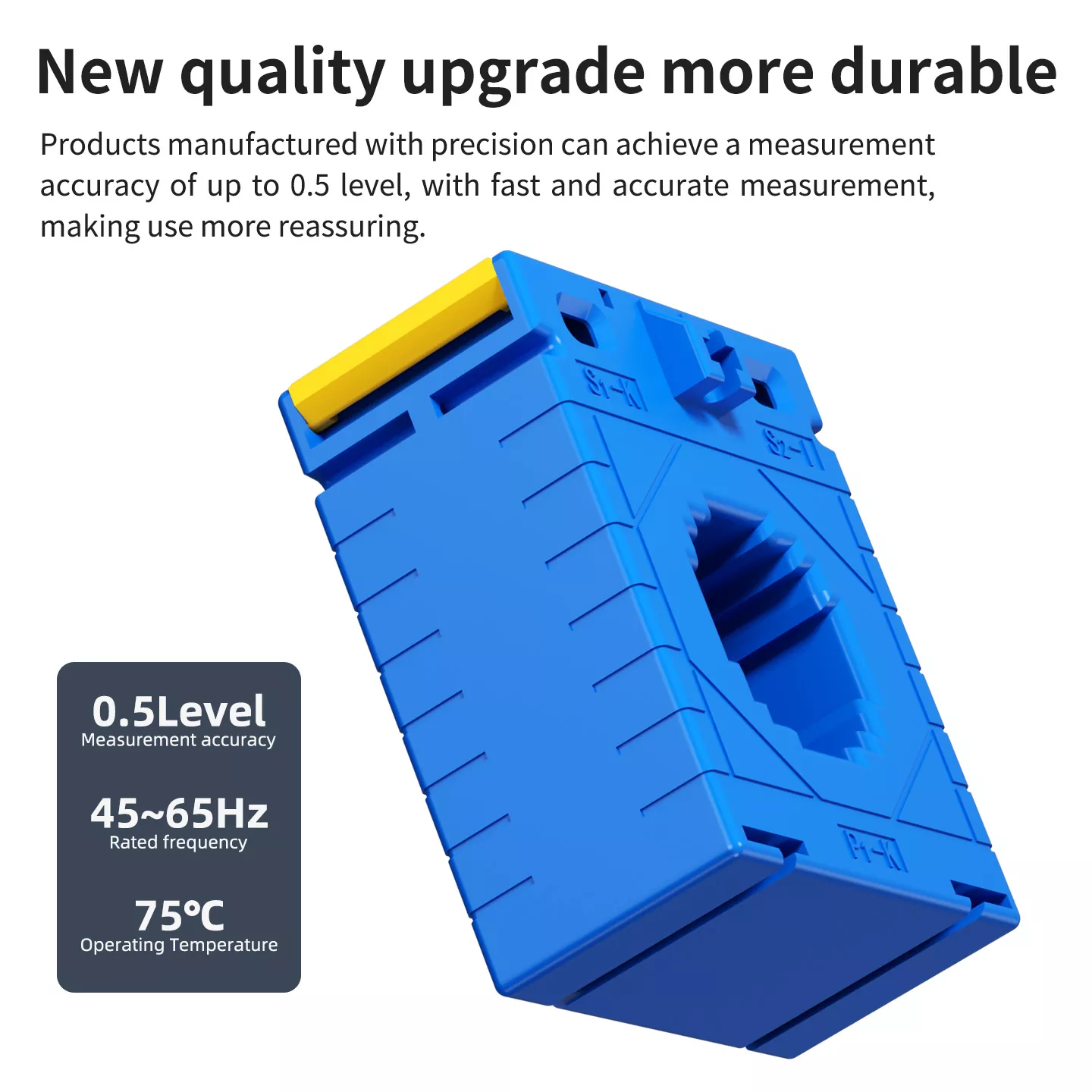

NEW QUALITY UPGRADE & MORE DURABLE

Our MES Current Transformers have undergone a full quality upgrade. Precision-manufactured, they achieve up to 0.5-level measurement accuracy, enabling fast and precise current measurement. The pure copper coils are neatly wound around high-quality iron cores, reducing resistance and ensuring stable performance. The flame-retardant ABS casing is sturdy and shock-resistant, with an operating temperature range of up to 75°C, making the product durable and reliable for long-term use in harsh industrial environments.

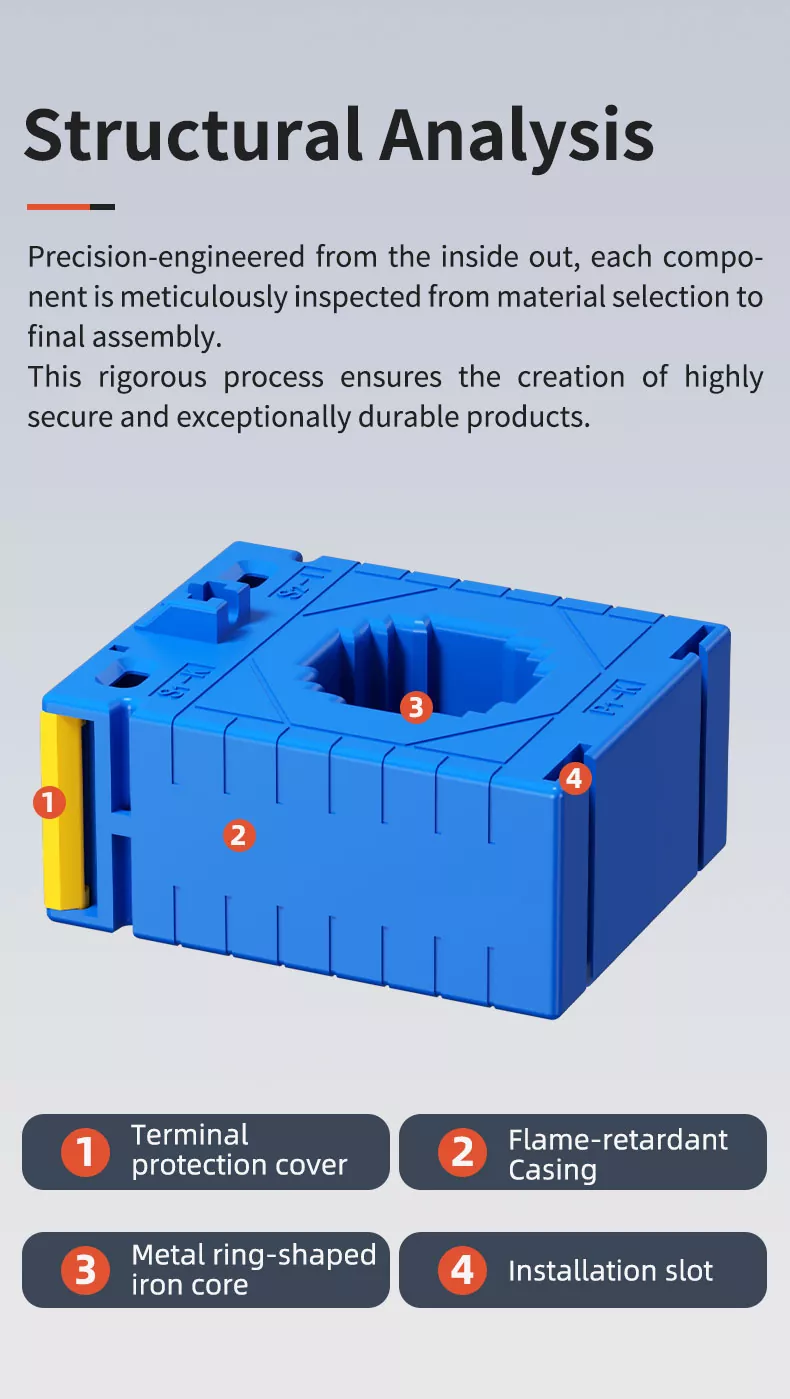

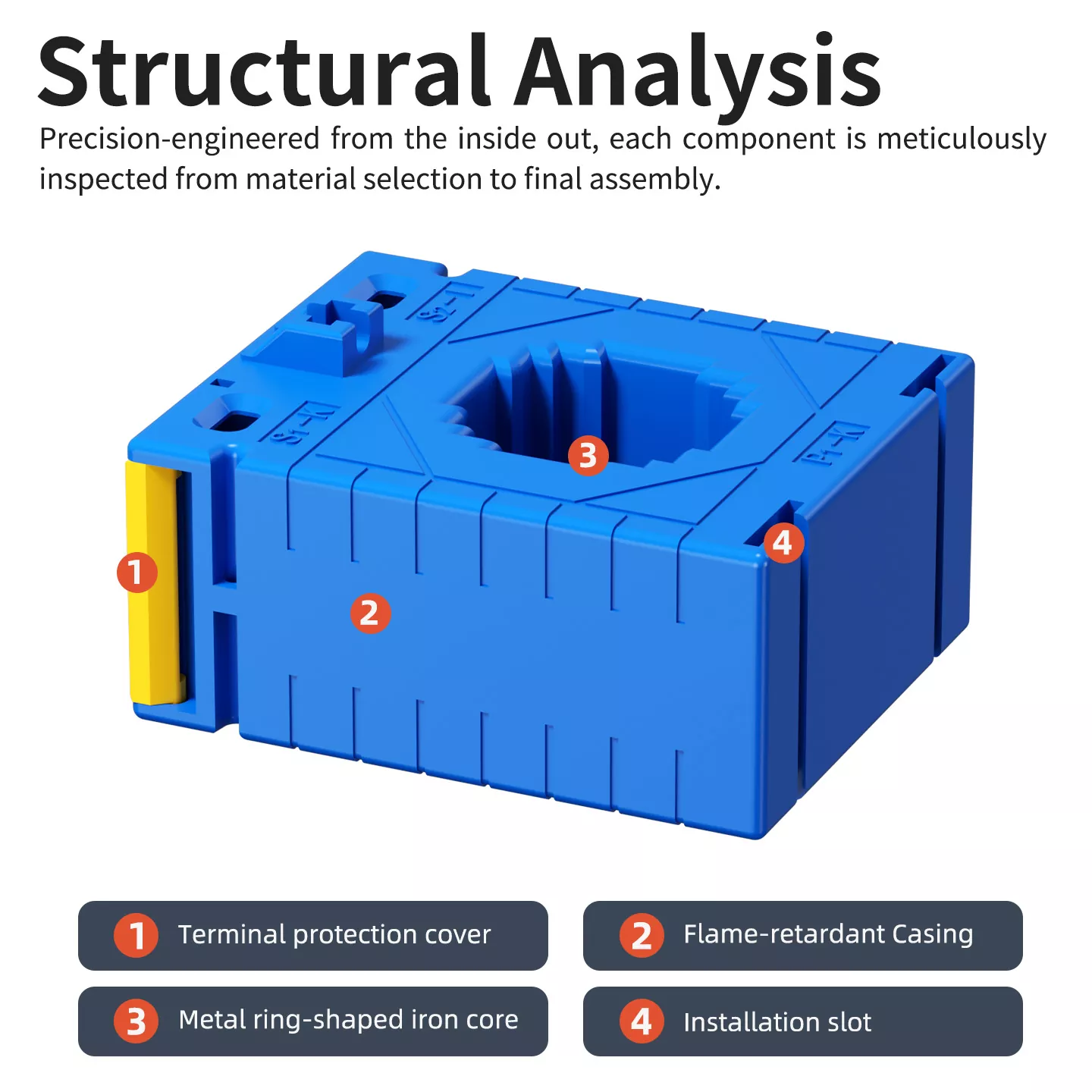

STRUCTURAL ANALYSIS

The transformer features a compact and scientific structure, including 4 core components:

TERMINAL PROTECTION COVER : Flip design protects secondary wiring terminals, facilitates observation of wiring conditions, and simplifies later maintenance.

FLAME-RETARDANT CASING : High-strength engineering plastic, anti-corrosion, wear-resistant, insulating, and flame-retardant, ensuring safety and durability.

METAL RING-SHAPED IRON CORE : High-quality iron core with uniform magnetic field distribution, ensuring accurate and stable current measurement.

INSTALLATION SLOT : Supports multiple installation methods (bottom plate, DIN rail, busbar), enabling quick and flexible deployment.

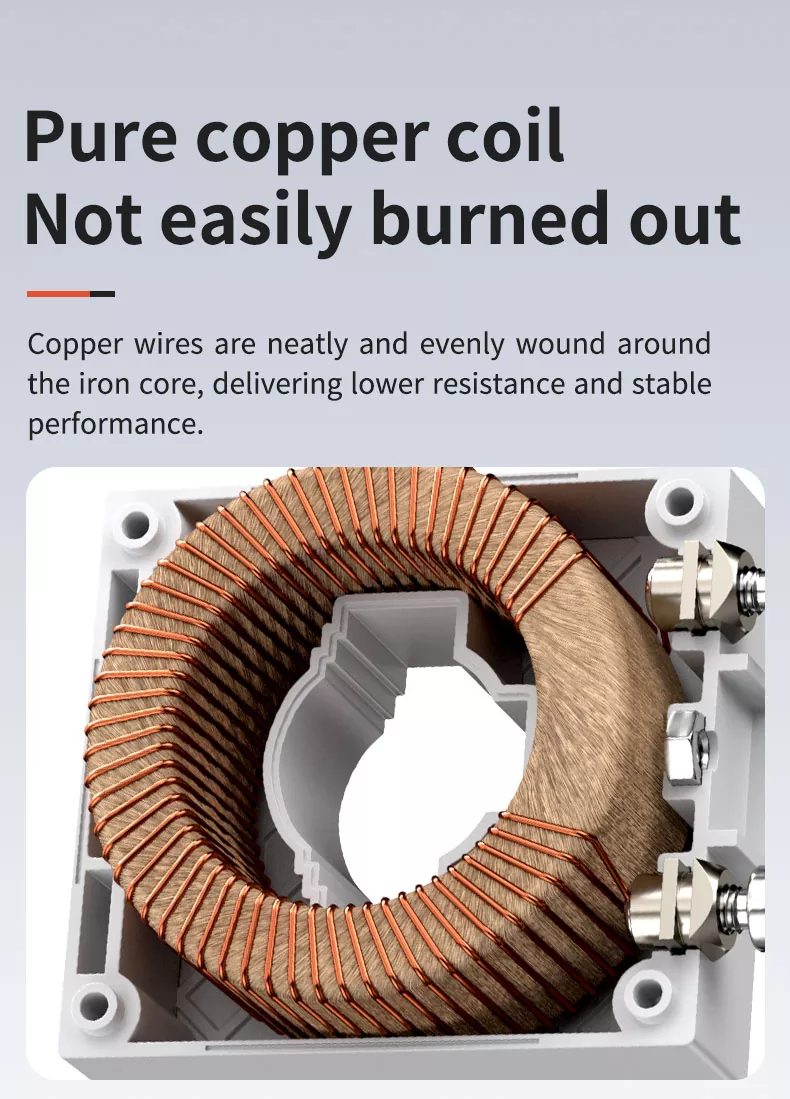

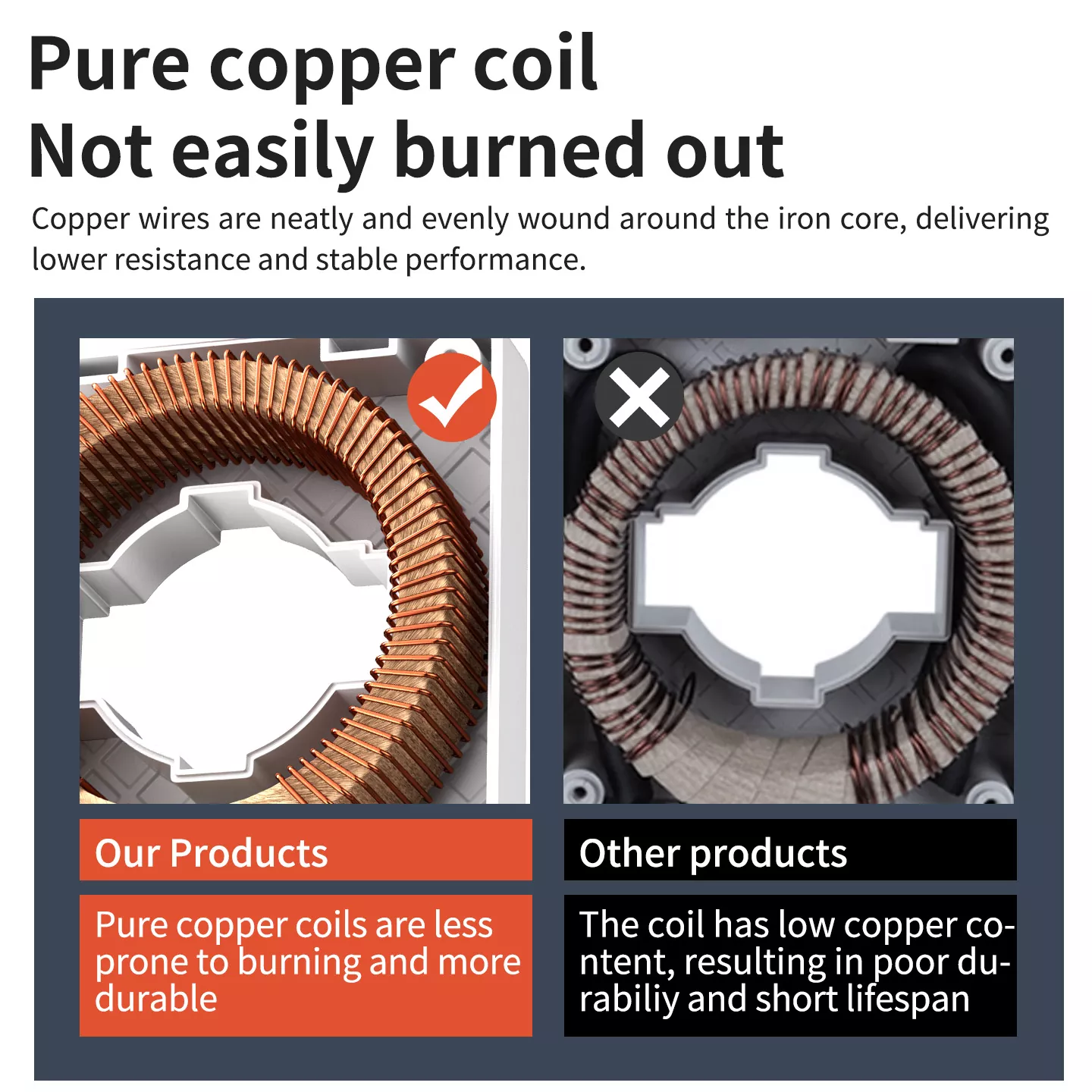

PURE COPPER COIL & STABLE PERFORMANCE

Our transformers use high-purity copper wires neatly and evenly wound around the iron core, delivering lower resistance and stable performance. Compared with other products with low copper content coils, our pure copper coils are less prone to burning out, have higher durability, and a longer service life, ensuring reliable operation even under heavy load conditions.

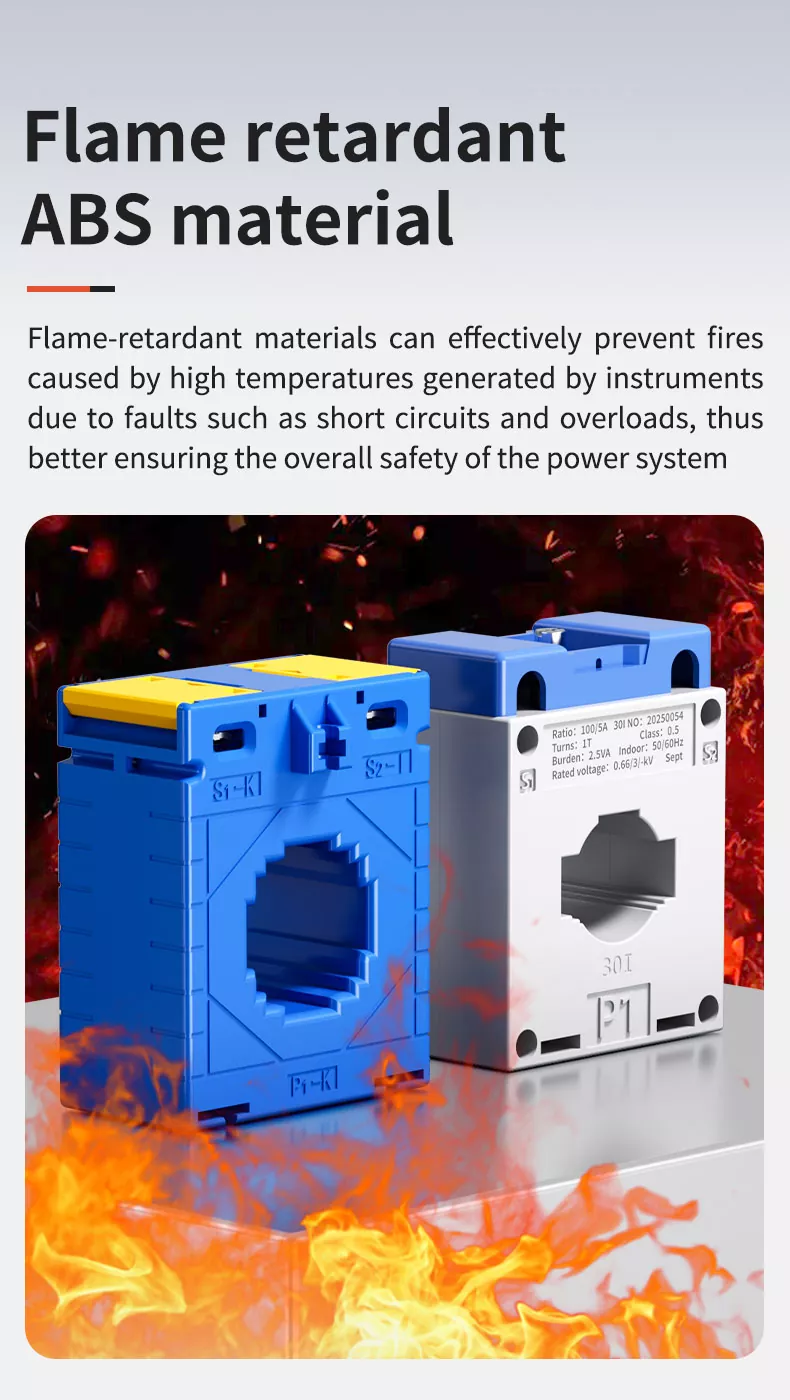

FLAME RETARDANT ABS MATERIAL

The shell is made of high-performance flame-retardant ABS engineering plastic with excellent flame-retardant and insulation properties. It can effectively inhibit combustion and prevent fires caused by high temperatures generated by instruments due to faults such as short circuits and overloads, thus better ensuring the overall safety of the power system. The material is also anti-corrosion and anti-aging, with a long service life.

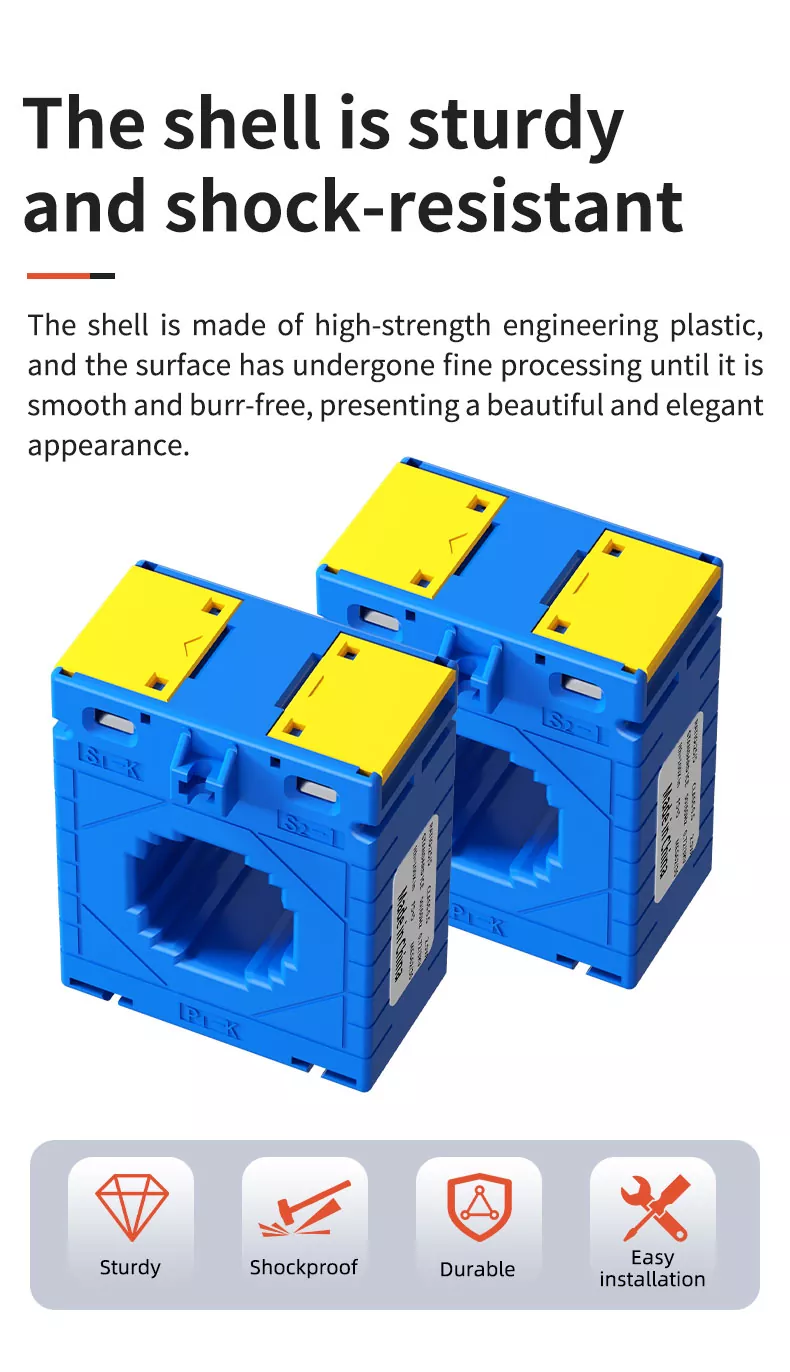

THE SHELL IS STURDY AND SHOCK-RESISTANT

The shell is made of high-strength engineering plastic, and the surface has undergone fine processing until it is smooth and burr-free, presenting a beautiful and elegant appearance. It has excellent shock resistance and compression resistance, can resist daily collision and mechanical vibration, and will not deform or damage. The material is anti-corrosion and anti-aging, suitable for long-term stable use in various complex industrial environments.

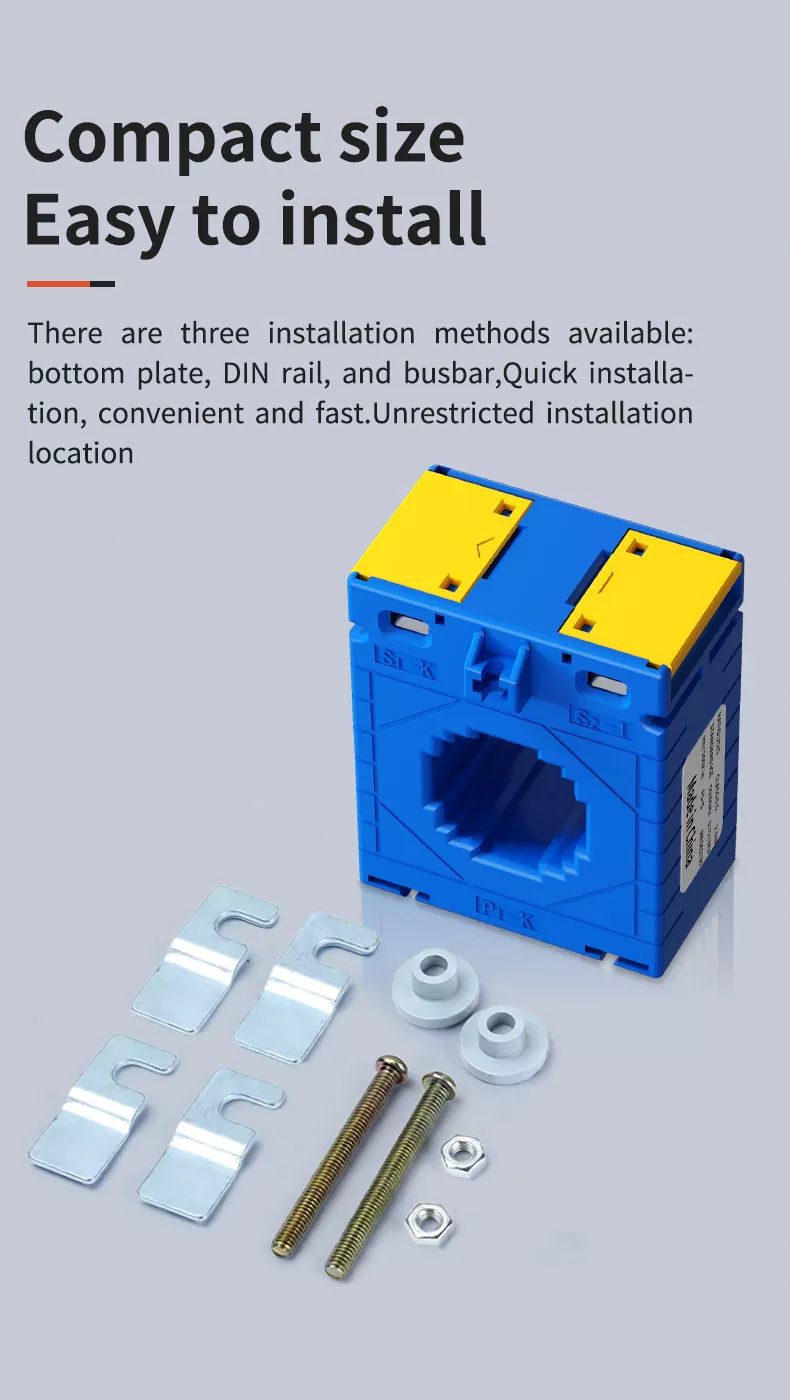

COMPACT SIZE & EASY TO INSTALL

The transformer features a compact size and three installation methods: bottom plate, DIN rail, and busbar. Quick installation, convenient and fast, with unrestricted installation location. It is compatible with various distribution cabinets and electrical equipment, suitable for quick deployment in different scenarios, reducing installation time and cost.

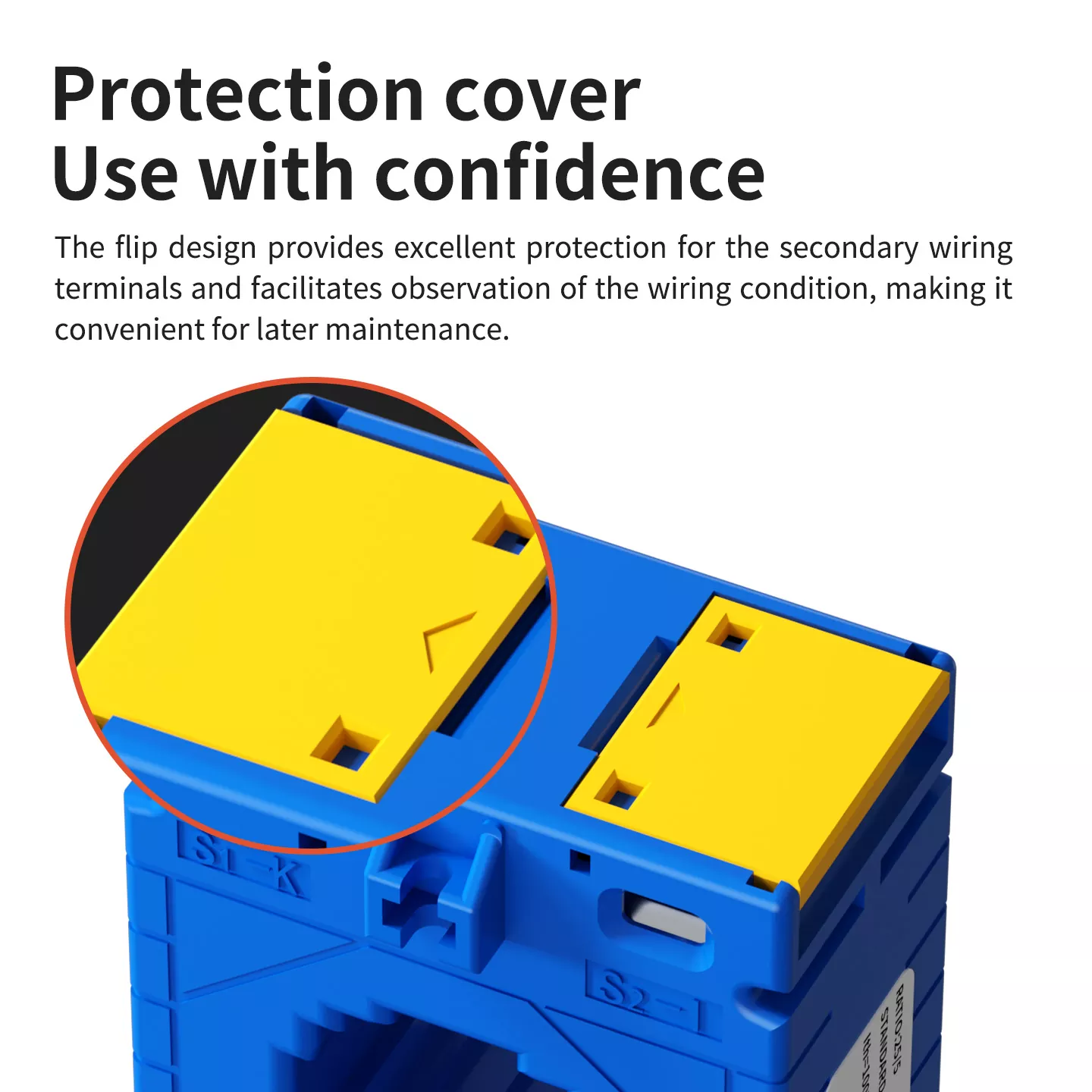

TERMINAL PROTECTION COVER

The flip design of the terminal protection cover provides excellent protection for the secondary wiring terminals and facilitates observation of the wiring condition, making it convenient for later maintenance. The clear terminal marking ensures correct wiring, avoiding wiring errors and improving installation efficiency.

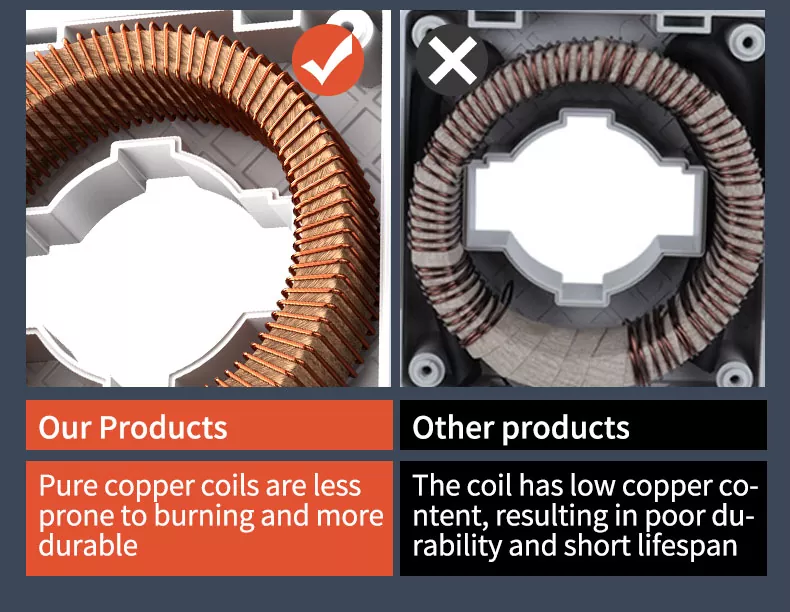

OUR PRODUCTS VS. OTHER PRODUCTS

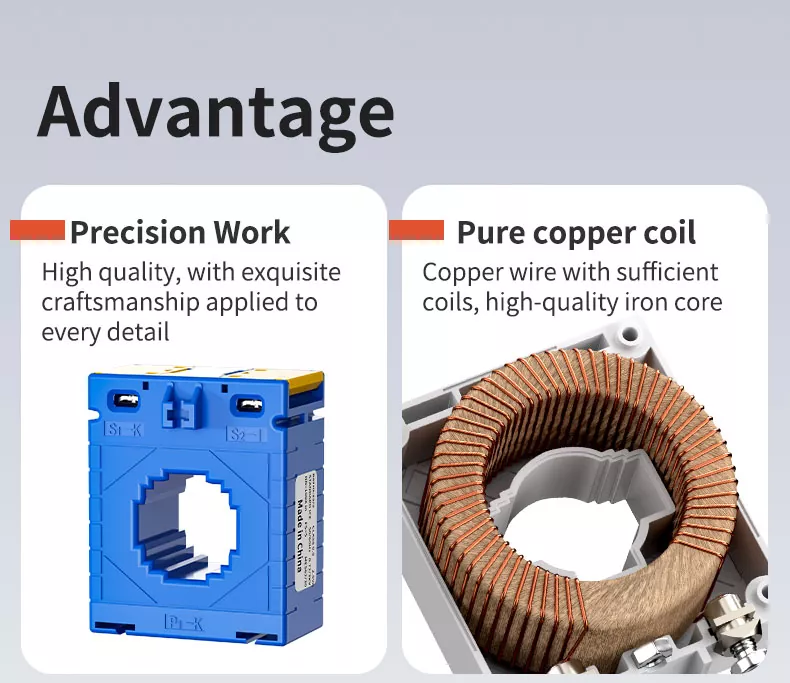

CORE ADVANTAGE

1.  HIGH PRECISION : 0.5-level measurement accuracy, ensuring accurate current measurement and energy calculation.

2.  PURE COPPER COIL : Low resistance, stable performance, not easily burned out, long service life.

3.  FLAME-RETARDANT CASING : High-strength ABS material, effectively preventing fires caused by short circuits and overloads.

4.  EASY INSTALLATION : Compact size, multiple installation methods, flexible deployment, suitable for various scenarios.

FOUR CORE SELLING POINTS

• FLAME-RETARDANT CASING : Anticorrosion, wear-resistant, insulating, and flame-retardant, ensuring long-term safe use.

• TERMINAL PROTECTION COVER : Easy to observe wiring conditions and maintain, protecting secondary terminals.

• COMPACT STRUCTURE : Unrestricted installation scenarios, flexible deployment, reducing installation cost.

• COMPLETE SPECIFICATIONS : Multiple models and ratios to choose from, meeting the needs of different working conditions.

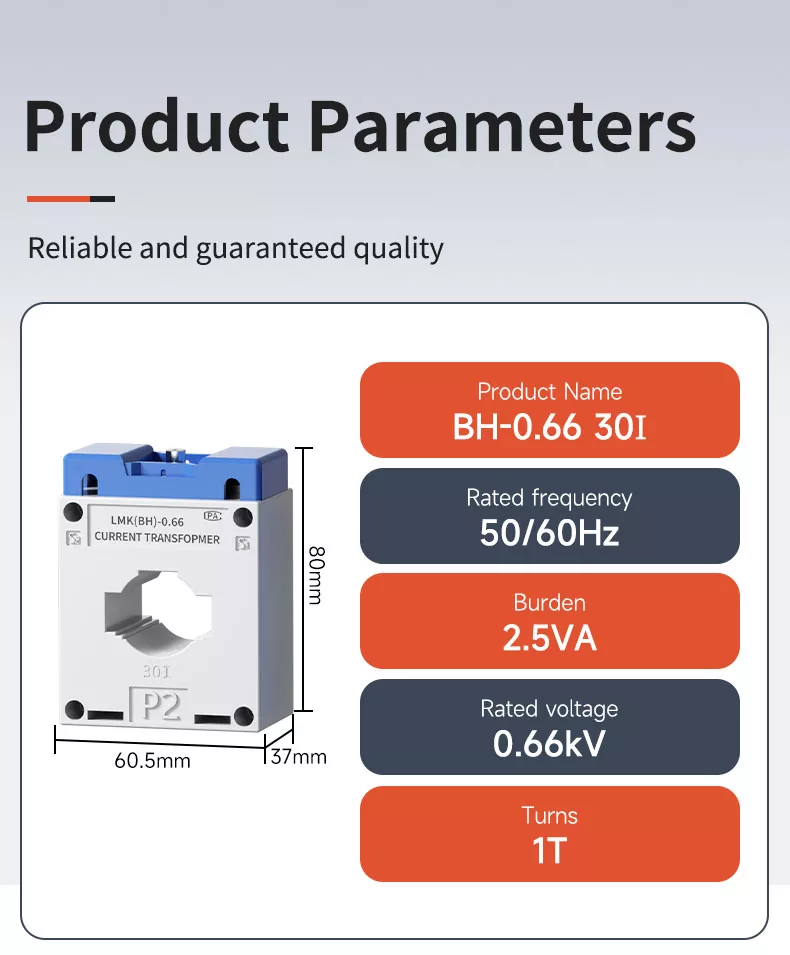

PRODUCT PARAMETERS

BH-0.66 30I

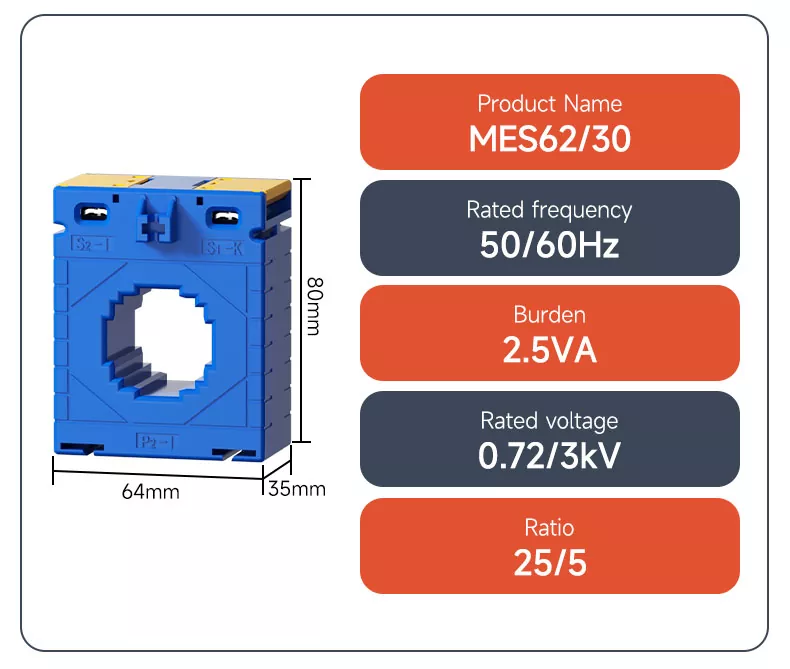

MES62/30

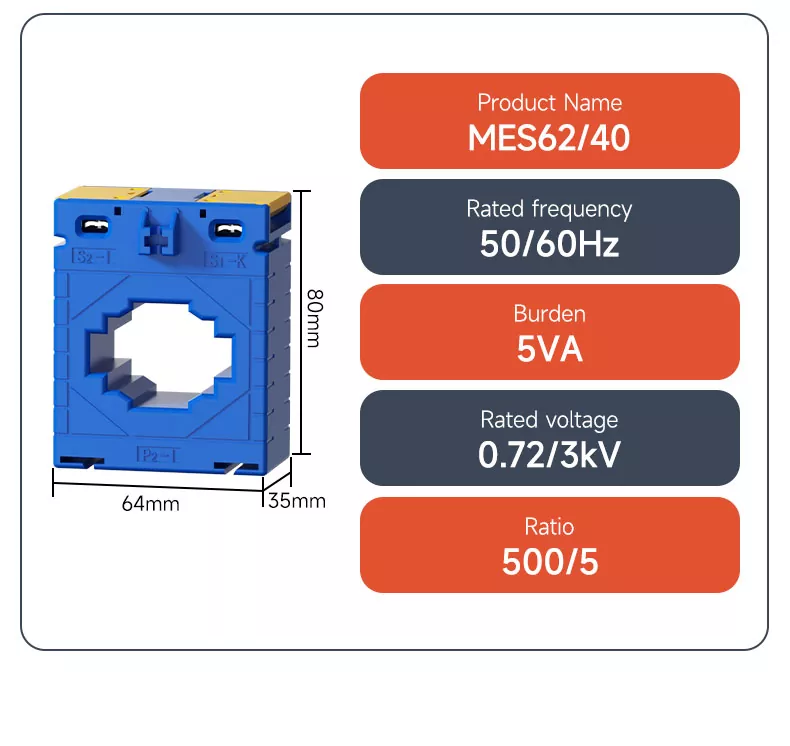

MES62/40

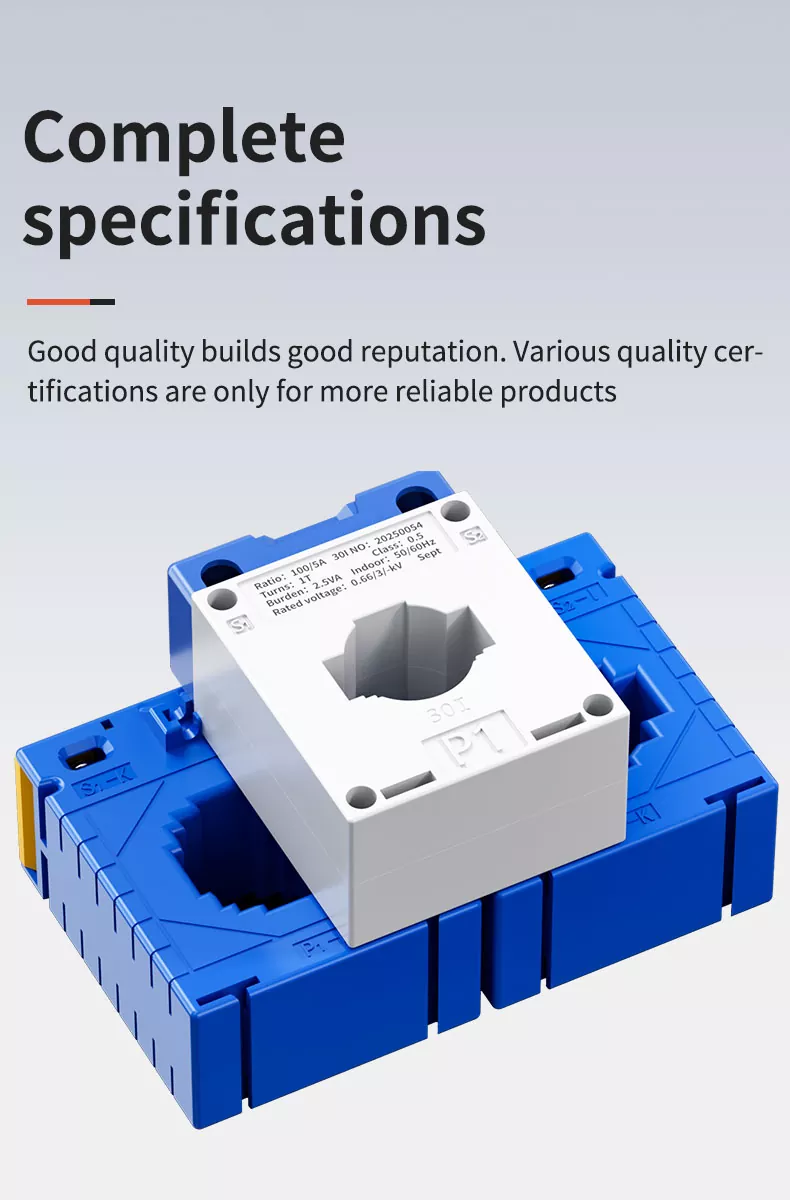

COMPLETE SPECIFICATIONS

We offer a full range of current transformers with various ratios (e.g., 25/5, 50/5, 100/5, 500/5) and sizes (e.g., 30I, 40I), meeting the diverse needs of different power systems and equipment. All products are certified by authoritative institutions, ensuring reliable quality and performance.

AUTHORITATIVE CERTIFICATION

Our current transformers have passed professional laboratory testing and certification, in line with national and international industry standards. The whole production process implements strict quality control, including accuracy calibration, withstand voltage test, aging test and other links, ensuring the accuracy, safety and stability of each product. Authoritative certification provides a strong guarantee for global customers' bulk procurement and long-term cooperation.

WIDELY USED

Our MES Current Transformers are widely used in:

•  SUBSTATION : Current measurement and relay protection

•  AUTOMATION EQUIPMENT : Industrial process control and current monitoring

•  FLOW PRODUCTION : Factory energy consumption monitoring and management

•  DISTRIBUTION CABINET : Low-voltage distribution system current measurement

•  RESIDENTIAL BUILDING : Apartment complex power usage management

•  DEPARTMENT STORE : Commercial building power metering and monitoring

FAQ

1.WHAT IS THE MAIN FUNCTION OF THIS PRODUCT?

It is mainly used in indoor AC circuits to measure current, calculate electric energy, and provide relay protection functions for power systems.

2. WHAT IS THE MEASUREMENT ACCURACY?

It adopts 0.5-level high accuracy, which meets international industrial measurement standards, ensuring accurate and reliable current measurement.

3.WHAT INSTALLATION METHODS ARE AVAILABLE?

It supports three installation methods: bottom plate, DIN rail, and busbar, enabling flexible and quick deployment in various scenarios.

4.WHAT IS THE OPERATING TEMPERATURE RANGE?

The product can operate stably at -20~75°C, suitable for various indoor and outdoor industrial environments.

5.WHAT RATIOS AND SIZES ARE AVAILABLE?

We offer a full range of ratios (e.g., 25/5, 50/5, 100/5, 500/5) and sizes (e.g., 30I, 40I), meeting the diverse needs of different power systems.

6.IS THE PRODUCT CERTIFIED?

Yes, our products have passed MA/CNAS certification and other authoritative tests, ensuring reliable quality and performance.
