3P 63A DZ47 Miniature Circuit Breaker

Eton is a professional China manufacturer and supplier of 3P 63A DZ47 Miniature Circuit Breaker, offering wholesale high-performance circuit protection solutions for global buyers. Designed for 3-phase 400V power systems, this circuit breaker automatically disconnects power during overload or short circuit conditions, effectively preventing electrical hazards and equipment damage. Manufactured with premium flame-retardant PC material and precision engineering, it features a durable structure, user-friendly operation, and long service life. Compliant with IEC60898-1 and GB10963.1 standards, it is widely applied in distribution cabinets, residential buildings, industrial equipment, and commercial power systems. With stable quality, factory direct supply, and OEM/ODM support, Eton ensures reliable solutions for bulk purchasing needs.

NEW QUALITY UPGRADE & MORE DURABLE

Our DZ47-63 MCB is a reliable China manufacturer and supplier solution for wholesale circuit protection needs, delivering upgraded quality and stable performance for global buyers. From material selection to final assembly, every component is strictly inspected to ensure consistent safety and durability.

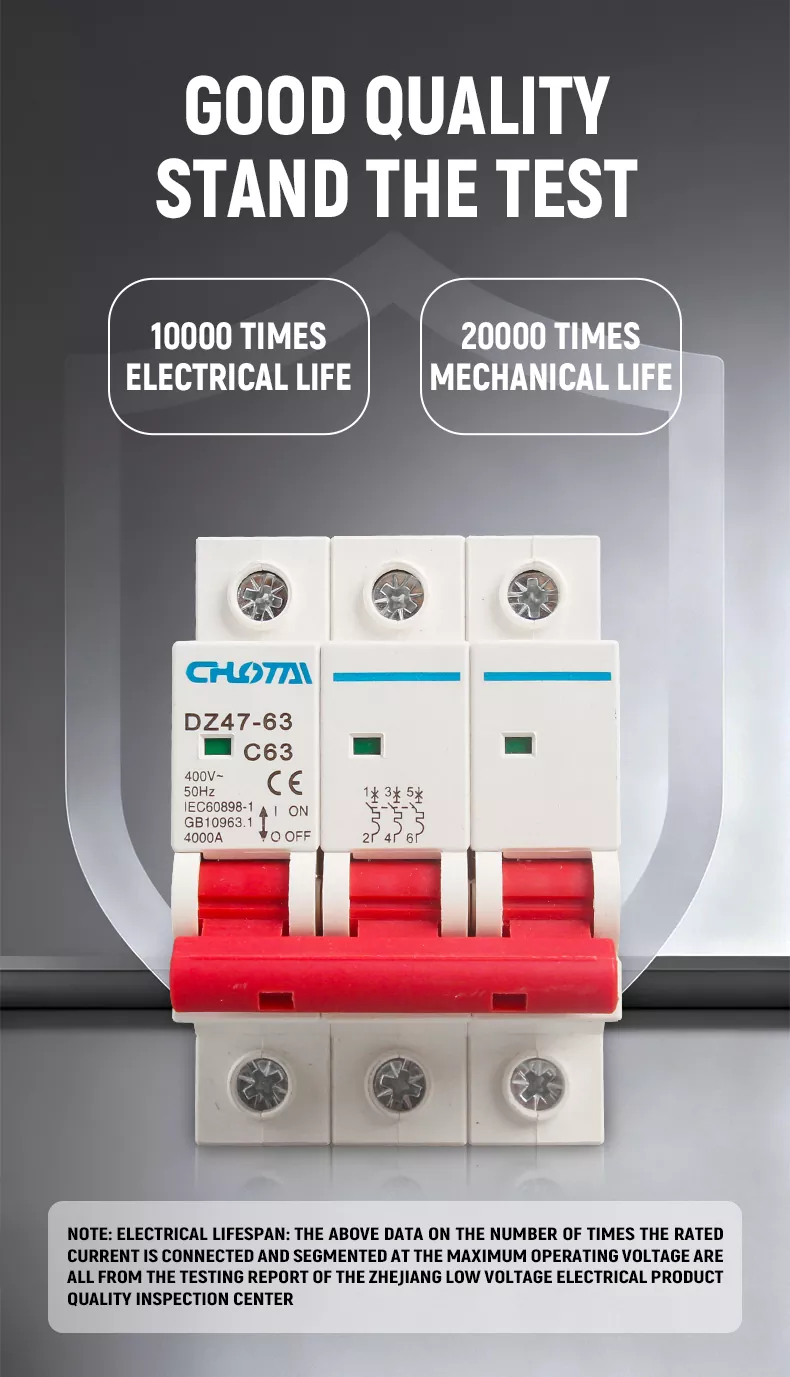

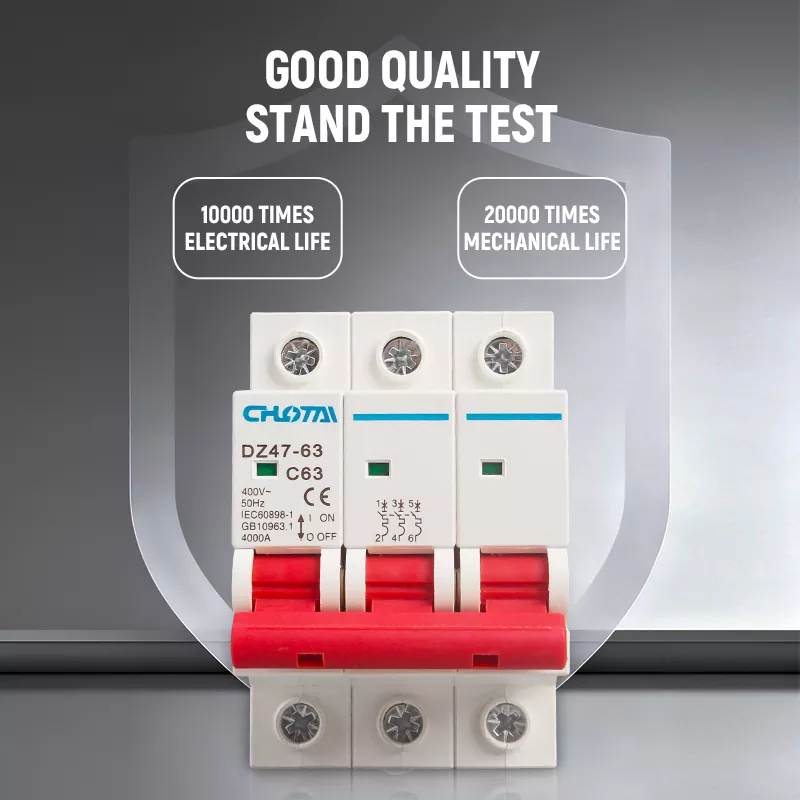

It features 10,000 times electrical life and 20,000 times mechanical life, fully tested and certified by the Zhejiang Low Voltage Electrical Product Quality Inspection Center. The thermosetting flame-retardant shell provides excellent heat resistance, impact resistance, and self-extinguishing performance, while high-quality copper terminals ensure stable conductivity and efficient current transmission.

Before delivery, each unit undergoes strict aging and withstand voltage tests, ensuring long-term stable operation even in harsh and demanding environments. With factory supply capability and professional OEM/ODM support, Eton delivers dependable DZ47-63 MCB solutions for industrial, commercial, and residential applications.

STRUCTURAL ANALYSIS

The MCB adopts a compact and scientific structure, with 4 core design highlights:

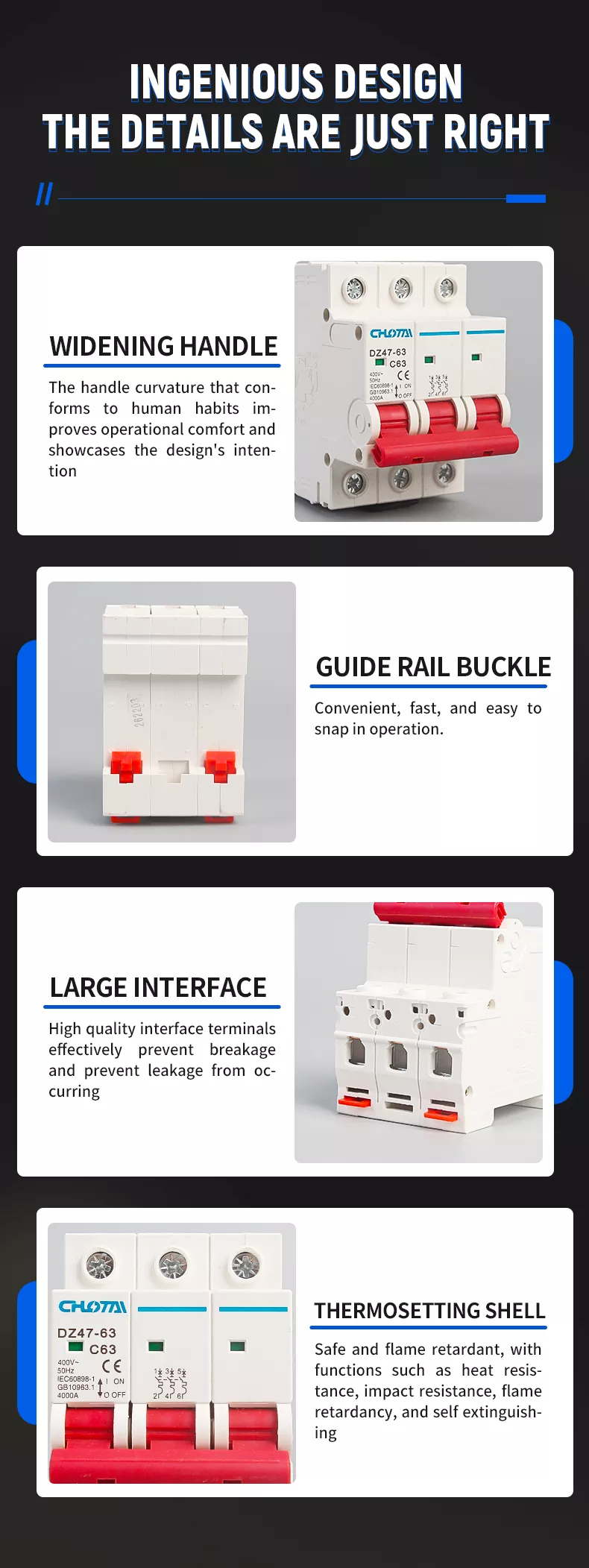

1.  WIDENING D-TYPE HANDLE : Ergonomic curvature for comfortable operation, easy to switch on/off.

2.  GUIDE RAIL BUCKLE : Standard DIN35mm rail mounting, convenient and fast snap-in installation.

3.  LARGE INTERFACE TERMINALS : High-quality terminals prevent breakage and leakage, ensuring secure wiring.

4.  THERMOSETTING SHELL : Flame-retardant, heat-resistant, impact-resistant, and self-extinguishing for maximum safety.

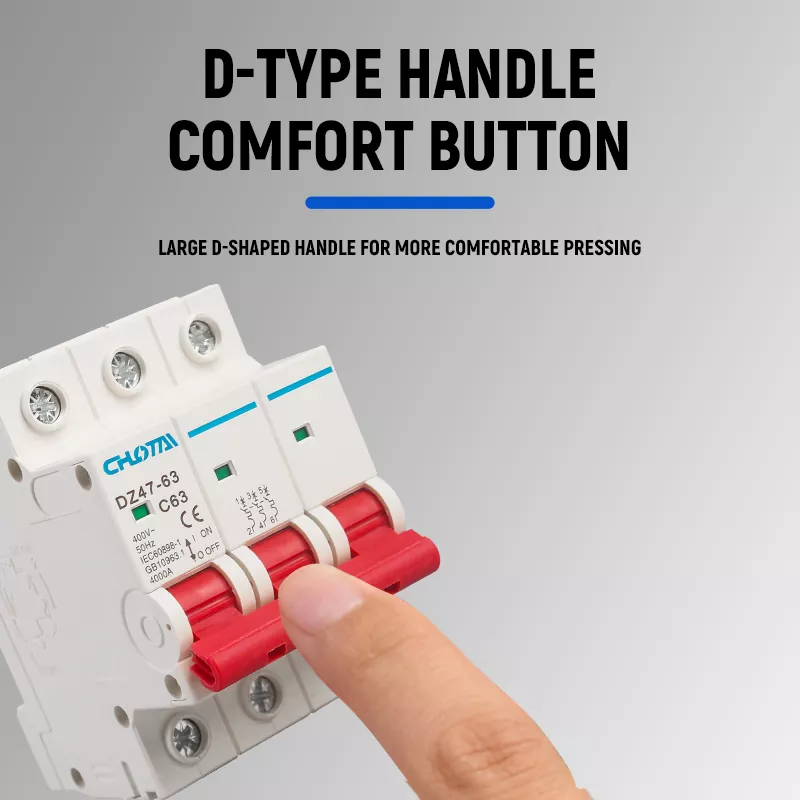

ERGONOMIC D-TYPE HANDLE FOR COMFORTABLE OPERATION

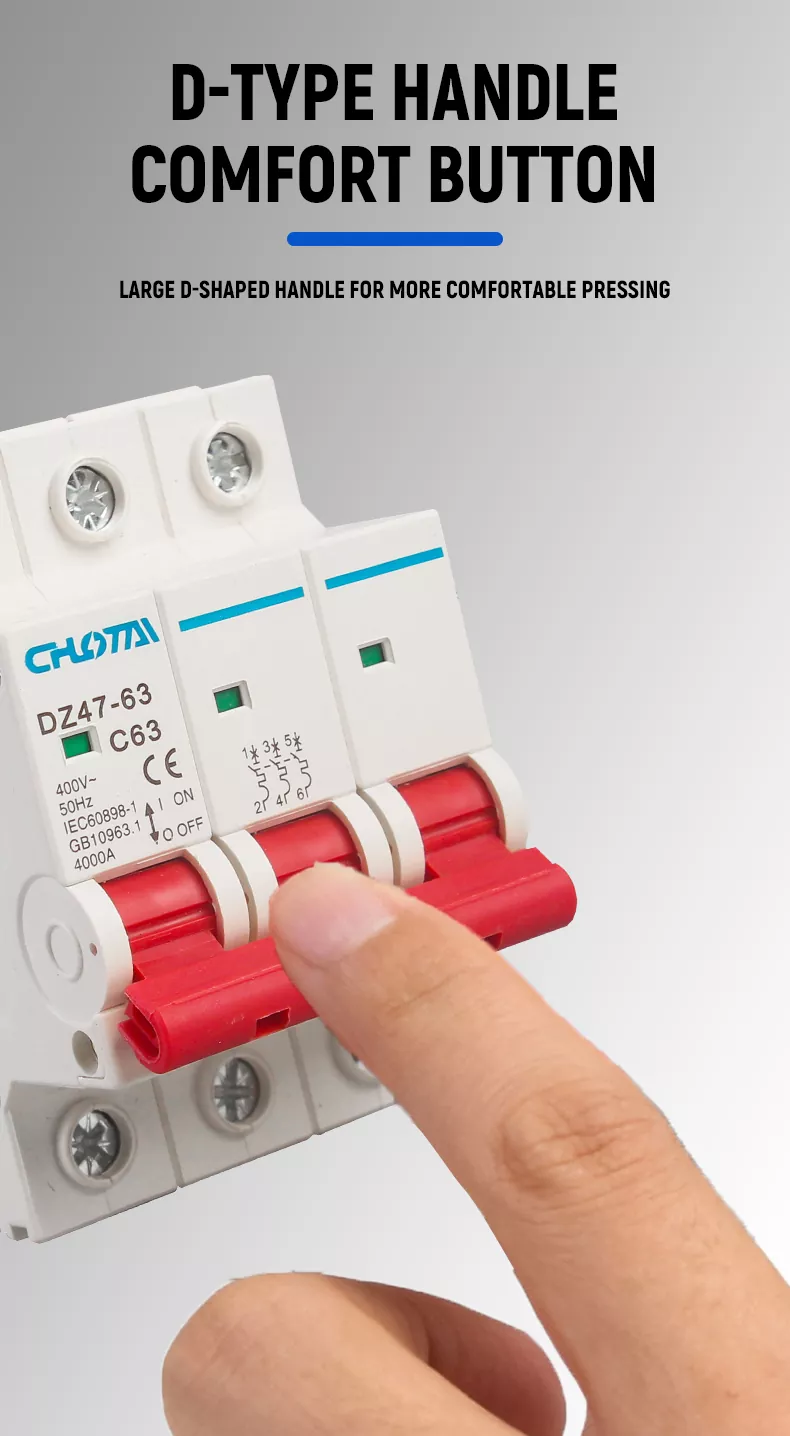

Equipped with a large D-shaped handle designed to fit human operating habits. The widened, curved design provides a comfortable grip, reducing operational fatigue during frequent switching. The red high-visibility handle ensures clear status recognition, making it easy to operate even in dim environments.

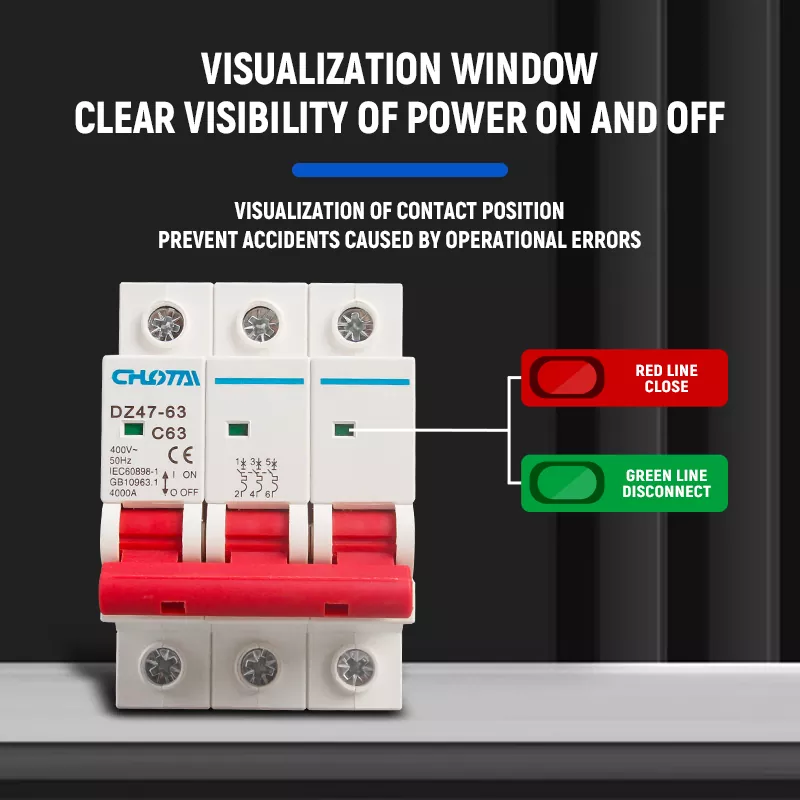

VISUALIZATION WINDOW FOR CLEAR STATUS INDICATION

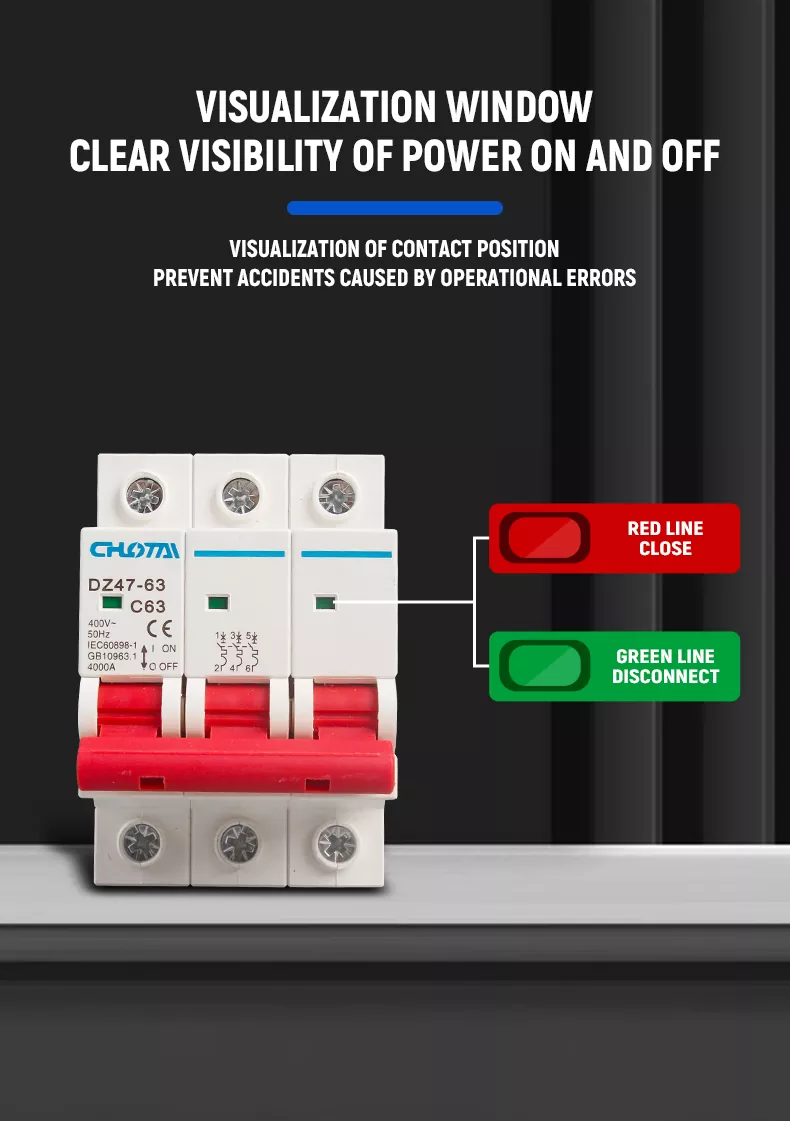

The built-in visual contact position window clearly displays the power status: green indicates the circuit is disconnected, red indicates the circuit is closed. This prevents accidents caused by operational errors, allowing users to instantly confirm the working status of the circuit breaker.

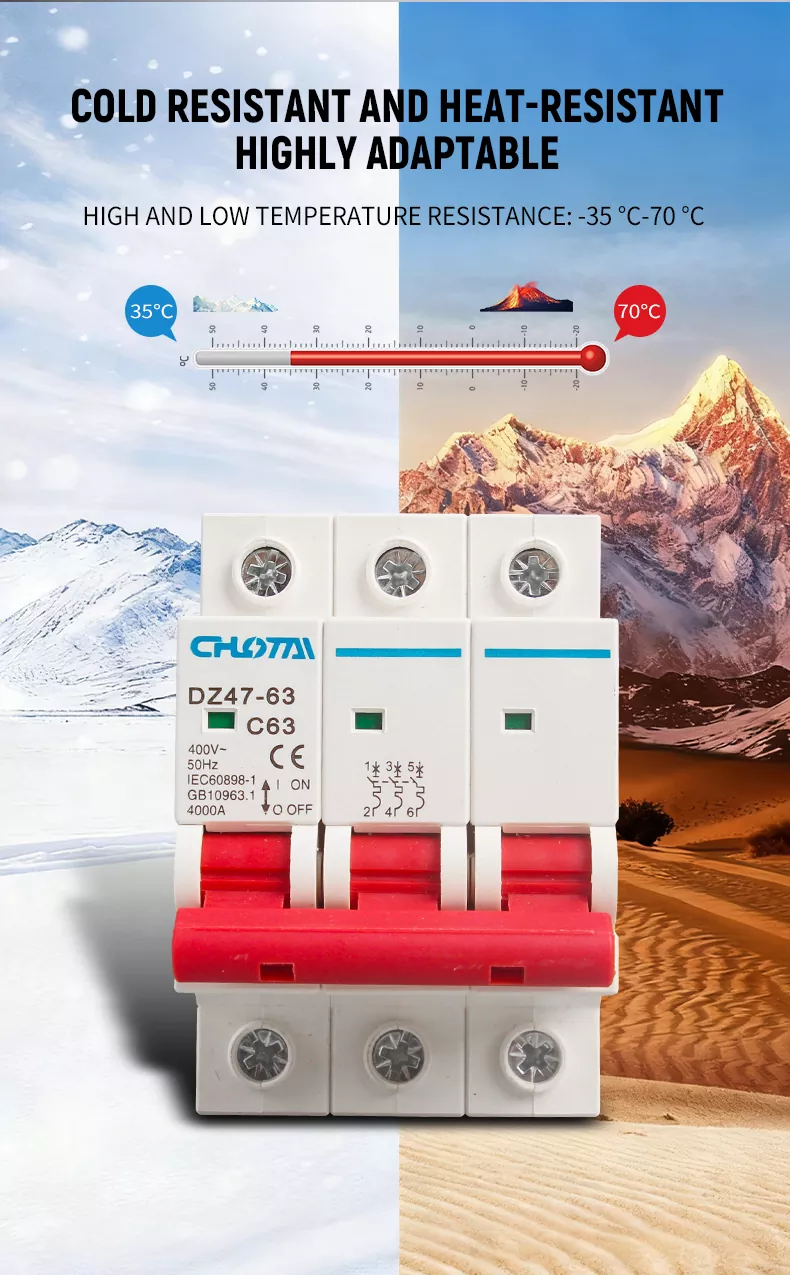

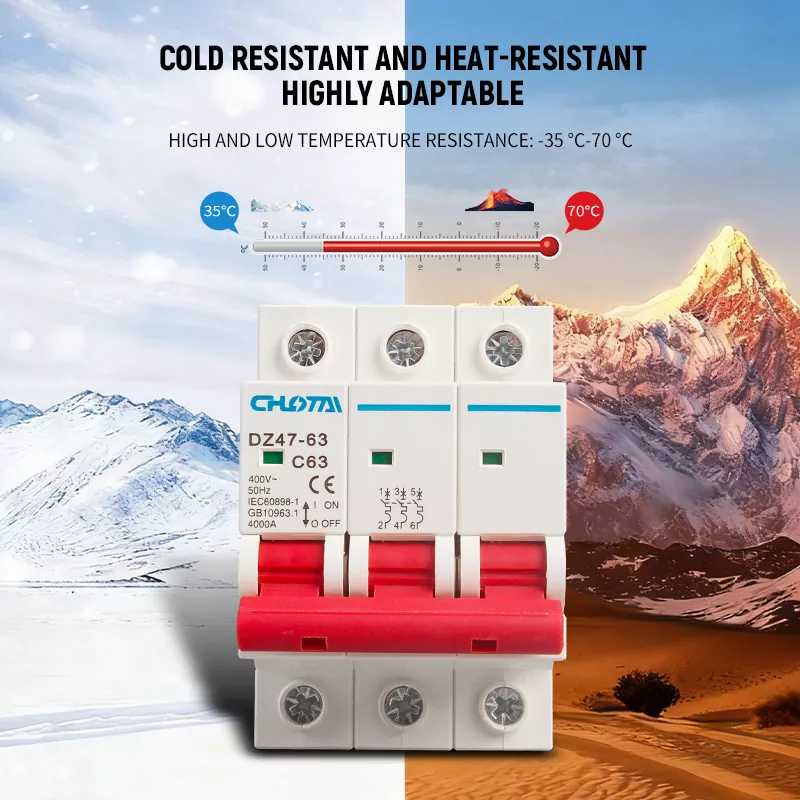

WIDE TEMPERATURE ADAPTABILITY

The MCB features excellent high and low temperature resistance, with a working temperature range of -35°C to 70°C . It operates stably in extreme cold (e.g., alpine regions) and high-temperature (e.g., desert, industrial workshops) environments, ensuring reliable circuit protection in various climate conditions.

OUR PRODUCTS VS. OTHER PRODUCTS

CORE ADVANTAGE

SHORT CIRCUIT & OVERLOAD PROTECTION : Automatically trips to cut off power during faults, preventing electrical fires.

FLAME RETARDANT MATERIAL : Thermosetting shell with excellent fire resistance, ensuring safety in extreme conditions.

EASY INSTALLATION : Standard DIN35mm rail mounting, quick snap-in installation, compatible with all distribution cabinets.

LONG SERVICE LIFE : 10,000 electrical cycles and 20,000 mechanical cycles, durable for long-term use.

CLEAR STATUS INDICATION : Visual window for real-time power status, preventing operational errors.

WIDE APPLICABILITY : 3P 63A model suitable for 3-phase 400V systems, meeting residential, commercial, and industrial needs.

SIX CORE SELLING POINTS

•  OVERLOAD & SHORT CIRCUIT PROTECTION : Dual protection to safeguard circuits and electrical equipment.

•  FLAME RETARDANT SHELL : High-strength thermosetting material, heat-resistant, impact-resistant, and self-extinguishing.

•  ERGONOMIC HANDLE : D-type widened design for comfortable, effortless operation.

•  VISUAL STATUS WINDOW : Clear on/off indication, eliminating operational risks.

•  WIDE TEMPERATURE RESISTANCE : -35°C to 70°C operating range, adaptable to all environments.

•  AUTHORITATIVE CERTIFICATION : CE, CCC certified, meeting international safety standards.

STURDY & FLAME RETARDANT SHELL

The shell is made of high-performance thermosetting PC material, with a smooth, burr-free surface and excellent mechanical strength. It features outstanding flame retardancy, heat resistance, impact resistance, and self-extinguishing properties, effectively preventing fires caused by short circuits and overloads. The material is also anti-aging and corrosion-resistant, ensuring long-term safe use in various complex environments.

HIGH-QUALITY TERMINALS & EASY WIRING

Equipped with large, high-quality interface terminals made of high-conductivity copper. The pressure plate wiring board design ensures secure, firm wiring, effectively preventing breakage and leakage. The large terminal space accommodates thick wires, making installation easier and more reliable.

STANDARD DIN RAIL MOUNTING

Designed for standard DIN35mm guide rail installation, with a convenient snap-in buckle. It is compatible with all standard distribution cabinets, enabling fast, tool-free installation and disassembly, suitable for quick deployment in various power distribution scenarios.

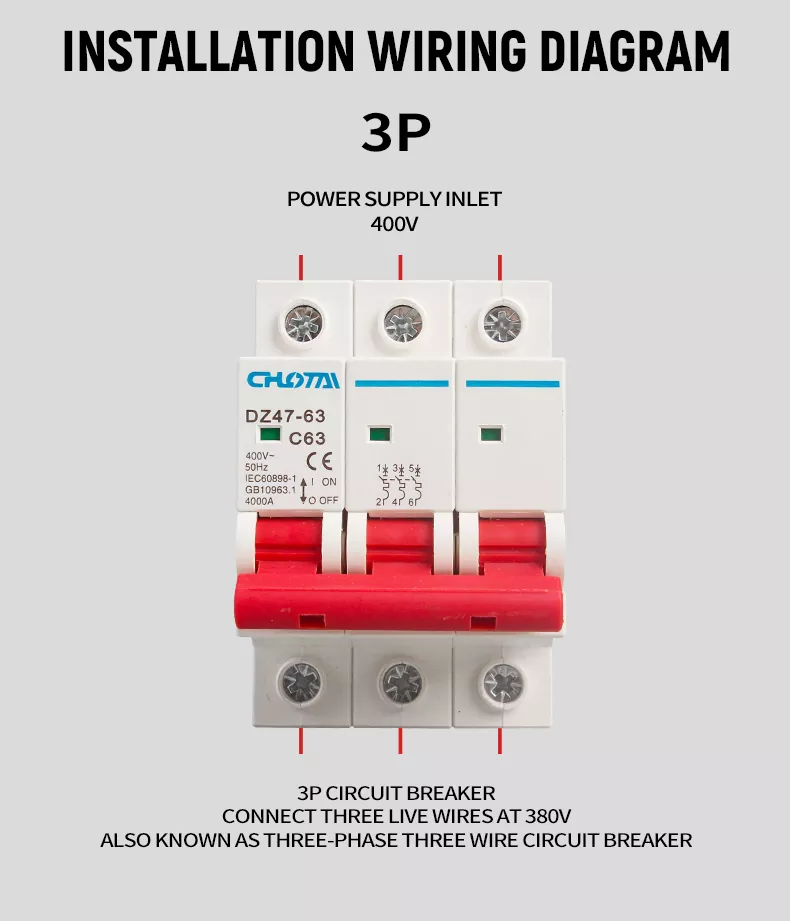

3P INSTALLATION WIRING DIAGRAM

Connect the 3-phase 400V power supply inlet to the upper terminals of the 3P MCB.

Connect the load (equipment) to the lower terminals of the MCB.

Ensure all wiring is firmly tightened to avoid overheating.

Switch on the MCB to confirm normal power supply.

Note: This 3P circuit breaker is a three-phase three-wire device, used to connect three live wires for 380V/400V three-phase power systems.

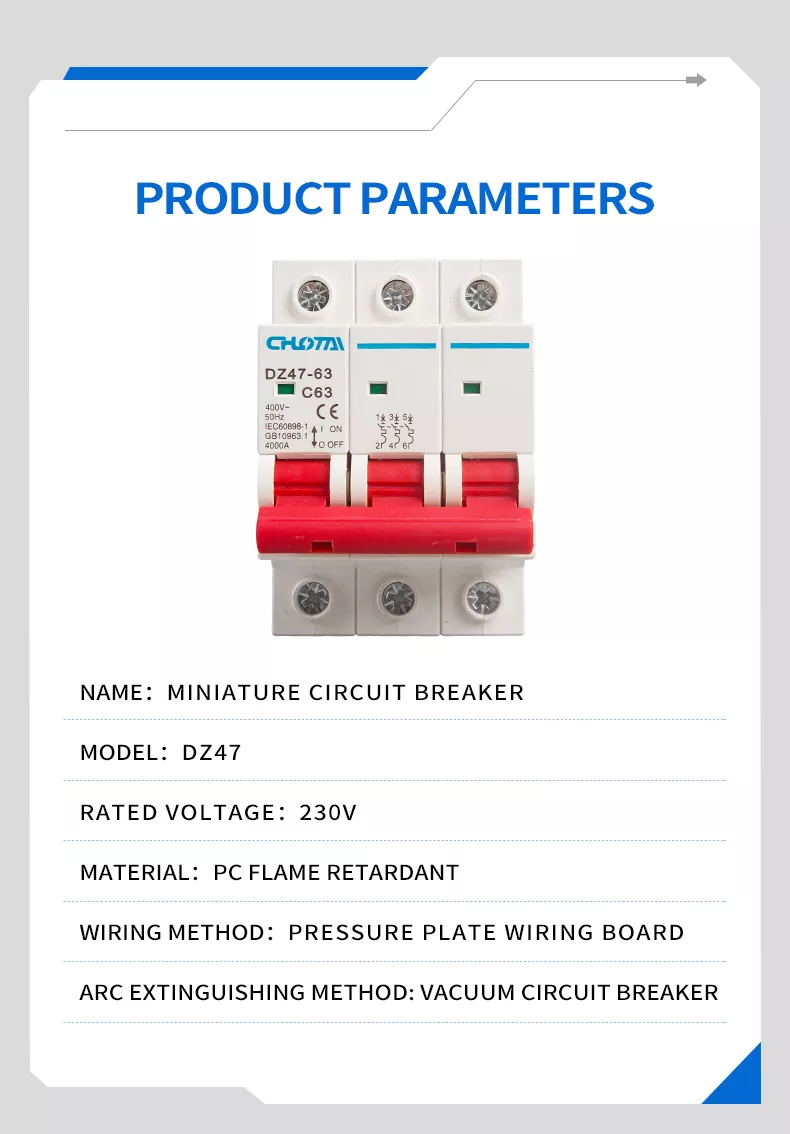

PRODUCT PARAMETERS

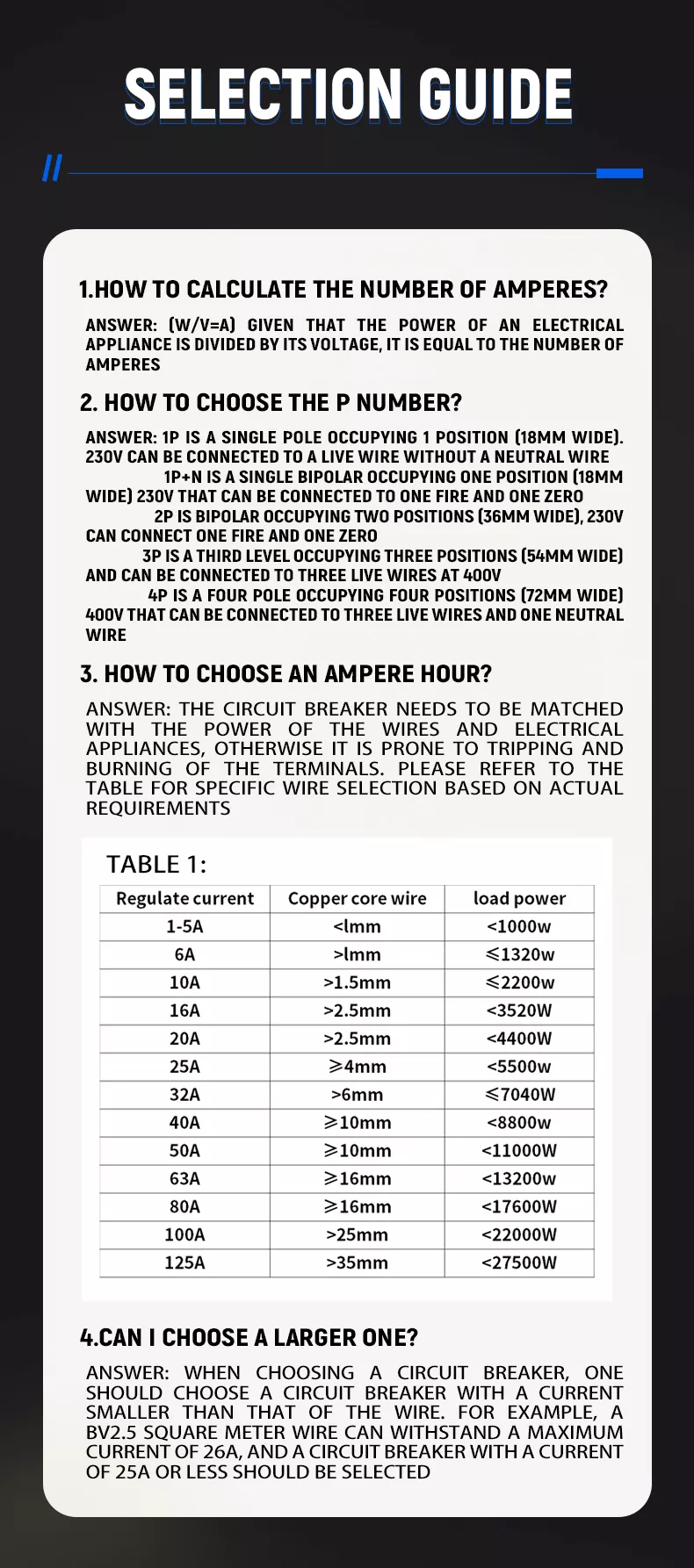

SELECTION GUIDE

1. How to Calculate the Number of Amperes?

Formula: Current (A) = Power (W) / Voltage (V) . Calculate the required current based on the power of your electrical appliances.

2. How to Choose the Pole Number?

•  1P : Single pole, 1 module (18mm wide), for 230V live wire only (no neutral).

•  1P+N : 1 module (18mm wide), for 230V live + neutral.

•  2P : 2 modules (36mm wide), for 230V live + neutral.

•  3P : 3 modules (54mm wide), for 400V 3-phase live wires (this product).

•  4P : 4 modules (72mm wide), for 400V 3-phase + neutral.

3. How to Choose Ampere Rating?

Match the breaker rating to the wire and appliance power to avoid tripping or terminal overheating. Refer to the table below:

4. Can I Choose a Larger One?

No.  Always select a breaker with a current rating smaller than the wire's maximum carrying capacity . For example, a 2.5mm² BV wire can withstand a maximum of 26A, so a 25A or lower breaker must be selected.

WIDELY USED

Our DZ47-63 3P 63A Miniature Circuit Breaker is widely used in:

•  RESIDENTIAL BUILDINGS : Home distribution box, 3-phase power supply protection

•  COMMERCIAL BUILDINGS : Office building, shopping mall power distribution system

•  INDUSTRIAL EQUIPMENT : Factory workshop, production line 3-phase power protection

•  DISTRIBUTION CABINETS : Power distribution box, electrical control cabinet

•  RENEWABLE ENERGY : Solar power system, wind power generation distribution

•  INFRASTRUCTURE : Public facilities, street lighting, communication base stations

FAQ

1. WHAT IS THE MAIN FUNCTION OF THIS 3P 63A DZ47 MCB?

It is a 3-phase circuit protection device that provides overload protection  and short circuit protection . It automatically trips to cut off the power supply when the circuit is overloaded or short-circuited, preventing electrical fires and equipment damage, and ensuring the safety of the power system.

2. WHAT IS THE RATED VOLTAGE AND CURRENT OF THIS PRODUCT?

This is a 3P 63A model, with a rated voltage of 400V~  (suitable for 3-phase power systems) and a rated current of 63A , with a breaking capacity of 4000A.

3. WHAT IS THE INSTALLATION METHOD?

It supports standard DIN35mm guide rail mounting , with a snap-in buckle design for quick and easy installation, compatible with all standard distribution cabinets.

4. WHAT IS THE OPERATING TEMPERATURE RANGE?

The product has excellent temperature adaptability, with a working temperature range of -35°C to 70°C , suitable for use in extreme cold and high-temperature environments.

5. HOW TO CHOOSE THE CORRECT CIRCUIT BREAKER RATING?

First, calculate the required current using Current = Power / Voltage, then select a breaker rating smaller than the maximum carrying capacity of the wire  to ensure safety. Refer to our selection guide table for detailed matching.

6. WHAT CERTIFICATIONS DOES THIS PRODUCT HAVE?

Our DZ47-63 MCB has passed CE certification  (compliant with EU standards) and CCC certification  (compliant with Chinese national standards), and meets IEC60898-1 and GB10963.1 international standards.
