1P 63A DZ47 Miniature Circuit Breaker

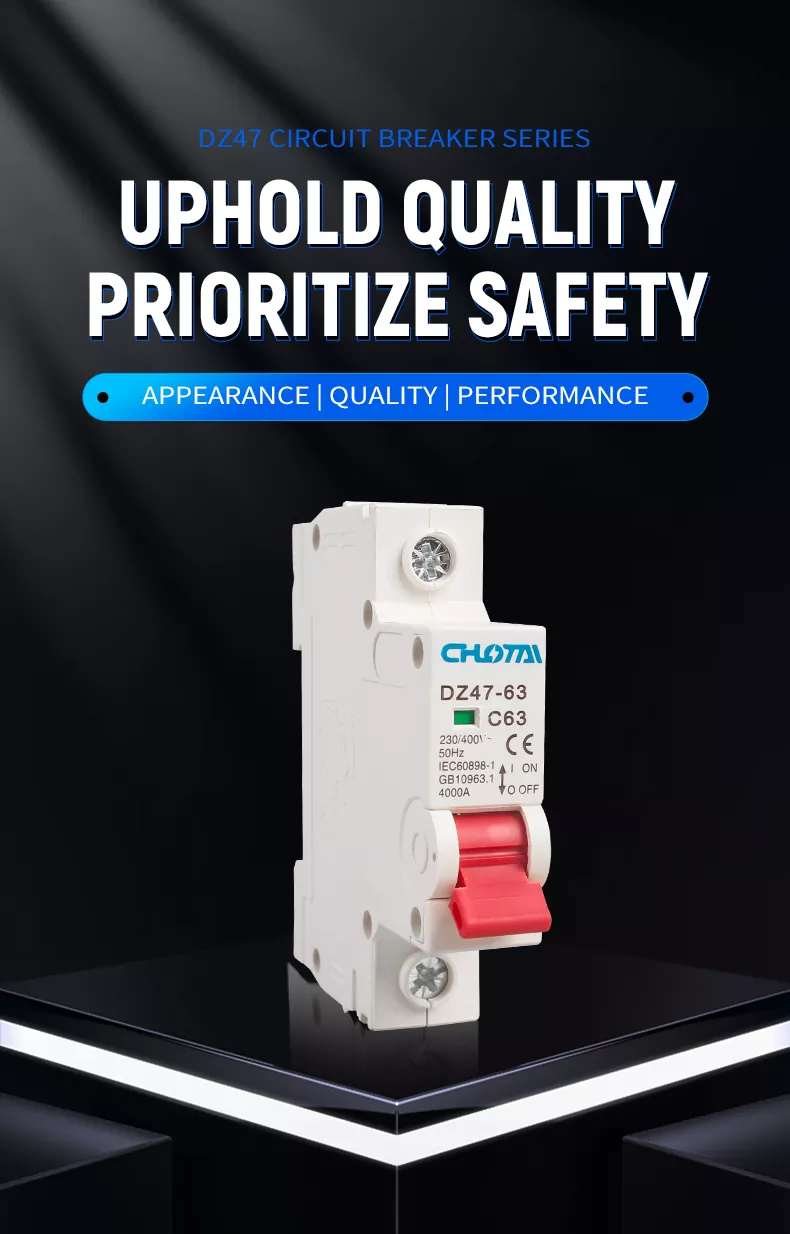

Eton Electric 1P 63A DZ47 Miniature Circuit Breaker (Model DZ47-63) is a high-performance circuit protection device designed for residential, commercial and industrial power systems. Engineered with precision manufacturing and strict quality control, it provides reliable overload and short-circuit protection, ensuring the safety of electrical circuits and equipment. With a wide operating temperature range, long service life and user-friendly design, it is the ideal choice for distribution boxes, home power distribution and industrial automation projects.

Company Introduction

Committed to providing comprehensive services for industrial automation control. Satisfy the needs of all aspects of the power system with precise, reliable, energy-saving, and environmentally friendly intelligent power distribution products.

Solve Your Electrical Safety Worries

Are you troubled by these electrical safety hazards? Our miniature circuit breaker effectively solves common electrical risks:

•  Electrical Overload : Automatically cuts off power when the load exceeds the rated current, preventing circuit burnout.

•  Leakage Hazard : Isolates fault circuits in time to avoid electric shock and fire accidents.

•  Lightning Disaster : Provides reliable circuit protection during lightning strikes, protecting downstream electrical equipment.

Six Core Advantages

Powered by professional technology, our circuit breaker is equipped with 6 core safety guarantees:

•  Short Circuit Protection : Instantly trips to cut off power in case of short circuit, preventing fire hazards.

•  Overload Protection : Automatically disconnects the circuit when overloaded, protecting wires and appliances.

•  Flame Retardant Material : High-temperature resistant, self-extinguishing shell, effectively blocking fire sources.

•  Safe Electricity Use : Strict compliance with international and national standards, ensuring safe operation.

•  Precision Engineering : Meticulous manufacturing process, stable and reliable performance.

•  CCC Certification : Authoritative national certification, genuine product with guaranteed quality.

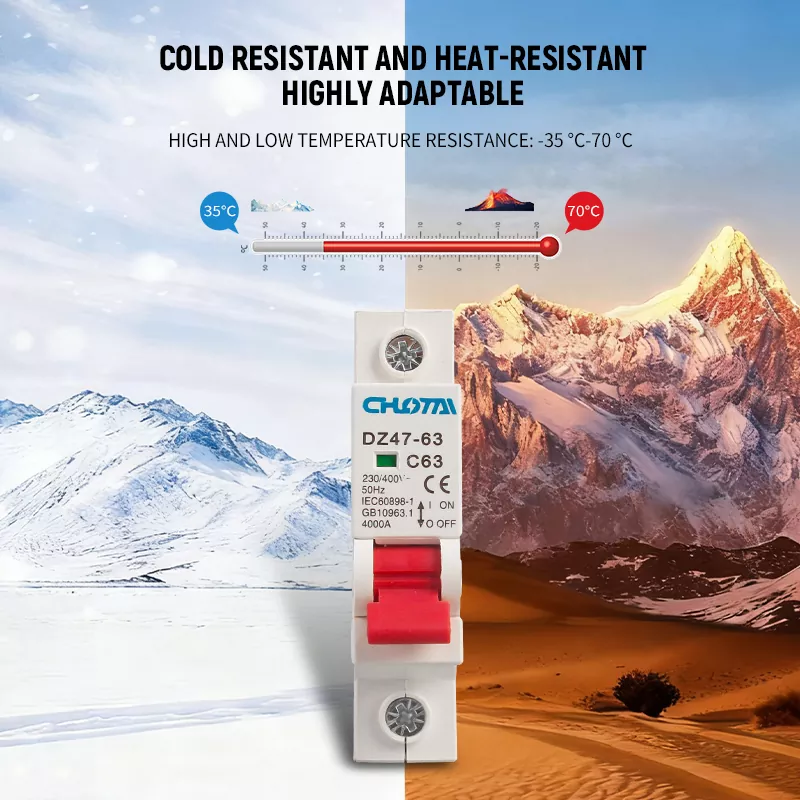

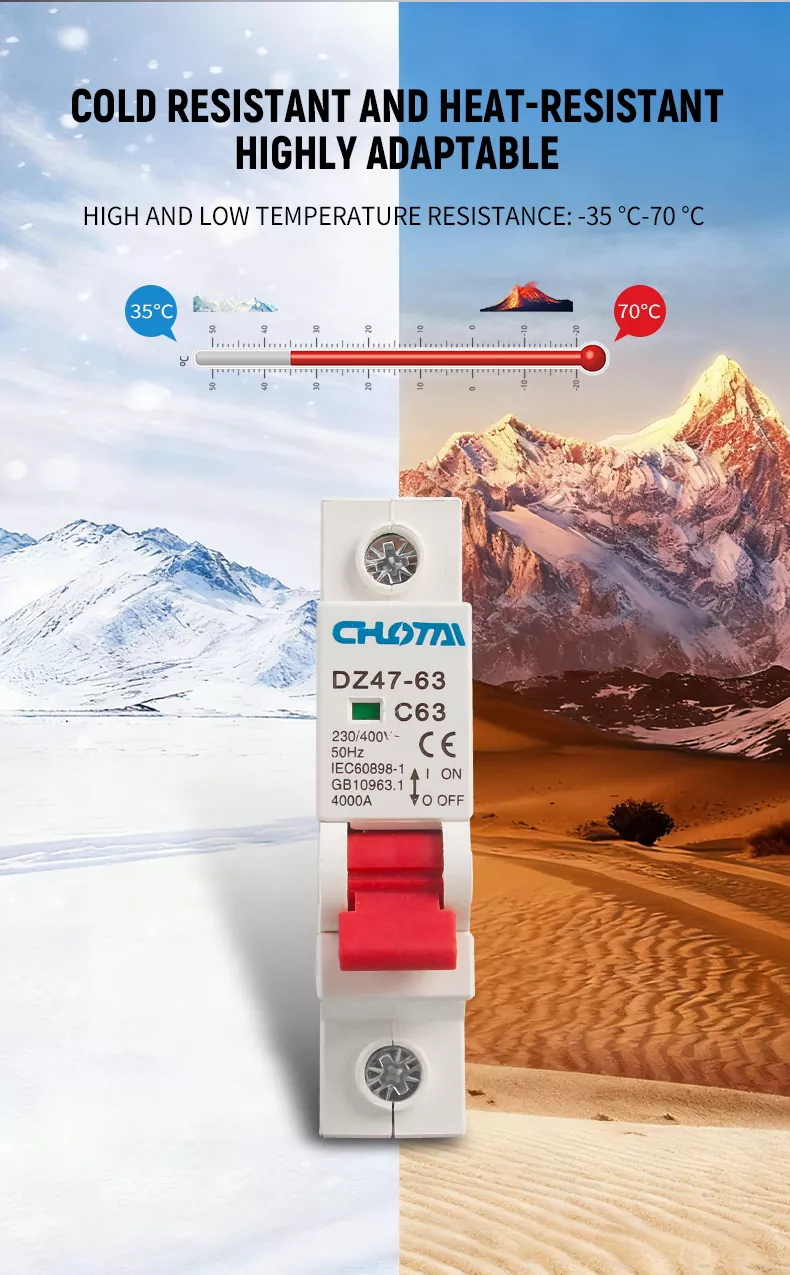

Extreme Temperature Resistance, Wide Adaptability

No matter in extremely cold or high-temperature environments, it maintains stable performance:

•  Wide Operating Temperature Range : -35℃ to 70℃, suitable for cold northern regions and high-temperature industrial environments.

•  Stable Performance : No failure or misoperation in extreme temperature, ensuring long-term reliable circuit protection.

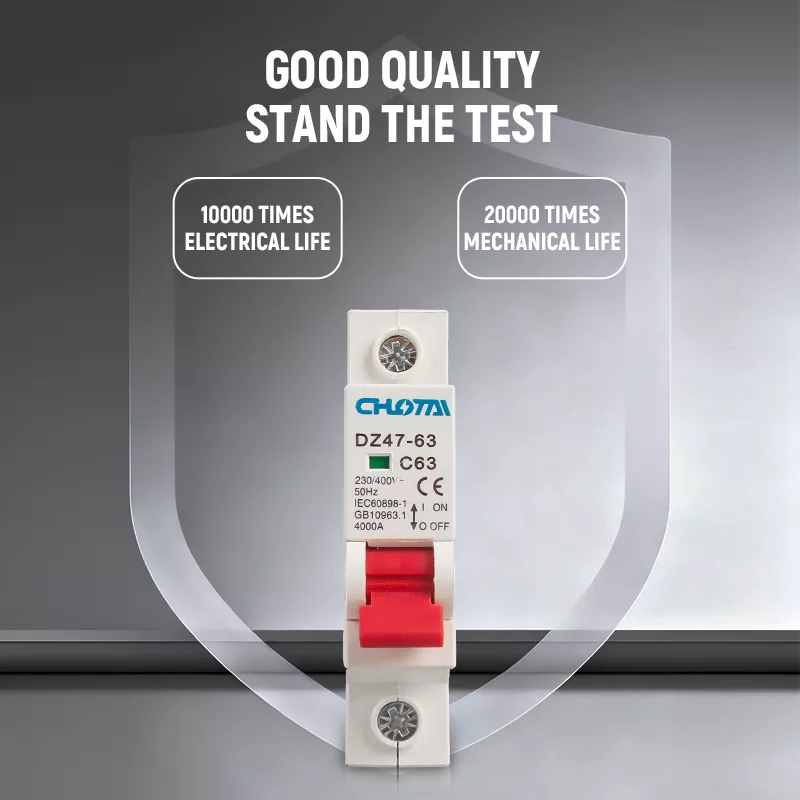

Excellent Durability, Stand the Test of Time

Rigorous testing ensures long-term stable use:

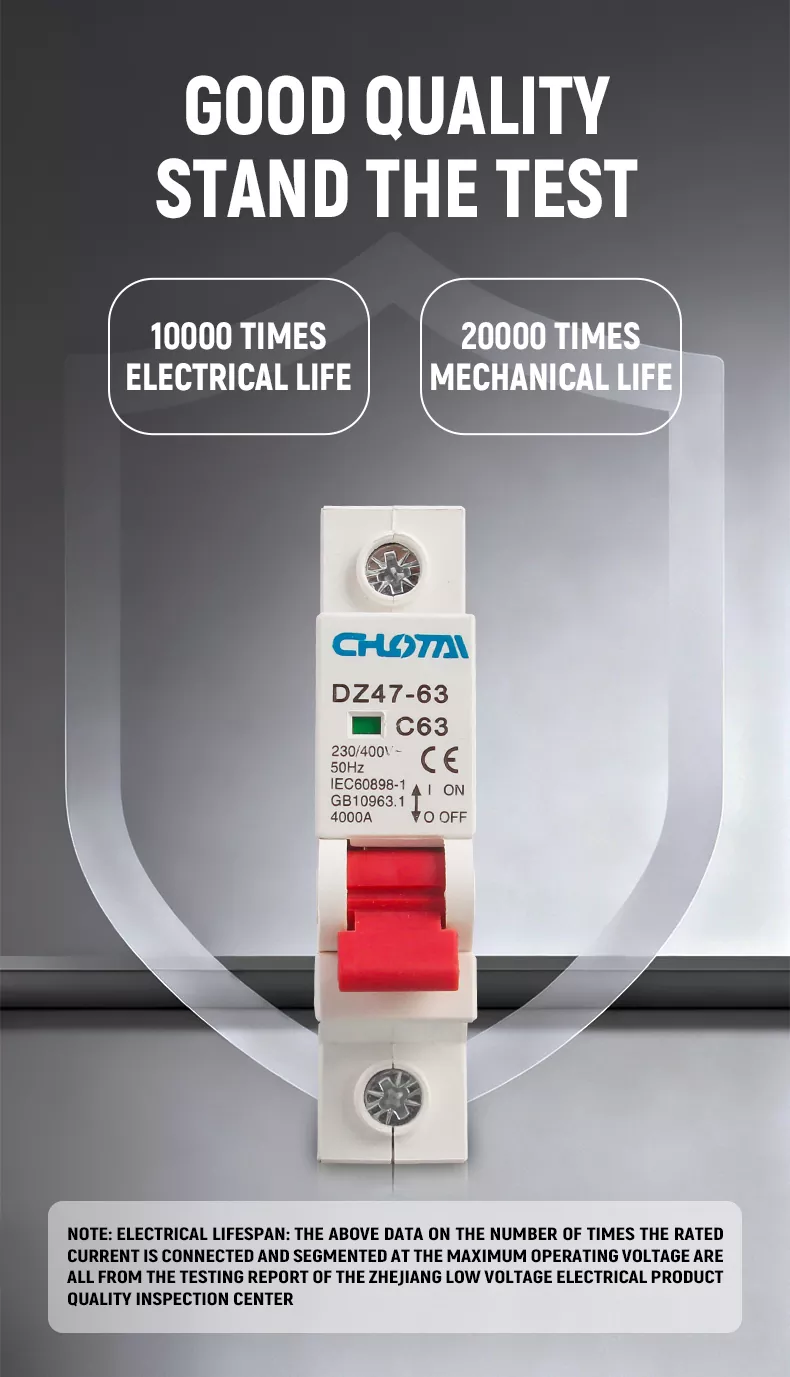

•  10000 Times Electrical Life : Tested by Zhejiang Low Voltage Electrical Product Quality Inspection Center, stable performance after 10,000 times of rated current on-off at maximum operating voltage.

•  20000 Times Mechanical Life : Robust internal structure, durable mechanical operation, suitable for frequent switching scenarios.

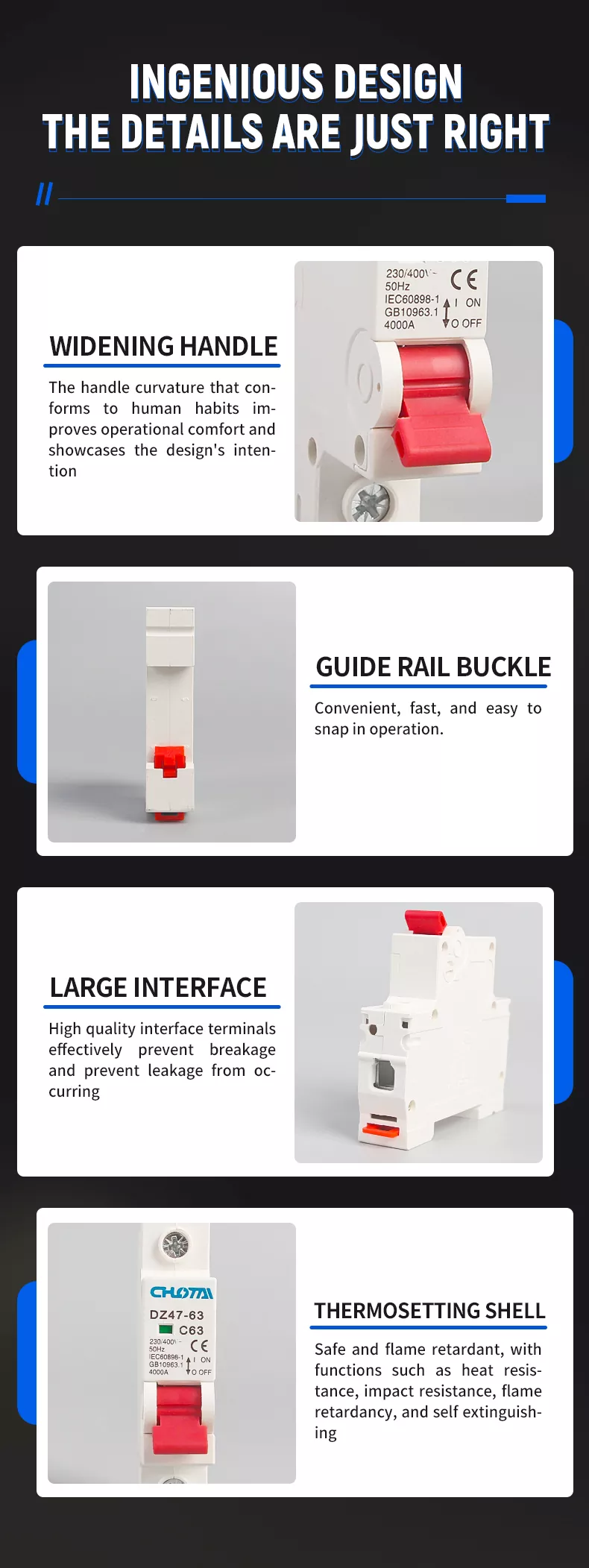

Ingenious Detail Design

Every detail is designed for user experience and safety:

1.  Widening Handle : Ergonomic curved handle, comfortable operation, easy to switch on/off.

2.  Guide Rail Buckle : Quick snap-on installation, convenient and fast, suitable for standard DIN rail mounting.

3.  Large Interface Terminals : High-quality terminals, effectively prevent breakage and leakage, ensure reliable wiring.

4.  Thermosetting Shell : Safe flame retardant, with heat resistance, impact resistance, flame retardancy and self-extinguishing functions.

Visual Status Indicator, Clear at a Glance

Avoid operational errors with intuitive status display:

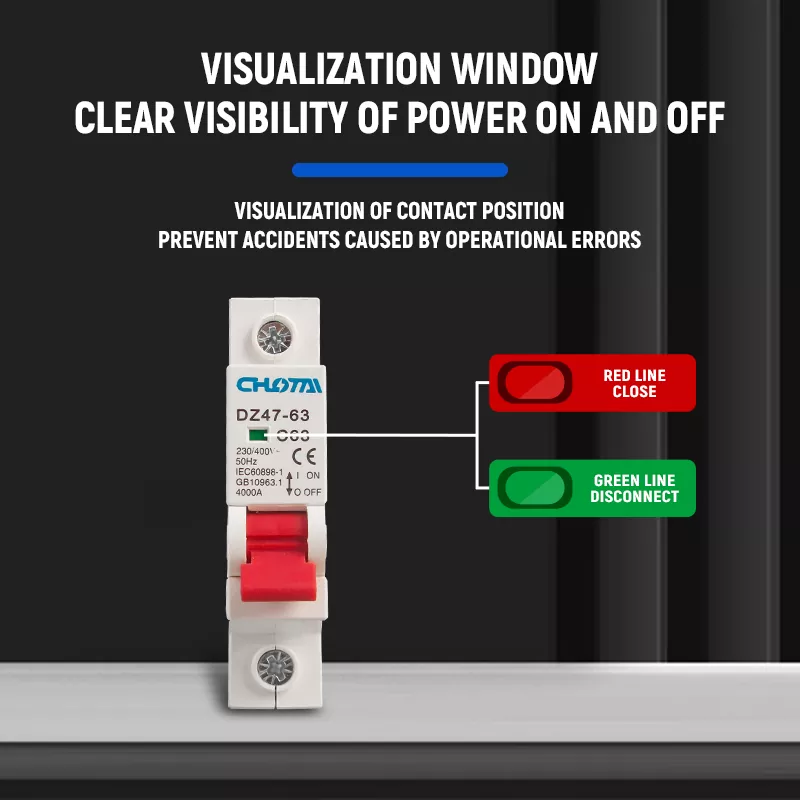

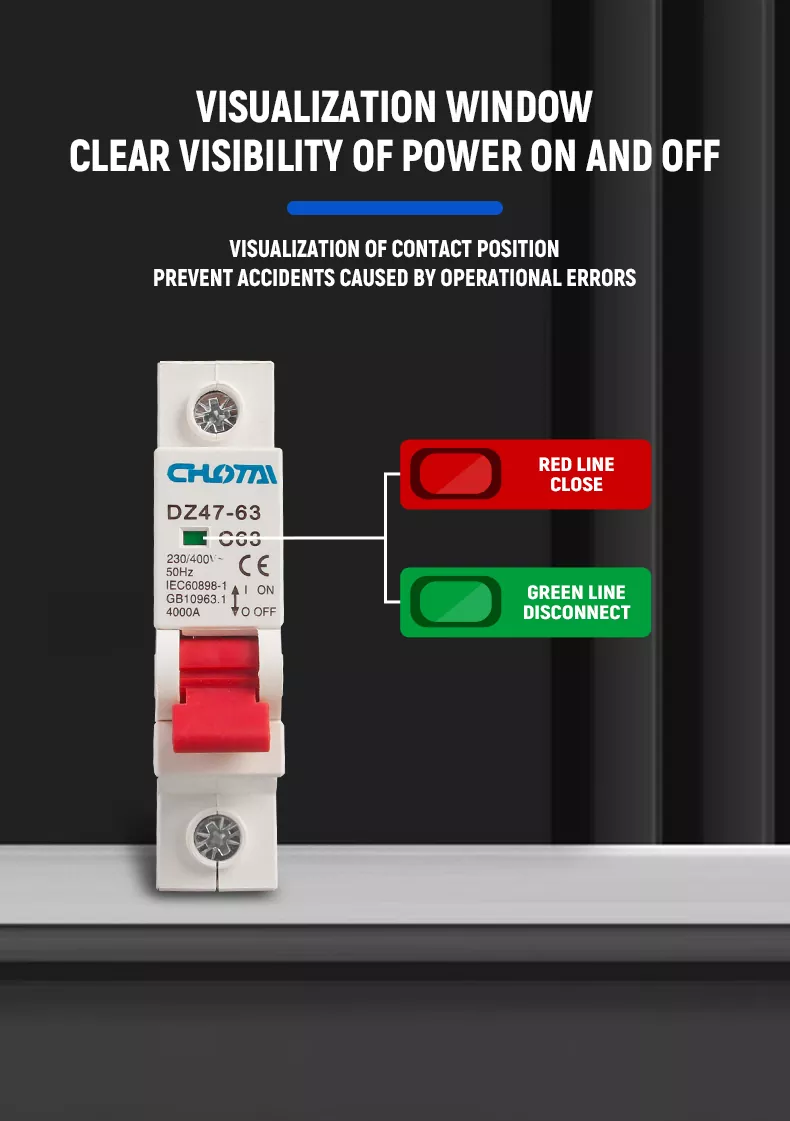

•  Visualization Window : Clear visibility of power on/off status.

•  Red Line Close : Red display means the circuit is connected (ON).

•  Green Line Disconnect : Green display means the circuit is disconnected (OFF), effectively preventing accidents caused by operational errors.

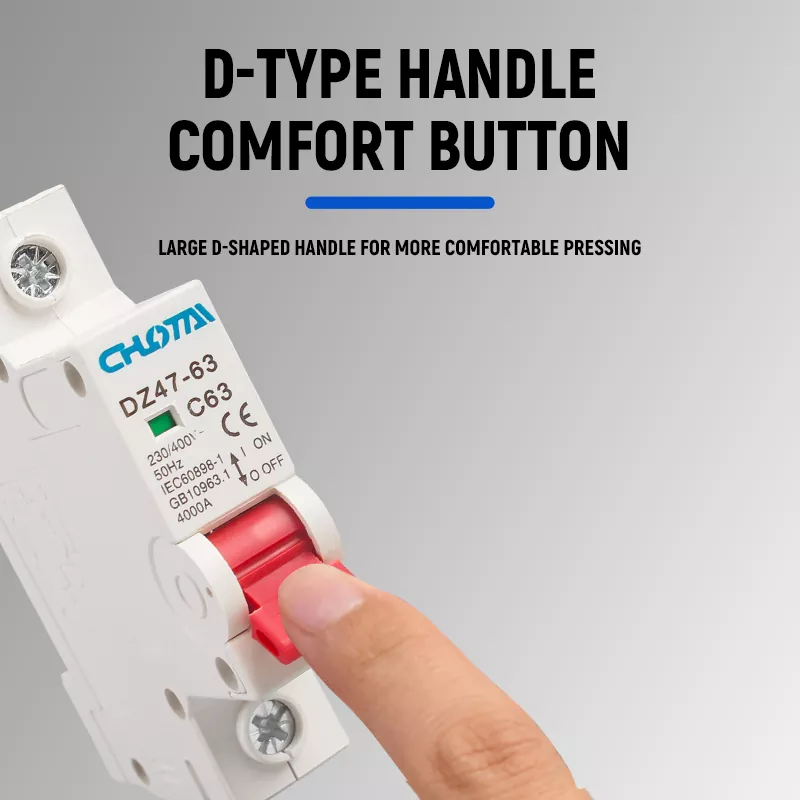

Comfortable D-Type Handle Design

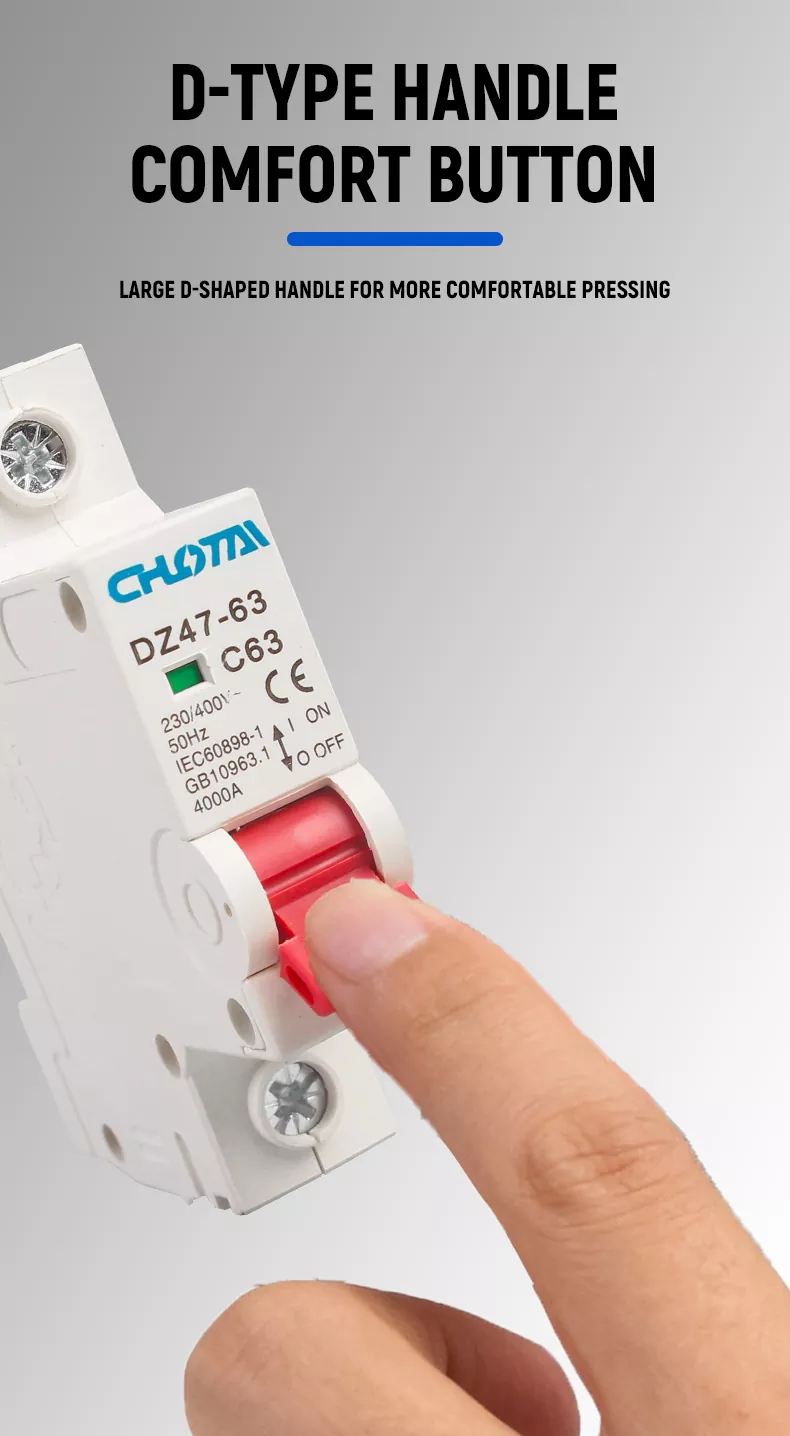

Large D-shaped handle design, more comfortable pressing experience:

• Ergonomic design, fits the finger radian, easy to operate even with gloves.

• Clear on/off marks, intuitive operation, no misoperation.

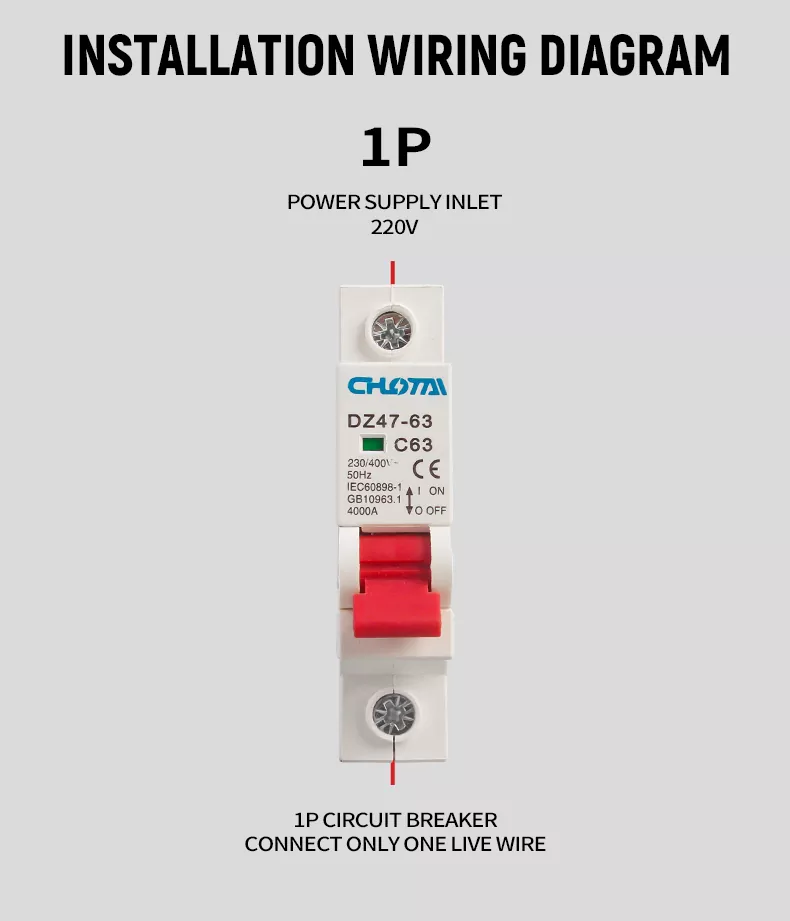

1P Installation Wiring Diagram

Simple and clear wiring guide, easy for installation:

•  1P Circuit Breaker : Only connect one live wire.

•  Power Supply Inlet : 220V live wire connected to the upper terminal, lower terminal connected to the load.

•  Note : Neutral wire is not connected to the 1P circuit breaker, please connect it to the neutral bar separately.

Selection Guide

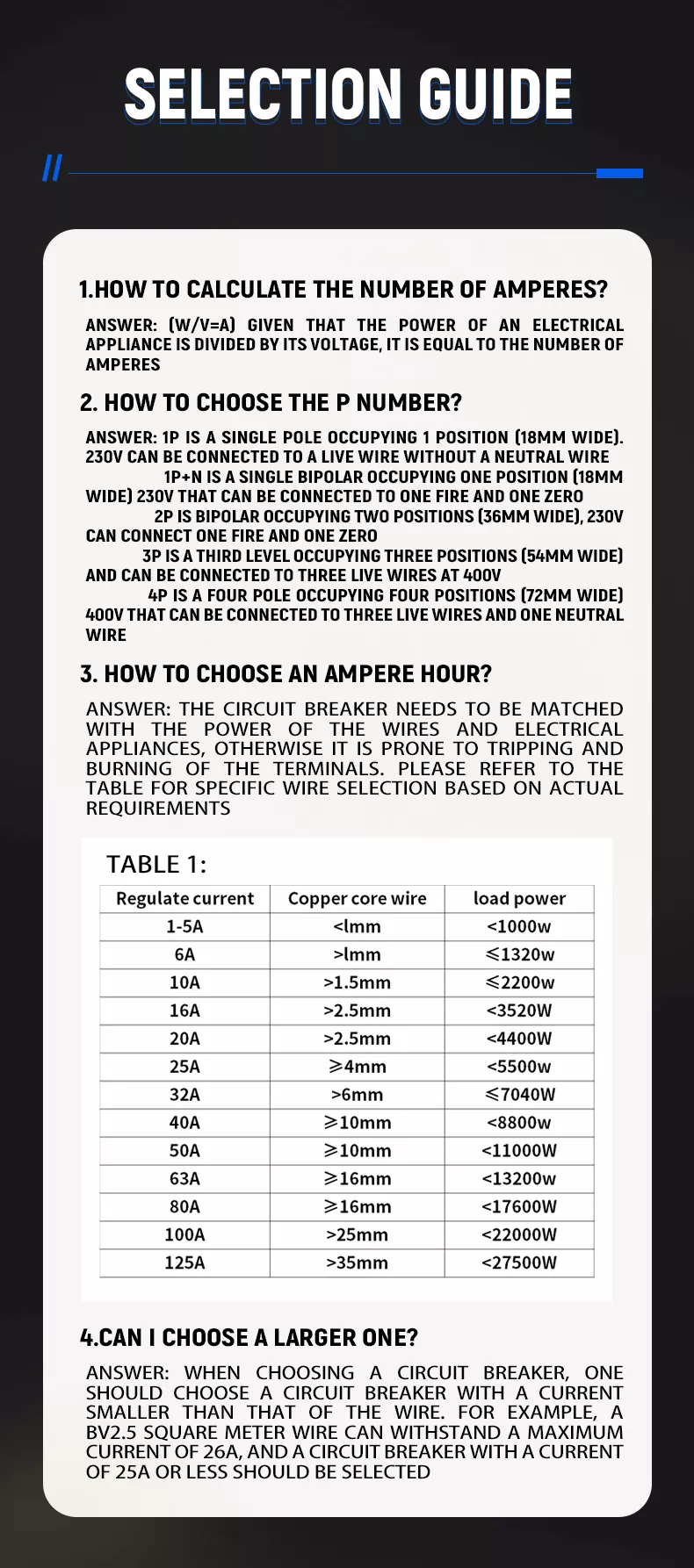

1. How to Calculate the Number of Amperes?

Formula: Current (A) = Power (W) / Voltage (V)

Calculate the required rated current according to the power of electrical appliances and voltage.

2. How to Choose the Pole Number?

3. How to Choose Ampere Rating?

The circuit breaker must be matched with the wire and electrical power to avoid tripping or terminal burning. Refer to the table below for wire selection:

4. Can I Choose a Larger One?

No . When selecting a circuit breaker, the rated current must be smaller than the wire's withstand current.

Example: A BV2.5mm² wire can withstand a maximum current of 26A, so a circuit breaker of 25A or less must be selected.

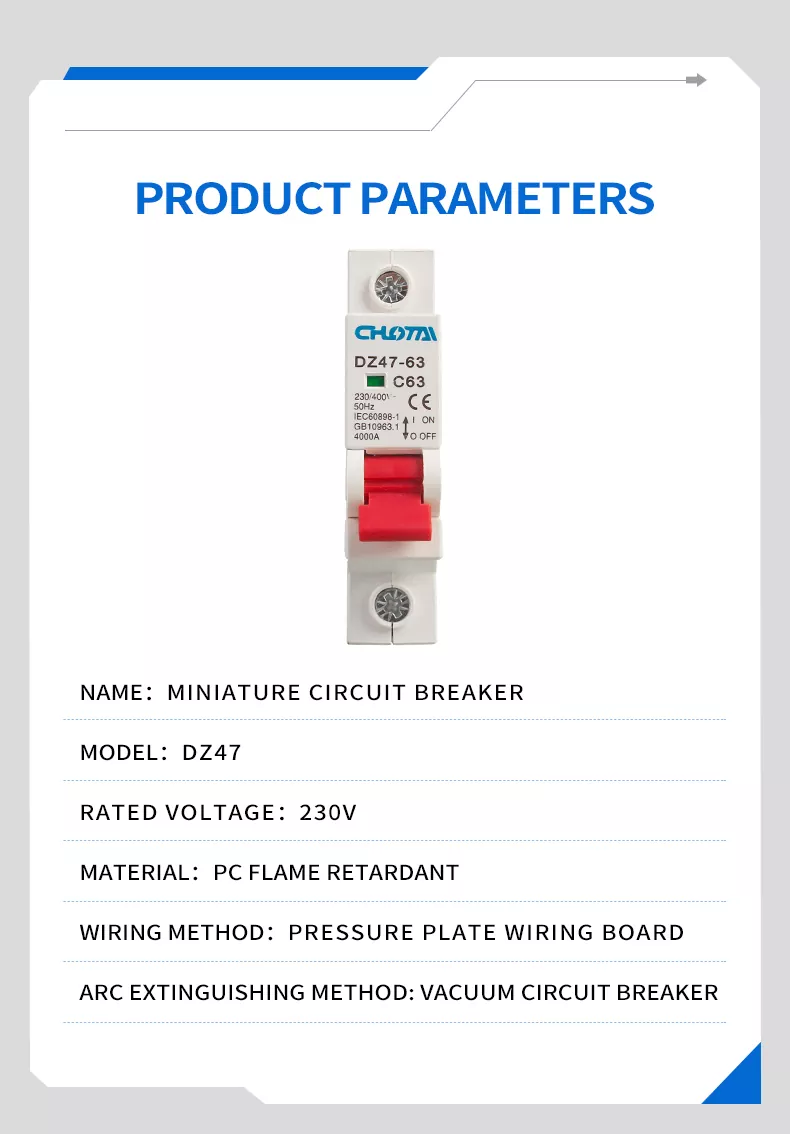

Product Parameters

FAQ

Q1: What is the difference between 1P, 2P, 3P and 4P circuit breakers?

A: 1P is for single live wire protection (230V), 2P is for live + neutral wire protection (230V), 3P is for three-phase live wire protection (400V), 4P is for three-phase live + neutral wire protection (400V). Choose according to your circuit type.

Q2: Can this circuit breaker be used for air conditioners/water heaters?

A: Yes. For 63A 1P model, it is suitable for high-power circuits with copper core wire ≥16mm² and load power <13200W, such as household main gate, large air conditioners, etc.

Q3: What is the service life of the circuit breaker?

A: It has 10000 times electrical life and 20000 times mechanical life, with normal use for more than 10 years, and regular inspection is recommended.

Q4: Is it easy to install?

A: Yes. It adopts standard DIN rail snap-on installation, with large terminals for easy wiring, suitable for electricians and DIY users.

Q5: Can it work in extreme cold/high temperature environments?

A: Yes. The operating temperature range is -35℃ to 70℃, suitable for cold northern regions and high-temperature industrial environments.

Q6: What should I do if the circuit breaker trips frequently?

A: Frequent tripping may be caused by overload, short circuit or circuit leakage. Please check the circuit load and fault, eliminate the hidden danger before closing the switch, or replace the circuit breaker with a suitable rated current.
