2P Pole DIN Rail Switch Disconnector

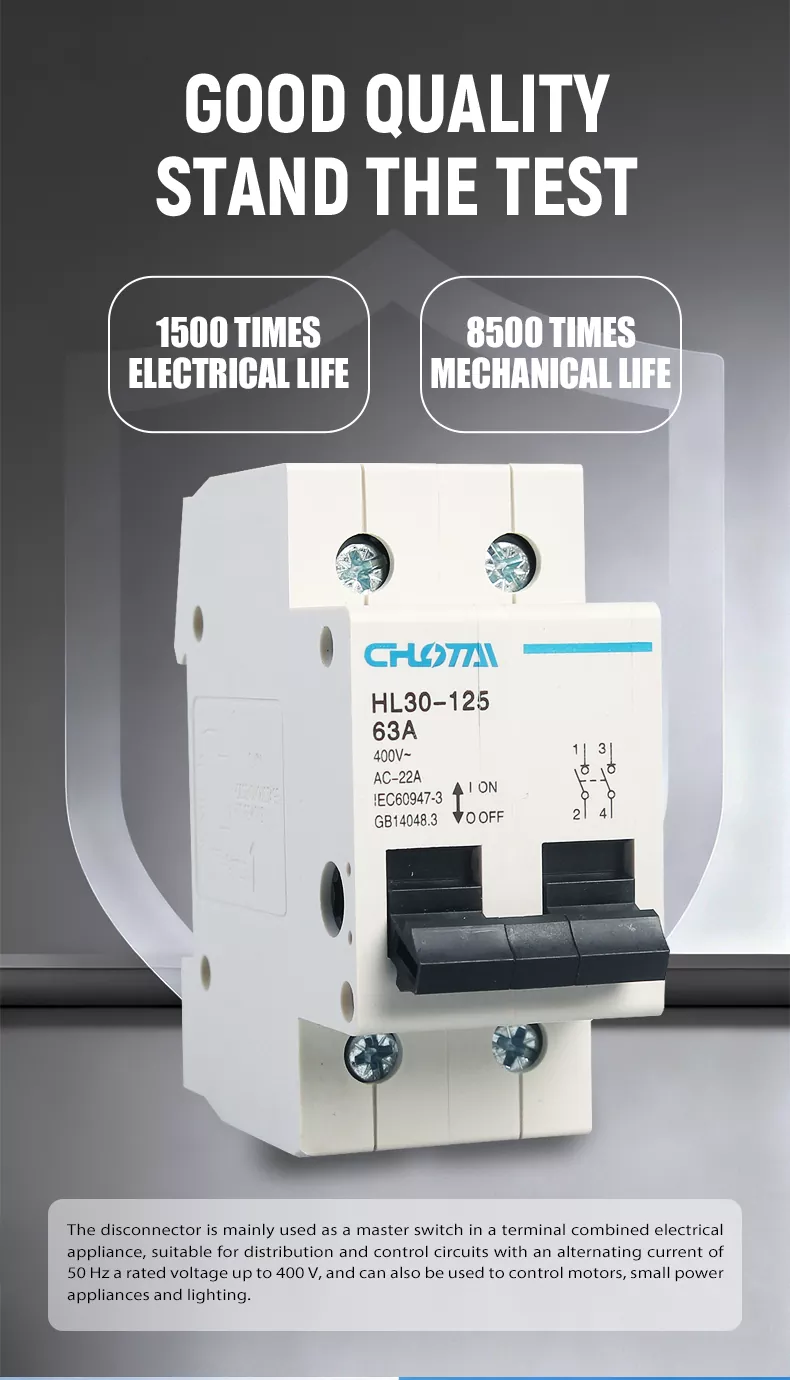

Our 2P Pole DIN Rail Switch Disconnector is a high-performance circuit isolation device designed for 230V/400V AC 50Hz power systems. It functions as a master switch in terminal combination electrical appliances, providing reliable isolation protection for distribution and control circuits, motor control, small power appliances, and lighting systems. Adopting precision engineering and flame-retardant materials, it ensures stable performance and long service life. The disconnector does not have short-circuit protection function, focusing on safe circuit isolation and manual on/off control. It is widely used in residential, commercial, and industrial power distribution scenarios, providing reliable circuit isolation and control.

NEW QUALITY UPGRADE & MORE DURABLE

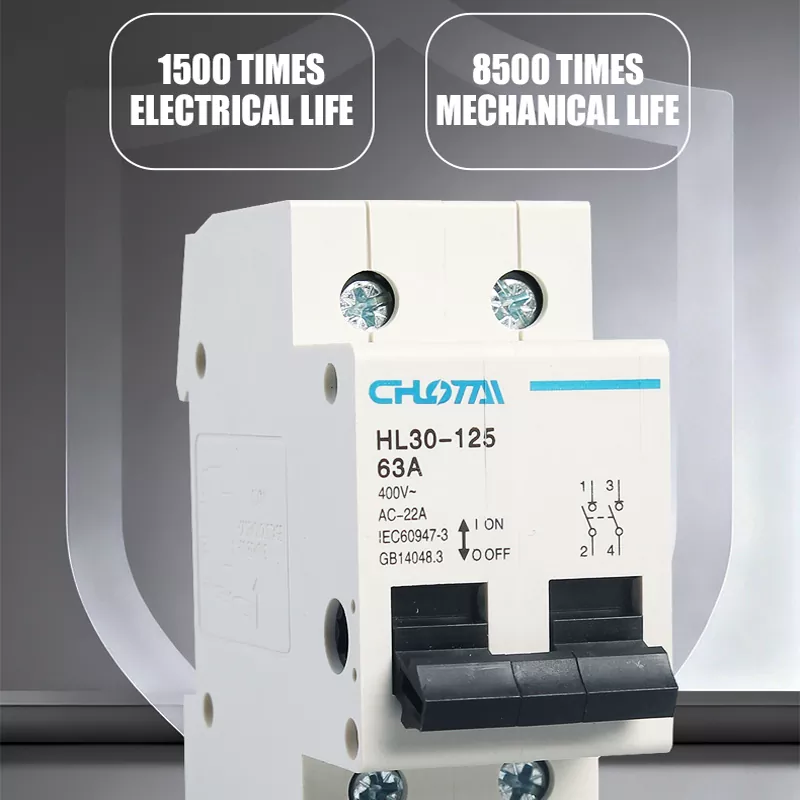

Our HL30-125 2P Disconnector has undergone a full quality upgrade. Precision engineered from the inside out, each component is meticulously inspected from material selection to final assembly. We utilize high-quality copper contacts and advanced structural design to ensure reliable circuit isolation and stable performance. The shell is made of high-strength thermosetting PC flame-retardant material, which is heat-resistant, impact-resistant, and self-extinguishing. Each product undergoes strict electrical life testing (1500 cycles) and mechanical life testing (8500 cycles) before leaving the factory. It can operate stably for a long time in extreme temperature environments, with stronger safety performance and longer service life.

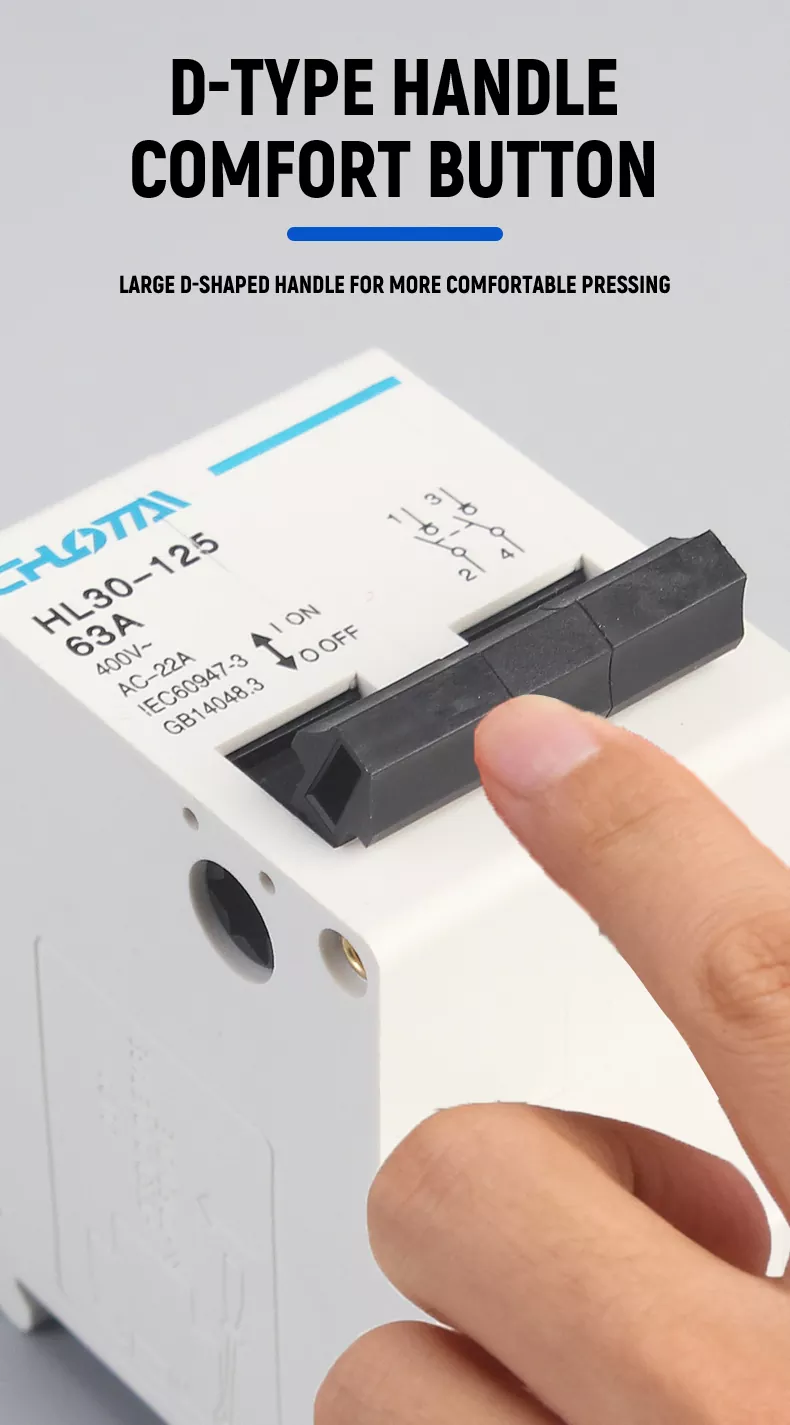

ERGONOMIC D-TYPE HANDLE FOR COMFORTABLE OPERATION

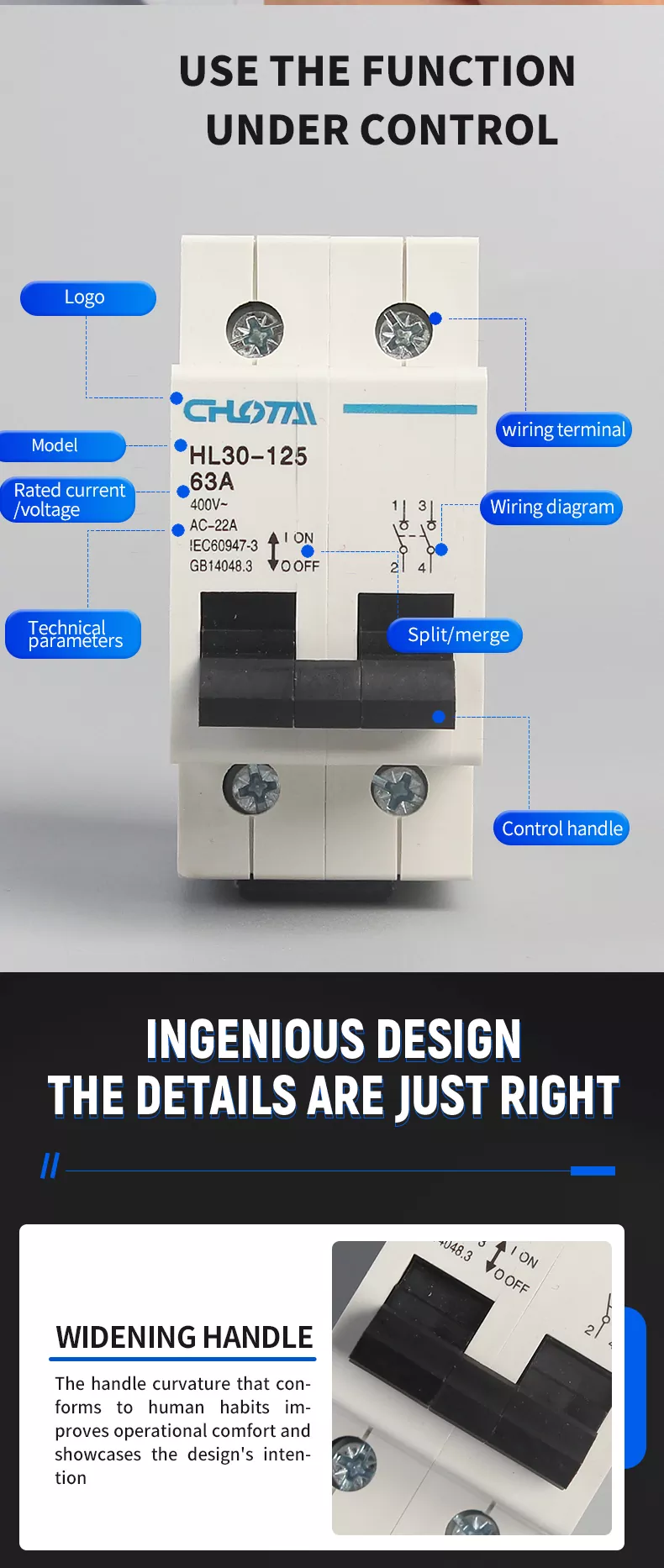

Our disconnector is equipped with a large, widened D-shaped operating handle. The curved design fits human operating habits, providing a comfortable grip and smooth switching operation, even with gloved hands. It effectively reduces operational fatigue during frequent switching, making daily circuit control easier and more convenient.

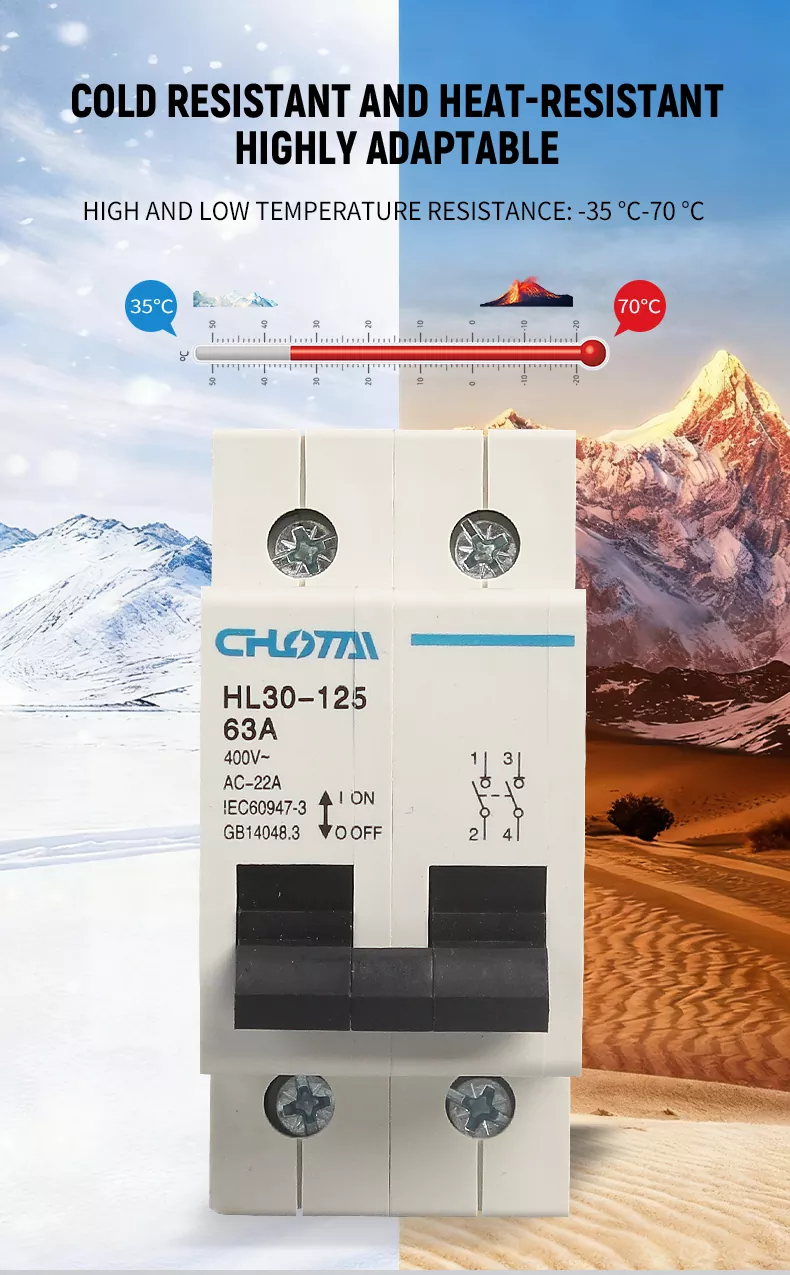

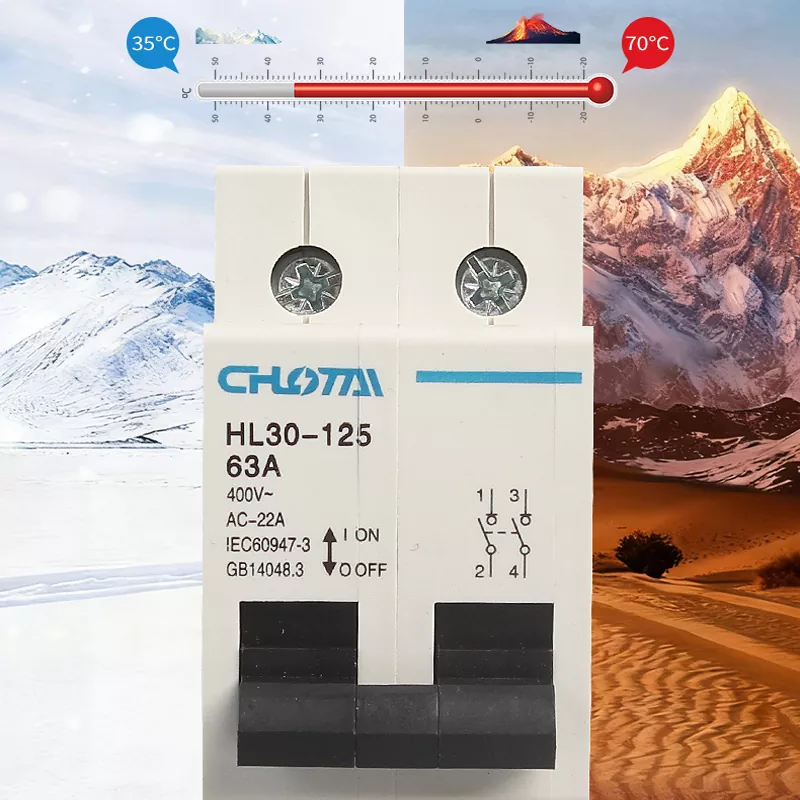

EXTREME TEMPERATURE RESISTANCE & HIGH ADAPTABILITY

Engineered to withstand harsh environments, the HL30-125 Disconnector operates reliably in a wide temperature range of -35℃ to 70℃ . It is suitable for cold mountainous regions, hot desert climates, and other extreme environments, ensuring uninterrupted circuit isolation protection year-round without performance degradation.

OUR PRODUCTS VS. OTHER PRODUCTS

CORE ADVANTAGE

1.  SAFE ISOLATION PROTECTION : Reliable circuit isolation, effectively preventing leakage hazards and lightning disasters.

2.  FLAME RETARDANT MATERIAL : High-quality PC thermosetting shell, heat-resistant, impact-resistant, and self-extinguishing.

3.  LONG SERVICE LIFE : 1500 electrical life cycles and 8500 mechanical life cycles, durable and reliable.

4.  EASY INSTALLATION : Standard 35mm DIN rail mounting, quick snap-in installation, compatible with all distribution boxes.

5.  USER-FRIENDLY DESIGN : Ergonomic D-type handle, clear wiring diagram, easy operation and maintenance.

6.  WIDE APPLICABILITY : -35℃~70℃ operating temperature, suitable for various residential, commercial, and industrial scenarios.

FOUR CORE SELLING POINTS

•  SAFE ISOLATION : Reliable circuit isolation, effectively safeguard electrical equipment and personal safety during maintenance.

•  PREMIUM MATERIAL : Flame-retardant PC housing, high-temperature resistant, anti-aging, and long service life.

•  USER-FRIENDLY DESIGN : Ergonomic D-type handle, large interface terminals, easy operation and wiring.

•  WIDE APPLICABILITY : Suitable for 230V/400V AC systems, used as master switch in terminal combination gear, distribution circuits, etc.

THE SHELL IS STURDY AND SHOCK RESISTANT

The shell is made of high-strength thermosetting PC flame-retardant material, with a smooth and burr-free surface after fine processing, presenting a beautiful and elegant appearance. It has excellent shock resistance and compression resistance, can resist daily collision and mechanical vibration, and will not deform or damage. The material is anti-corrosion and anti-aging, suitable for long-term stable use in various complex environments, with an operating temperature range of up to 70℃.

FLAME RETARDANT PC MATERIAL

The shell adopts high-performance flame-retardant PC engineering plastic with excellent flame retardant and insulation properties. It can effectively inhibit combustion and prevent fires caused by high temperatures generated by faults, thus better ensuring the overall safety of the power system. The material is also heat-resistant, impact-resistant, and self-extinguishing, with a long service life.

HIGH QUALITY TERMINAL BLOCK

Using high-quality pressure plate wiring terminals, it not only ensures strong conductivity but also reduces losses. The large contact area effectively prevents wire breakage and leakage, with strong overload resistance and stable performance. The wiring is simple, allowing for easy and quick installation, ensuring safe and reliable operation of the disconnector.

CAN BE USED WITH DIN RAIL

It can be installed using the universal DIN35mm standard guide rail, unlocking more usage scenarios. The DIN rail mounting design is compatible with various distribution cabinets and electrical equipment, with easy installation and disassembly, no need for complicated tools, suitable for quick deployment in different scenarios.

EASY TO INSTALL & SECURE WIRING

The disconnector is suitable for DIN35mm standard guide rail, with easy installation and disassembly. The 2P model is designed for 220V/400V single-phase systems, connecting one live wire and one neutral wire (or two live wires). The wiring diagram is clear and intuitive, with top terminals for power supply inlet and bottom terminals for power supply outlet, which can effectively avoid wrong wiring. The high-quality copper terminals are firm and reliable, not easy to loose under long-term vibration, ensuring safe and stable operation.

PRODUCT PARAMETERS

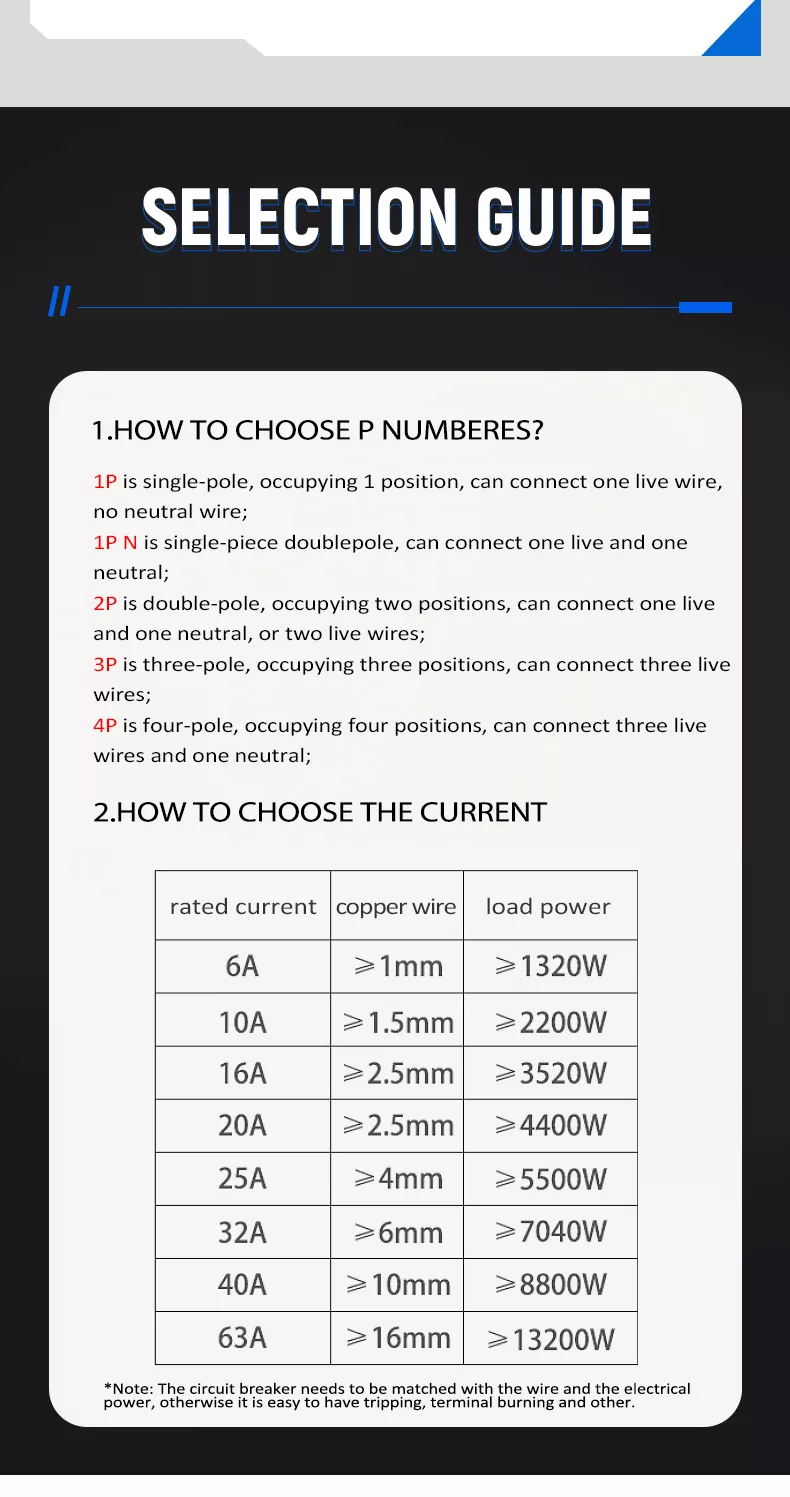

SELECTION GUIDE

How to Choose P Numbers?

◦ 1P: Single-pole, occupying 1 position, can connect one live wire, no neutral wire.

◦ 1P N: Single-piece doublepole, can connect one live and one neutral.

◦ 2P: Double-pole, occupying two positions, can connect one live and one neutral, or two live wires (this product).

◦ 3P: Three-pole, occupying three positions, can connect three live wires.

◦ 4P: Four-pole, occupying four positions, can connect three live wires and one neutral.

How to Choose the Current

Note: The disconnector needs to be matched with the wire and the electrical power, otherwise it is easy to have tripping, terminal burning and other issues.

WIRING DIAGRAM

Connect the input terminals (top) to the power supply (Live: Red, Neutral: Blue).

Connect the output terminals (bottom) to the load (Live: Red, Neutral: Blue).

Ensure the wiring is firm and reliable, and the live/neutral wires are correctly connected.

Snap the disconnector onto the standard 35mm DIN rail in the distribution box.

Clear terminal marking and standardized wiring make installation safer and more efficient.

WIDELY USED

Our 2P Pole DIN Rail Switch Disconnector is widely used in:

•  TERMINAL COMBINATION GEAR : As a master switch for terminal combination electrical appliances.

•  DISTRIBUTION & CONTROL CIRCUITS : Distribution box main switch, circuit isolation and control.

•  MOTOR CONTROL : Manual on/off control for small power motors.

•  LIGHTING SYSTEMS : Lighting circuit main switch, isolation protection.

•  RESIDENTIAL BUILDING : Home distribution box main switch, circuit isolation during maintenance.

•  COMMERCIAL BUILDING : Commercial power distribution system, circuit control and isolation.

FAQ

1.WHAT IS THE MAIN FUNCTION OF THIS PRODUCT?

It is mainly used as a master switch in terminal combination electrical appliances, providing reliable circuit isolation protection for distribution and control circuits, motor control, small power appliances, and lighting systems. It does not have short-circuit protection function, focusing on safe circuit isolation and manual on/off control.

2.WHAT IS THE RATED CURRENT AND VOLTAGE?

This 2P model has a rated current of 63A and a rated voltage of 230V-400V AC, suitable for 50Hz power systems.

3.WHAT IS THE OPERATING TEMPERATURE RANGE?

The product can operate stably in a wide temperature range of -35℃ to 70℃, suitable for various extreme environments.

4.WHAT IS THE INSTALLATION METHOD?

It supports standard 35mm DIN rail mounting, with simple wiring and quick snap-in installation, compatible with all distribution boxes.

5.HOW LONG IS THE SERVICE LIFE OF THIS DISCONNECTOR?

It is tested for 1500 electrical life cycles and 8500 mechanical life cycles, ensuring a long service life under normal operating conditions.

6.WHAT STANDARDS DOES THIS PRODUCT COMPLY WITH?

This product complies with international standard IEC60947-3 and national standard GB14048.3, ensuring product quality and safety.
