1P Pole DIN Rail Switch Disconnector

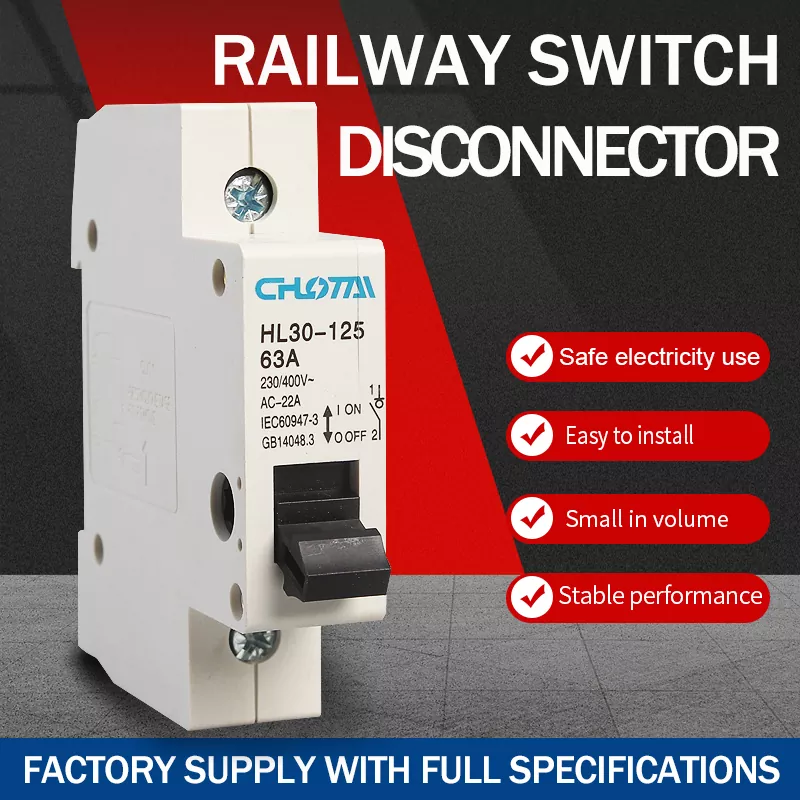

Eton Electric 1P Pole DIN Rail Switch Disconnector (Model HL30-125 63A) is a high-performance manual isolation switch designed for power distribution systems. As a reliable master switch for terminal combined electrical appliances, it provides safe isolation protection for distribution and control circuits with 50Hz alternating current and rated voltage up to 400V. With a compact DIN rail design, long service life and user-friendly operation, it is widely used in distribution cabinets, home power distribution, industrial automation and lighting control systems.

Solve Your Electrical Safety Worries

Are you troubled by these electrical safety hazards? Our switch disconnector effectively solves common electrical risks:

•  Isolation Protection : Provides complete electrical isolation for circuit maintenance, ensuring personal safety.

•  Leakage Hazard Prevention : Reliable contact structure prevents leakage accidents during operation.

•  Lightning Disaster Protection : Stable performance in harsh environments, protecting circuits from lightning surge impact.

Six Core Advantages

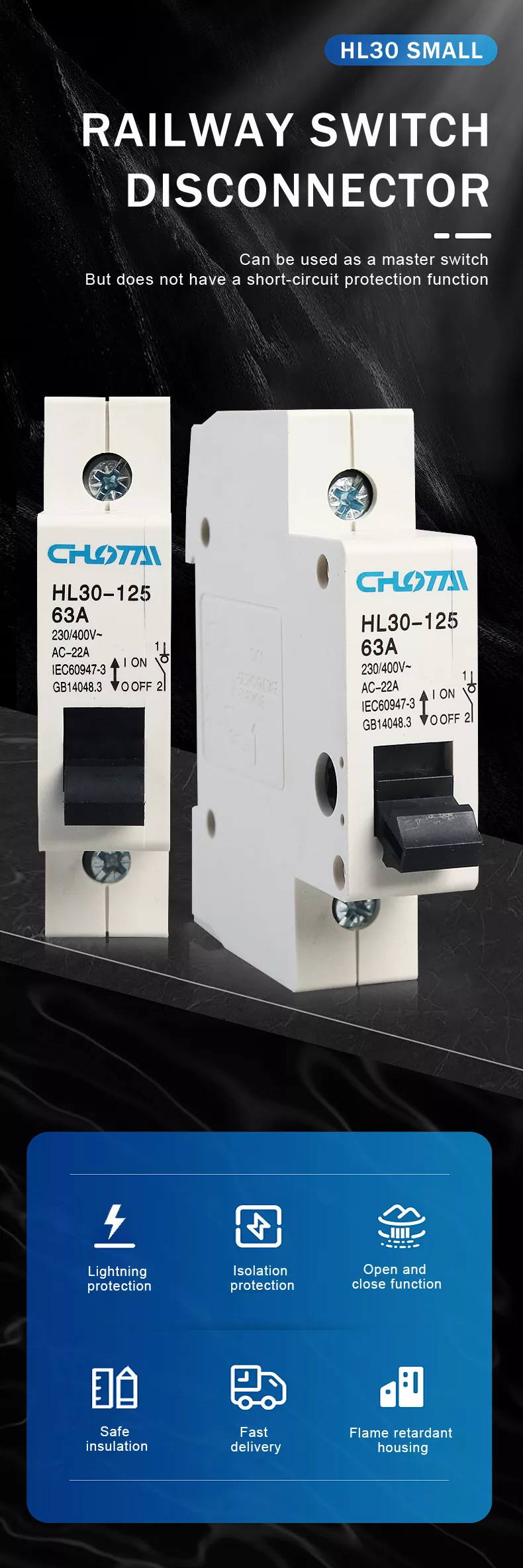

Powered by professional technology, our switch disconnector is equipped with 6 core safety guarantees:

•  Lightning Protection : Stable performance against lightning surge, protecting downstream circuits.

•  Isolation Protection : Complete electrical isolation, safe for circuit maintenance.

•  Open and Close Function : Smooth manual operation, reliable on/off control.

•  Safe Insulation : High insulation performance, preventing electric shock accidents.

•  Fast Delivery : Mass production capacity, ensuring timely supply.

•  Flame Retardant Housing : High-temperature resistant, self-extinguishing shell, effectively blocking fire sources.

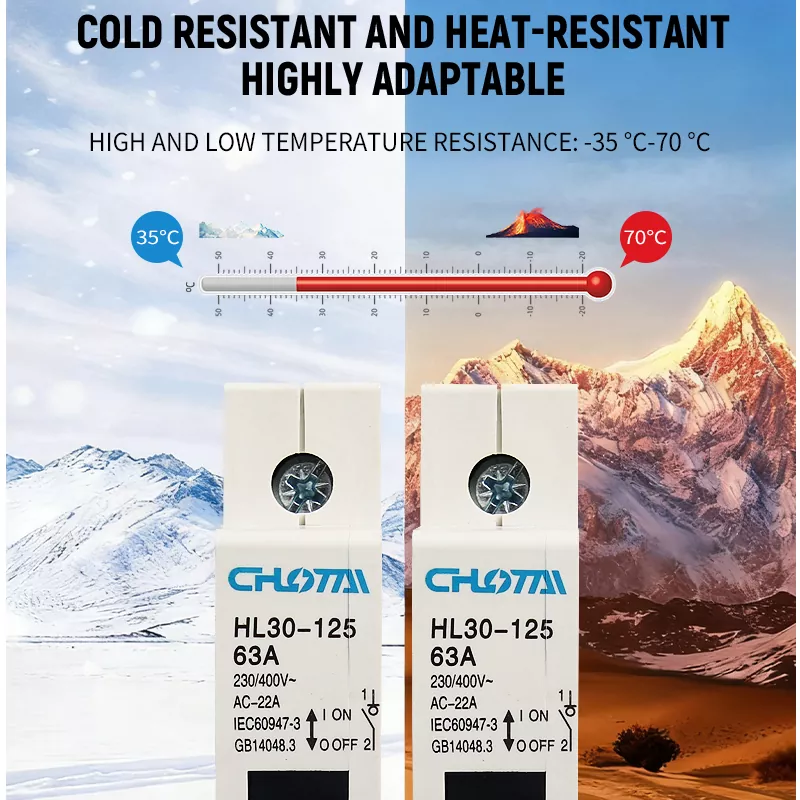

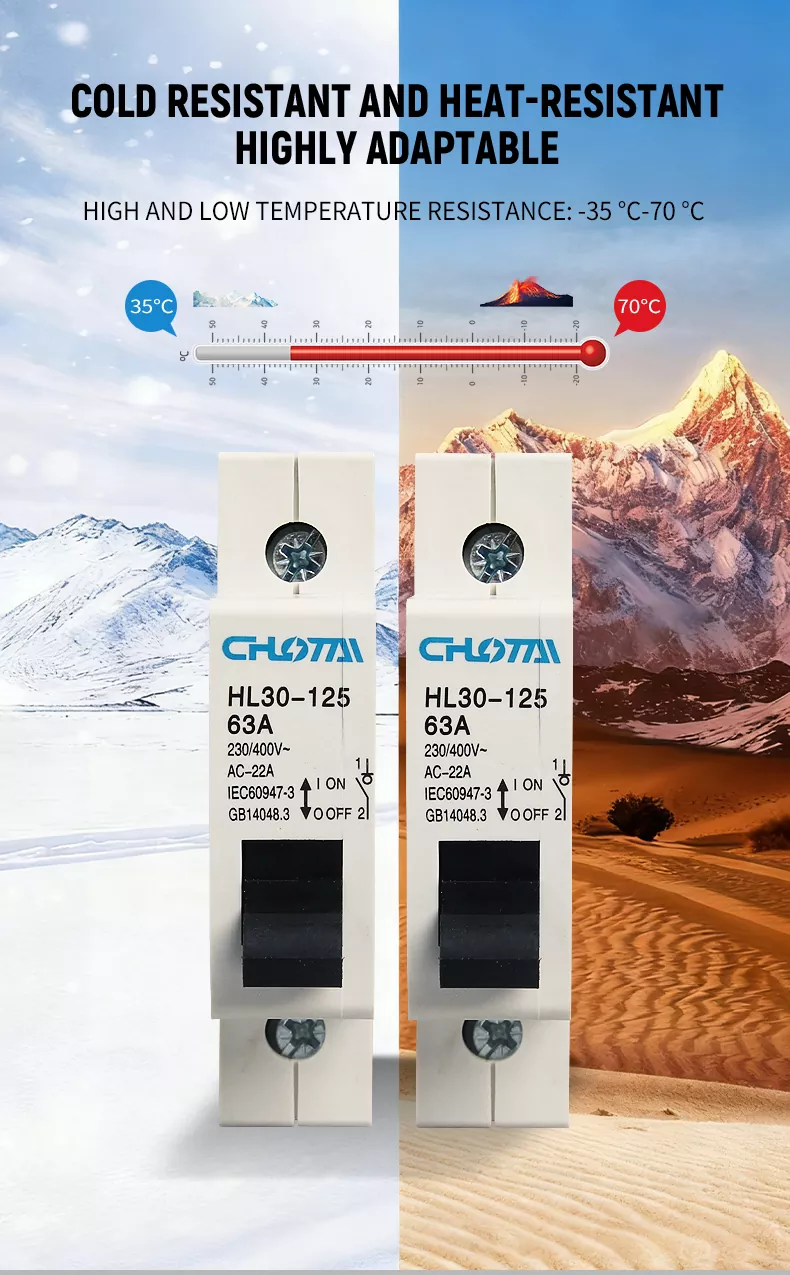

Extreme Temperature Resistance, Wide Adaptability

No matter in extremely cold or high-temperature environments, it maintains stable performance:

•  Wide Operating Temperature Range : -35℃ to 70℃, suitable for cold northern regions and high-temperature industrial environments.

•  Stable Performance : No failure or misoperation in extreme temperature, ensuring long-term reliable circuit isolation.

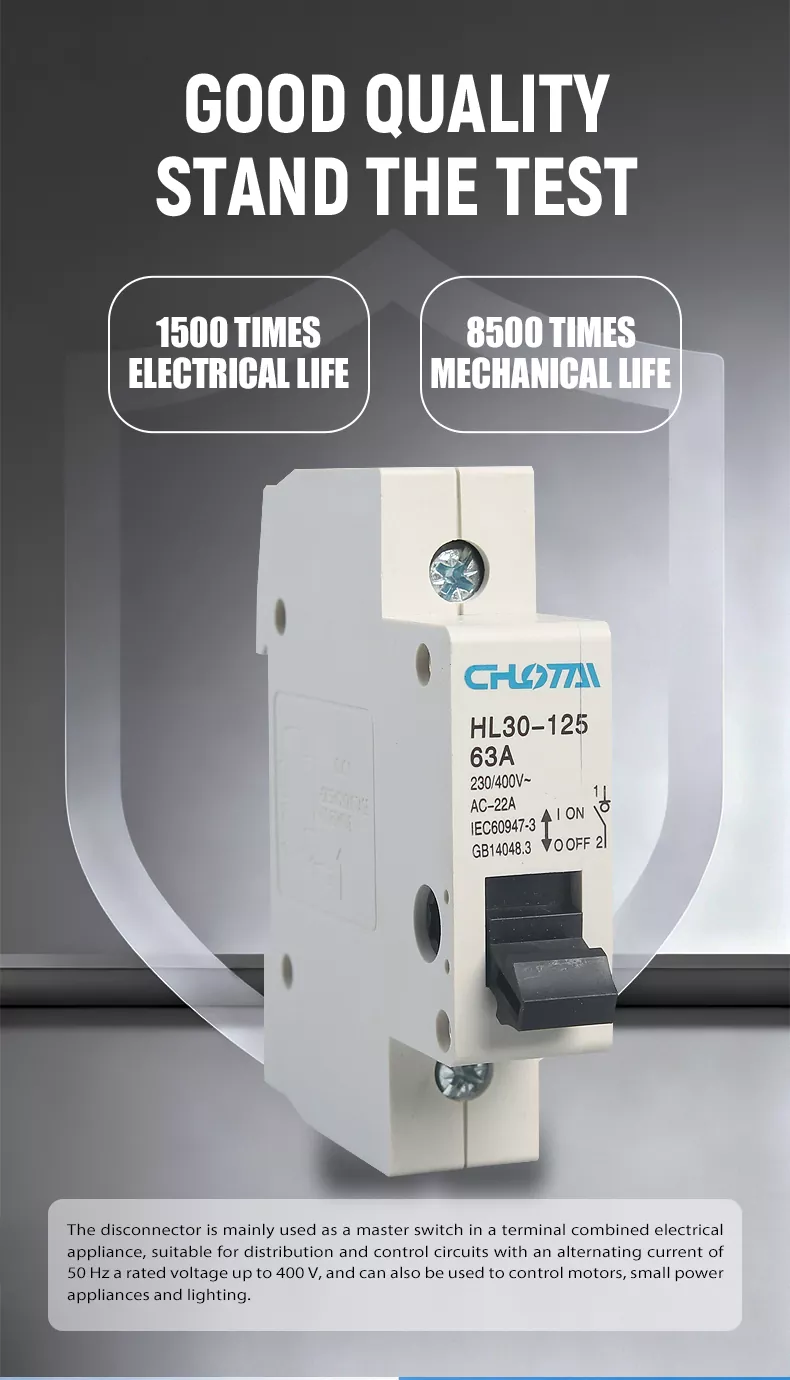

Excellent Durability, Stand the Test of Time

Rigorous testing ensures long-term stable use:

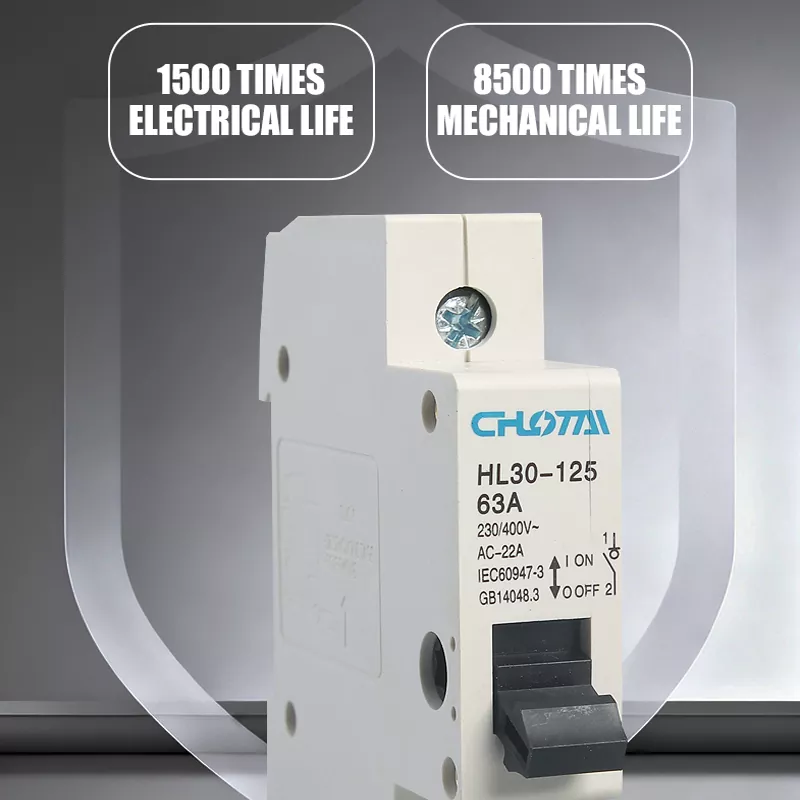

•  1500 Times Electrical Life : Stable performance after 1500 times of rated current on-off at maximum operating voltage.

•  8500 Times Mechanical Life : Robust internal structure, durable mechanical operation, suitable for frequent switching scenarios.

•  Application Note : The disconnector is mainly used as a master switch in terminal combined electrical appliances, suitable for distribution and control circuits with 50Hz alternating current up to 400V, and can also be used to control motors, small power appliances and lighting.

Product Structure & Detail Design

Every component is designed for safety and convenience:

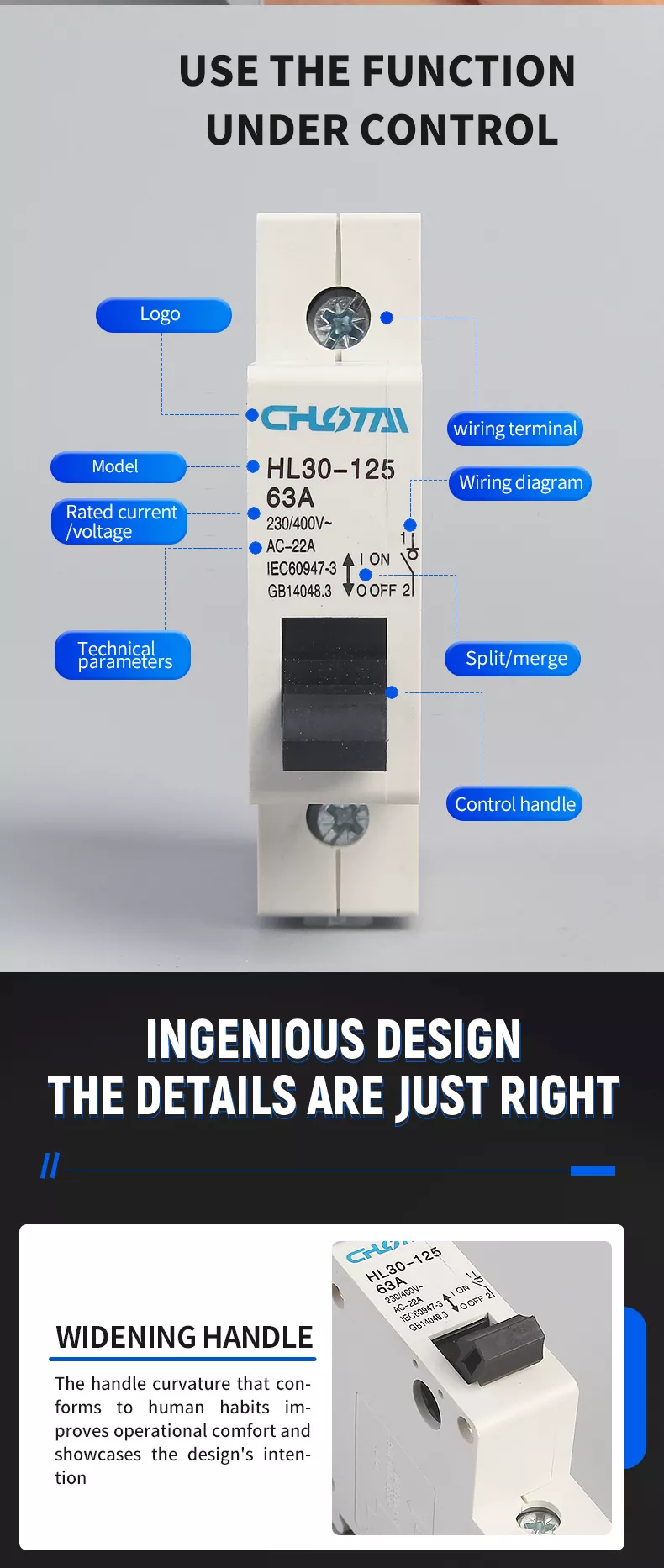

•  Logo : Clear CHOTA brand mark, genuine product guarantee.

•  Wiring Terminal : Large interface, reliable connection, preventing leakage.

•  Model & Parameters : Clear HL30-125 63A model, rated voltage 230/400V~, AC-22 usage category.

•  Wiring Diagram : Intuitive ON/OFF mark, avoiding operational errors.

•  Control Handle : Ergonomic design, comfortable operation.

Ingenious Detail Design

Every detail is designed for user experience and safety:

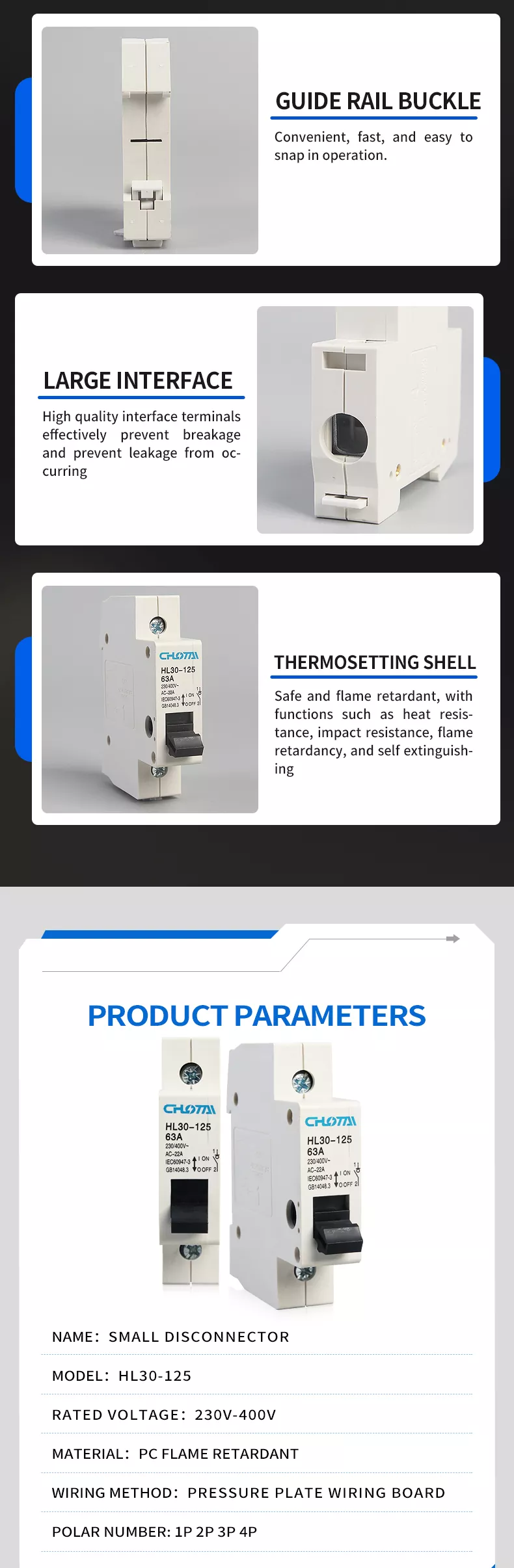

1.  Guide Rail Buckle : Convenient, fast, and easy to snap in operation, suitable for standard DIN rail mounting.

2.  Large Interface Terminals : High quality interface terminals effectively prevent breakage and prevent leakage from occurring.

3.  Thermosetting Shell : Safe and flame retardant, with functions such as heat resistance, impact resistance, flame retardancy, and self extinguishing.

4.  Widening Handle : The handle curvature that conforms to human habits improves operational comfort and showcases the design's intention.

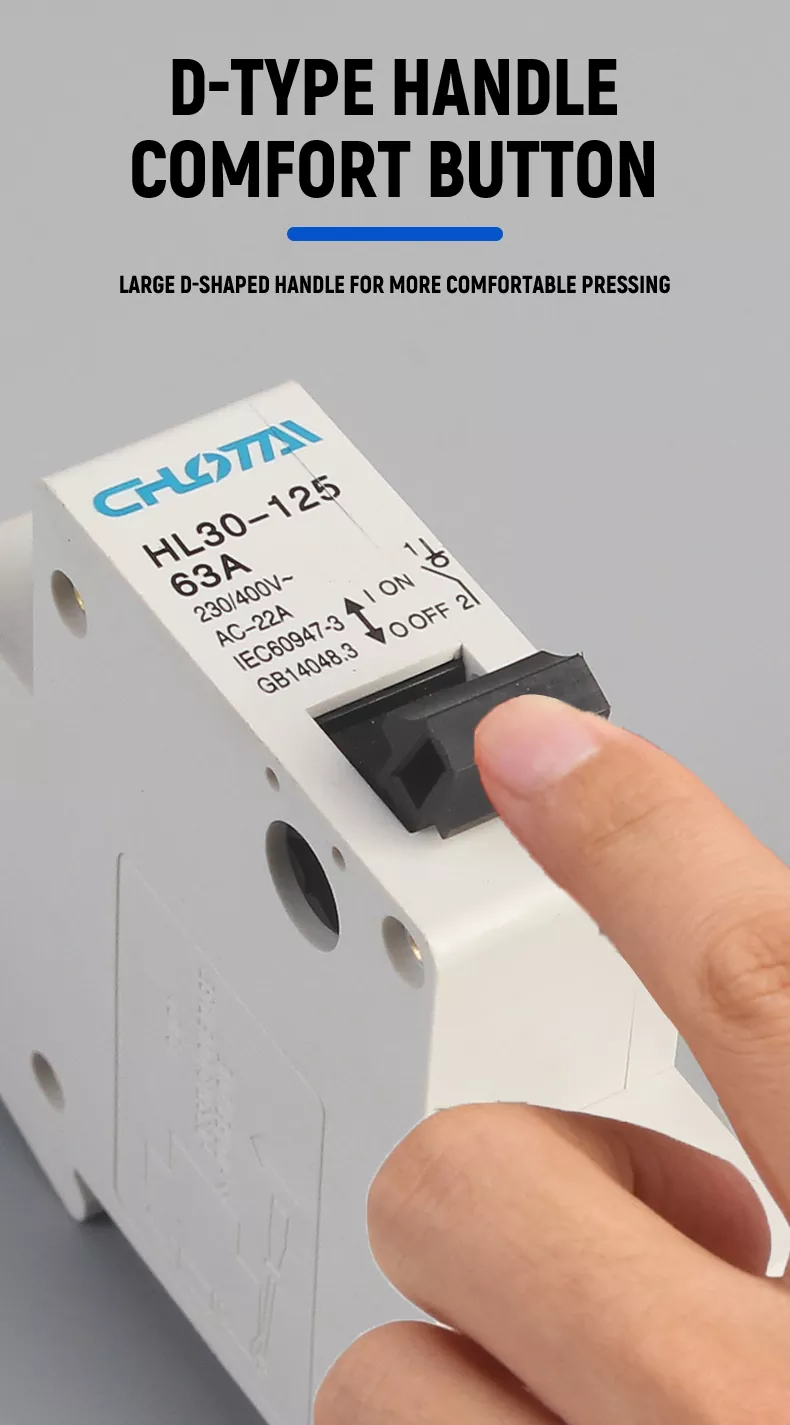

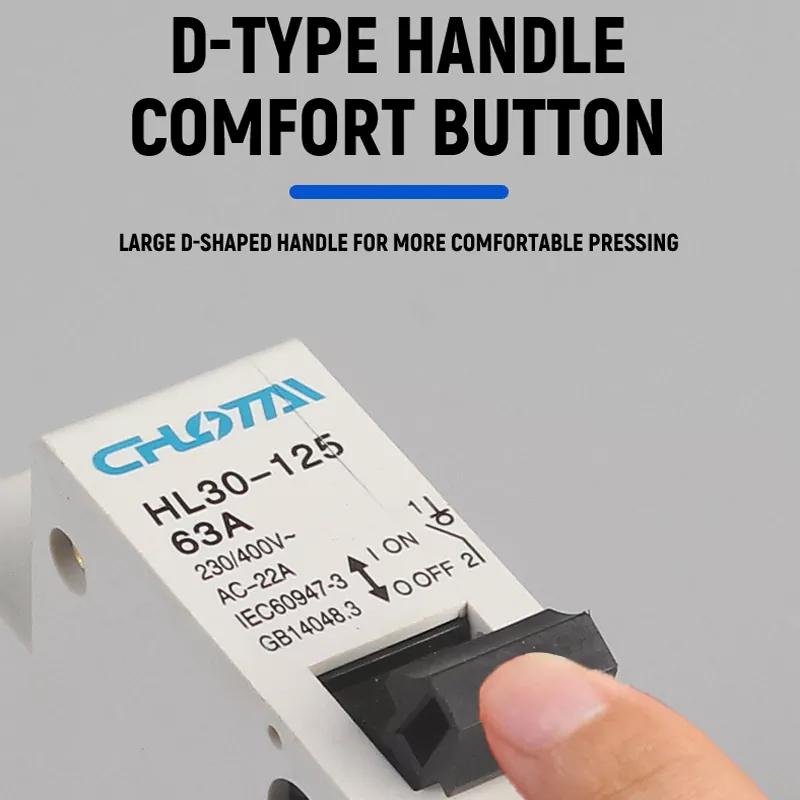

Comfortable D-Type Handle Design

Large D-shaped handle design, more comfortable pressing experience:

• Ergonomic design, fits the finger radian, easy to operate even with gloves.

• Clear on/off marks, intuitive operation, no misoperation.

Product Parameters

Easy to Install & Secure Wiring

•  DIN Rail Mounting : Quick snap-on installation, compatible with standard 35mm DIN rails, easy to install in distribution cabinets.

•  Large Wiring Terminals : High-quality pressure plate terminals, firm connection, good conductivity, safe and reliable.

•  Compact Design : 1P model occupies only 18mm width, saving distribution cabinet space.

Widely Used

Suitable for various power distribution scenarios:

• Residential home power distribution main switch

• Commercial building distribution cabinets

• Industrial automation control circuits

• Factory power distribution systems

• Lighting control circuits

• Small power appliance and motor control

• Renewable energy power generation systems

FAQ

Q1: What is the difference between a switch disconnector and a circuit breaker?

A: A switch disconnector is mainly used for manual isolation and on/off control of circuits, providing complete electrical isolation for maintenance. It does not have automatic short-circuit and overload protection functions, while a circuit breaker has automatic protection functions.

Q2: Can this 1P 63A disconnector be used as a household main switch?

A: Yes. It is suitable for 230V household circuits, with 63A rated current, suitable for main switch of household power distribution, providing reliable isolation protection.

Q3: What pole numbers are available?

A: We provide 1P, 2P, 3P, 4P models, suitable for single-phase (230V) and three-phase (400V) circuits, you can choose according to your needs.

Q4: What is the service life of the disconnector?

A: It has 1500 times electrical life and 8500 times mechanical life, with normal use for more than 10 years, and regular inspection is recommended.

Q5: Can it work in extreme cold/high temperature environments?

A: Yes. The operating temperature range is -35℃ to 70℃, suitable for cold northern regions and high-temperature industrial environments.

Q6: Is it easy to install?

A: Yes. It adopts standard DIN rail snap-on installation, with large terminals for easy wiring, suitable for electricians and DIY users.
