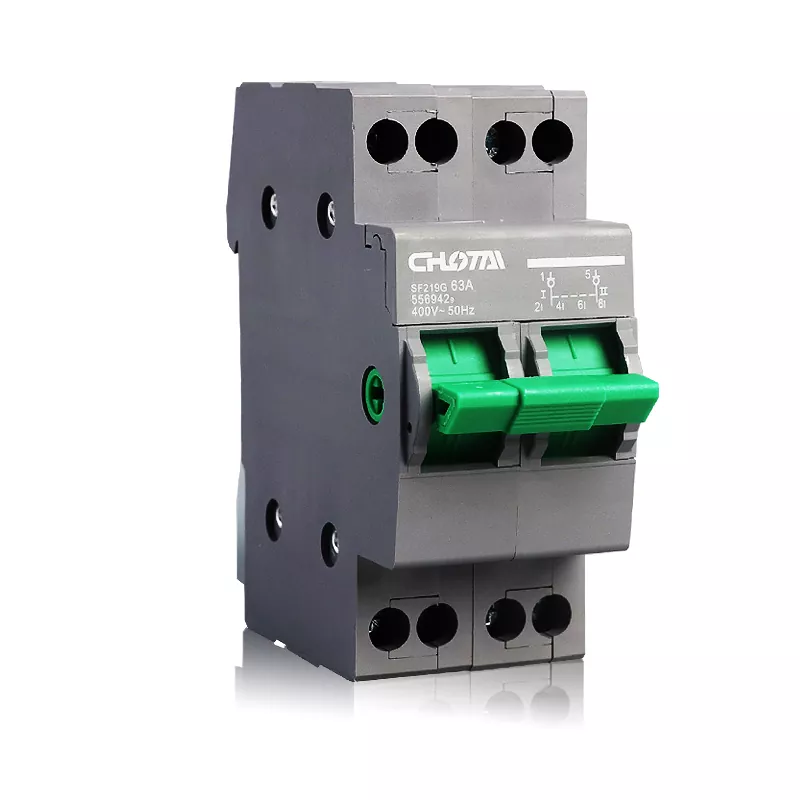

Small Dual Power Source Transfer Switch

Our SF219G Small Dual Power Source Transfer Switch is a compact, high-performance manual transfer switch engineered for seamless dual-power switching. It enables safe isolation and switching between two independent power sources, with built-in overload protection, short circuit protection, and arc extinguishing functions to prevent electrical hazards. The V0 flame-retardant shell self-extinguishes within 30 seconds after high-temperature combustion, while high-conductivity copper terminals resist current surges and burnout. Ideal for household distribution, industrial control, and photovoltaic power generation systems, it delivers 24/7 reliable power safety for your family and equipment.

NEW QUALITY UPGRADE & MORE DURABLE

Our SF219G transfer switch has undergone comprehensive quality upgrades. Precision-engineered from the inside out, every component is meticulously inspected from material selection to final assembly. We utilize high-precision internal components and advanced manufacturing processes to ensure stable performance and long service life. The shell is made of high-strength V0 flame-retardant engineering plastic, which is heat-resistant, impact-resistant, and anti-aging. Each product undergoes strict aging tests, electrical life tests, and flame retardant tests before leaving the factory, enabling long-term stable operation in harsh environments.

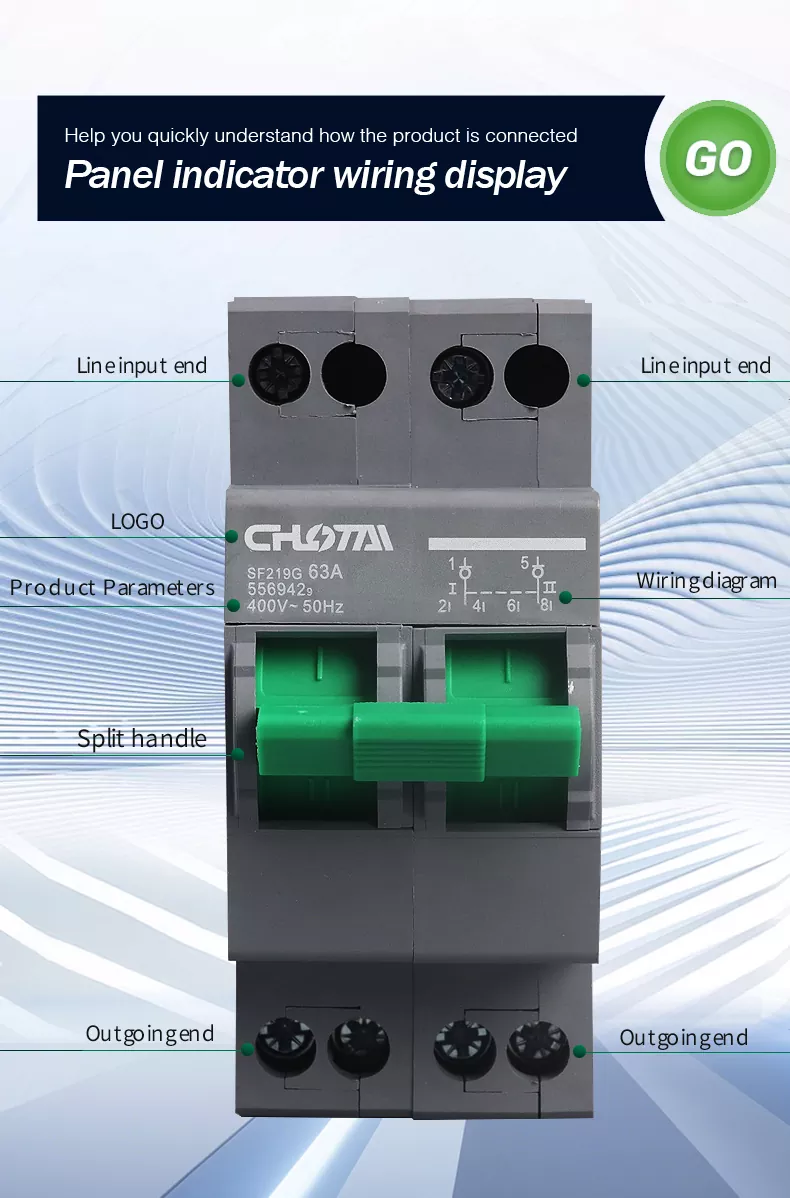

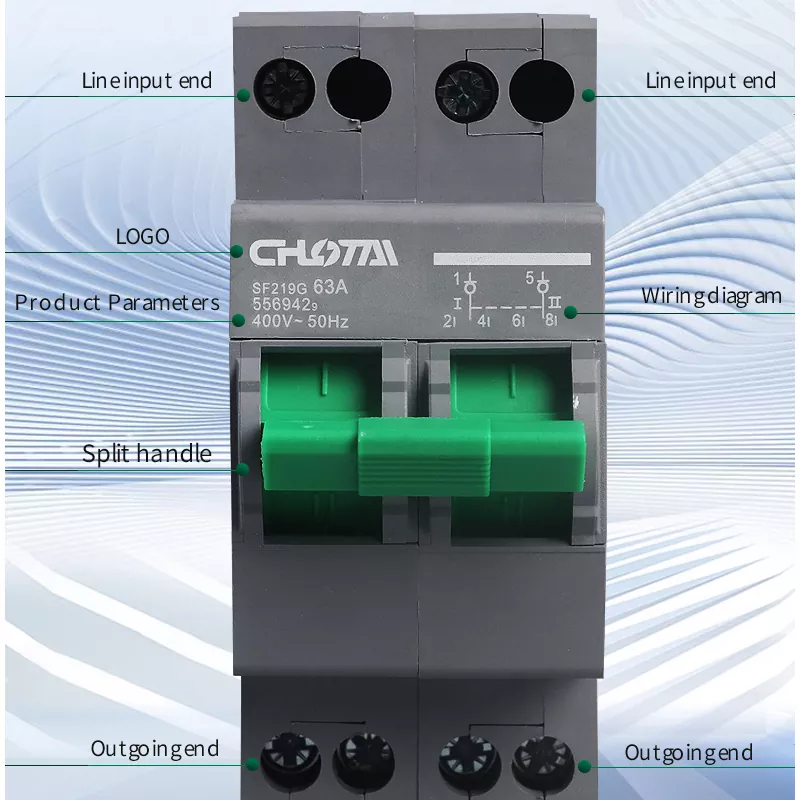

STRUCTURAL ANALYSIS

The transfer switch adopts a compact and scientific structure, including 6 core components:

1.  LINE INPUT END : Top terminals for dual power source input, marked for easy wiring.

2.  CHOTAI LOGO & PRODUCT PARAMETERS : Clear brand identification and technical specs (SF219G 63A, 400V~ 50Hz) for quick reference.

3.  WIRING DIAGRAM : Intuitive panel diagram to avoid wrong wiring during installation.

4.  DOUBLE-LAYERED THICKENED SPLIT HANDLE : Ergonomic design for comfortable operation, improving service life and operational fullness.

5.  OUTGOING END : Bottom terminals for load output, with secure screw fixation.

6.  DIN RAIL MOUNTING CLIP : Standard 35mm rail design, gently press to lock firmly for easy installation.

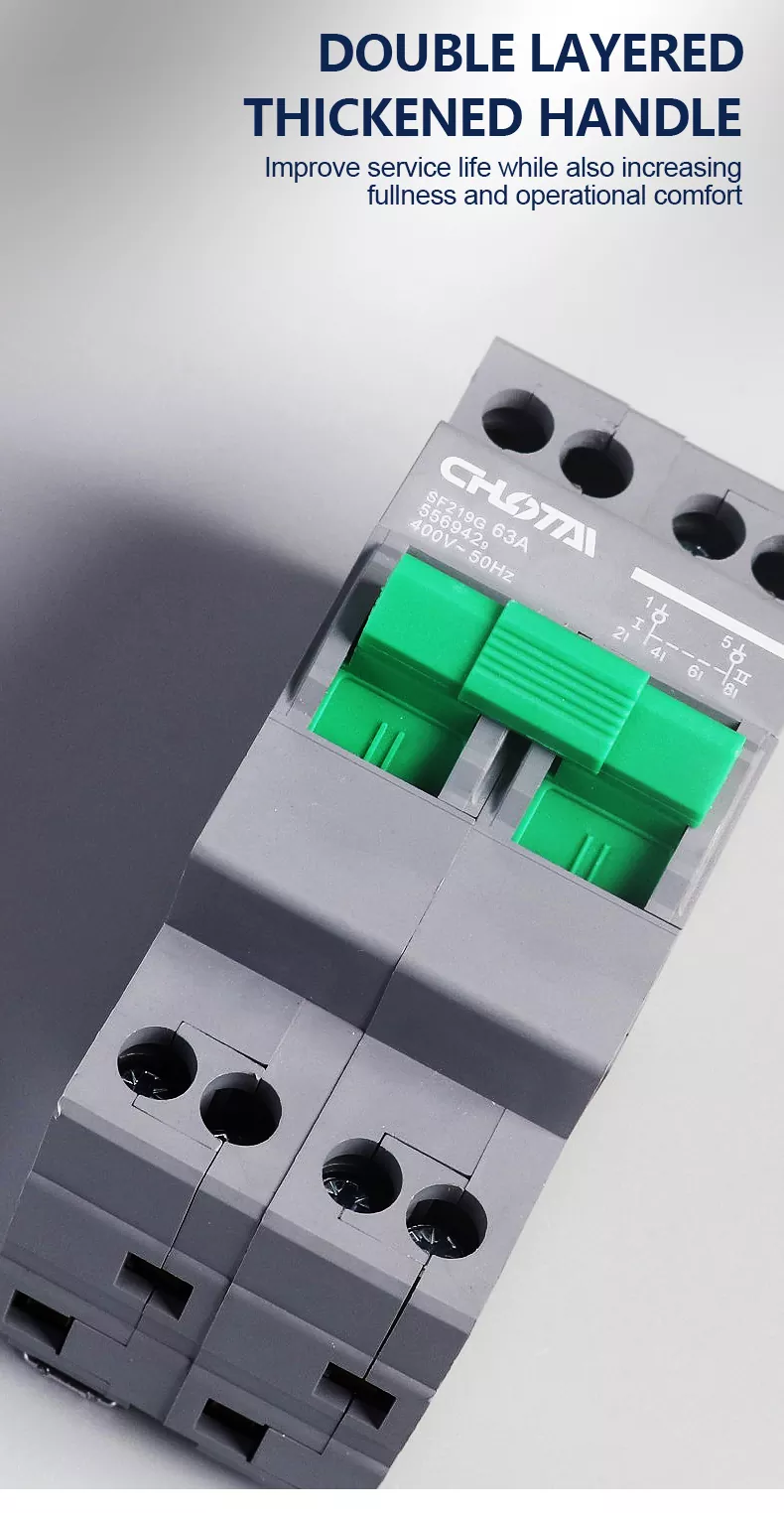

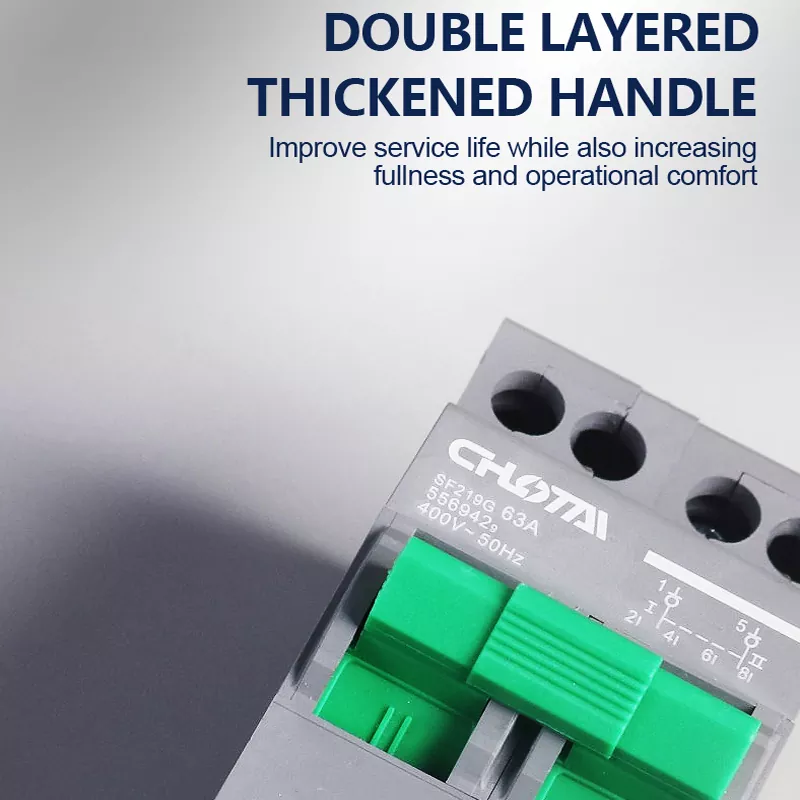

DOUBLE-LAYERED THICKENED HANDLE FOR COMFORTABLE OPERATION

Equipped with a double-layered thickened D-type handle, the SF219G transfer switch improves service life while increasing operational fullness and comfort. The ergonomic curvature conforms to human operating habits, reducing fatigue during frequent switching, and the high-strength engineering plastic handle is wear-resistant and durable for long-term use.

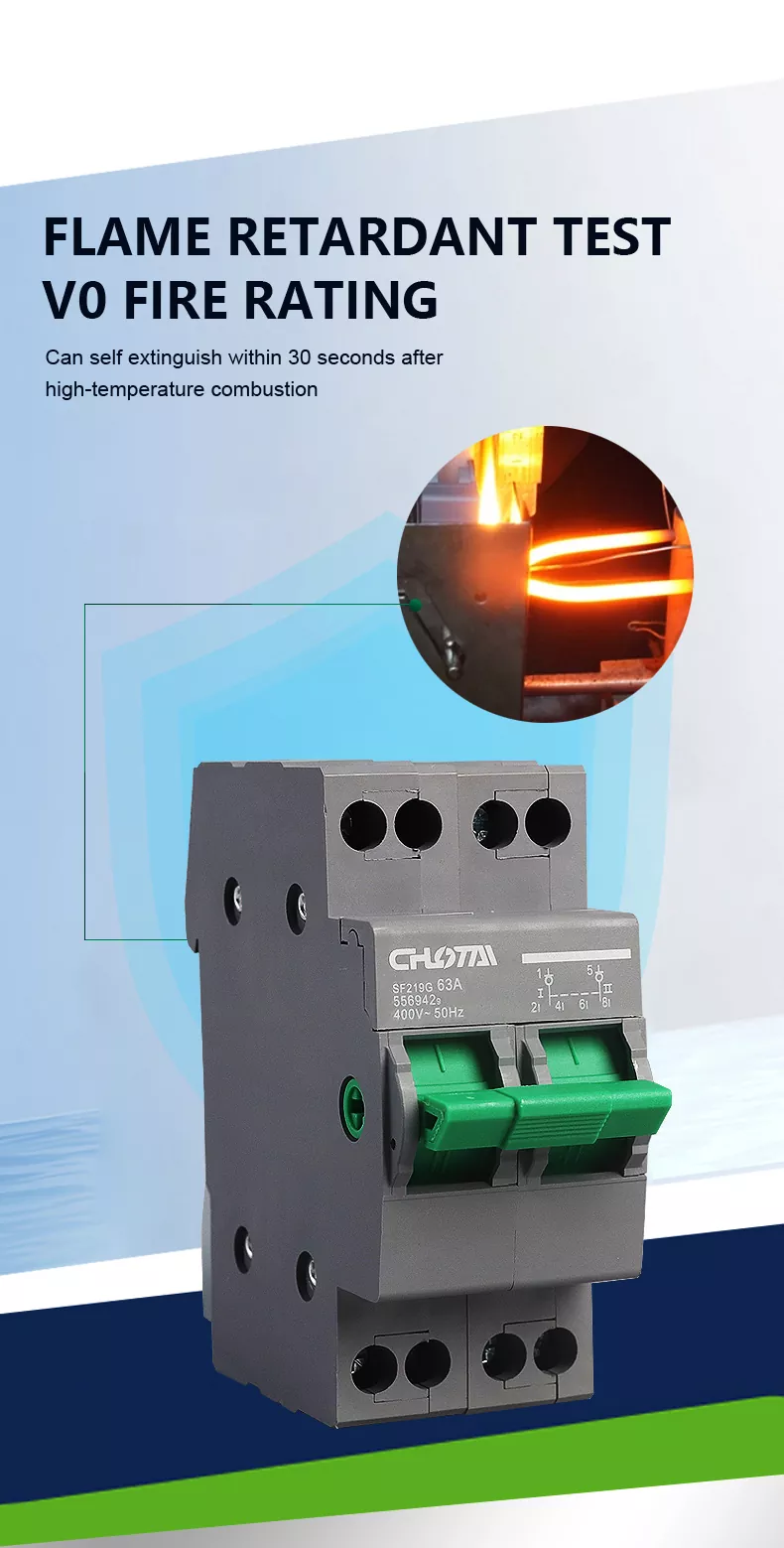

V0 FLAME RETARDANT SHELL FOR MAXIMUM SAFETY

The shell is made of high-performance V0 flame-retardant engineering plastic, which can self-extinguish within 30 seconds after high-temperature combustion, effectively preventing electrical fires caused by short circuits and overloads. The shell also features excellent impact resistance, good insulation performance, and temperature resistance, adapting to harsh environments and ensuring long-term safe operation.

OUR PRODUCTS VS. OTHER PRODUCTS

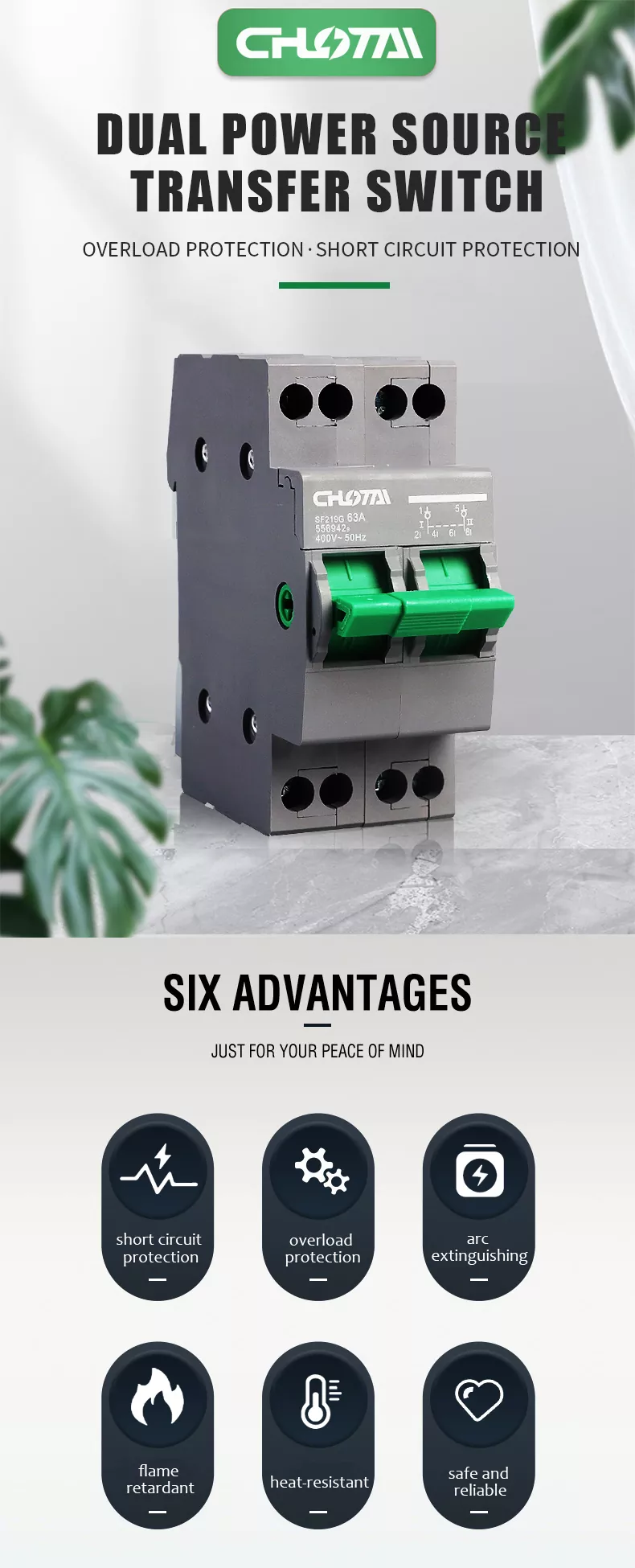

SIX CORE SELLING POINTS

•  DUAL POWER SWITCHING : Seamless manual transfer between two power sources for uninterrupted power supply.

•  FULL PROTECTION : Short circuit, overload, and arc extinguishing protection to safeguard circuits and equipment.

•  V0 FLAME RETARDANT : Self-extinguishing shell to prevent electrical fires, ensuring maximum safety.

•  ERGONOMIC HANDLE : Double-layered thickened handle for comfortable operation and long service life.

•  HIGH-QUALITY TERMINALS : Copper terminals resist current surges, not easy to burn, ensuring stable performance.

•  EASY INSTALLATION : Standard 35mm DIN rail mounting, snap-fit design for quick deployment.

STURDY & FLAME RETARDANT SHELL

The shell is made of high-strength V0 flame-retardant engineering plastic, with a smooth and burr-free surface after fine processing. It features outstanding flame retardancy, heat resistance, impact resistance, and self-extinguishing properties, effectively inhibiting combustion and preventing fires caused by circuit faults. The material is also anti-aging and corrosion-resistant, suitable for long-term stable use in various complex industrial and residential environments.

HIGH QUALITY TERMINALS FOR STABLE PERFORMANCE

Adopting high-quality copper terminals, the SF219G transfer switch ensures stable current transmission, strong overload resistance, and low power loss. The terminals effectively prevent current surges and are not easy to burn, ensuring safe and reliable operation of the switch even under high-load conditions. The large terminal space accommodates up to 25mm² cables, making wiring easier and more secure.

STANDARD DIN RAIL MOUNTING

Designed for universal 35mm standard DIN rail installation, the transfer switch features a convenient snap-fit buckle. Gently press to lock firmly, enabling fast, tool-free installation and disassembly, compatible with all standard distribution cabinets and electrical equipment, suitable for quick deployment in various power distribution scenarios.

WIRING DIAGRAM & INSTALLATION GUIDE

1. Connect the two independent power sources to the line input end (top terminals)  of the transfer switch.

2. Connect the load circuit to the outgoing end (bottom terminals)  of the transfer switch.

3. Ensure all wiring is firmly tightened to avoid overheating and loose connections.

4. Verify the wiring diagram on the panel to ensure correct phase sequence and connection.

5. Mount the switch on a 35mm standard DIN rail, gently press to lock firmly.

6. Test the switch operation to confirm normal dual power switching and protection functions.

PRODUCT PARAMETERS

WIDELY USED

Our SF219G Dual Power Source Transfer Switch is widely used in:

•  RESIDENTIAL BUILDINGS : Household power distribution, dual-power backup for home appliances.

•  COMMERCIAL OFFICES : Office building power distribution, uninterrupted power supply for equipment.

•  INDUSTRIAL EQUIPMENT : Factory workshop, production line dual-power switching and protection.

•  PHOTOVOLTAIC POWER GENERATION : Solar power system dual-power transfer, 3KW-25KW system protection.

•  RENEWABLE ENERGY : Wind power generation, distributed energy system power control.

•  INFRASTRUCTURE : Communication base stations, public facilities uninterrupted power supply.

FAQ

1. WHAT IS THE MAIN FUNCTION OF THIS SF219G TRANSFER SWITCH?

It is a dual power source transfer switch  that enables manual switching between two independent power sources, with built-in overload protection , short circuit protection , and arc extinguishing  functions, ensuring uninterrupted and safe power supply for loads.

2. WHAT ARE THE AVAILABLE SPECIFICATIONS OF THIS PRODUCT?

We offer complete specifications: 1P/2P/3P/4P  pole numbers, rated current from 16A to 80A , suitable for single-phase (3KW-5KW) and three-phase (5KW-25KW) systems.

3. WHAT IS THE INSTALLATION METHOD?

It supports 35mm standard DIN rail mounting  with a snap-fit design. Gently press to lock firmly, enabling quick and tool-free installation, compatible with all standard distribution cabinets.

4. IS THE SHELL FLAME RETARDANT?

Yes, the shell is made of V0 flame-retardant engineering plastic , which can self-extinguish within 30 seconds after high-temperature combustion, effectively preventing electrical fires.

5. WHAT IS THE SERVICE LIFE OF THIS PRODUCT?

The transfer switch has 1500+ electrical life cycles  and 10000+ mechanical life cycles , ensuring long-term stable operation and durable use.

6. WHAT SCENARIOS IS THIS PRODUCT SUITABLE FOR?

It is suitable for residential, commercial, industrial, and photovoltaic power generation systems, meeting dual-power switching and protection needs for various power distribution scenarios.
