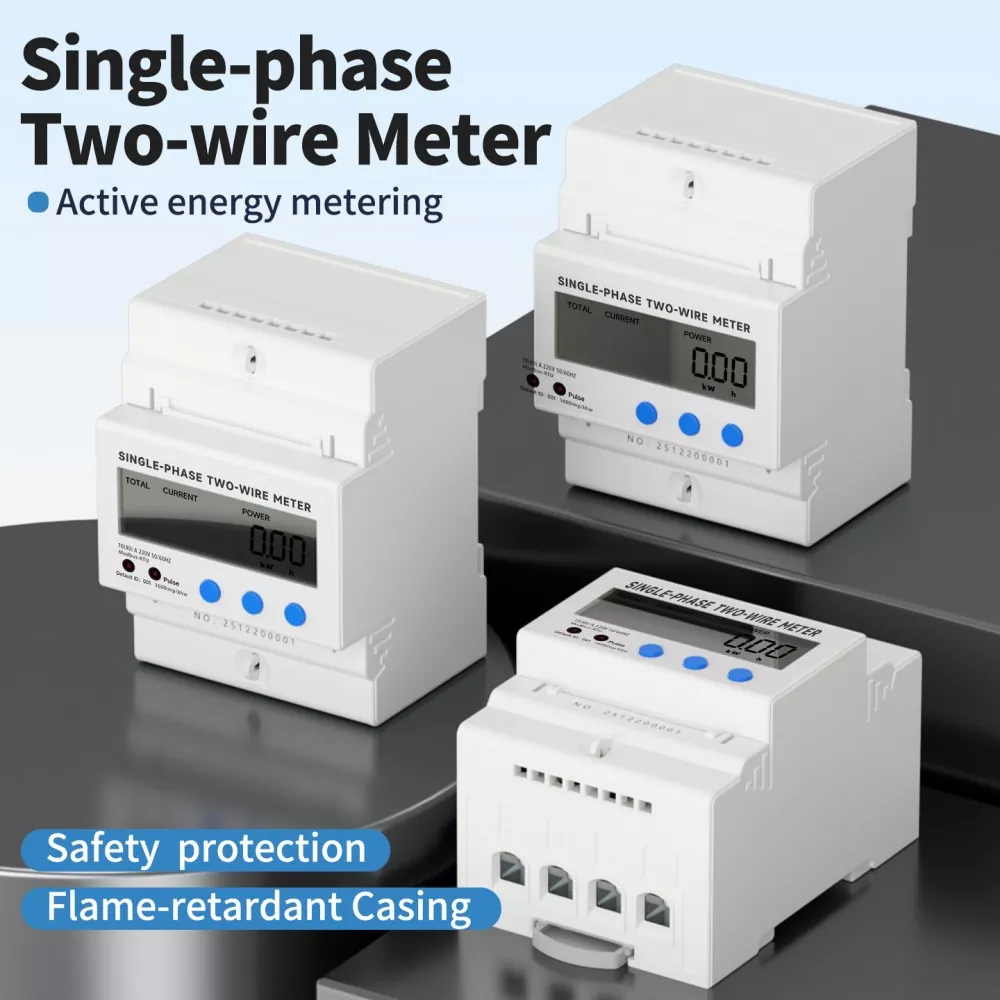

Single Phase Two Wire Meter

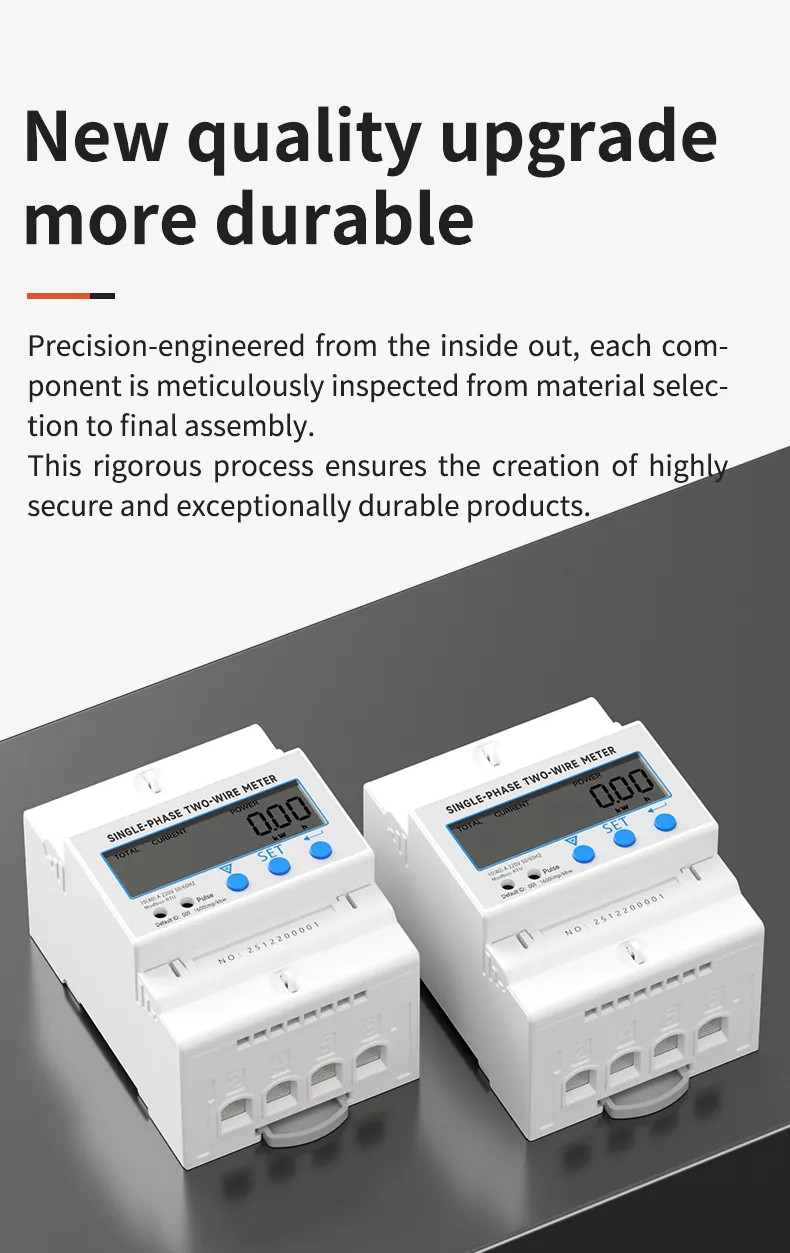

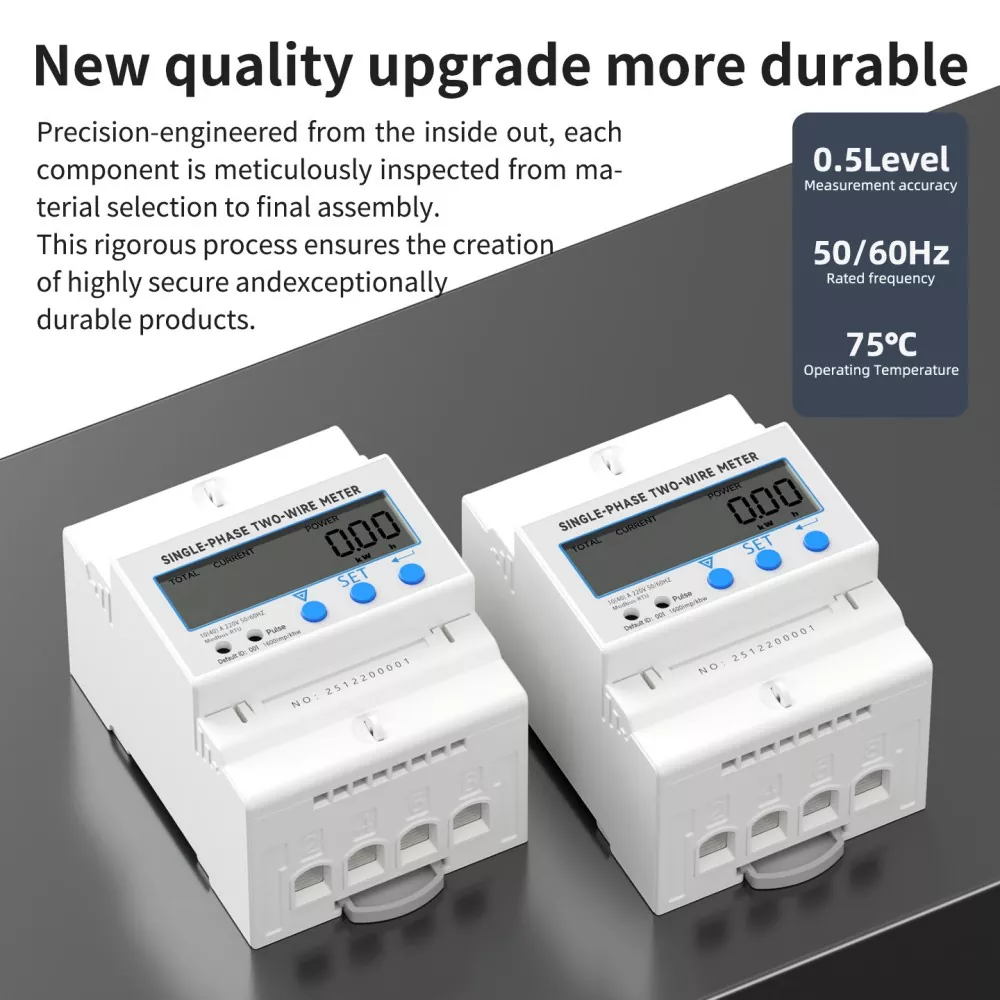

Eton Single phase Two wire Meter is a high-performance energy metering instrument for single-phase power systems. Precision-engineered from inside out, each component is inspected from material selection to final assembly, ensuring secure and durable performance. It integrates SMT chip technology to realize accurate active energy metering, supports forward/reverse electricity calculation, and requires no long-term debugging. With DIN35mm standard rail installation and high-current copper terminals, it’s easy to wire and stable to use.

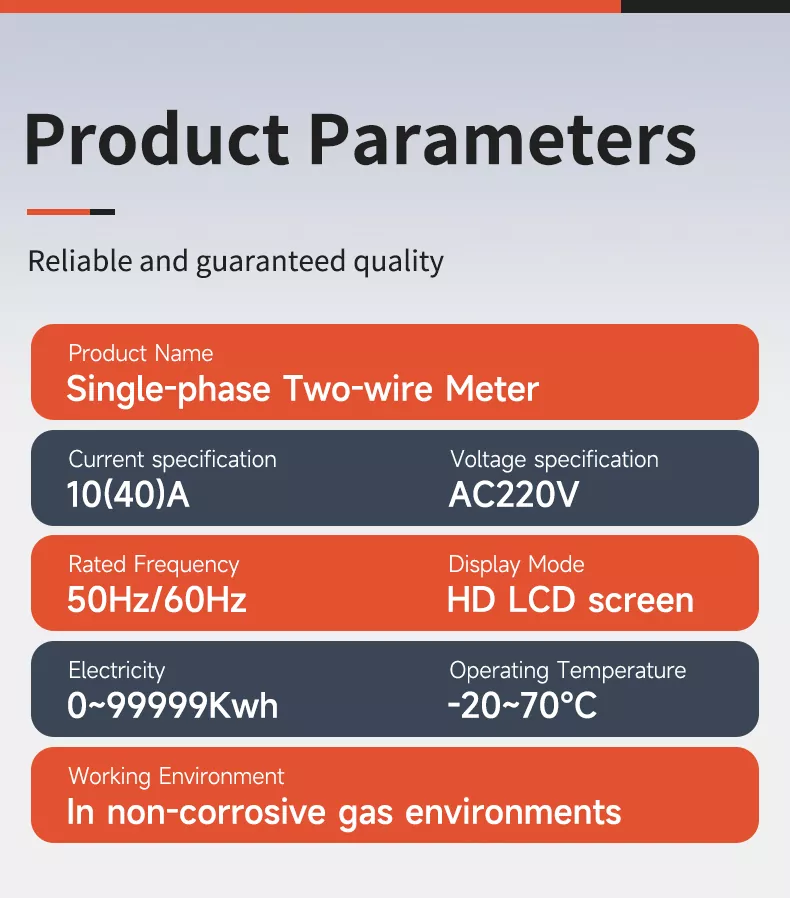

Product Parameter (Specification)

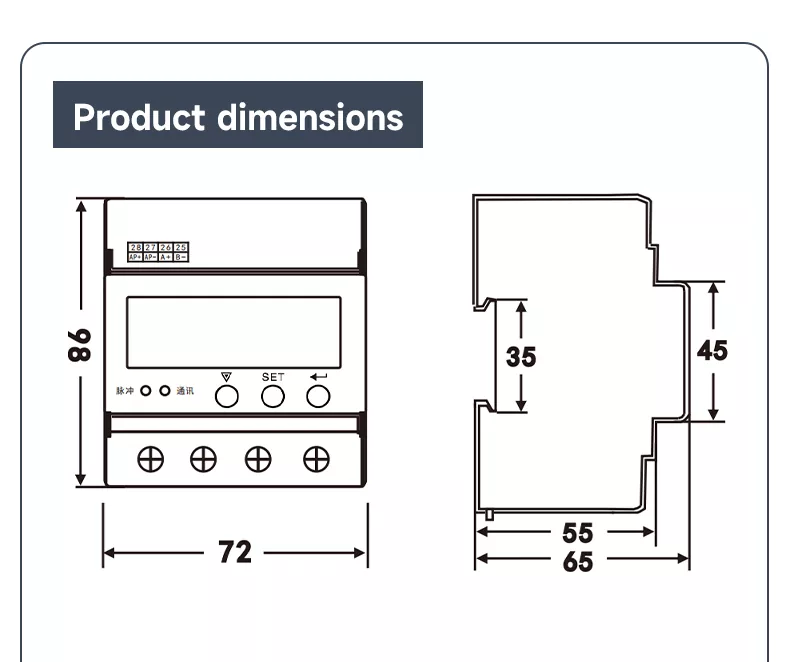

Product dimensions

• Overall dimensions: 72mm (width) × 86mm (height) × 55mm (depth)

• DIN rail compatible: Standard 35mm guide rail installation

Core Product Advantages

1. Precision & Durability

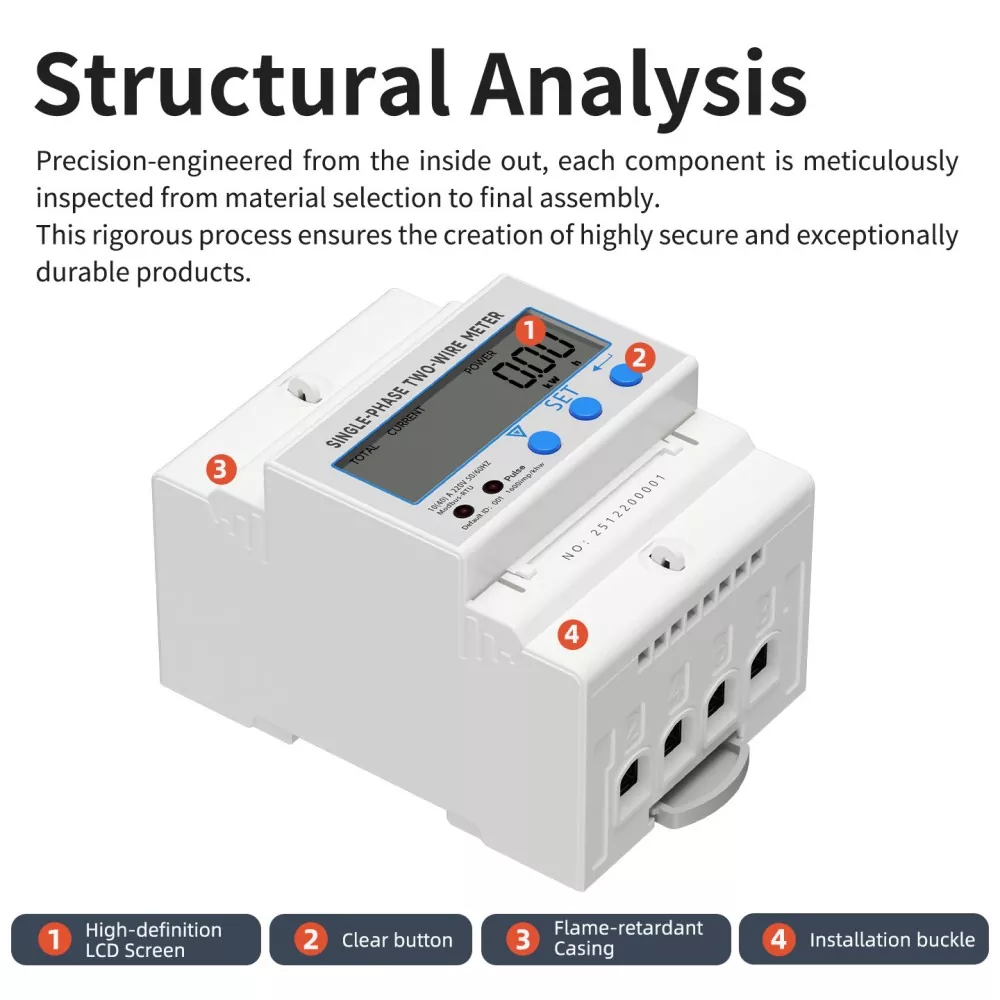

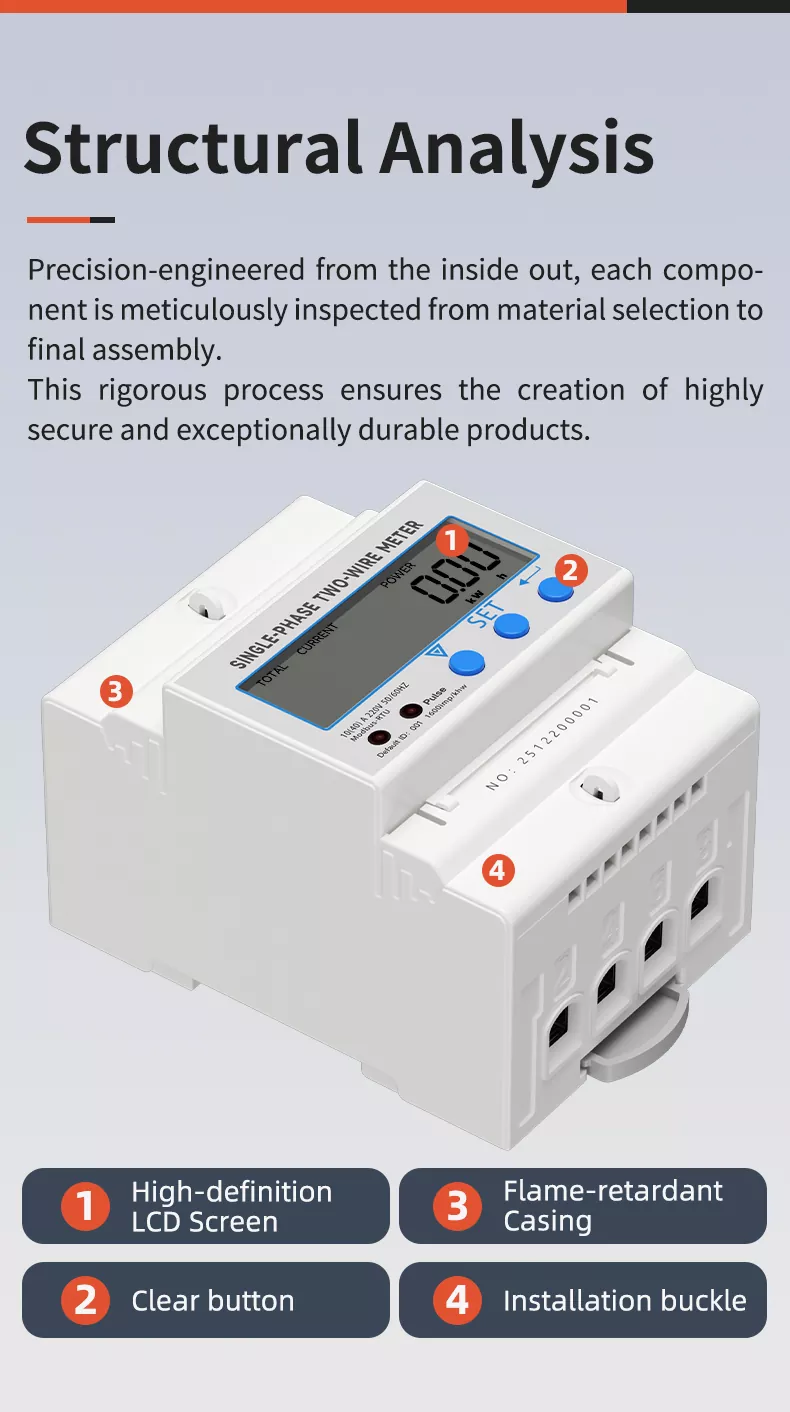

The meter is built with four core components: high-definition LCD screen, clear operation buttons, flame-retardant ABS casing and installation buckle, ensuring stable operation in complex industrial environments.

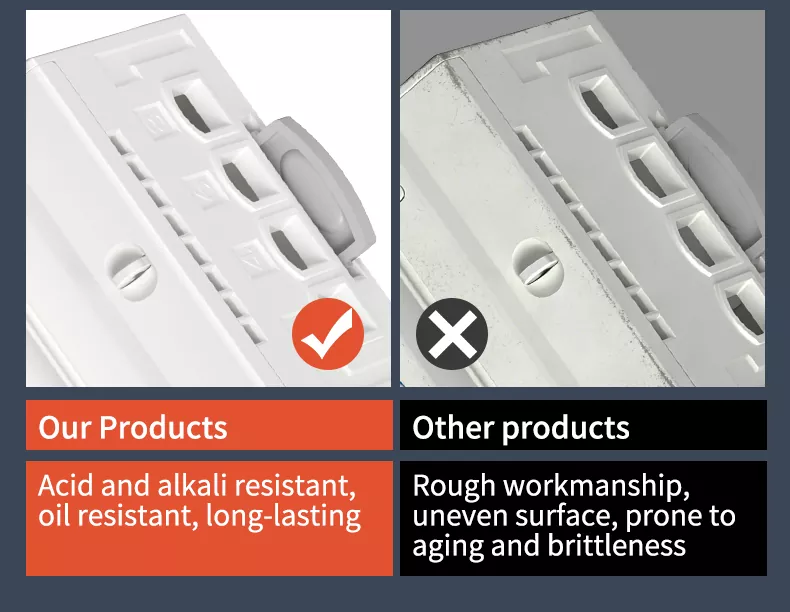

Compared with ordinary products, our casing is acid and alkali resistant, oil resistant, and long-lasting, avoiding rough workmanship, aging and brittleness issues.

2. High-precision Energy Metering

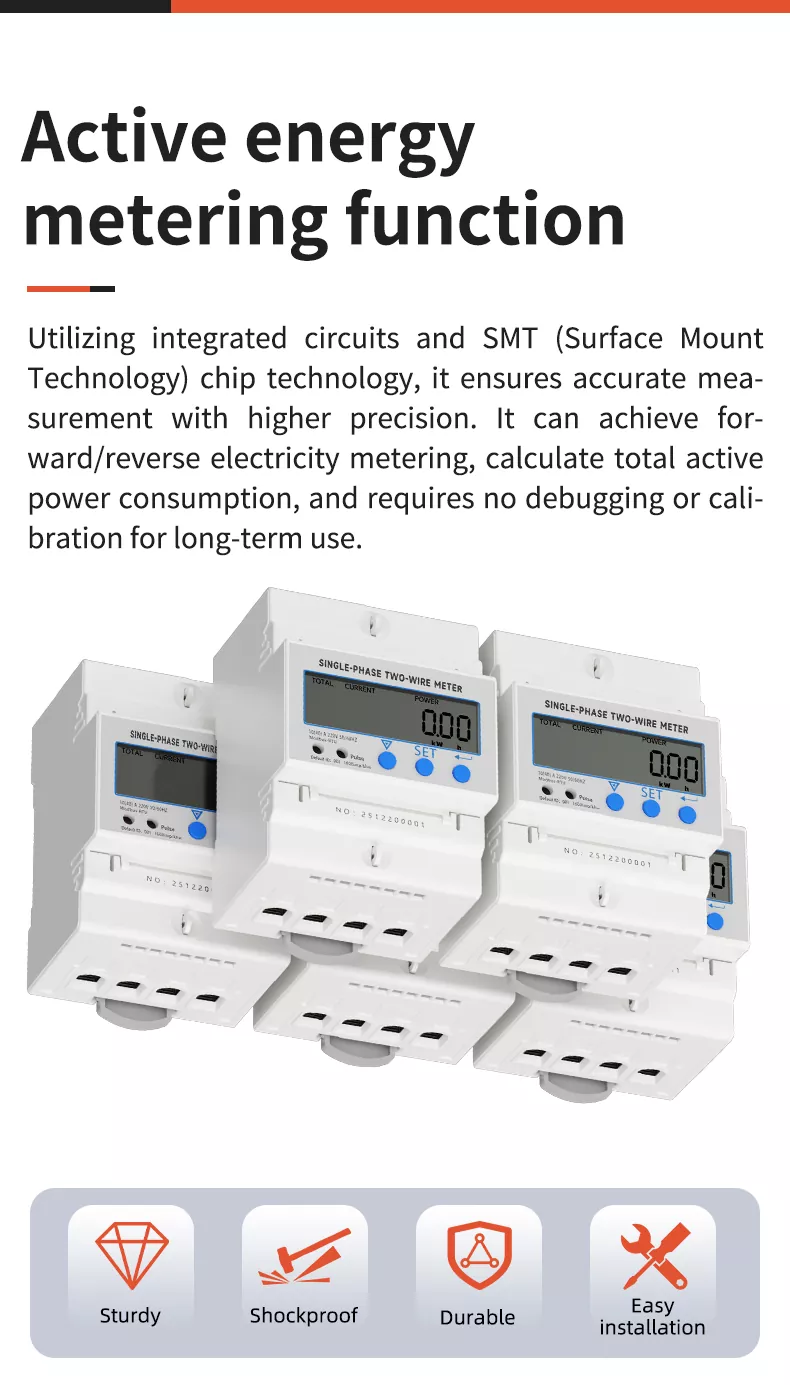

Adopting integrated circuits and SMT chip technology, it achieves 0.5-level high measurement accuracy, supports forward/reverse electricity metering, and calculates total active power consumption stably without debugging.

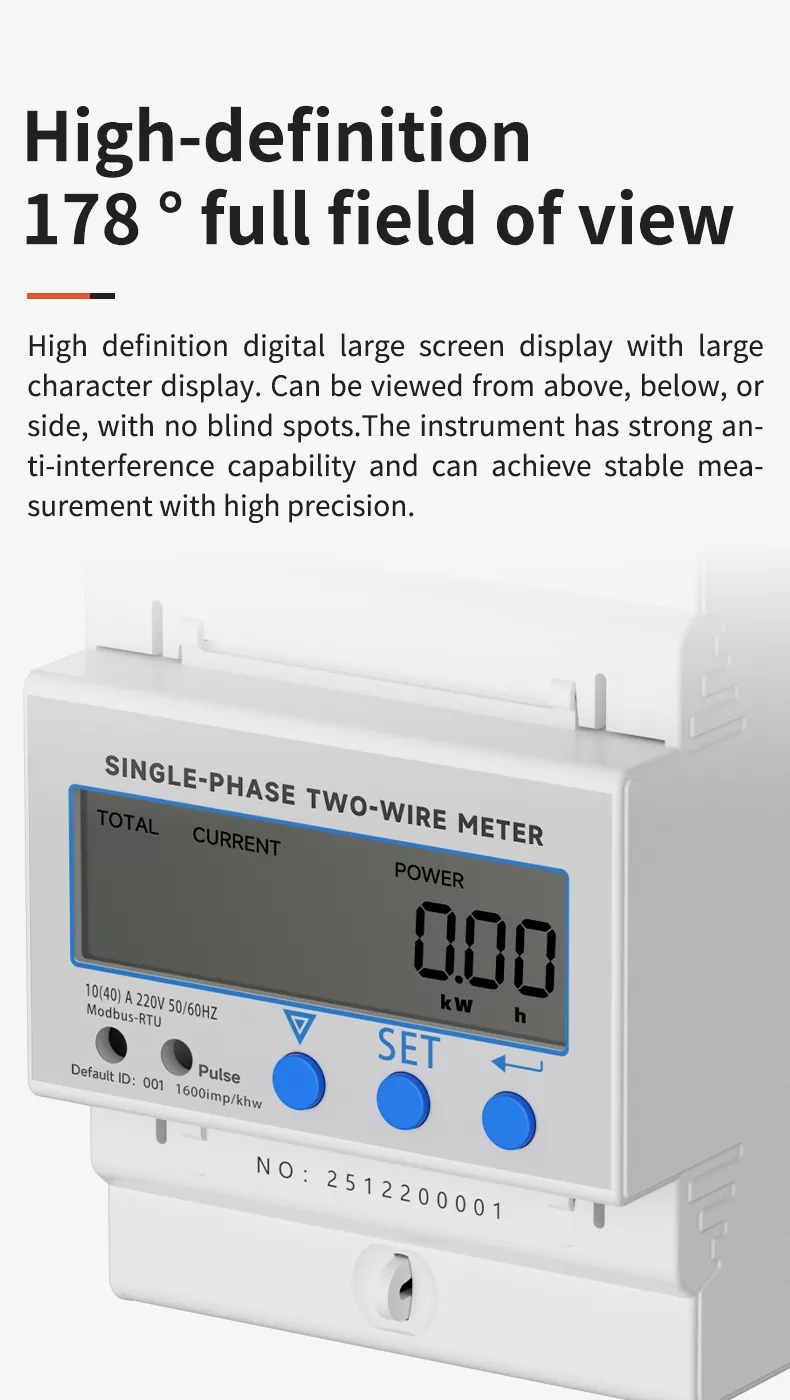

The 178° full-view HD LCD screen displays large characters, enabling clear data reading from any angle with strong anti-interference capability.

3. Safety & Convenience

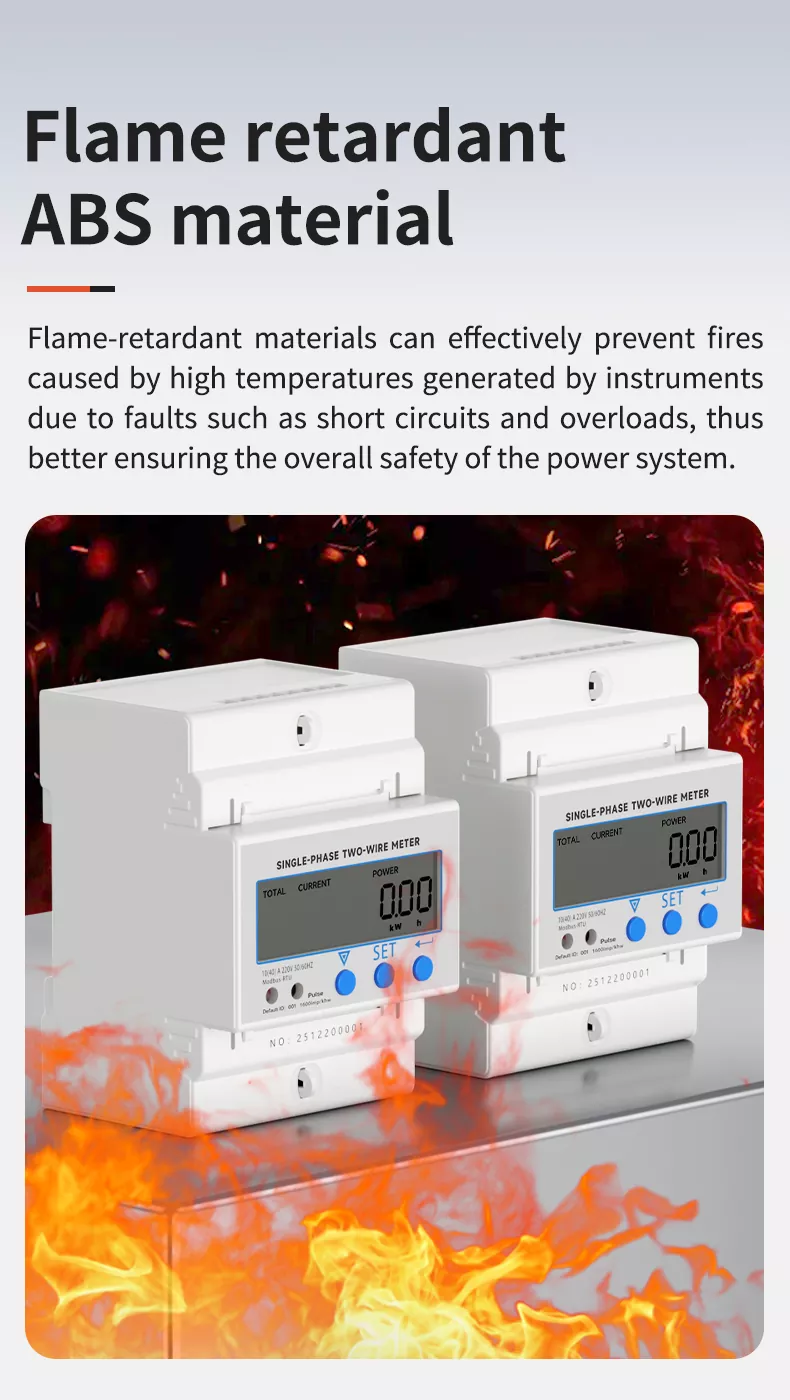

Flame-retardant ABS casing effectively prevents fire risks caused by short circuits or overloads, protecting the power system safety.

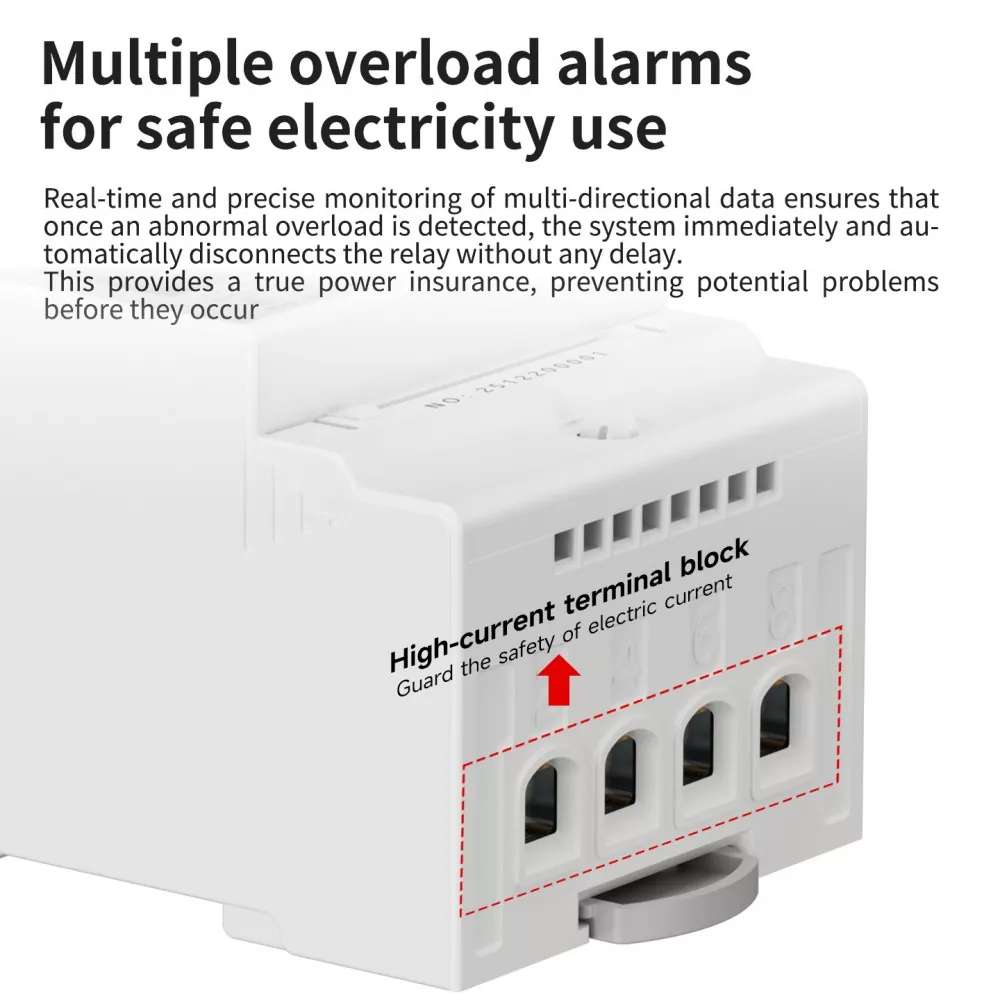

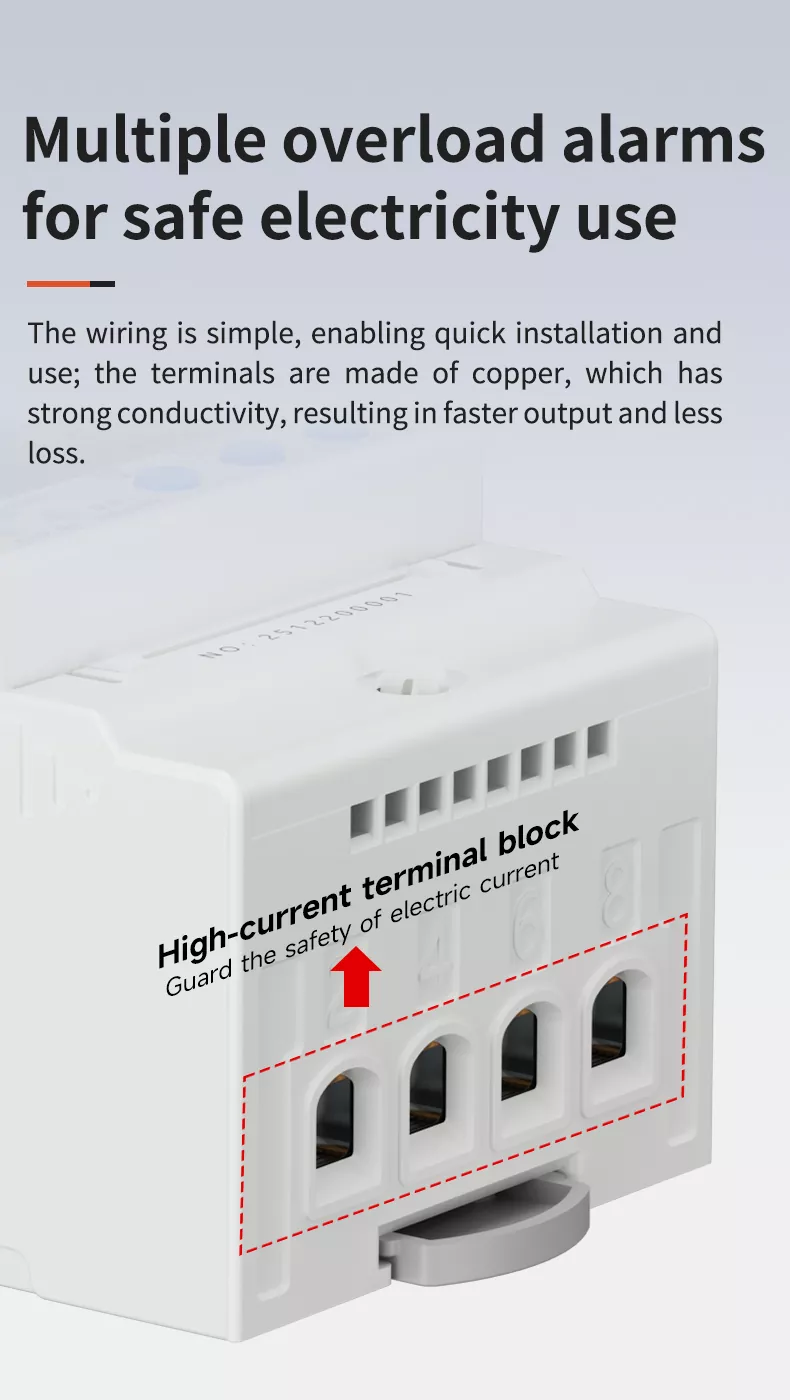

High-current copper terminal blocks feature strong conductivity, reducing energy loss and ensuring safe current transmission with simple wiring.

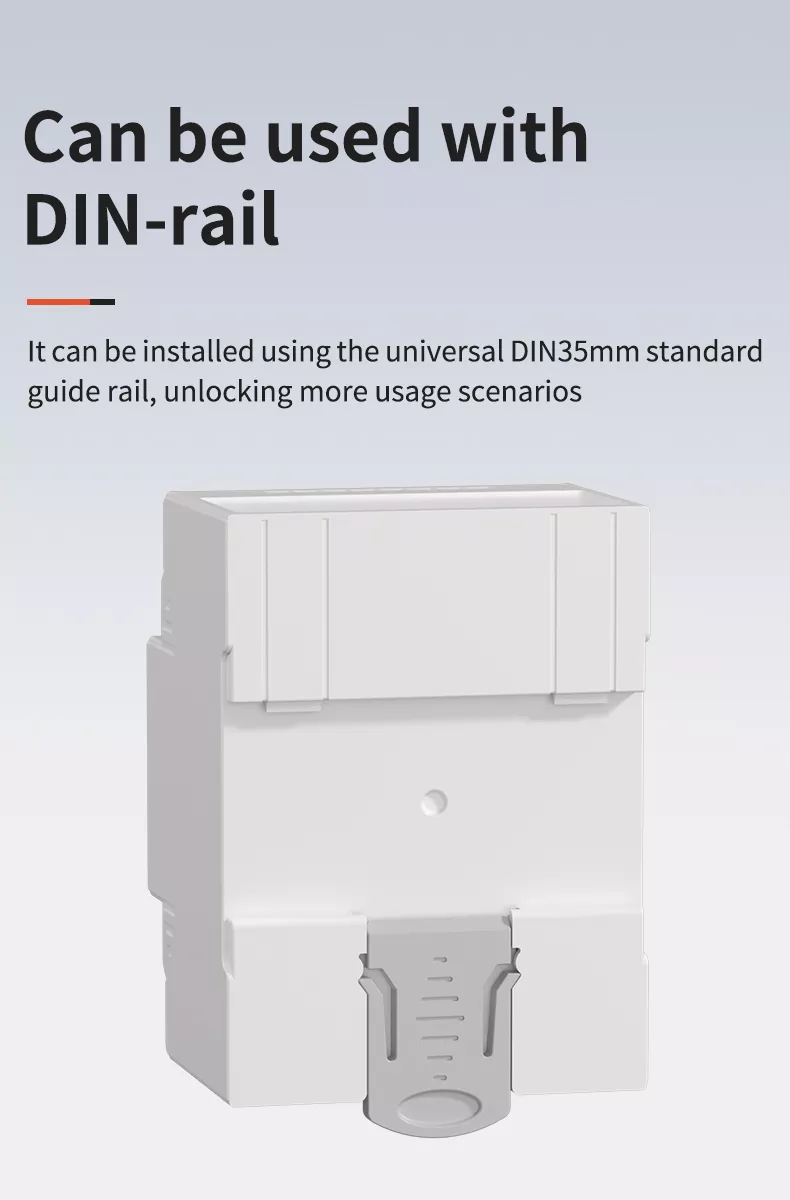

Compatible with universal DIN35mm guide rail, it unlocks more installation scenarios in distribution cabinets and equipment.

Product Application

This Single phase Two wire Meter is widely applied in multiple power scenarios:

• Power monitoring: Substations, distribution cabinets and power management systems for real-time voltage/current data collection

• Industrial field: Automation equipment and flow production lines to monitor energy consumption of production devices

• Commercial & residential: Residential buildings, department stores and public facilities for electricity metering and energy-saving management

• Intelligent projects: Smart power distribution systems and energy management platforms to realize remote data transmission via RS485

Production Details

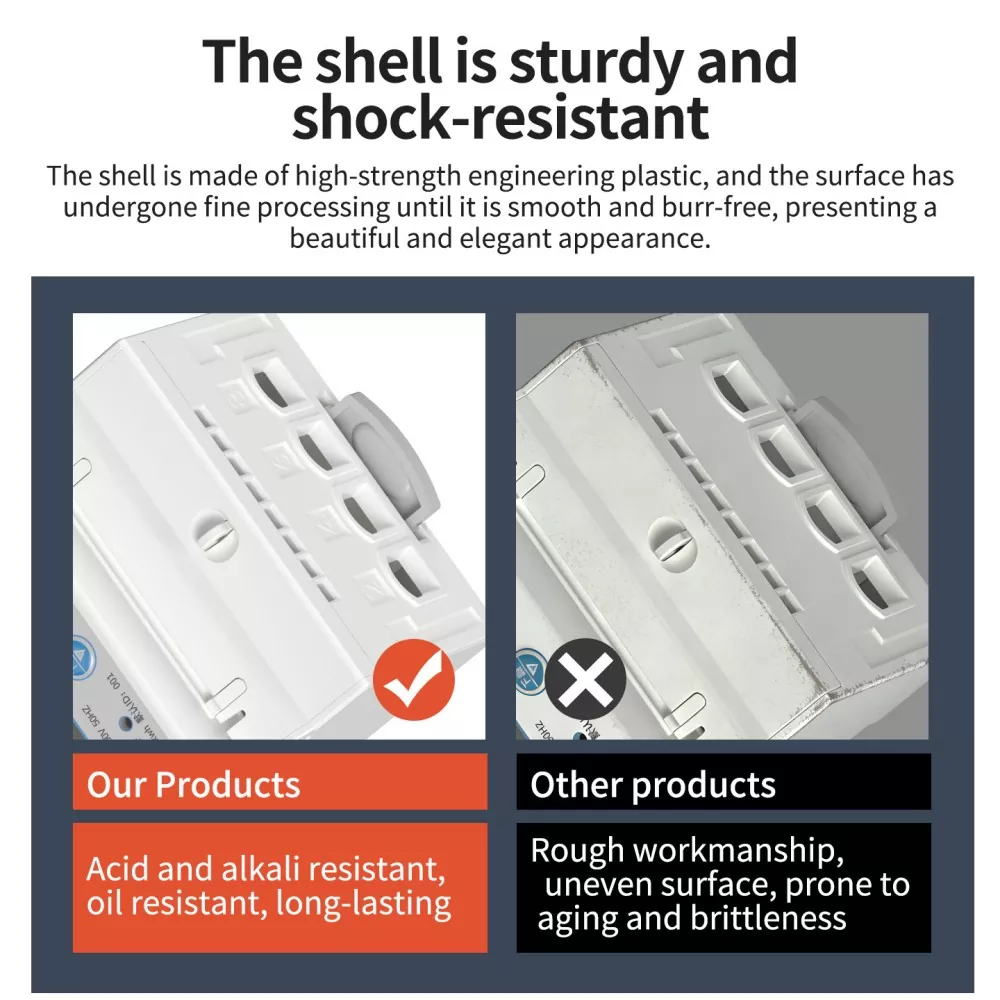

Each meter undergoes rigorous quality control: from material selection of high-strength engineering plastic to final assembly inspection, ensuring the shell is sturdy, shock-resistant and smooth burr-free.

Adopting high-quality chips with integrated welding, it features fast processing speed and stable measurement performance, with a service life far exceeding ordinary products.

Passed multi-party professional inspection and obtained authoritative certification from Jiangsu Institute of Metrology, guaranteeing reliable and stable quality.

Clear wiring diagram supports quick installation: L in/L out for live wire, N in/N out for neutral wire, and RS485 terminal for remote communication.

FAQ

What is the measurement accuracy of this Single phase Two wire Meter?

Our meter reaches 0.5-level high accuracy, which can provide precise active energy metering data for single-phase power systems.

What installation methods does this meter support?

It supports universal DIN35mm standard guide rail installation, with front operation and rear wiring, which is simple, firm and suitable for various distribution cabinets.

Is the casing of the meter flame-retardant?

Yes, it adopts flame-retardant ABS material, which can effectively prevent fire hazards caused by short circuits or overloads, ensuring safe use in industrial and commercial scenarios.

What is the viewing angle of the LCD screen?

The HD LCD screen supports 178° full field of view, allowing clear data reading from above, below or side, with no blind spots.

Does this meter support remote communication?

Yes, it is equipped with RS485 communication terminal, which can realize remote data transmission and intelligent energy management with upper computer systems.

What is the operating temperature range of the product?

It can work stably in the temperature range of -20°C to 70°C, adapting to various harsh industrial and commercial environments.
