Three Phase Din Rail Meter

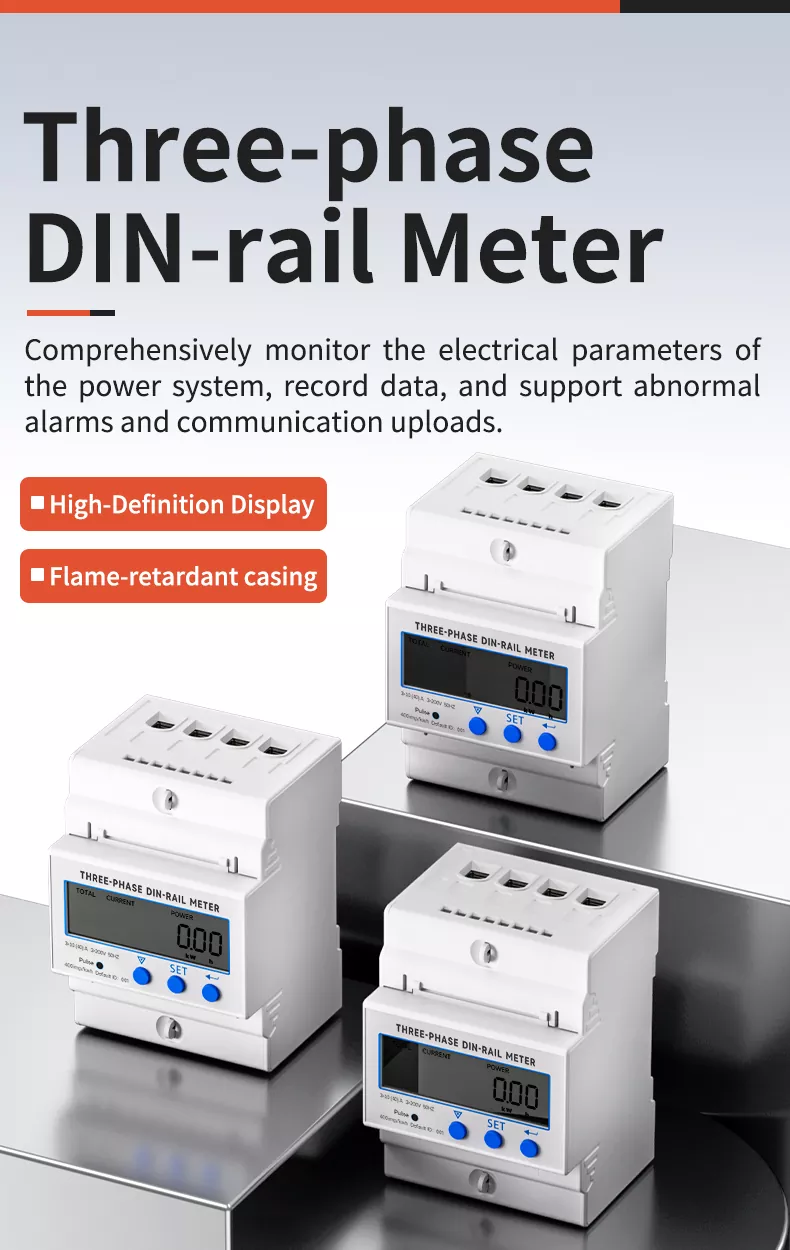

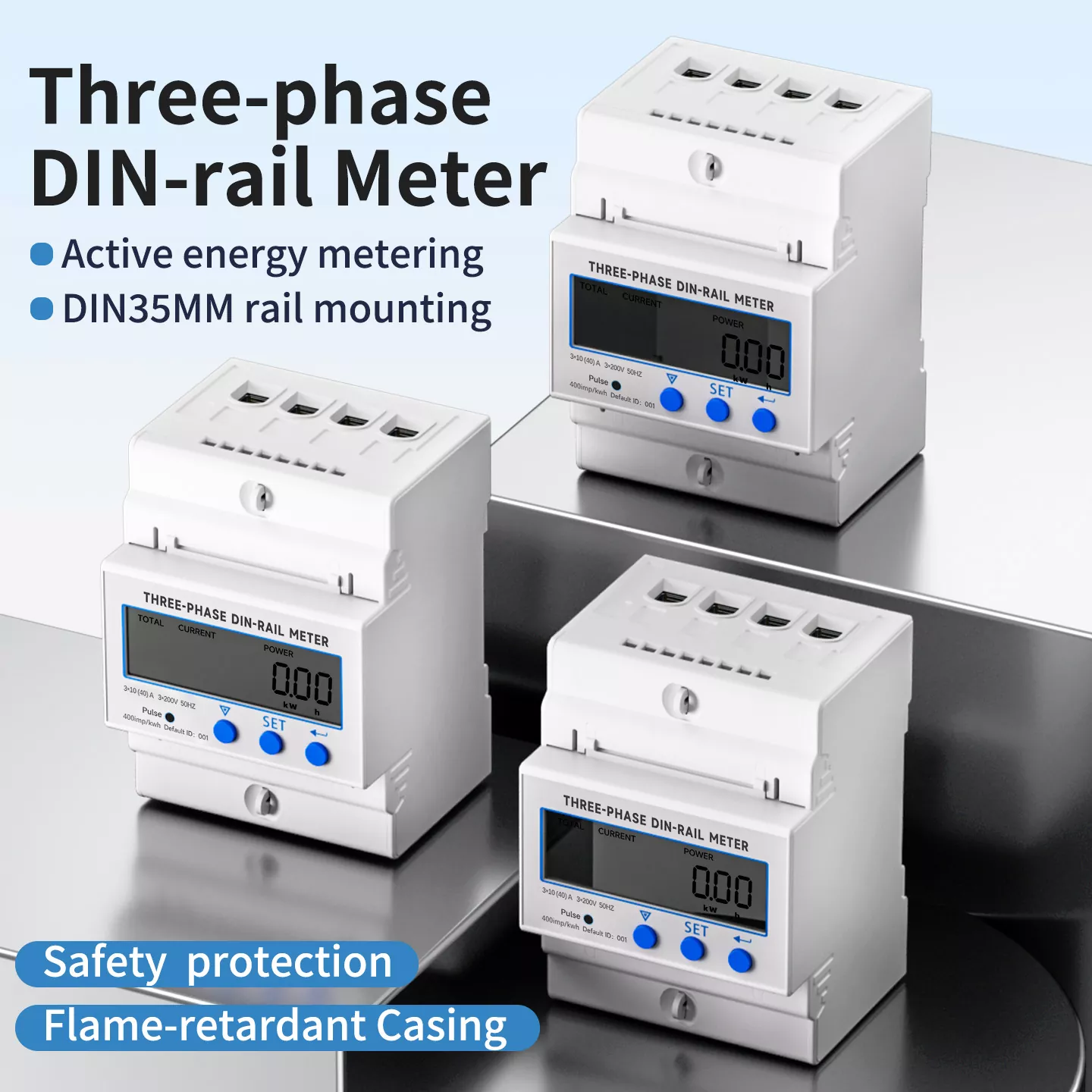

The Eton Three phase DIN rail Meter is a high performance multi parameter monitoring instrument designed for modern power systems. It integrates advanced SMT (Surface Mount Technology) chip technology and integrated circuits, enabling real time and precise measurement of three phase electrical parameters with 0.5 level accuracy. It comprehensively monitors power system data, records energy consumption, and supports abnormal alarms and communication uploads. With its compact structure, flame retardant casing, and standardized DIN35mm rail installation, it is the ideal choice for real time power parameter monitoring in industrial automation, distribution cabinets, and power grid projects.

Company Introduction

Committed to providing comprehensive services for industrial automation control. Satisfy the needs of all aspects of the power system with precise, reliable, energy saving, and environmentally friendly intelligent power distribution products. We adhere to strict quality control from R&D to production, ensuring each product meets international standards, and strive to be a trusted partner for global customers in the electrical measurement equipment industry.

New Quality Upgrade & More Durable

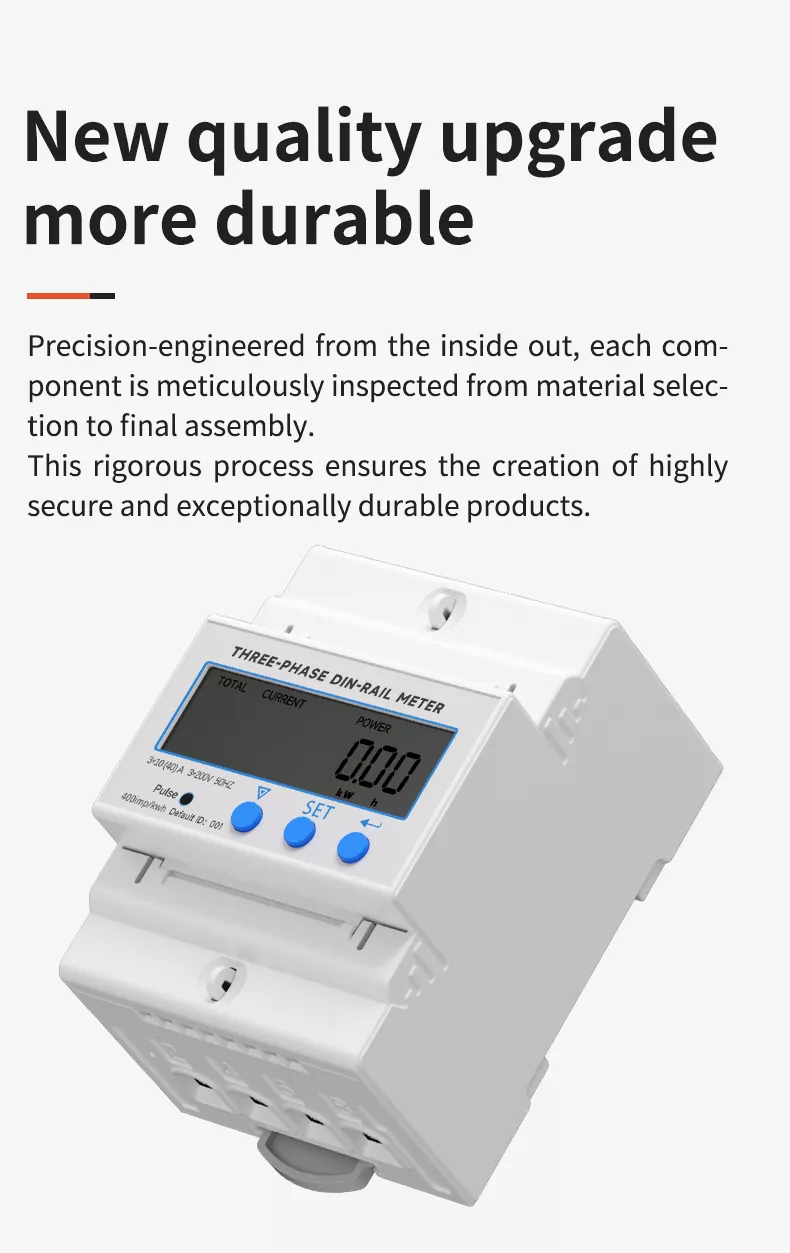

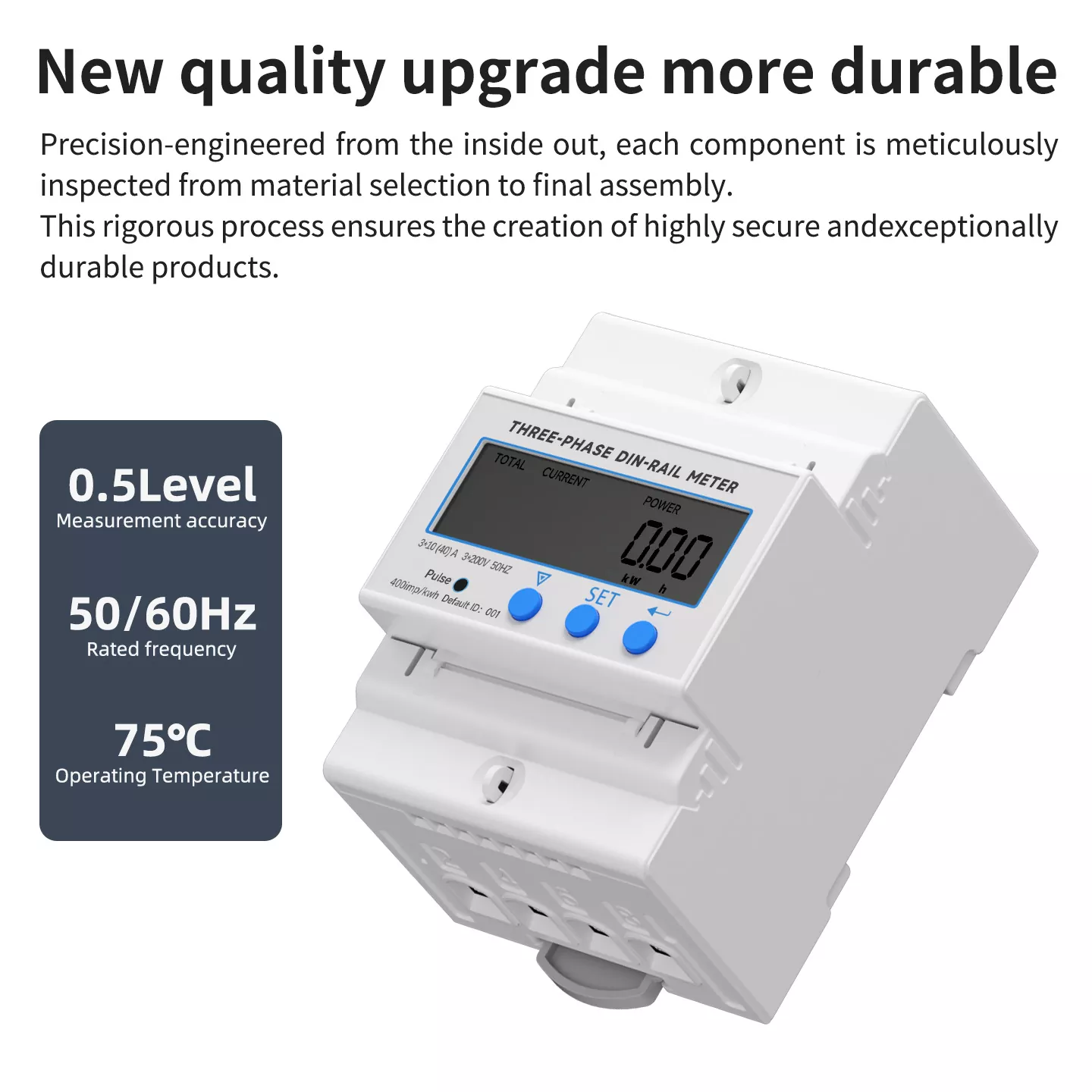

Our Three phase DIN rail Meter has undergone a comprehensive quality upgrade. Precision engineered from the inside out, each component is meticulously inspected—from high quality raw material selection and precision processing to SMT chip welding and final assembly. This rigorous production process, combined with aging testing, eliminates potential quality risks. The result is a product that is highly secure, corrosion resistant, and exceptionally durable, capable of long term stable operation even in harsh industrial environments with short term operating temperatures up to 75°C.

Structural Analysis

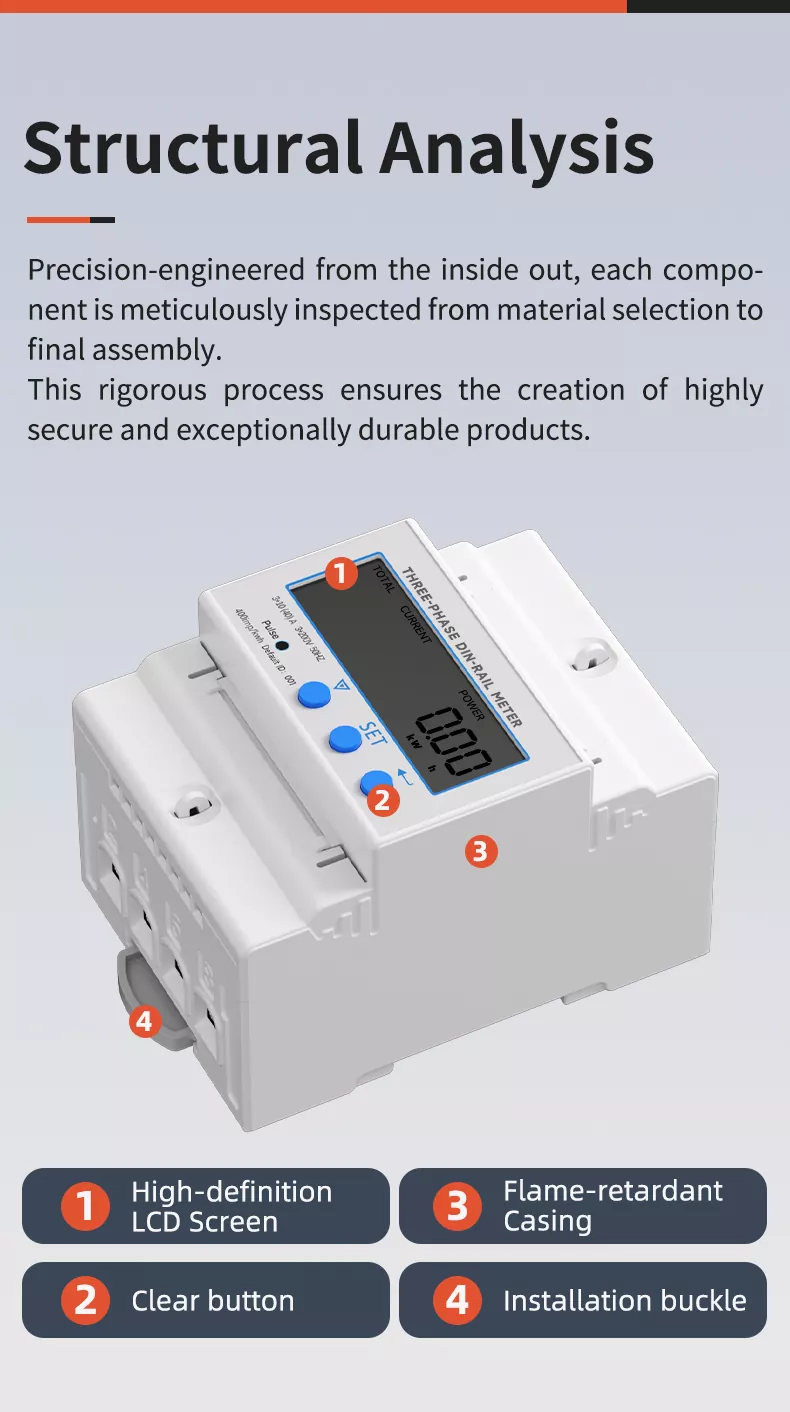

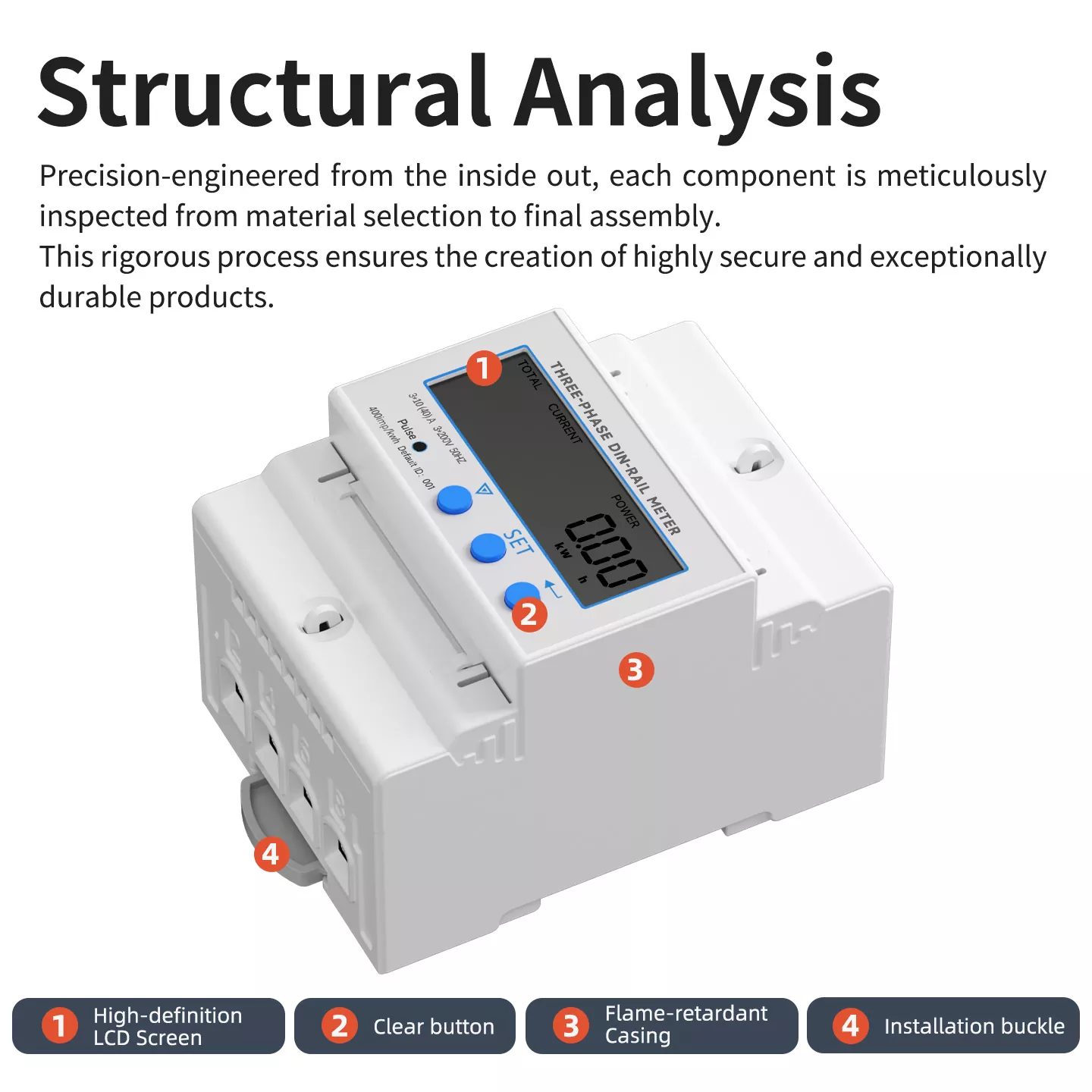

The Three phase DIN rail Meter features a scientifically optimized structural design, with four core components working in harmony:

1. High definition LCD Screen: The core display area for real time presentation of total energy, current, power, and other data.

2. Clear Buttons: Sensitive, quick response buttons for parameter configuration and data switching.

3. Flame retardant Casing: High strength ABS outer shell providing structural protection and electrical insulation.

4. Installation Buckle: Built in snap on structure for firm and tool free DIN35mm rail fixation, facilitating quick maintenance.

High quality Chips & Precise Measurement

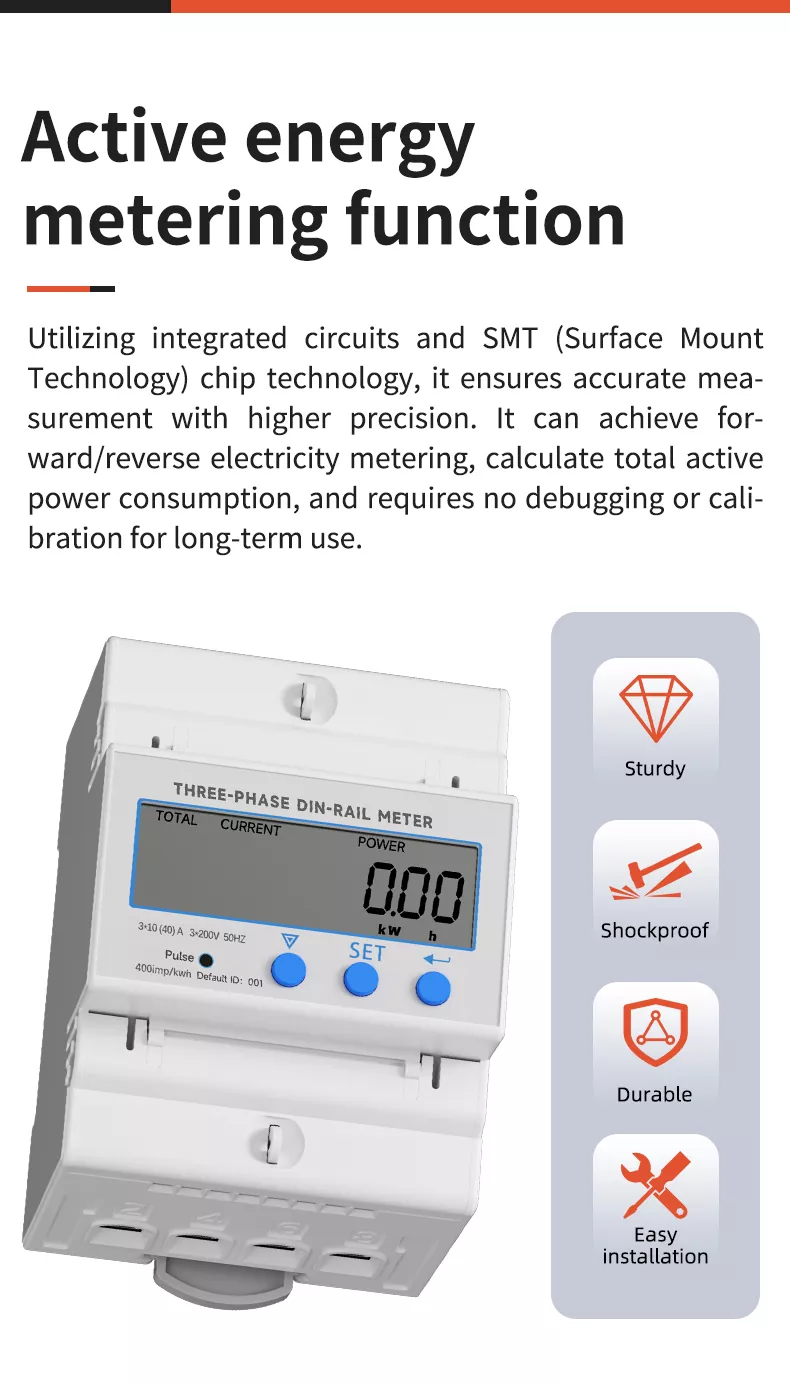

Utilizing advanced integrated circuits and SMT (Surface Mount Technology) chip technology, this meter ensures unparalleled measurement accuracy. The high performance industrial grade chip delivers fast processing speed, high sensitivity, and strong anti interference capability. It accurately captures real time power parameters without delay, supporting forward/reverse electricity metering and calculating total active power consumption. It requires no debugging or calibration for long term use, ensuring stable and reliable data output even in complex electromagnetic environments.

Our Products vs. Other Products

Core Advantage

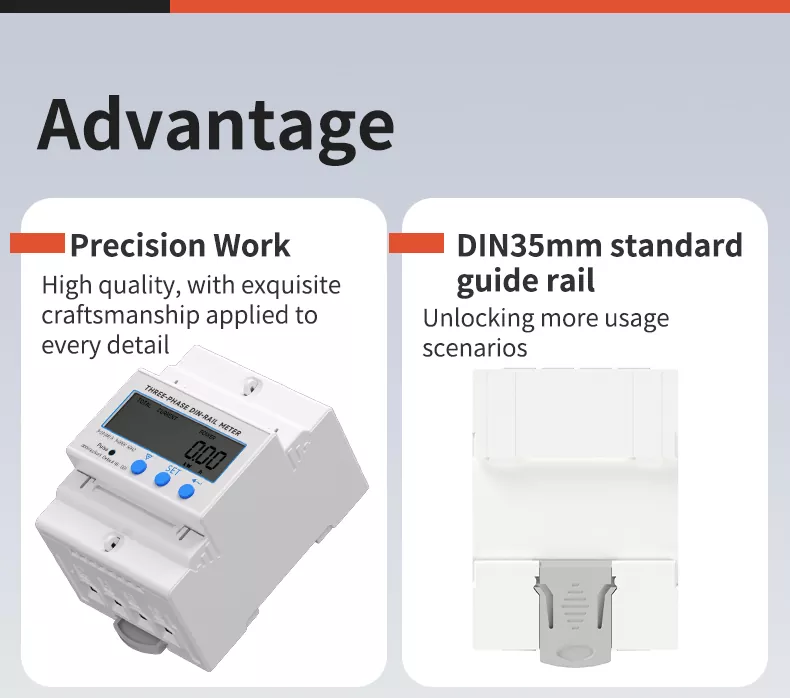

1. Precision Work: Exquisite craftsmanship is applied to every detail—from the smooth matte casing to the precisely aligned terminal blocks. High quality raw materials ensure consistent performance across all product batches.

2. DIN35mm Standard Guide Rail: Compatible with universal DIN35mm guide rails, unlocking more usage scenarios and simplifying installation.

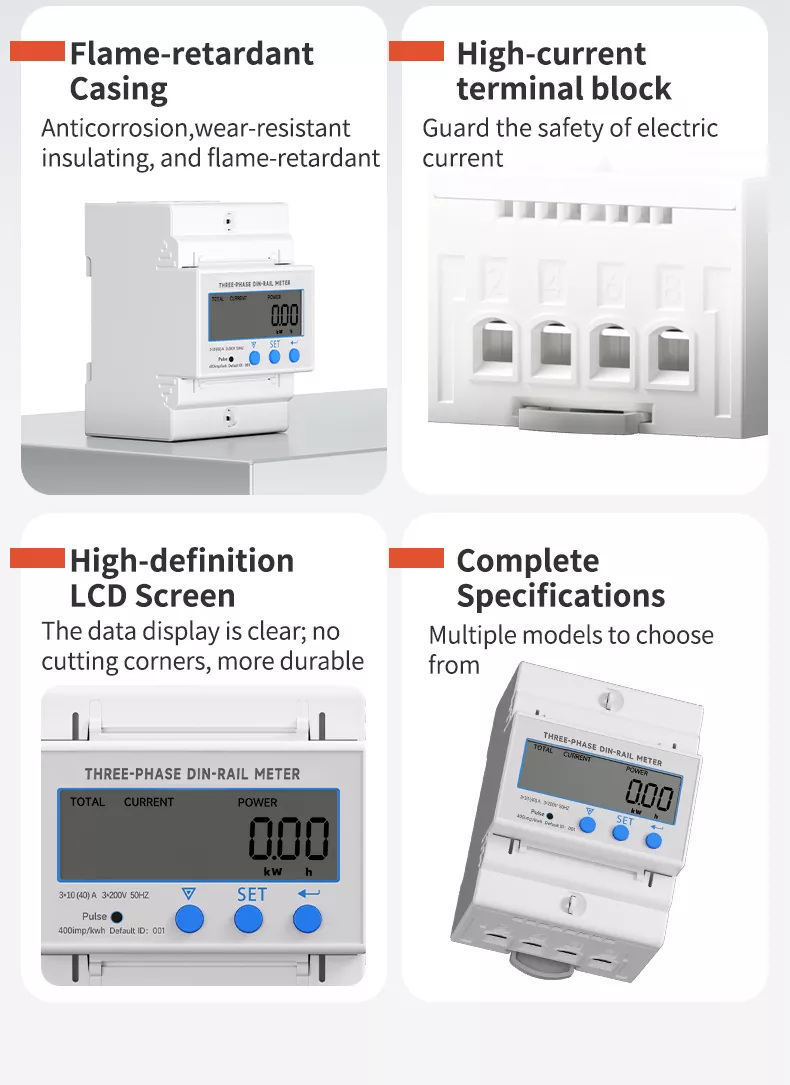

Four Core Selling Points

• Flame retardant Casing: Made of high grade ABS material, it is anticorrosive, wear resistant, insulating, and flame retardant, effectively preventing fire hazards from short circuits or overloads.

• High current Terminal Block: Copper terminals ensure strong conductivity, low power loss, and secure current safety.

• High definition LCD Screen: Clear data display with no cutting corners, more durable and easy to read.

• Complete Specifications: Multiple models to choose from, meeting diverse application needs.

The Shell is Sturdy and Shock resistant

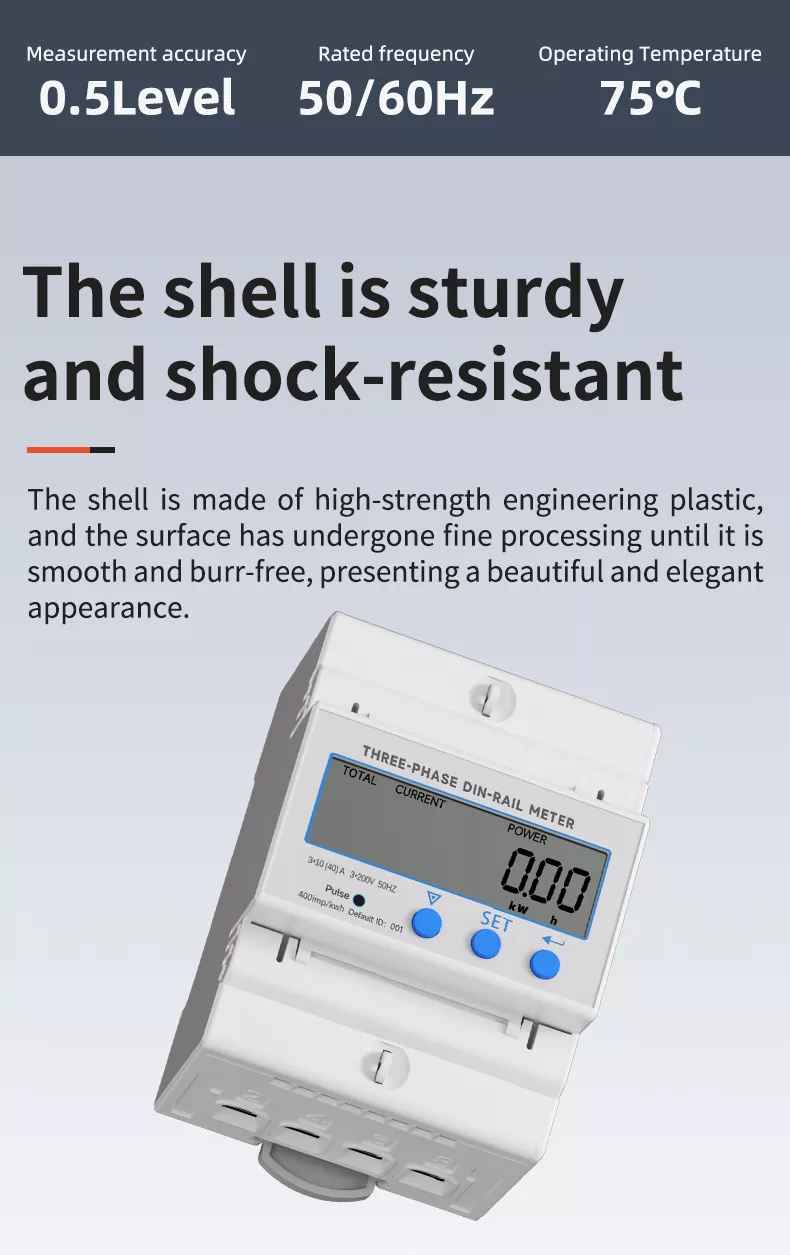

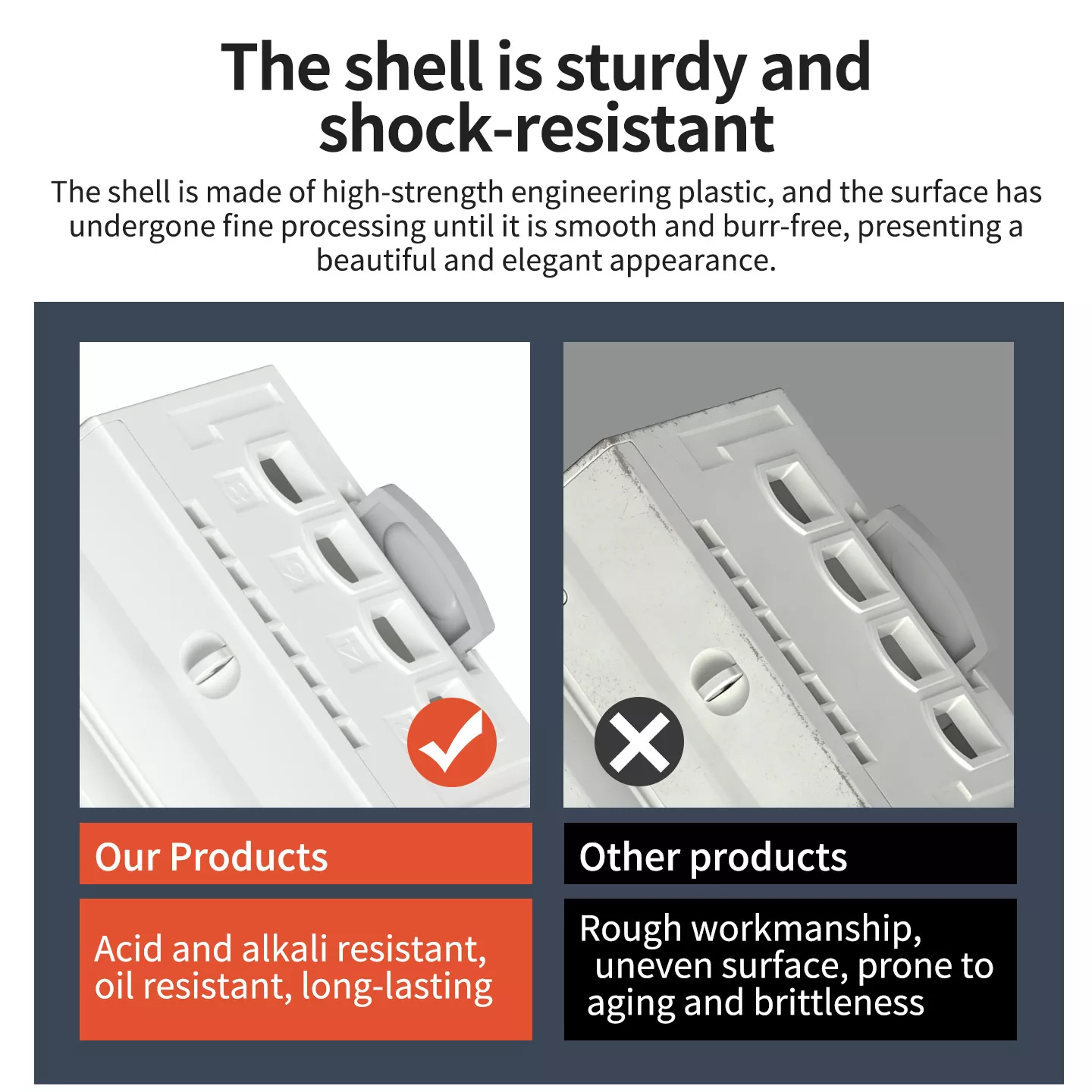

The casing of the meter is crafted from high strength engineering plastic, undergoing fine surface processing to achieve a smooth, burr free finish with a sleek, modern appearance. It boasts excellent shockproof and compression resistant performance, capable of withstanding mechanical vibrations and slight impacts common in industrial sites without structural damage or performance degradation. Additionally, the material’s acid and alkali resistance ensures a long service life in various complex working environments.

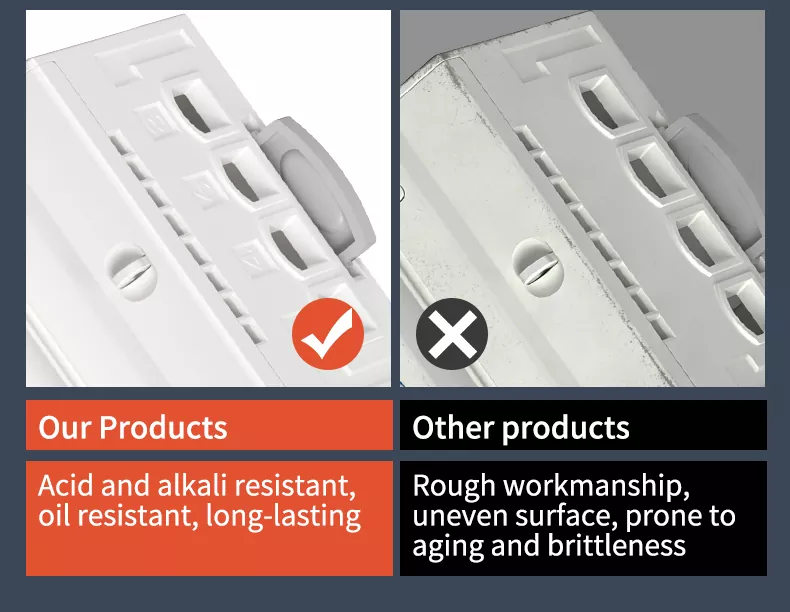

Flame Retardant ABS Material

Adopting high grade flame retardant ABS engineering plastic, the meter’s casing meets stringent safety standards. Flame retardant materials can effectively inhibit combustion and prevent the spread of fire caused by high temperatures generated by instrument faults such as short circuits and overloads. This design fundamentally eliminates fire safety hazards, providing a reliable safety guarantee for the entire power system and making it suitable for use in fire prone industrial and commercial settings.

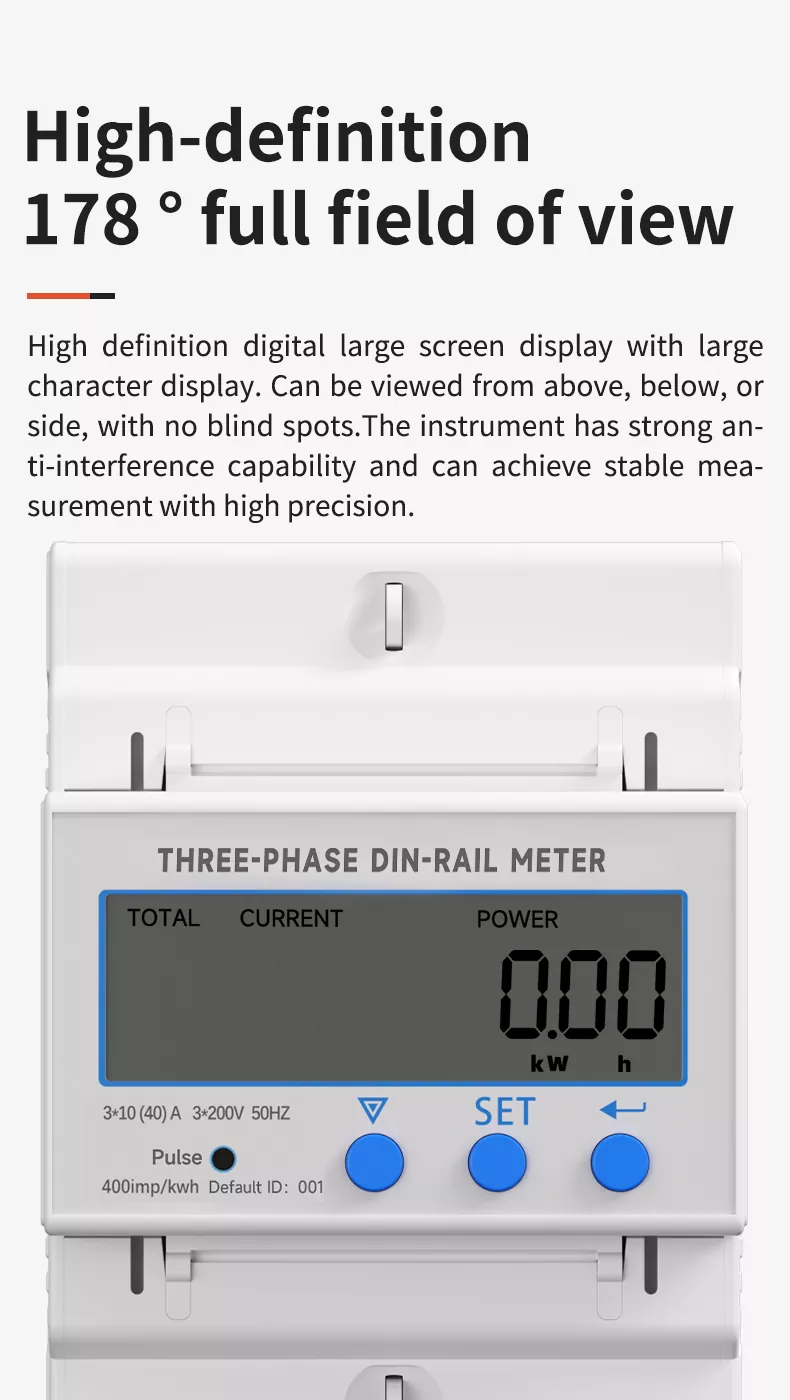

High definition 178° Full Field of View

Equipped with a high definition digital large screen LED display, this meter features large, bright characters for unparalleled clarity. The screen supports a 178° full viewing angle—readable from above, below, or any side with no blind spots—ensuring operators can read critical data quickly and accurately from any position. The instrument’s strong anti interference capability ensures stable measurement and display even in the most complex electromagnetic environments.

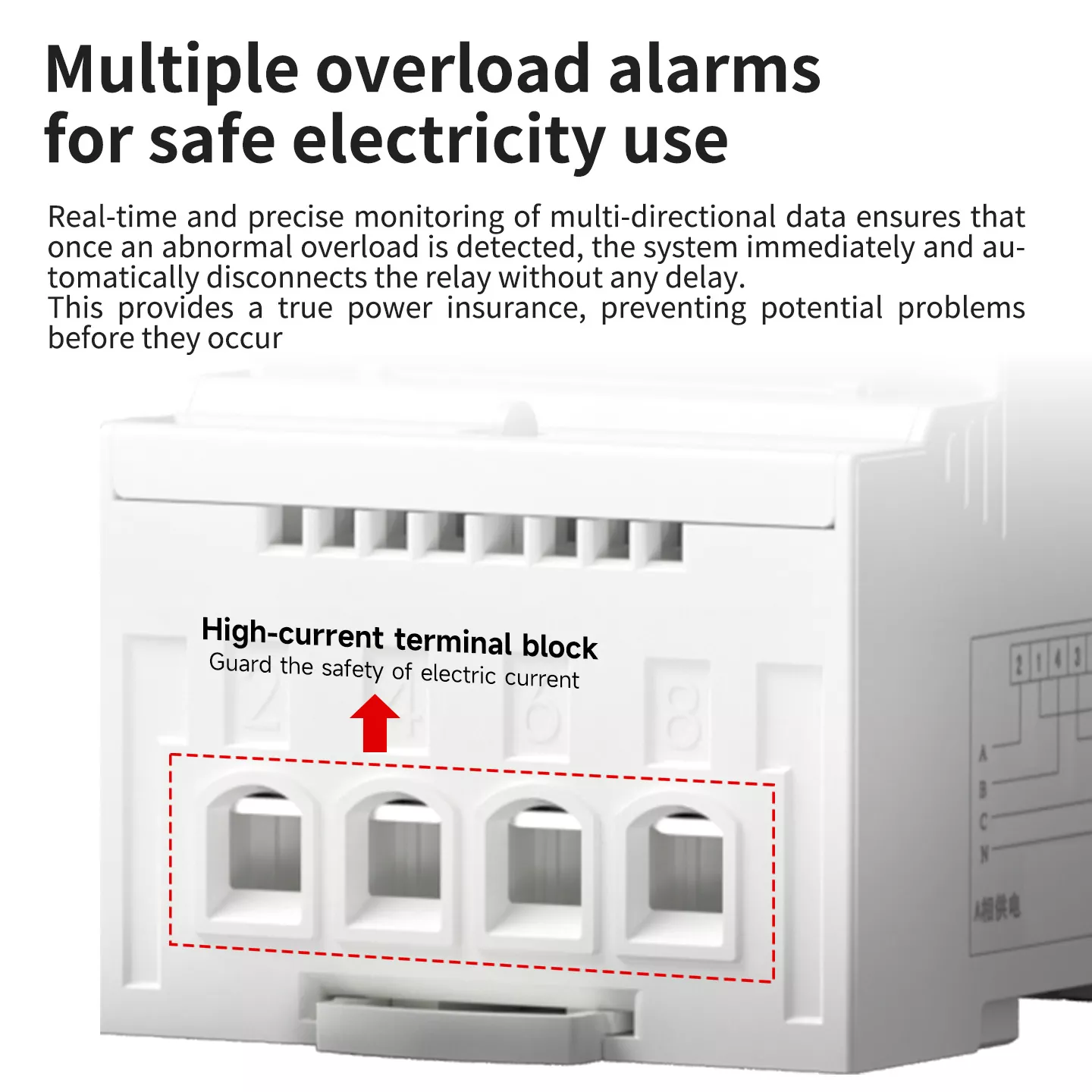

Multiple Overload Alarms for Safe Electricity Use

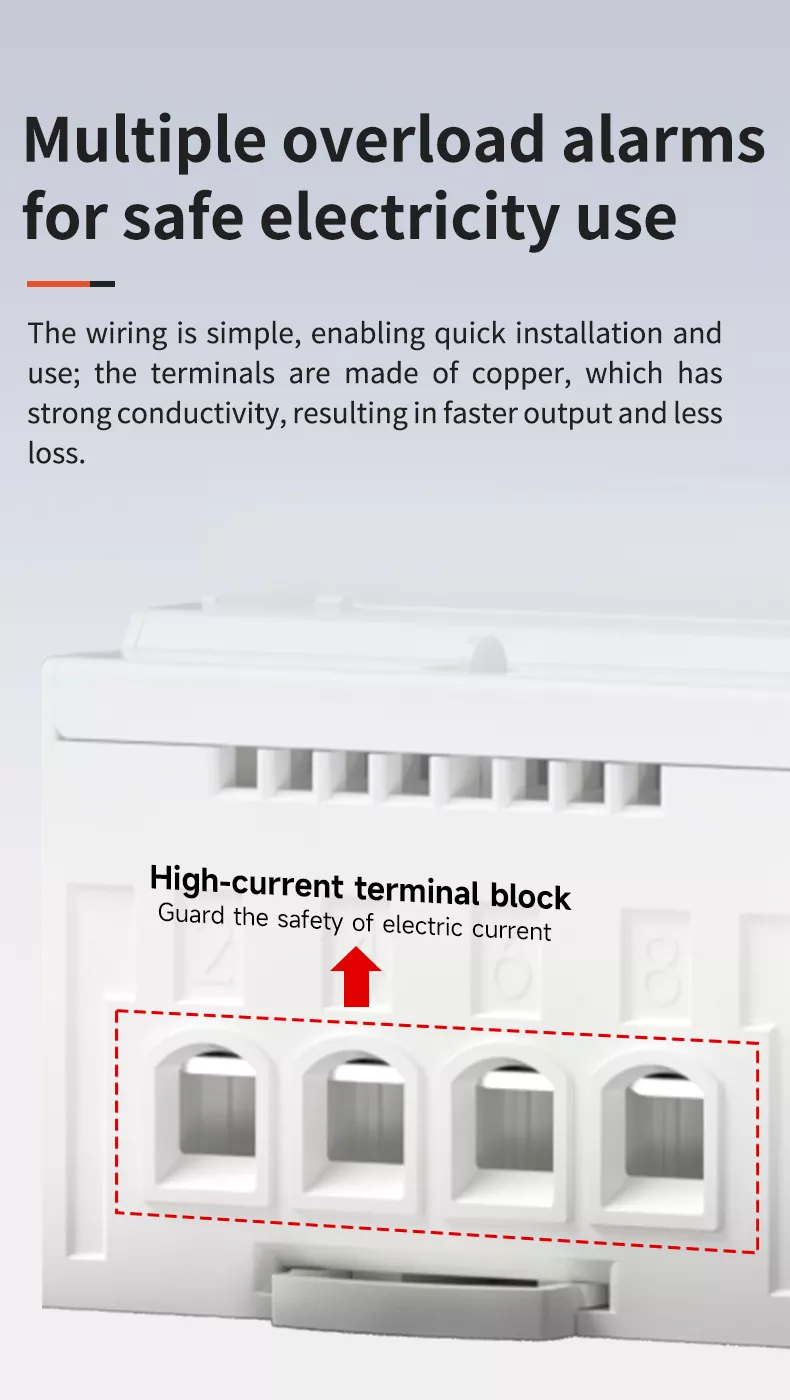

The wiring is simple, enabling quick installation and use; the terminals are made of copper, which has strong conductivity, resulting in faster output and less loss. The high current terminal block guards the safety of electric current, while multiple overload alarm functions provide real time warnings for abnormal power conditions, effectively preventing equipment damage and ensuring safe electricity use.

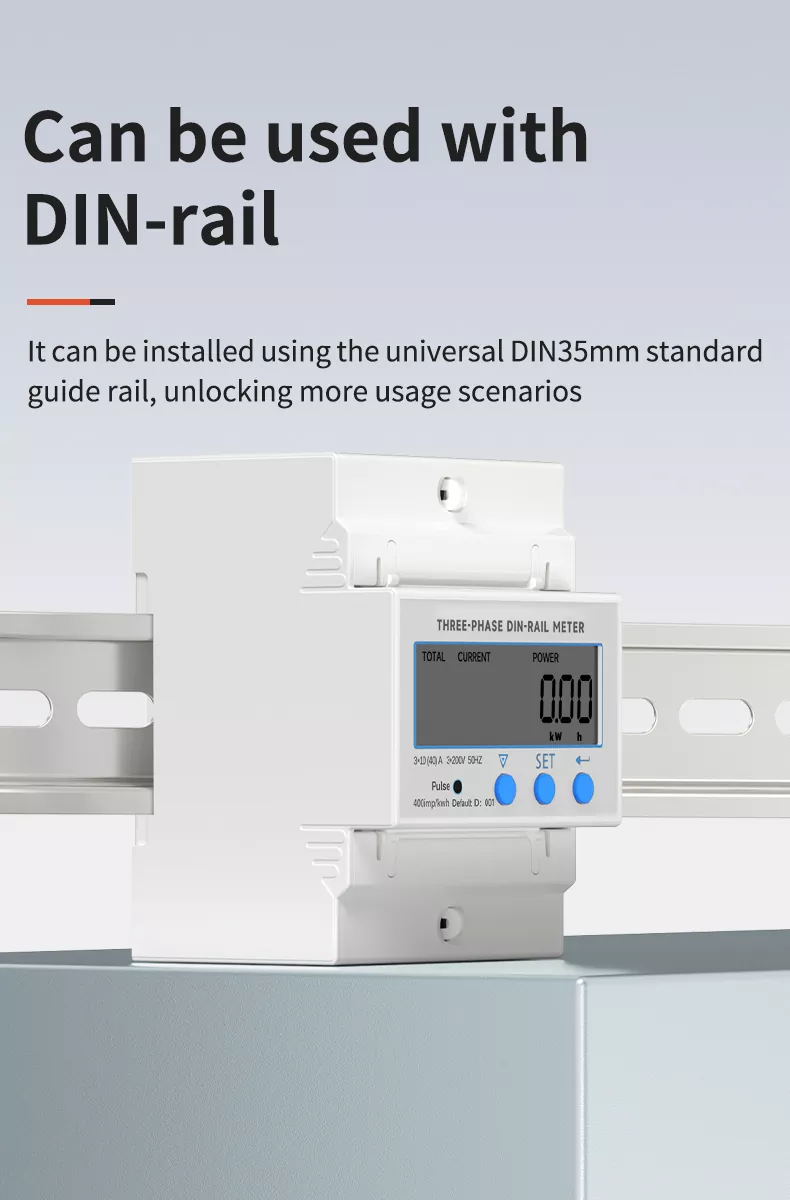

Can be Used with DIN rail

It can be installed using the universal DIN35mm standard guide rail, unlocking more usage scenarios. The snap on installation buckle allows for tool free mounting and dismounting, making it convenient for installation, maintenance, and replacement in distribution cabinets and industrial control panels.

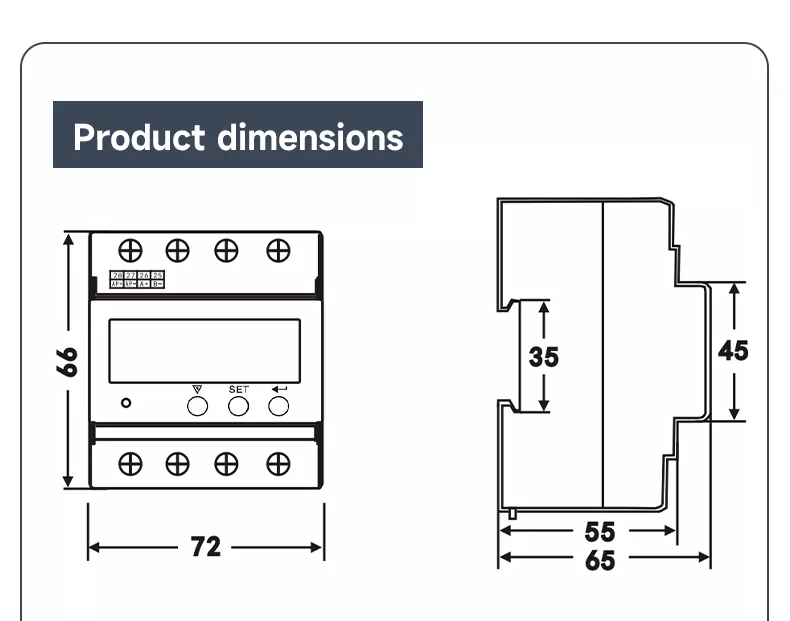

Product Dimensions

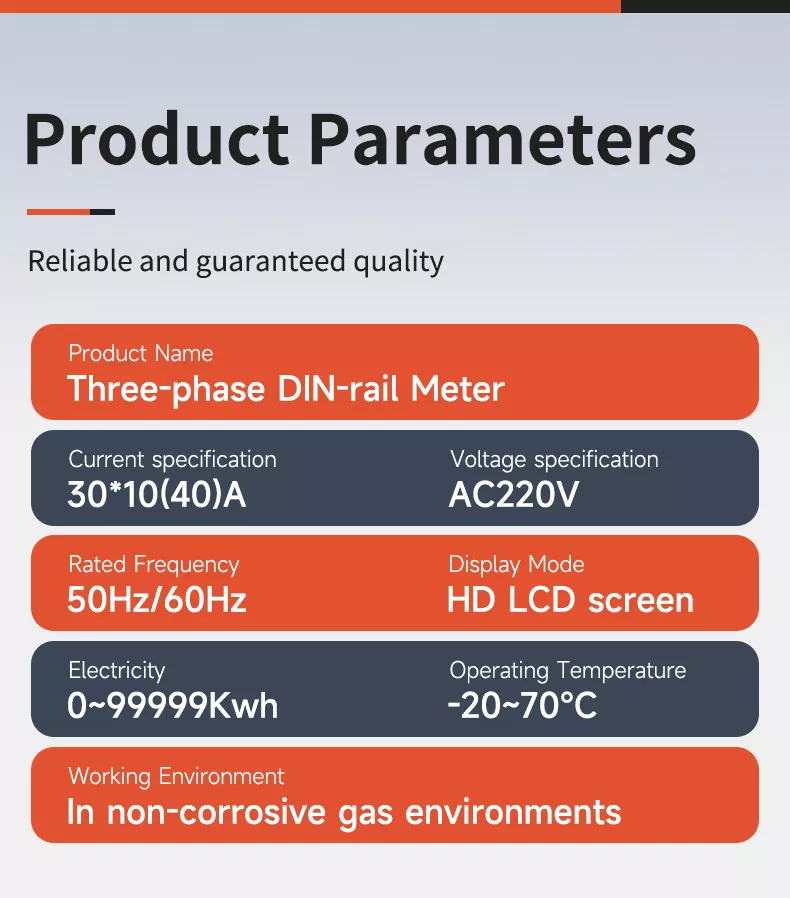

Product Parameters

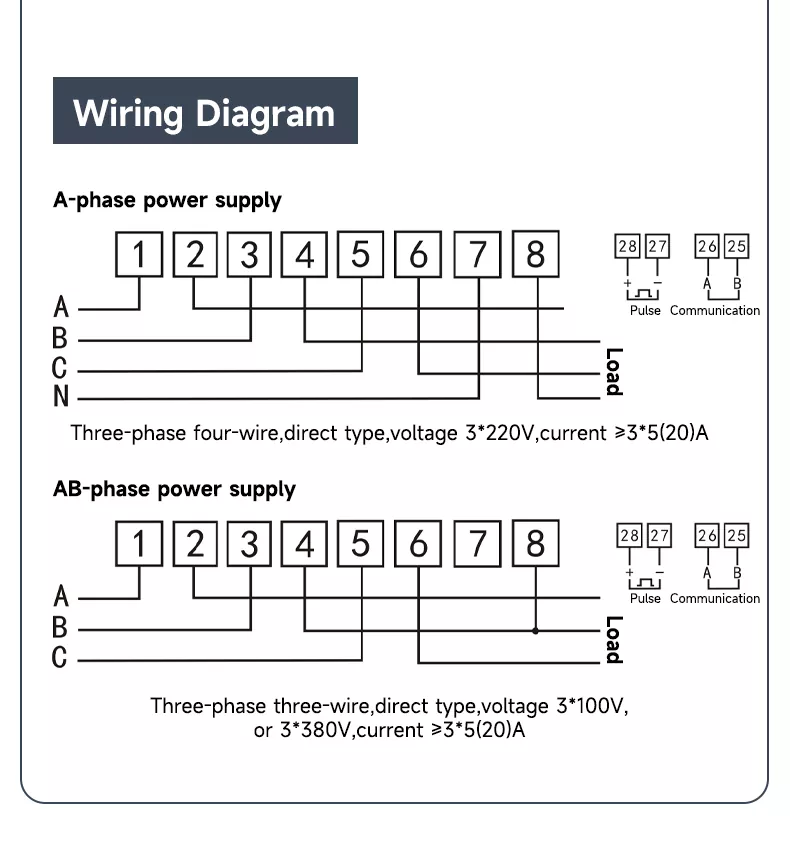

Wiring Diagram

A phase power supply (Three phase four wire, direct type)

Voltage: 3×220V

Current: ≥3×5(20)A

Connect terminals 1 8 to A/B/C/N phases and load, with pulse and communication terminals (25 28) for data output.

AB phase power supply (Three phase three wire, direct type)

Voltage: 3×100V or 3×380V

Current: ≥3×5(20)A

Connect terminals 1 8 to A/B/C phases and load, with pulse and communication terminals (25 28) for data output.

The simplified wiring design with clear terminal markings ensures quick and error free installation, suitable for both professional electricians and on site maintenance personnel.

Authoritative Certification

The Three phase DIN rail Meter has passed multi party professional inspections, including rigorous testing by the Jiangsu Institute of Metrology, and obtained authoritative certifications such as MA and CNAS. Strict quality control is implemented throughout the production process—from raw material procurement to finished product delivery—to ensure each meter meets national and international quality and safety standards. This reliable certification system provides a solid guarantee for bulk procurement and long term cooperation with global customers.

Widely Used

The Three phase DIN rail Meter is a versatile monitoring solution widely applied across multiple industries:

• Substation: Real time monitoring of grid voltage, current, and power stability.

• Automation Equipment: Power parameter monitoring for industrial robots and CNC machinery.

• Flow Production: Tracking power status to optimize production line efficiency and safety.

• Distribution Cabinet: Core monitoring component for low voltage power distribution systems.

• Residential Building: Monitoring three phase power supply for commercial and residential complexes.

• Department Store: Ensuring stable power supply for elevators, lighting, and critical equipment.
